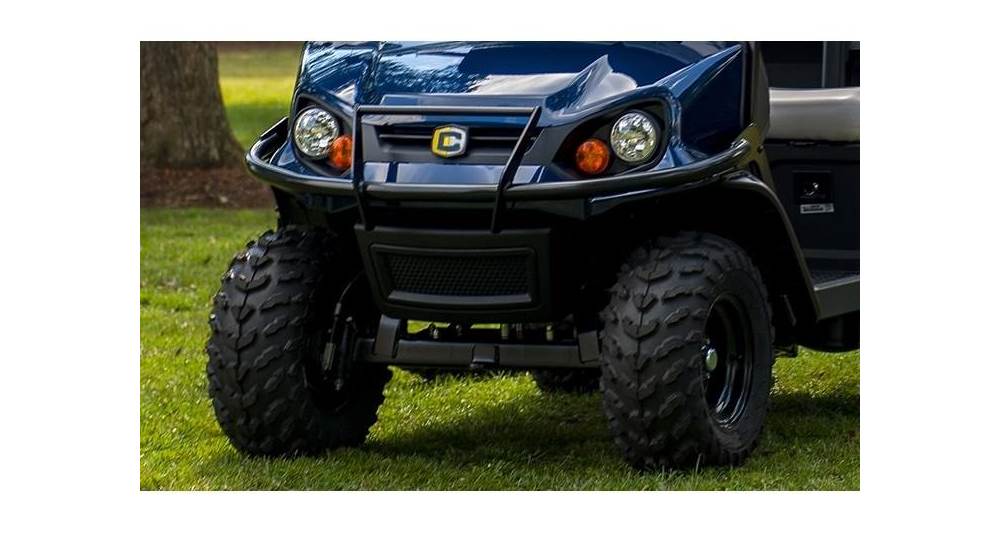

Cushman Hauler 800X EFI Gas

Description

The Hauler 800X approaches every job with the perfect mix of toughness and real-world utility. Available with your choice of a gas or electric powertrain, rugged tires and a lifted suspension, it’s built to help you get the job done.

Features

Lifted Suspension: Added ground clearance for uneven terrain.
Optional Rear Hitch Receiver: Add even more hauling capability.
Highly-Functional Dash: Industry-leading storage and control at your fingertips.
Integrated Tie-Down System: A series of tie-down locations make it easy to secure maintenance equipment or loose loads.

Key Features

13.5-hp EFI Gas Engine
725-lb Vehicle Load Capacity
325-lb Bed Load Capacity
8.4-cu-ft Cargo Bed
2-Passenger Seating

Body & Chassis

Frame: Welded Steel w/ E-Shield e-coat plus DuraShield Powder Coat
Body & Finish: Injection Molded TPO (Front) / Injection Molded PP (Rear)
Standard Color: Patriot Blue, Forest Green

Dimensions

Overall Length: 110 in (279.4 cm)
Overall Width: 49 in (125 cm)
Overall Height: 51 in (129.5 cm) (w/o Roof) / 74 in (188 cm) (w/ Canopy)
Wheel Base: 65.5 in (166.4 cm)
Wheel Track: 37 in (94.0 cm) Front / 38 in (96.5 cm) Rear
Ground Clearance: 5.5 in (14.0 cm)
Cargo Deck Capacity: 8.4 cu ft (0.24 m3)
Cargo Deck Material: Roto-Molded Polyethylene

Power

Power Source: 4-Cycle, 24.5 ci (401cc) Cylinder
Valve Train: Single Cylinder OHV
Horsepower (KW): 13.5 hp (10.1 kW)
Electrical System: Starter/Generator. Solid State Reg.
Battery (Qty/Type): One, 12V Maintenance Free
Battery Charger: –
Key or Pedal Start: Pedal
Air Cleaner: Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 5.6 Gallon (21.2 L) Tank
Speed Controller: –
Drive Train: Continuously Variable Transmission (CVT)
Transaxle: Differential w/ Helical Gears
Gear Selection: Forward – Reverse
Rear Axle Ratio: 11.47: 1 (Forward) 14.53: 1 (Reverse)

Performance

Seating Capacity: 2-Person
Weight w/o Batteries: 800 lb (362.9 kg)
Curb Weight: 830 lb (376 kg)
Vehicle Load Capacity: 725 lb (328.9 kg)
Bed Load Capacity: 325 lb (147.4 kg)
Towing Capacity: 500 lb (226.8 kg) Max Load
Outside Clearance Circle: 18.9 ft (5.8 m)
Speed: 16.5 mph ± 0.5 mph (26.5 kph Â± 0.8 kph)

Steering & Suspension

Steering: Self-Compensating Rack & Pinion
Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
Service Brake: Rear Wheel Mechanical, Self-Adjusting Drum
Parking Brake: Self-Compensating,Single-Point Engagement
Tires: 20 x 8-10 (6 Ply Rated)

Additional information

Availability	Brochure
Manufacturer	Cushman
Model	Hauler 800X EFI Gas
Fuel Type	Gas
