Jacobsen AR331

SKU 674e0b8bc3a7 Category Tags , ,

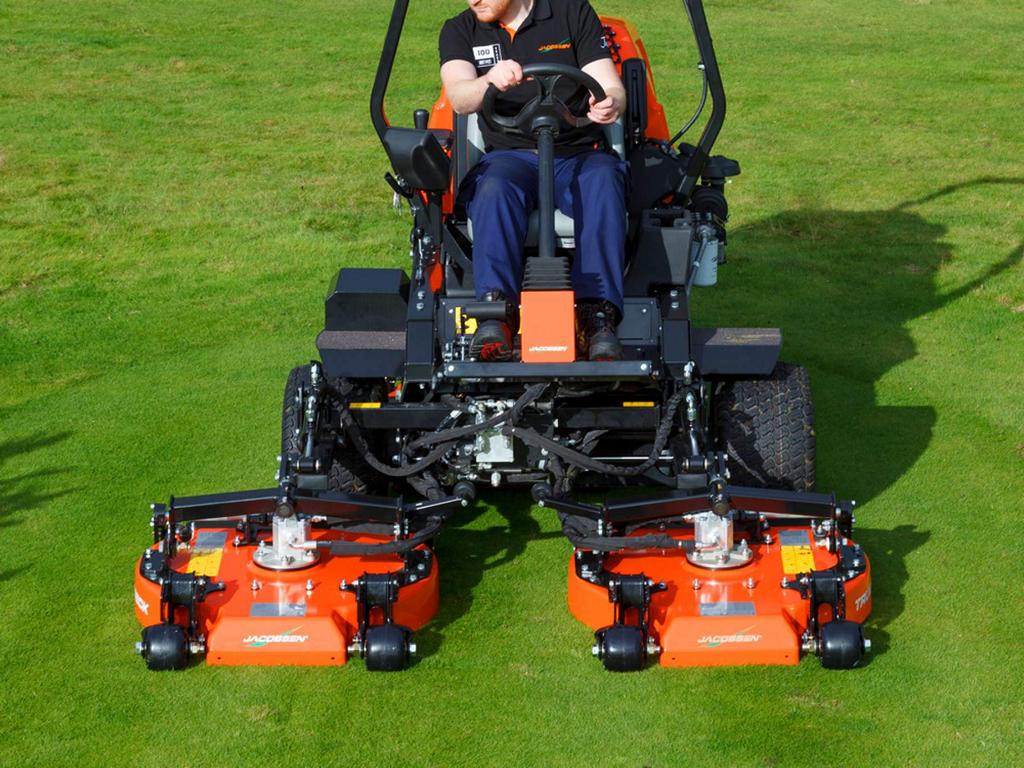

Equipped with advanced new TrueDeck™ cutting units, the AR331 makes it easier than ever to deliver a superior quality of cut to all corners of your facility. The AR331 features advanced technology and the necessary functionality to heighten productivity while delivering Jacobsen’s legendary quality of cut. The AR331’s AdaptiShift™ technology allows operators to effortlessly shift all three cutting decks to either side of the machine, creating up to 12 in. of offset and the option to create varying tire patterns. The AR331 also features the industry’s only armrest-mounted LCD color control screen, which displays vehicle information, on-board diagnostics and fault alerts. By giving you and your crew the ability to do more with one trim unit, the AR331 will help you get the most out of every work day.

  • Type: Kubota® D1105 3 cylinder
  • Horsepower: 24.8 hp @ 3000 RPM
  • Air Cleaner: Dry cartridge type
  • Cooling System: Pressurized, sealed cooling system
  • Lubrication: Pressurized system with replaceable full flow filter
  • Oil Filter Type: Remote replaceable spin on type
  • Electrical System: 12 V
Speed (Maximum)
  • Mowing: 6.2 mph
  • Transport: 8.7 mph
  • Reverse: 3.7 mph
Traction and Drive
  • Traction System: 3WD Parallel Series
  • Deck Drive: Fixed displacement hydraulic
  • Hydraulic System: 8.7 gal. capacity, full flow filtration (10 micron filter); GreensCare biodegradable oil
Tires, Brakes, and Steering
  • Service Brakes: Hydrostatic braking
  • Parking Brake: Service free wet disc parking brakes on the front wheels
  • Steering: Hydraulic power steering with tilt wheel
Reels and Blades
  • Number and Size: Three 27 in TrueDeck rotary cutting units
  • Blade Material: Hardened, carbon steel alloy
  • Overall Cutting Width: 72 in. featuring AdaptiShift™ with up to 12 in of offset
  • Cutting Unit Lift: Joystick operated
  • Weight Transfer: Adjustable hydraulic, electronically activated operator control
  • Height-of-Cut: 0.75-3.5 in
Weight and Dimensions
  • Weight: 2004 lbs
  • Length: 122 in.
  • Overall Height including ROPS: 82 in.
  • Wheel Base: 61 in.
  • Width: 77 in.
