Jacobsen GP400 Gas

Out of stock

Call for Price

SKU bac976cd3ba4 Category
Request a Quote
Quote by Phone
Request Brochure

Description

Description

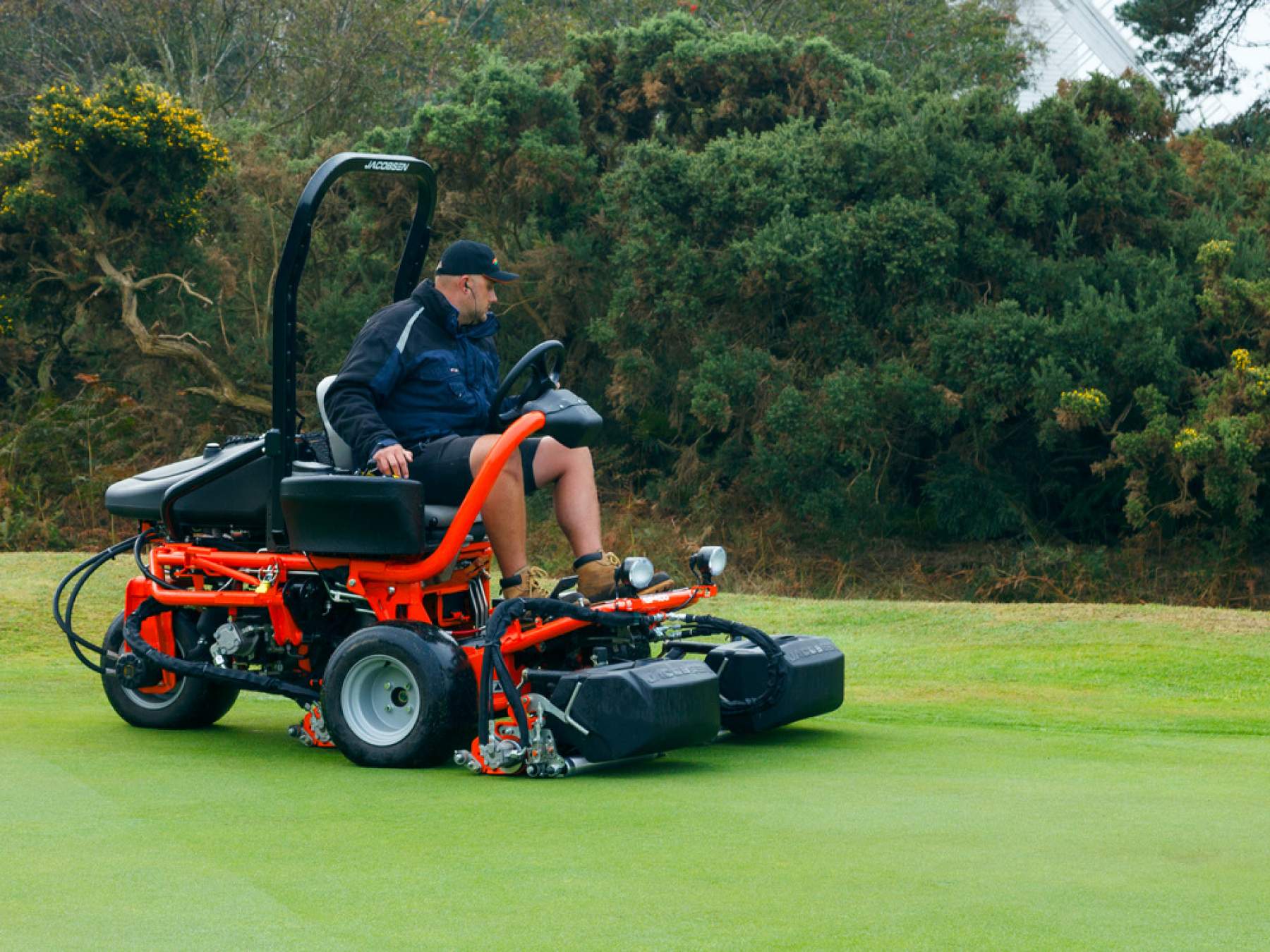

The new GP400 retains many of the features of its celebrated predecessor (G-Plex III) including a swing-out center unit for easy maintenance and adjustment, the legendary cutting units with a choice of 7, 9 or 11-blade reels and features a Briggs & Stratton V twin, air cooled engine.

Features
  • Ergonomically re-styled dash panel incorporating joystick controls
  • New ISO 21299 approved ROPS frame
  • Refined hydraulic system with fewer components
  • Re-styled fuel tank incorporating a storage area and large easy fill cap
Engine
  • Type: Briggs & Stratton® Vanguard™ V-twin
  • Horsepower: 17.7 hp @ 3400 rpm
  • Displacement: 35 cu. in.
  • Air Cleaner System: Dual element
  • Cooling System: Air cooled
  • Fuel Capacity: 15 gal.
Speed (Maximum)
  • Mowing: 3.7 mph
  • Transport: 7.5 mph
  • Reverse: 1.9 mph
Traction and Drive
  • Traction Drive: Hydraulic motor on each drive wheel
  • Reel Drive: Gear type hydraulic motor; backlap control standard
  • Hydraulic System: 6.8 gal. capacity; 10 micron, full flow filtration; biodegradable fluid; oil cooler standard
  • Reel Lift: Hydraulic double action cylinders; parallel link head leveling system
Tires, Brakes, and Steering
  • Tires: 20 x 10-10, 2-ply pneumatic, tubeless
  • Parking Brake: 6 in. caliper disc, hand operated
  • Ground Pressure: 14 psi
  • Steering: Power

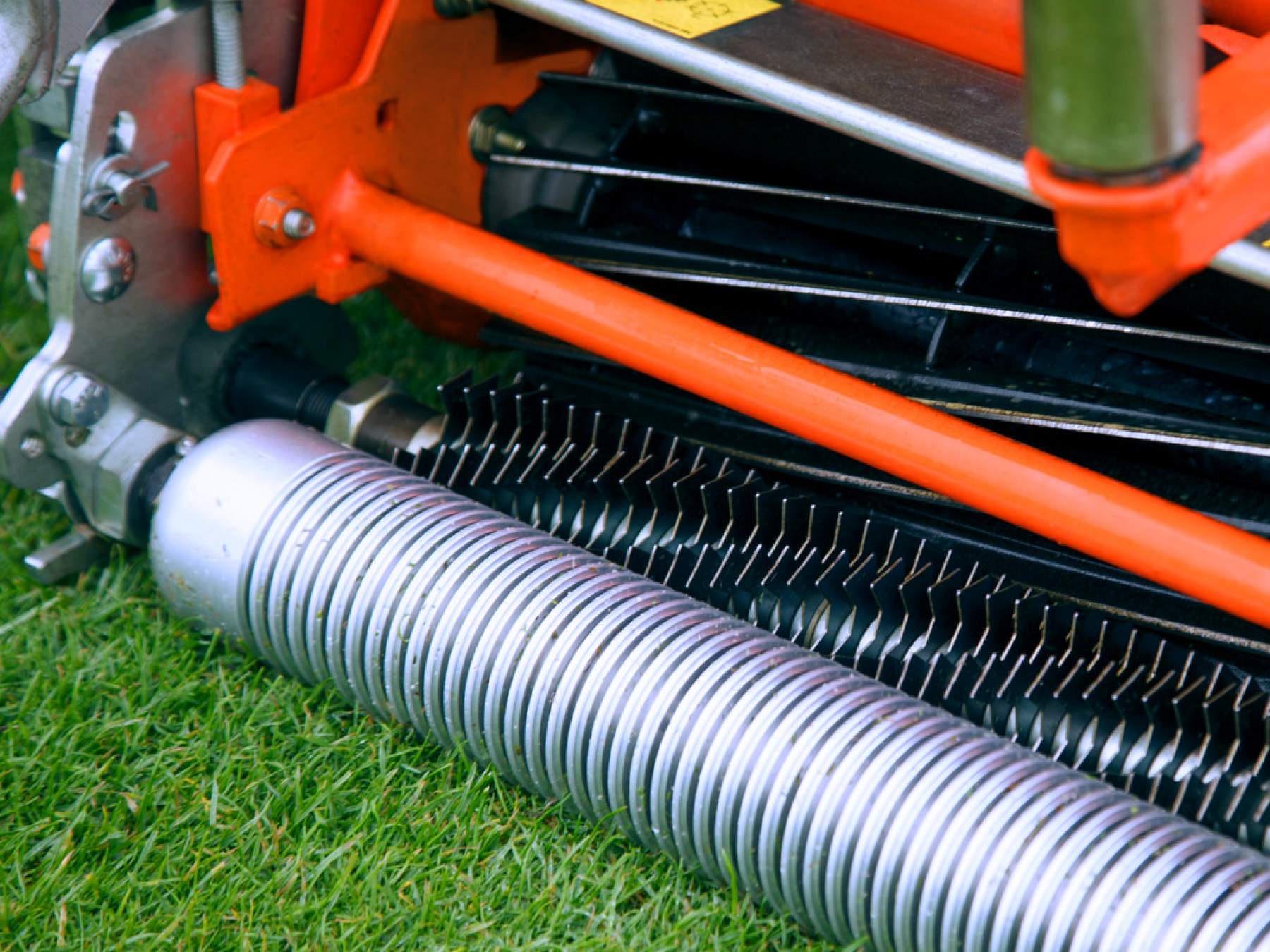

Reels and Blades
  • Number and Size: Three 22 in. reels; 5 in. diameter
  • Number of Blades: 7, 9, 11
  • Blade Material: Hardened, high-carbon steel
  • Cutting Frequency: .050 in/mph with 11-blade reels
  • Overall Cutting Width: 62 in.
  • Height-of-Cut Range (Depending on turf condition, reel wear and bedknife installed): 0.062 – 0.438 in.
Weight and Dimensions
  • Ready-to-Cut Weight: 1463 lbs.
  • Length (less catchers): 83 in
  • Overall Height including ROPS: 67.7 in.
  • Wheelbase: 51.2 in.
  • Width: 74.5 in.
