Description

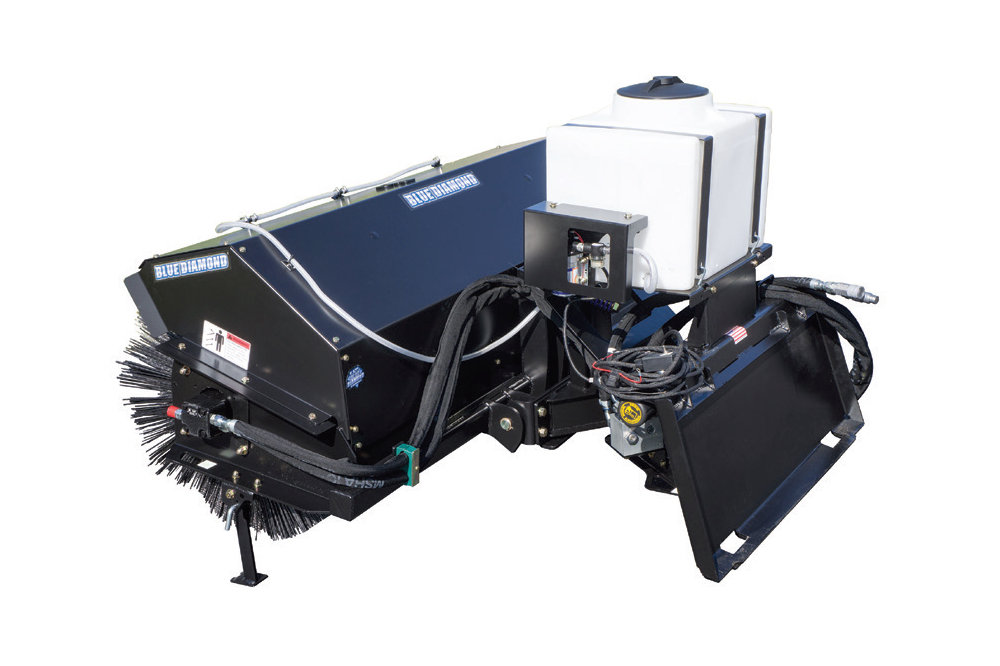

The Blue Diamond® Series 2 Heavy Duty Rotating Angle Broom is available in manual and hydraulic. A simple to use control comes with the hydraulic angle model to control from inside the cab of your skid steer. The bristles are available in poly or poly-steel mix and are protected by retractable legs when not in use.
- 60″, 72”, 84”, and 96″ widths
- 26” diameter bristles
- Manual or hydraulic options

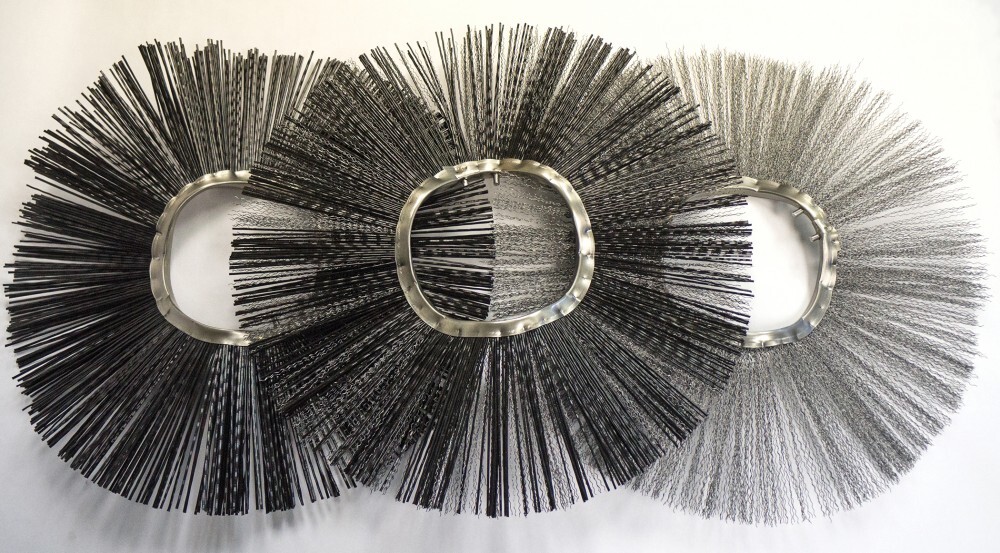

- Poly or poly steel mix

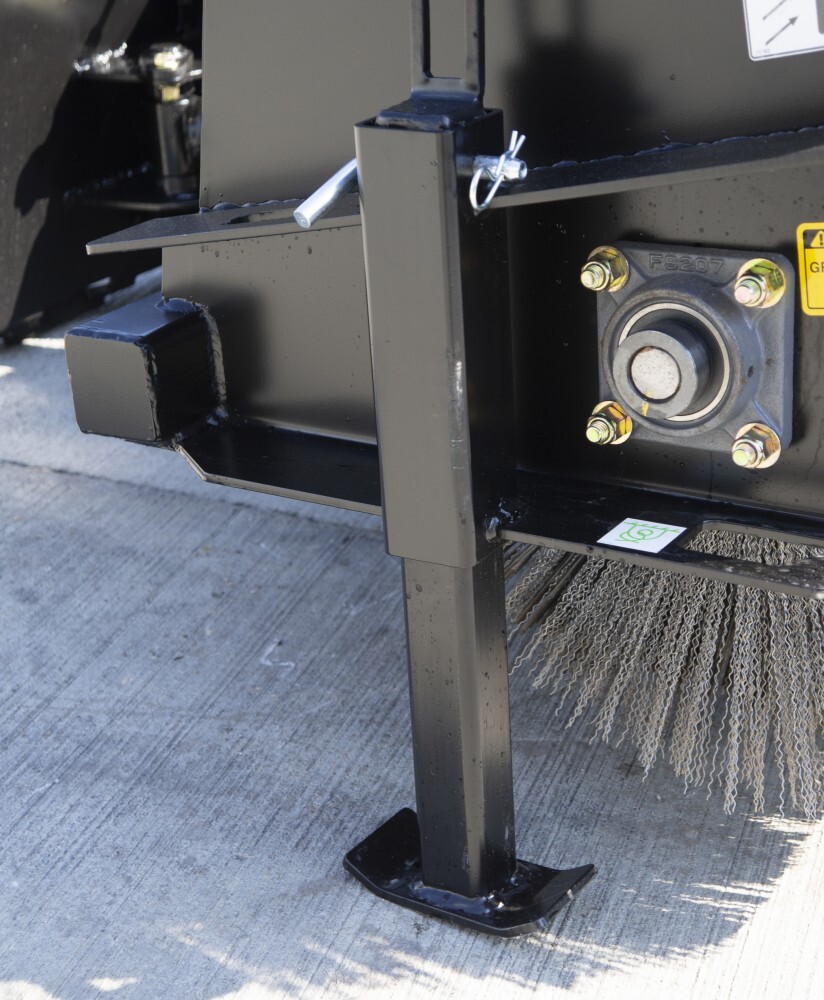

- Stands protect bristles when not in use

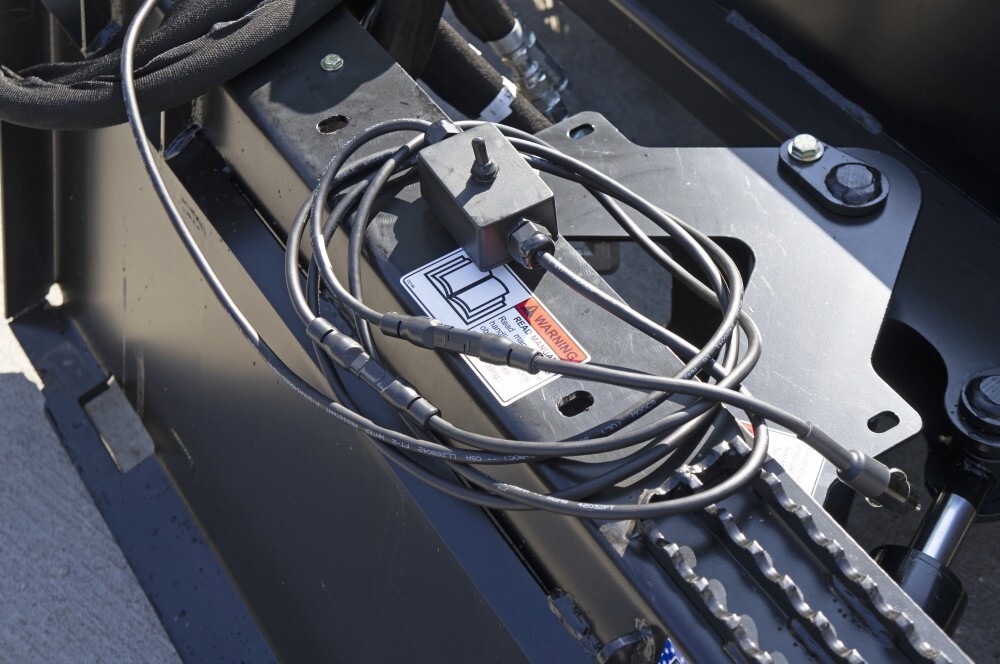

- 14-pin OEM connector available
- 1-year warranty
- Optional water kit (25 gallon)
- Pivot Angle of 30 degrees
| Part Number |
Model |
Weight |
| 116207 |
60″ Manual Angle |
620 lbs |
| 116212 |
72″ Manual Angle |
665 lbs |
| 116217 |
84″ Manual Angle |
811 lbs |
| 116222 |
96″ Manual Angle |
980 lbs |
| 116205 |
60″ Hydraulic Angle (Requires Wiring Harness) |
652 lbs |
| 116210 |
72″ Hydraulic Angle (Requires Wiring Harness) |
687 lbs |
| 116215 |
84″ Hydraulic Angle (Requires Wiring Harness) |
756 lbs |
| 116220 |
96″ Hydraulic Angle (Requires Wiring Harness) |
824 lbs |
