Description

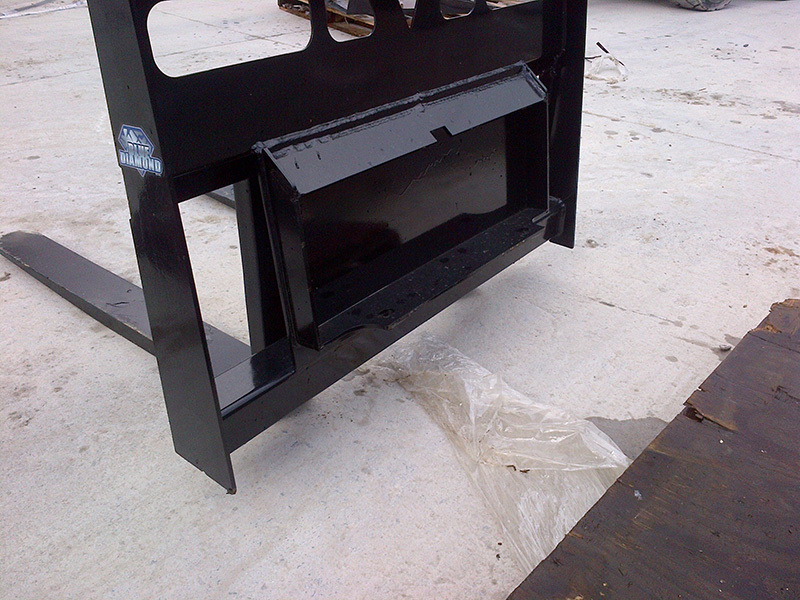

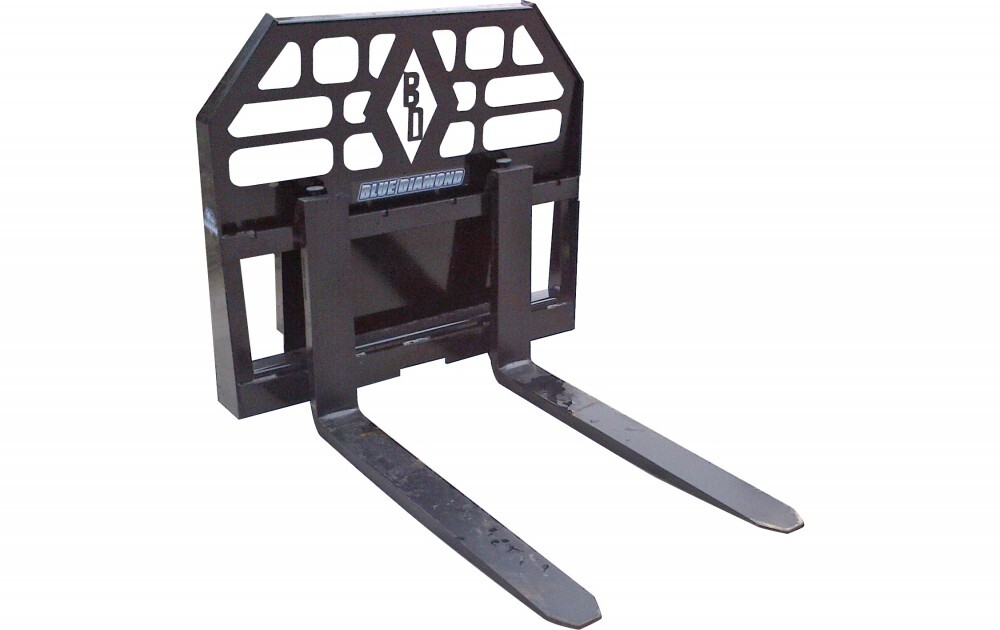

The Blue Diamond® Mini Pallet Forks for mini skid steer and mini track loaders offer great visibility without sacrificing durability. These tough mini pallet forks use a Class 2 fork tine hung on a machined carriage bar that allows the tines to be locked in various positions.
- Non-floating tines are hooked in, top and bottom
- Durable backrest for tough working conditions
- Fork tines lock in multiple positions
- Mini pallet fork tines are available from 36″ to 48″ long
- 3,000 lb capacity
| Part Number |
Model |
Weight |
| 314002 |
1 1/4″ X 36” Tines, Pallet Fork |
240 lbs |
| 314001 |
1 1/4″ X 42” Tines, Pallet Fork |
313 lbs |
| 314000 |
1 1/2″ X 48” Tines, Pallet Fork |
313 lbs |
| 314040 |
24” Tines, Pallet Fork, 1,300 Lbs Cap |
180 lbs |
