E-Z-GO Express 2
Reimagine what it means to go for a ride in your Express 2. This 2-passenger vehicle features bold styling, higher ground clearance, and the proven performance of the ELiTE™ lithium powertrain activated by Samsung SDI.
DIMENSIONS
OVERALL LENGTH 97 in (246 cm)
OVERALL WIDTH 49.5 in (124 cm)
OVERALL HEIGHT (W/O ROOF) 51 in. (129 cm)
OVERALL HEIGHT (W/ ROOF) 74.4 in (189cm)
WHEEL BASE 67 in (170 cm)
FRONT WHEEL TRACK 38.5 in (98 cm)
REAR WHEEL TRACK 38.5 in (98 cm)
GROUND CLEARANCE
@ DIFFERENTIAL 5.25 in (13.3 cm)
POWER SOURCE 56.7 V
MOTOR TYPE 56 Volt AC
HORSEPOWER (KW) 11.7 HP (8.7 kW) Peak
ELECTRICAL SYSTEM 48V Primary, 12V Auxiliary
BATTERIES (QTY/TYPE) Single, 56.7 V Li-Ion Composite Module (Standard Configuration)
BATTERY CHARGER 56.7V
KEY OR PEDAL START Pedal Start
SPEED CONTROLLER 235 Amp AC
DRIVETRAIN Motor Shaft Direct Drive
TRANSAXLE Clutch-Type Limited-Slip Differential with Helical Gears (ELiTE Only)
GEAR SELECTION Dash Mounted Forward-Neutral-Reverse
REAR AXLE RATIO 16.99:1 (Forward)
SEATING CAPACITY 2-Passenger
DRY WEIGHT 676 lb (307 kg) (without Batteries)
CURB WEIGHT 720 lb (327 kg)
VEHICLE LOAD CAPACITY 500 lb (227 kg)
OUTSIDE CLEARANCE CIRCLE 22 ft (6.7m)
SPEED (LEVEL GROUND) Up to 19 mph +/- 0.5 mph (30.6 kph – 0.8 kph)
STEERING Self-Compensating Reduction Rack and Pinion
SUSPENSION (FRONT & REAR) Leaf Springs with Hydraulic Shock Absorbers
BRAKES Rear Wheel Mechanical Self-Adjusting Drum
PARKING BRAKE Automatic Electro-Magnetic (ELiTE Only)

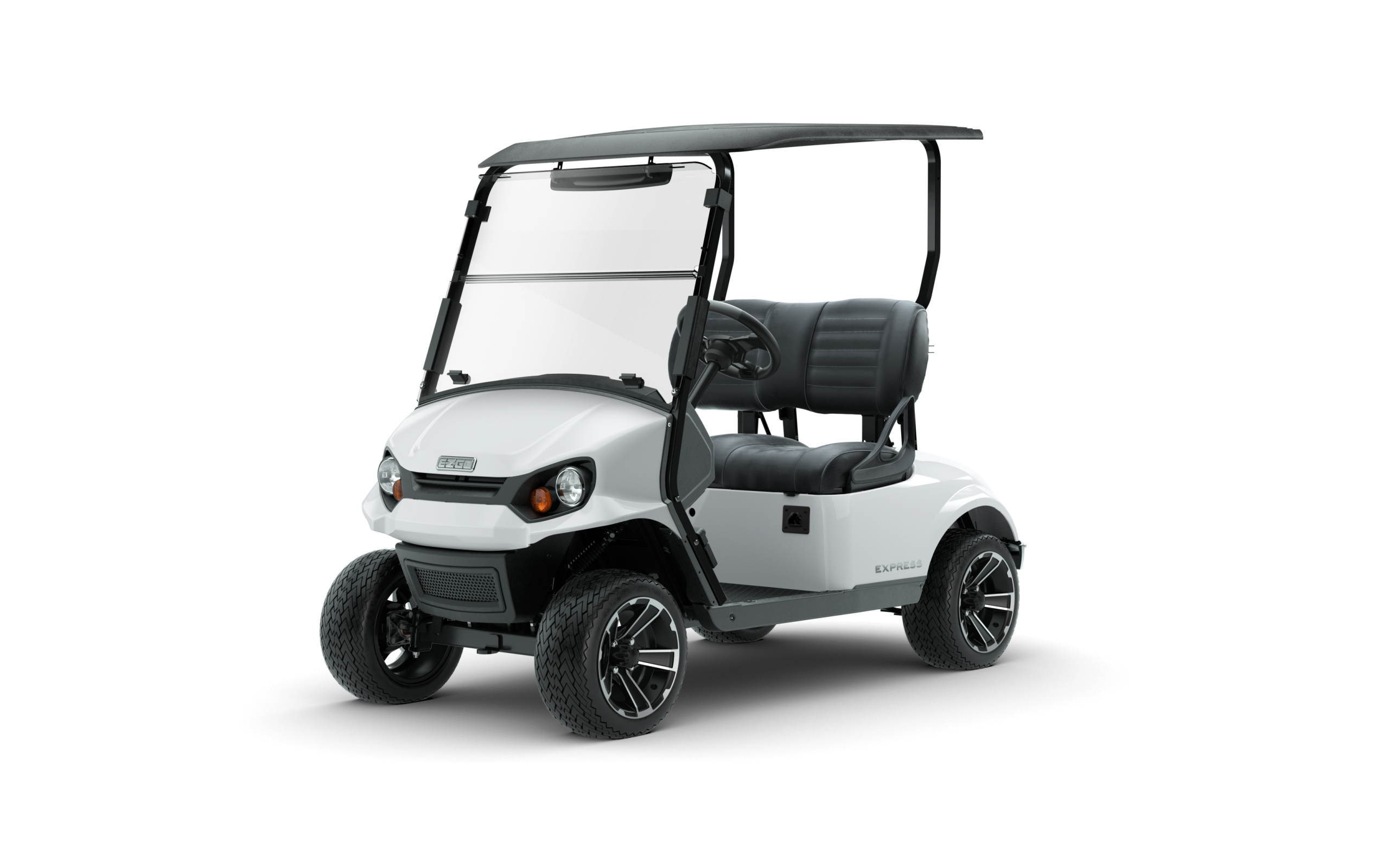

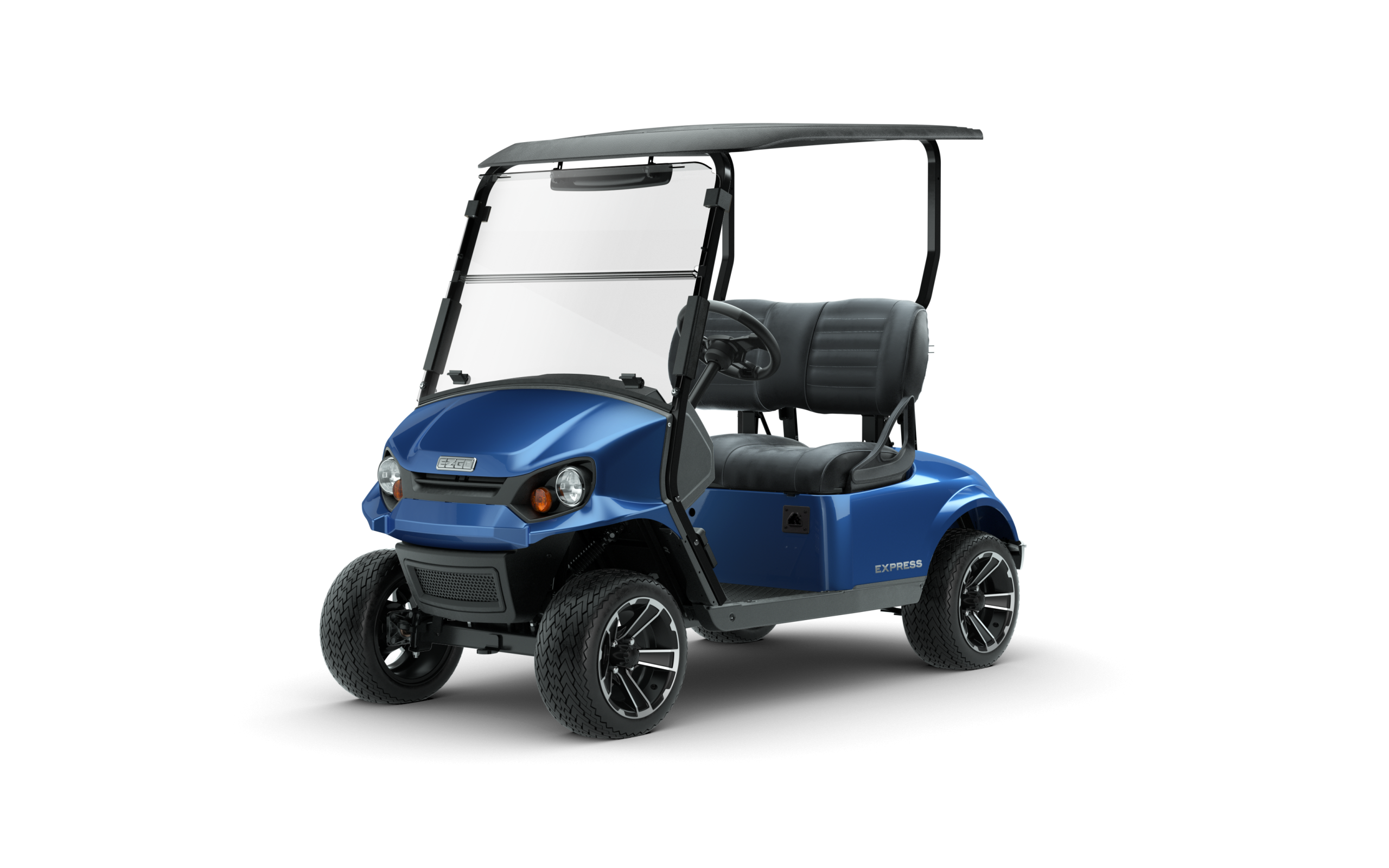

TIRES Hole-N-One Tire on 12” Rogue Alloy Wheel (Connect Package),

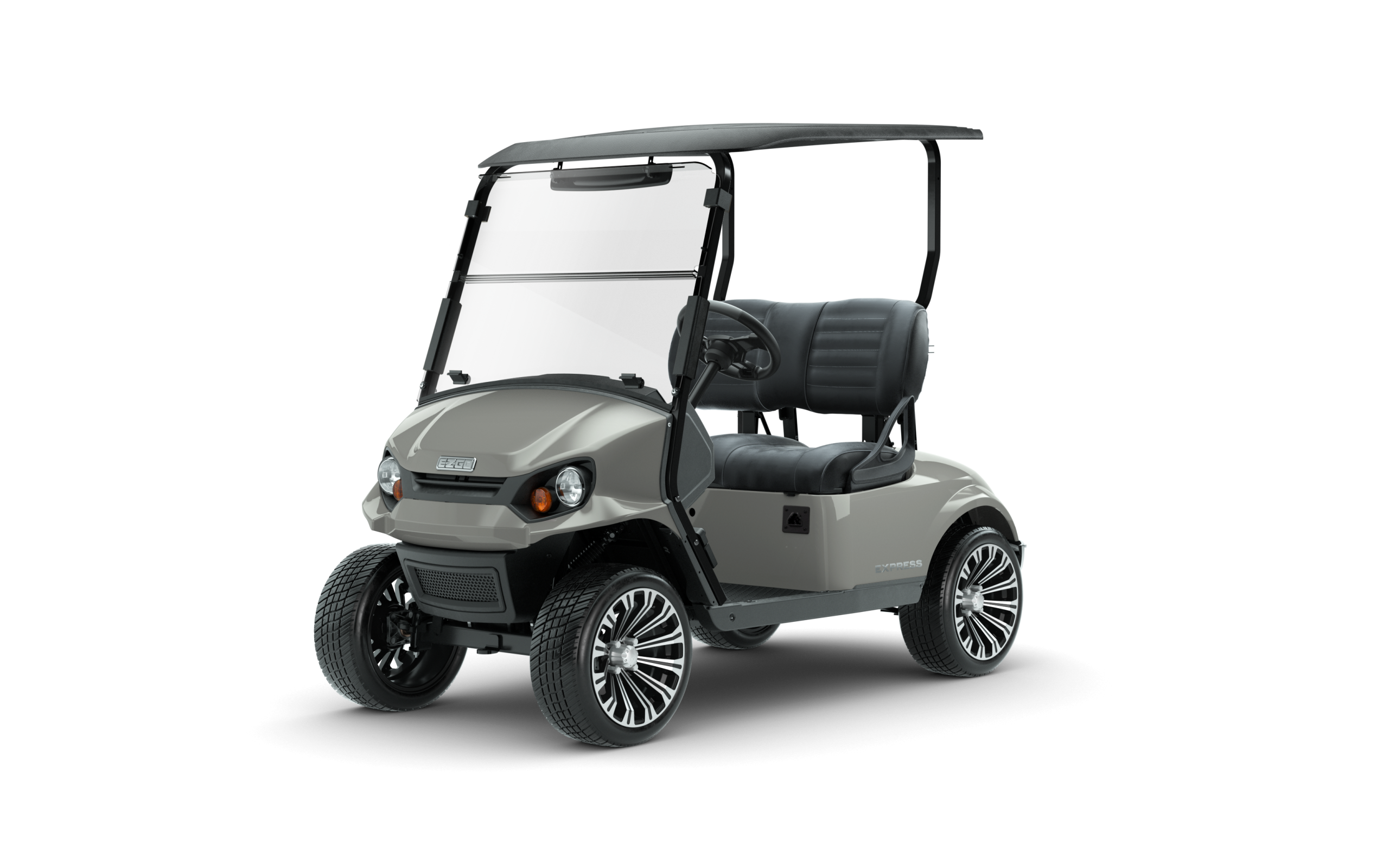

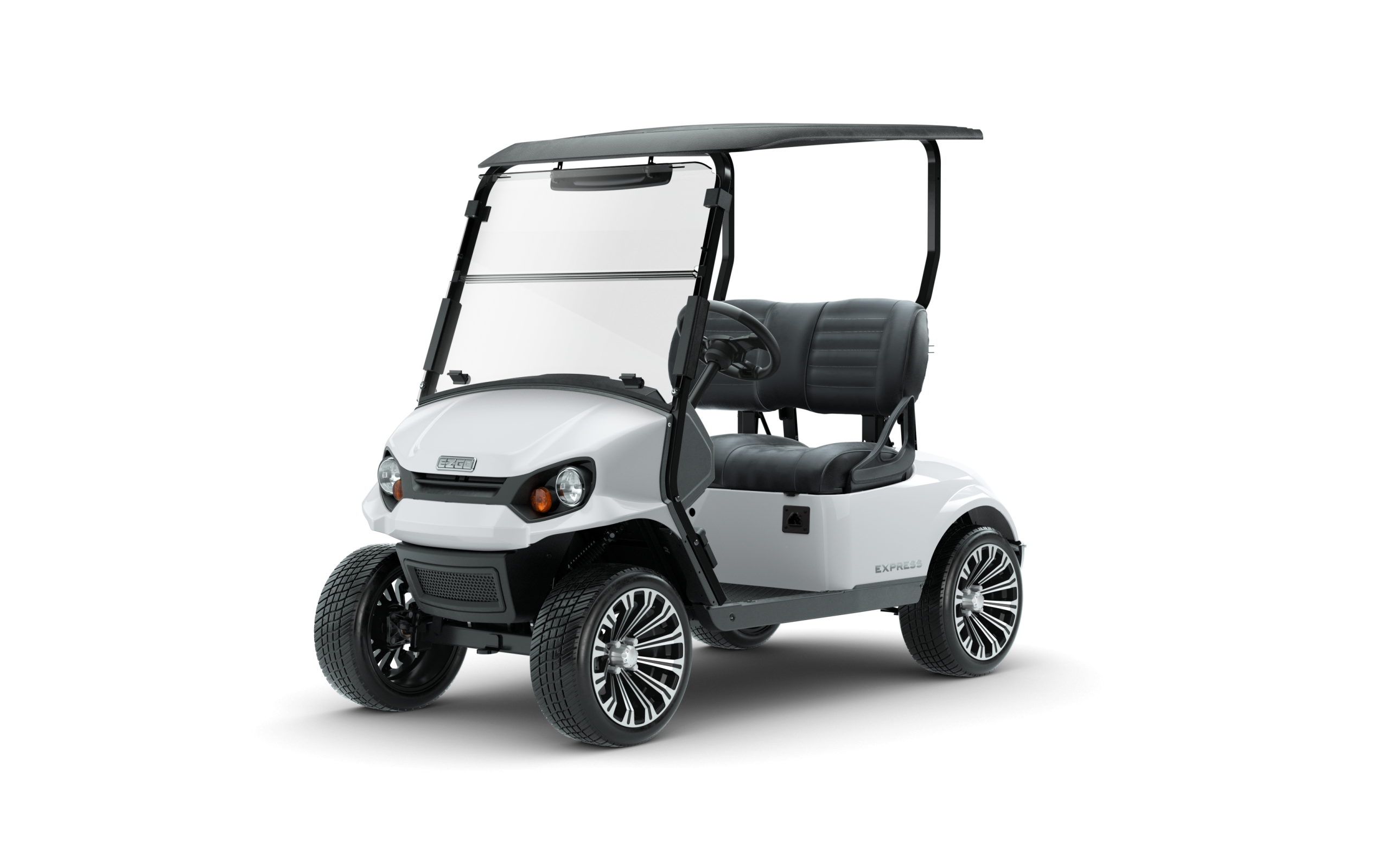

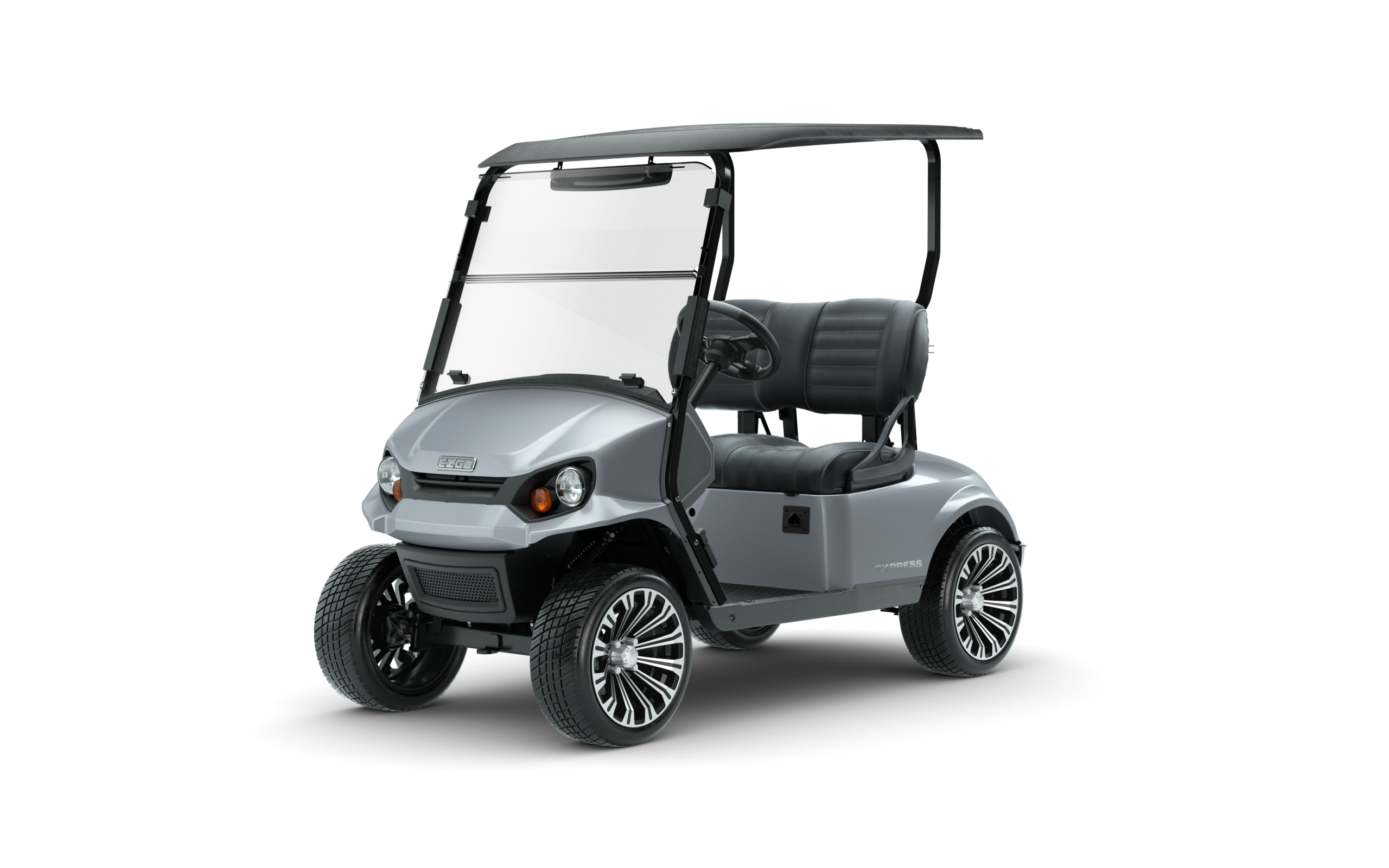

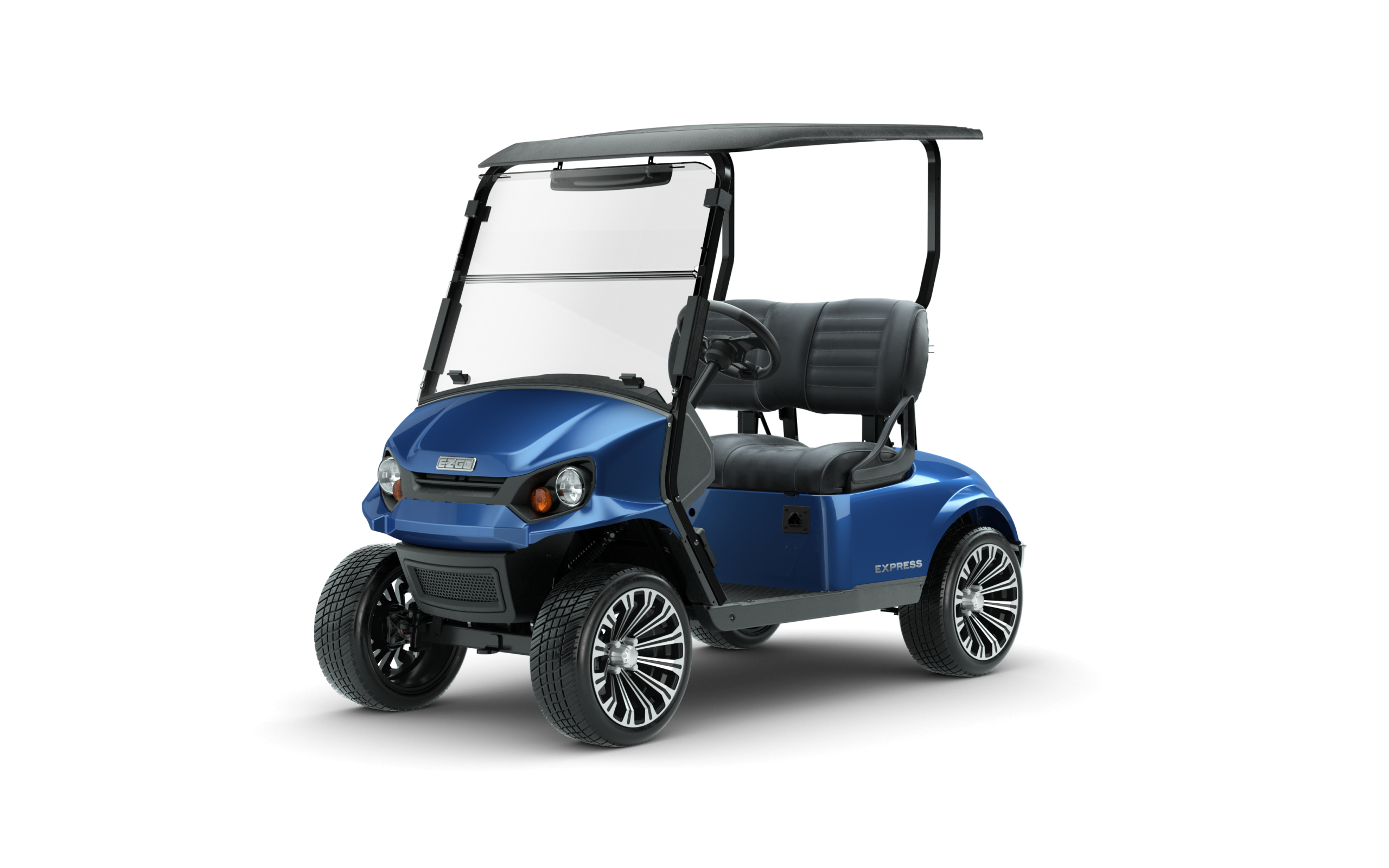

Paramount SBR Tire on 14” FTV Alloy Wheel (Cruiser Package)
FRAME Welded Steel with DuraShield™ Powder Coat
BODY & FINISH Injection Molded TPO

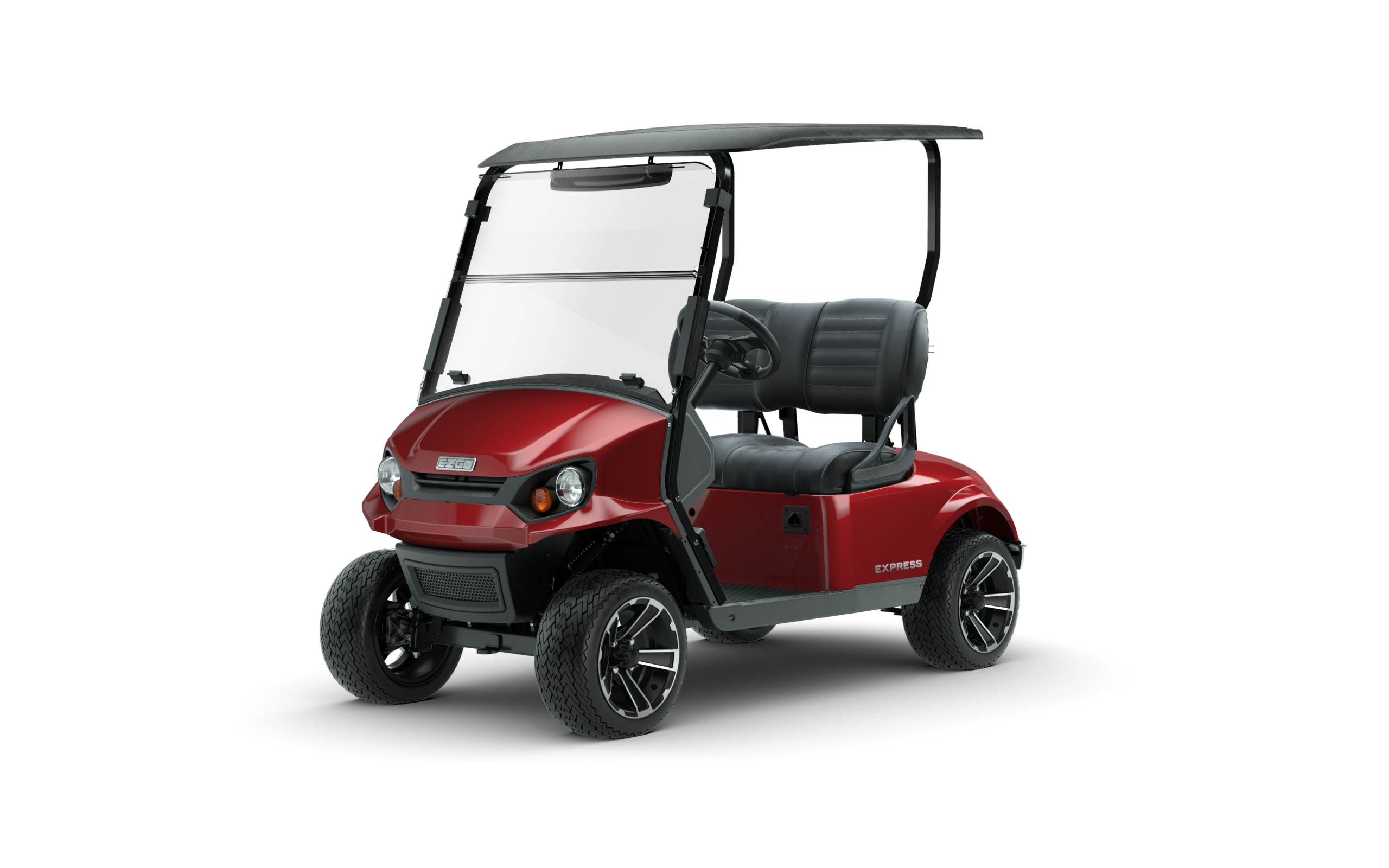

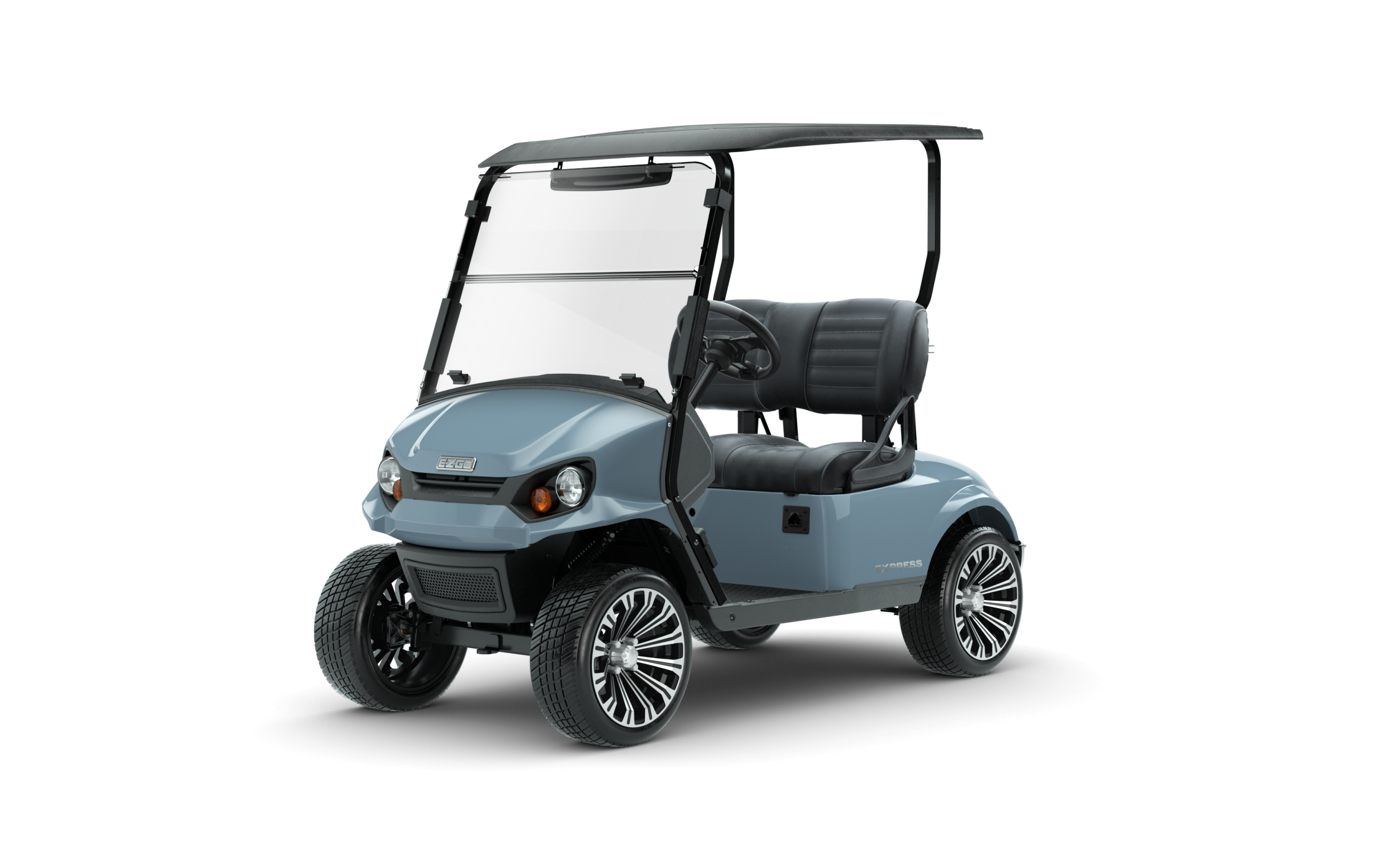

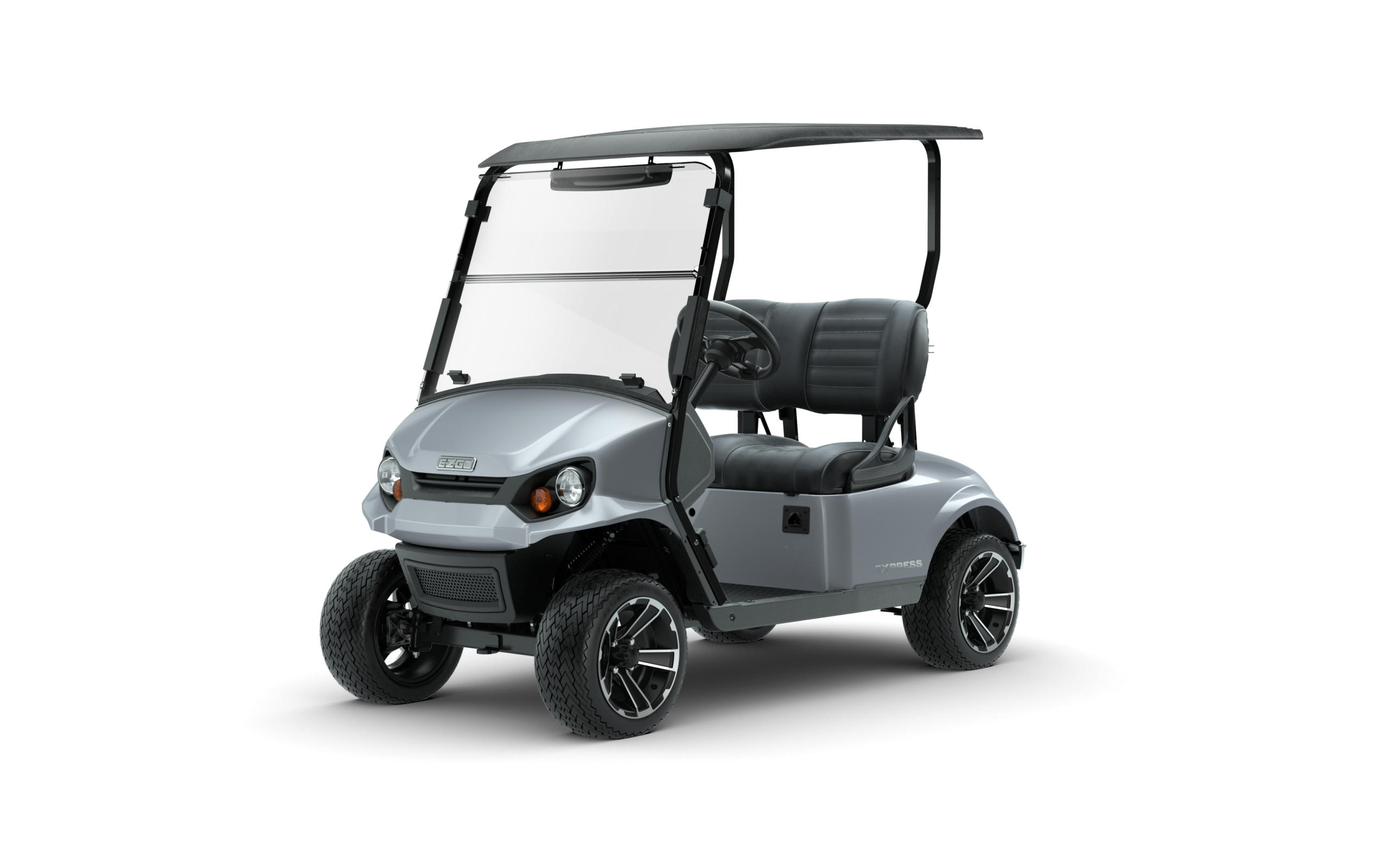

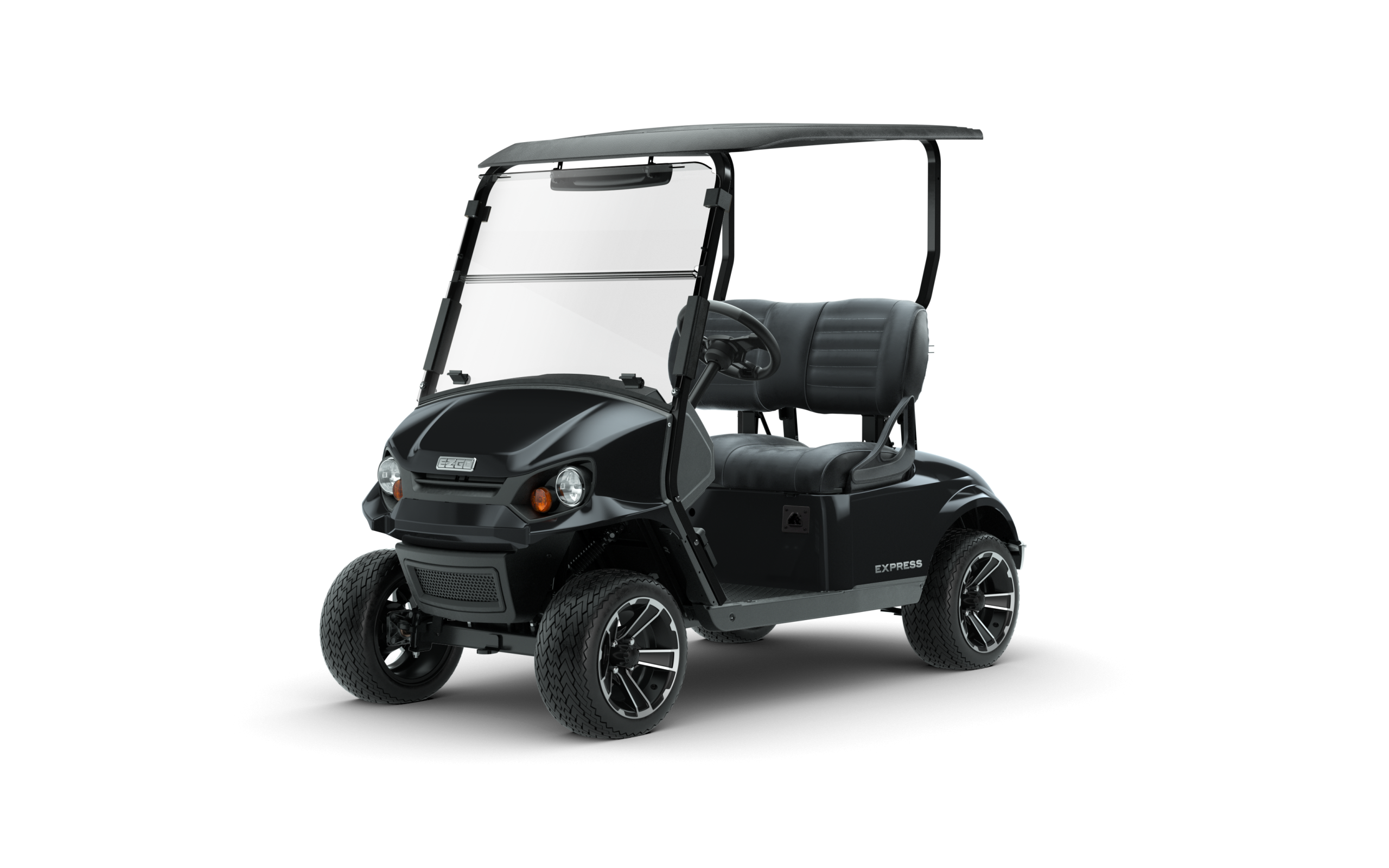

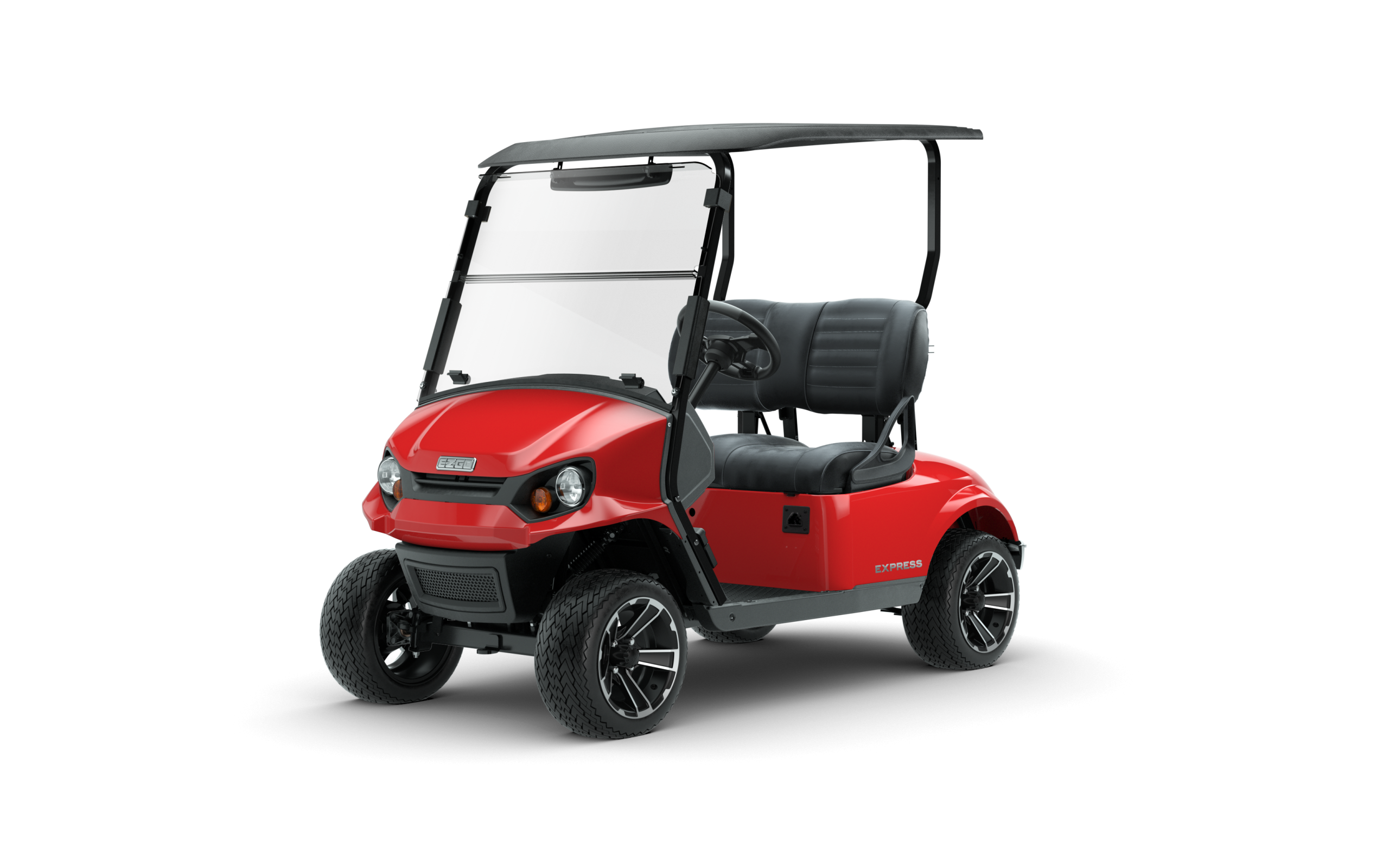

AVAILABLE BODY COLORS Black, Bright White, Electric Blue, Flame Red, Inferno Red,
Metallic Charcoal, Ocean Grey, Platinum, Slate
AVAILABLE SEAT COLORS Black, Grey on Black Stitched, White on Beige Stitched, Limited Edition Briar Brown Stitched
SEAT COLORS Black, Grey, Mushroom
SIGNATURE SEAT COLORS Amarillo Brown, Tundra Gray
Features and specifications of vehicles subject to change without notice. Vehicles as photographed may include options not included on base model. ©2024 Textron Specialized Vehicles Inc. 82702-G6 (Rev. 08/2024)
