Giant Loaders G2300 X-TRA HD

SKU 56f1ad3d6f8b-1-1-1-1 Category
Request a Quote
Quote by Phone
Request Brochure

Description

Description

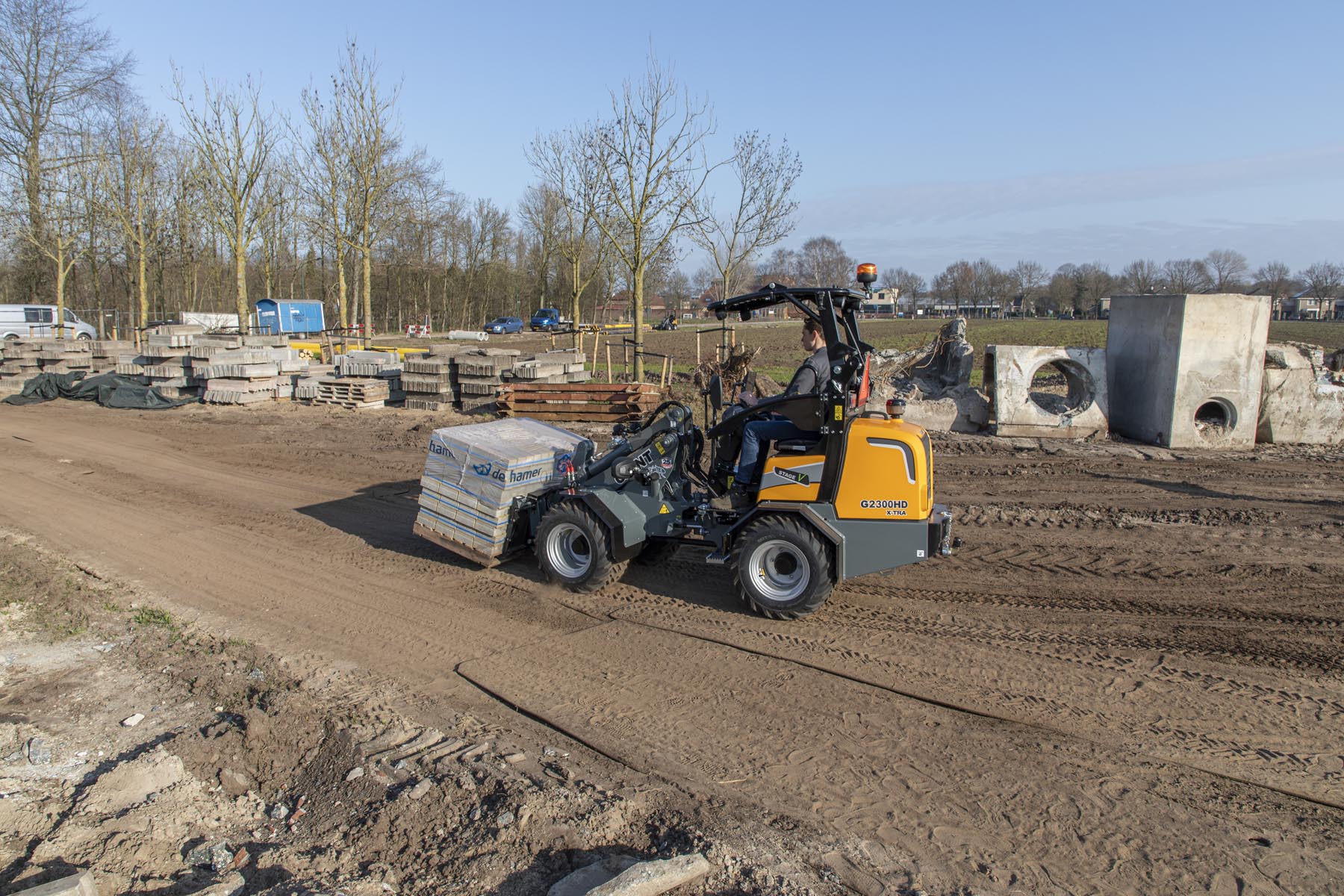

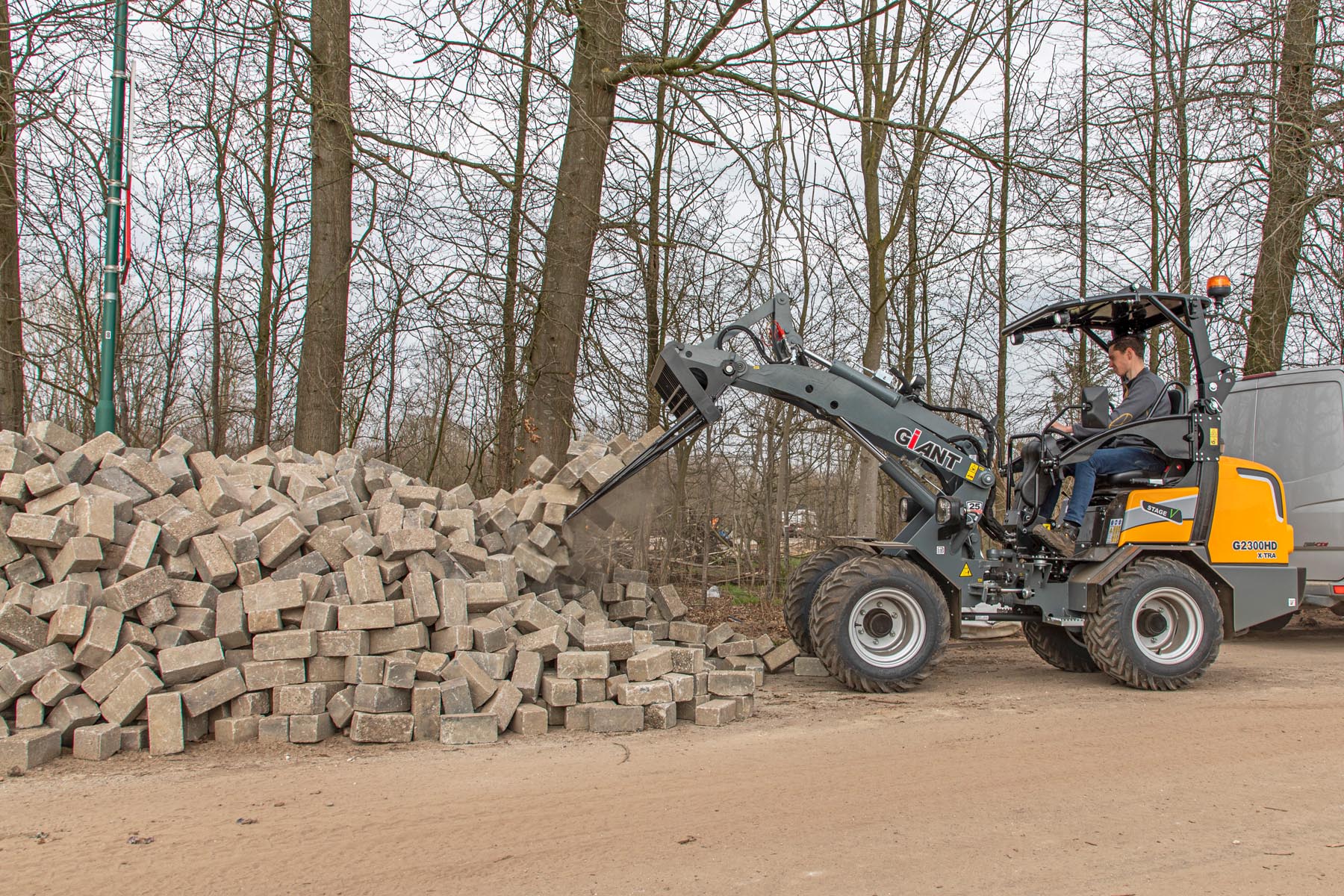

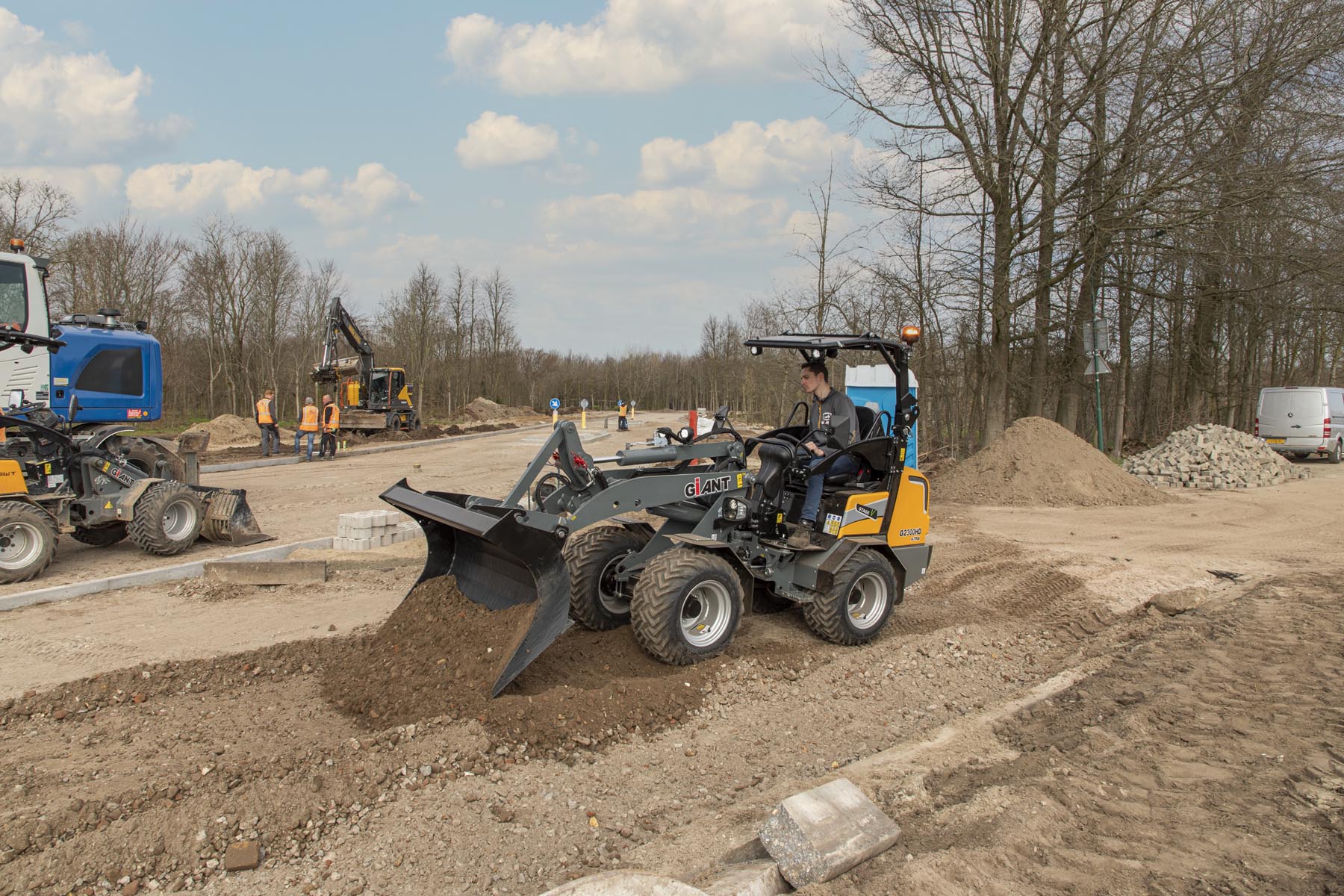

The GiANT G2300 HD compact articulating loader is the newest of the GiANT lineup! By combining the compact frame of our G2200 and the strong driveline from the G2500 HD, the G2300 HD is the definition of big performance in a small package! Powered by a Kubota 4-cylinder diesel with 26 HP, this machine is not required to run a diesel oxidation catalyst (DOC) or diesel particulate filter (DPF). The G2300 HD is available in 2 boom configurations, X-Tra and Z-Bar, both fitted with a universal skid steer quick attach plate (SSQA). Similar to the G2500 HD, the G2300 HD comes standard with a 2-speed gearbox, 8-ton axles and planetary final drives, capable of a 12.5 mph top speed. Available with open ROPS, deluxe ROPS or optional full cab with heat, this machine fits well in all climate conditions. The G2300 HD frame is compact but still has room for an oscillation joint, helping to improve ride quality and limit ground pressure. A few options include: different tire profiles for various terrains, road lights for safe road travel, rear hydraulic outlets, pro-inching and boom suspension. The G2300 HD is compact, powerful, efficient and fits perfectly in all industries including; agriculture, construction, snow removal, municipal use, landscaping and tree care.

This X-TRA model is equipped with the X-TRA boom configuration for greater lifting capacity!

Engine: 26 HP Kubota
Fuel: Diesel
Service weight: 5,180 lbs
Tipping load: 4,982 lbs
Lifting height: 96 inches
Length without bucket: 145.2 inches
Width on standard tires: 42.5 inches
Driving mechanism: Hydrostatic 4 wheel drive
Control: Drive back and forward through electrical switch
Differential lock: Electronic controlled limited slip on both axles
Working hydraulics: 10.5 GPM
Driving speed: 6.2 mph / 12.4 mph top speed
Parking brake: Drum brakes
Color: GIANT yellow / GIANT grey / black

  • Hitch: GIANT Standard (Hydraulically)
  • ROPS / FOPS safety roof, incl. safety doors left and right
  • Double acting hydraulic function on lifting arm (mechanical)
  • Hydraulic service brake on 4 wheels
  • Floating position on lifting cylinder(s)
  • Luxury seat with safety belt, armrest and extended backrest
  • Battery, 77 Ah
  • Main switch
  • Anti-theft protection with access code (not certified)
  • Towing hook at the back
  • Counterweight integrated into the bumper
  • Working light (halogen) on lifting arm
  • Oil cooler
