Giant Loaders G2700 X-TRA HD

Call for Price

SKU 57152e319301 Category
Request a Quote
Quote by Phone
Request Brochure



Flexible in use and transportation

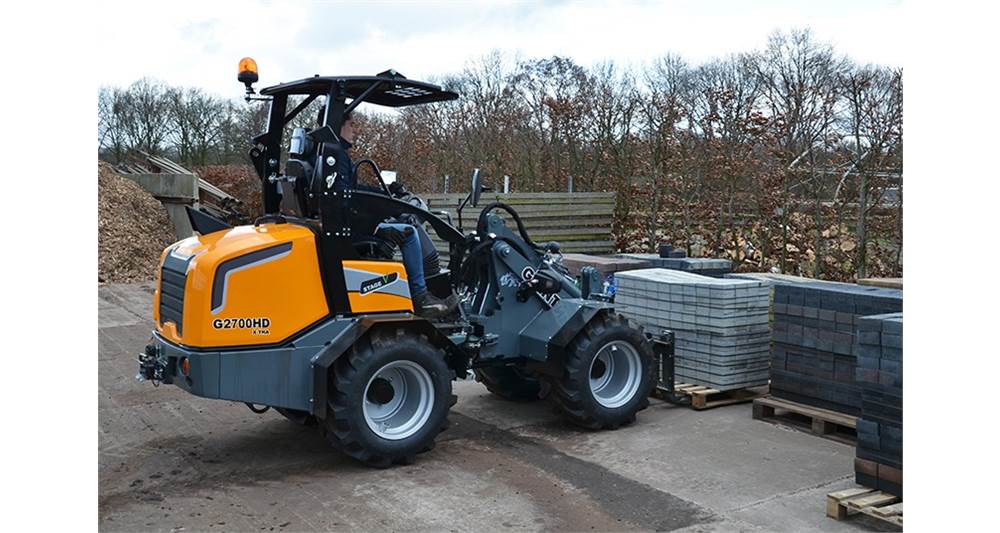

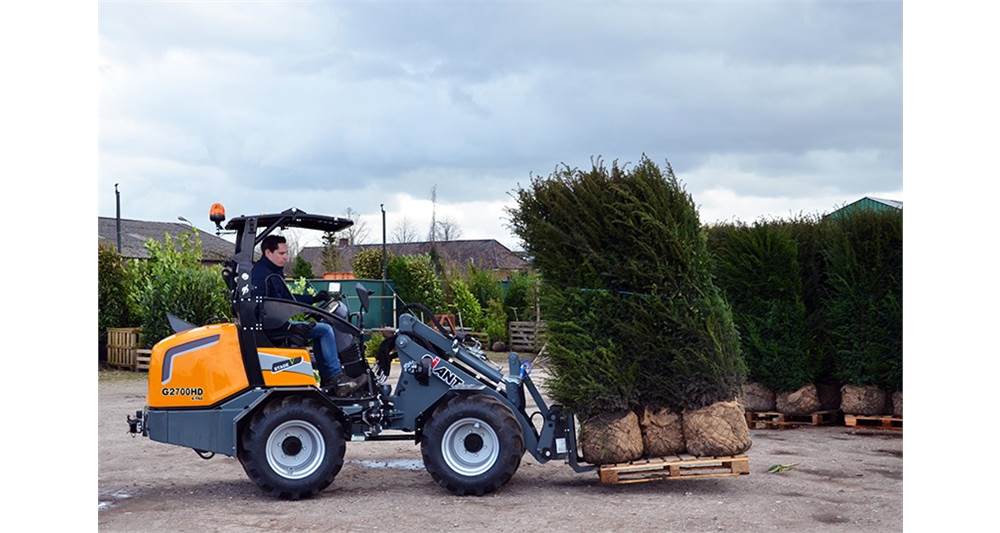

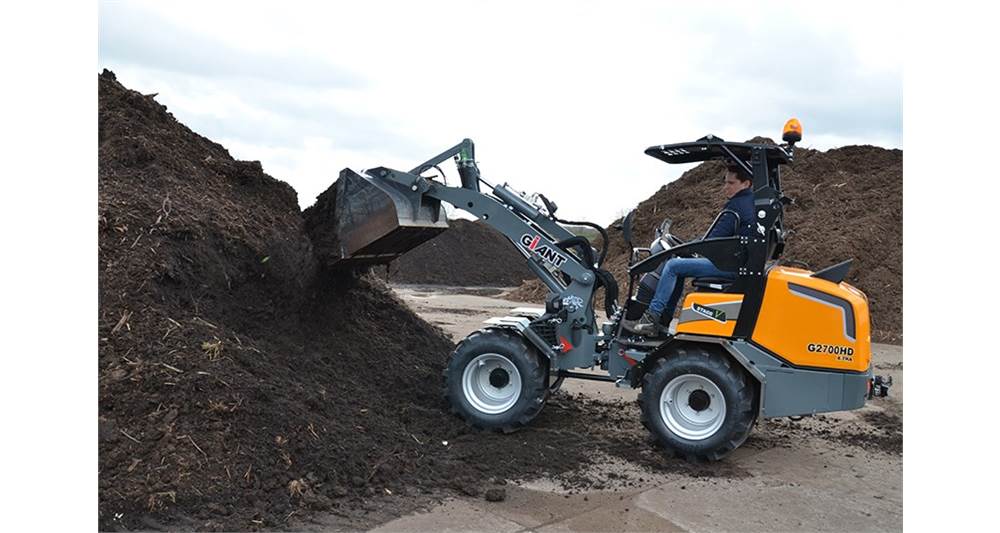

Whether it concerns work in the field of infrastructure, on construction sites, for gardeners or earth moving. The G2700 X-TRA HD can be used for all sectors and can be used all year round. Using the hydraulic quick coupler, it is possible to change tools within seconds and adapt the machine to the current work.

The G2700 X-TRA HD is powered by a 50 hp Kubota engine (Stage V) and driven by 8 tons axles with limited slip. This gives the compact loader a pulling force of 20,000 N and a maximum driving speed of 25 km/h.

Engine: Kubota D1803 CR (3 cylinder), Stage V with DOC and DPF
Engine power: 50 hp / 36 kW
Fuel: Diesel
Service weight (1): 2,550 kg
Lifting capacity: 2,325 kg
Tipping load (2): 2,850 kg
Lifting height (2): 2,498 mm
Length without bucket: 3,405 mm
Width on standard tires: 1,100 mm
Driving mechanism: Hydrostatic 4 wheel drive with automotive control with 8 tons axles. Planetairy end drive.
Control: Drive back and forward through electrical switch
Differential lock: Limited slip on both axles
Pulling force: 20,000 N
Driving hydraulics: 75 ltr/min (420 bar)
Working hydraulics: 51 ltr/min (230 bar)
Driving speed: 0-10 km/h, 0-25 km/h (with automatic gear)
Parking brake: Drum brakes
Colour: GIANT yellow / GIANT grey / black

(1) Measured with earth bucket
(2) Measured on hinge point in straight position on standard tires

  • Hitch: GIANT Standard (Hydraulically)
  • ROPS / FOPS safety roof, incl. safety doors left and right
  • Double acting hydraulic function on lifting arm (mechanical)
  • Hydraulic servicebrake on 4 wheels
  • Floating position on lifting cylinder(s)
  • Luxury seat with safetybelt, armrest and extended backrest
  • Battery, 77 Ah
  • Main switch
  • Anti-theft protection with access code (not certified)
  • Towing hook at the back
  • Counterweight integrated into the bumper
  • Working light (halogen) on lifting arm
  • Oil cooler
