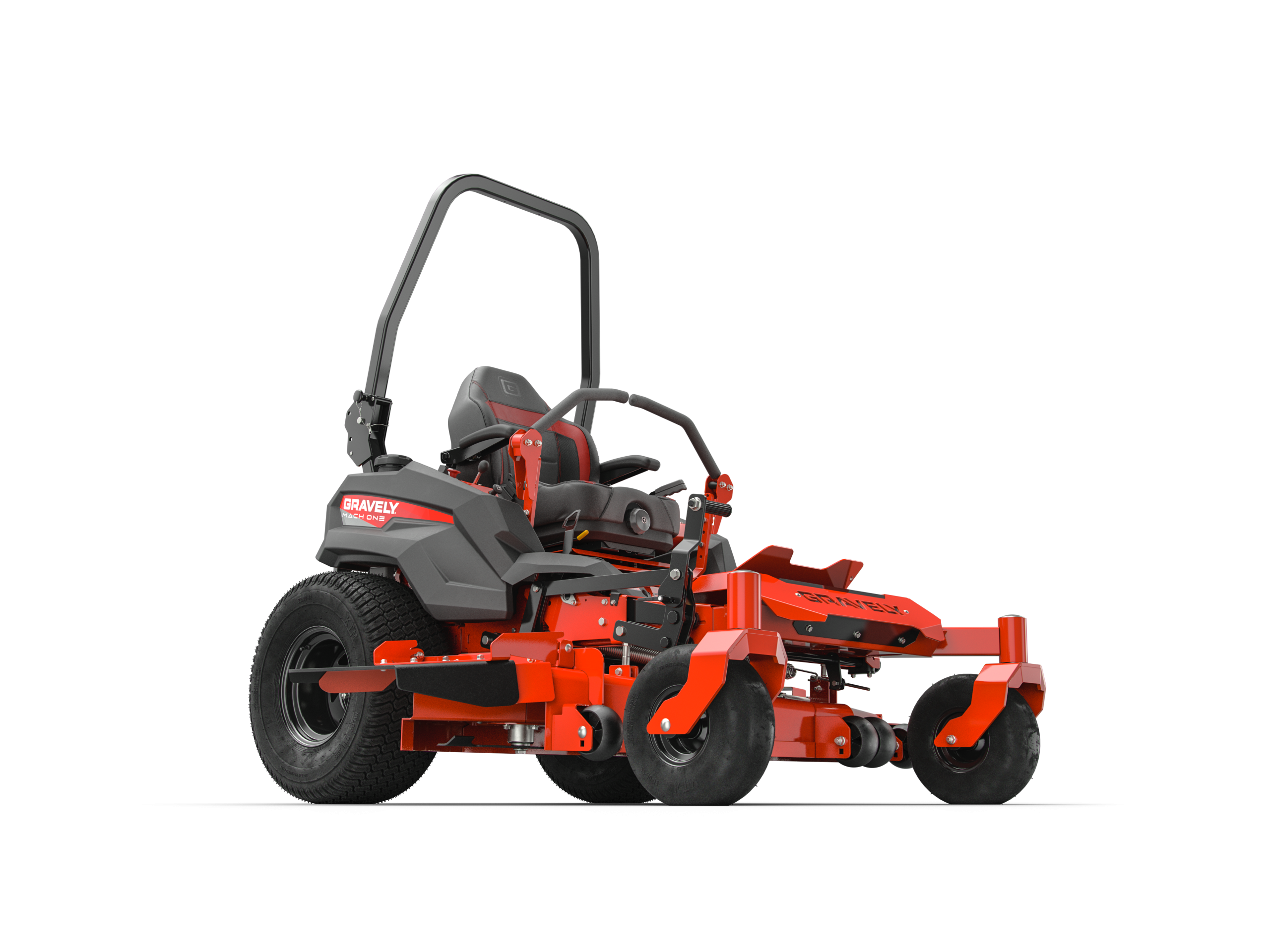

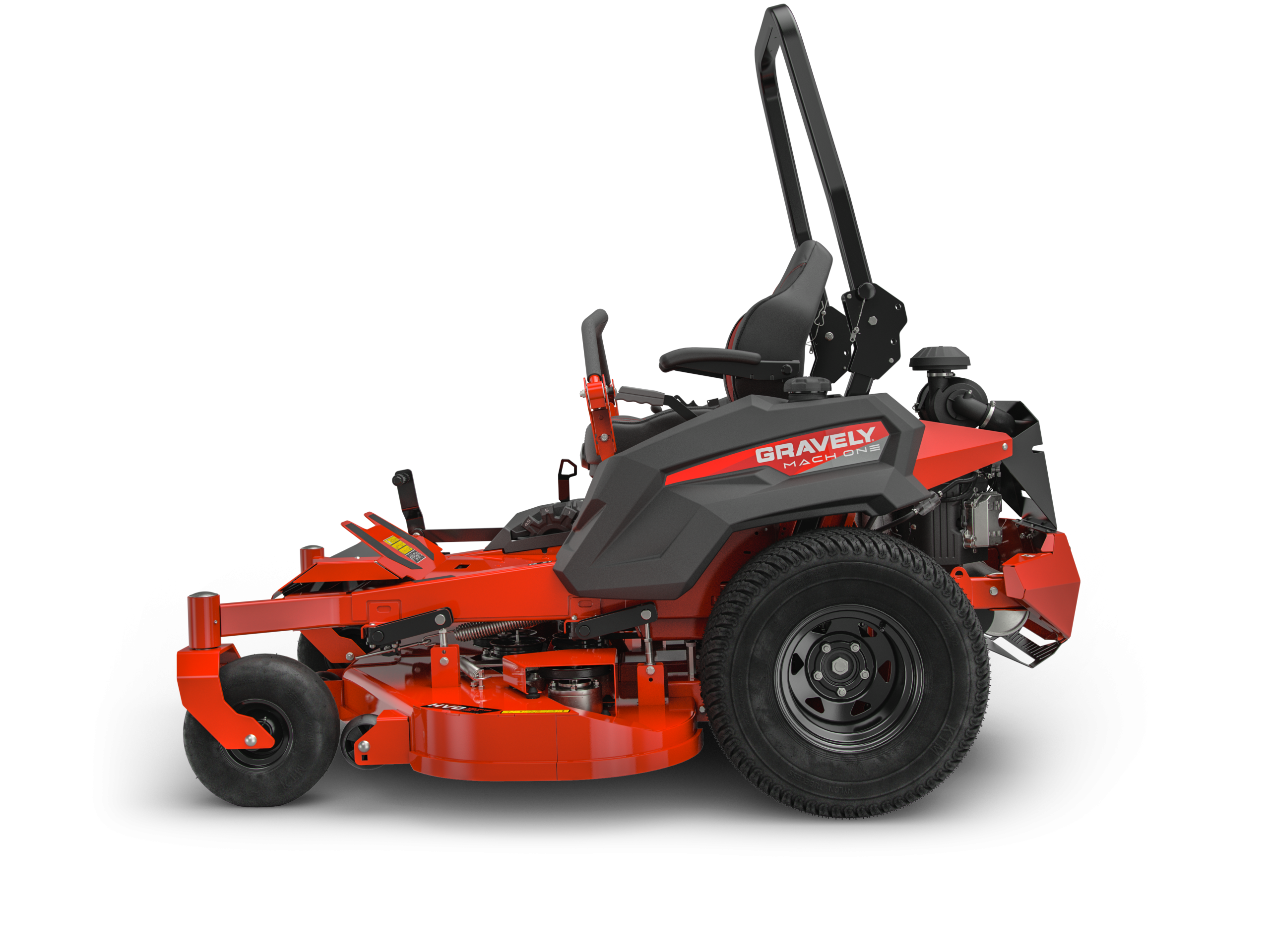

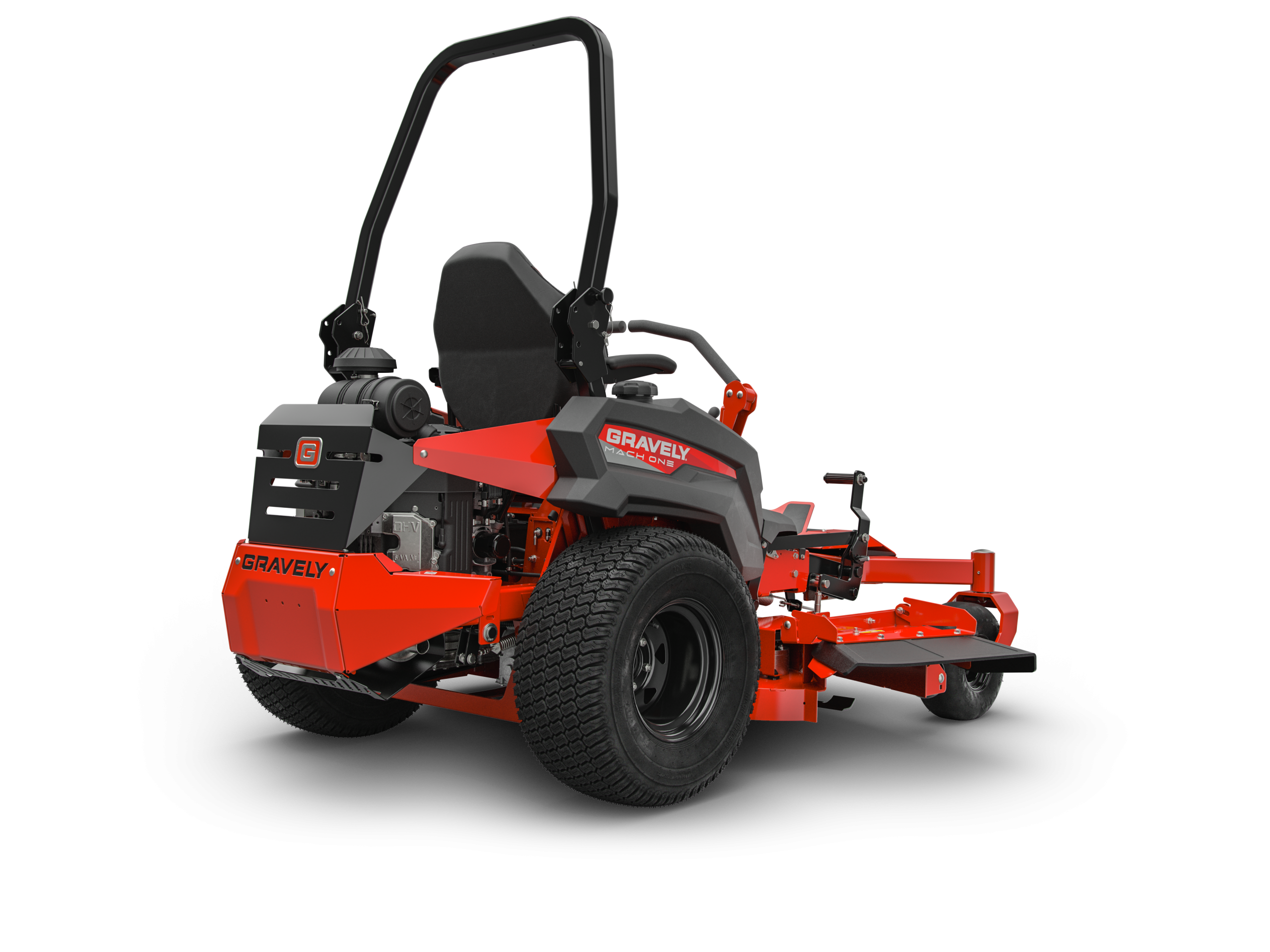

Gravely Pro-Turn® 560 Kawasaki FX921V & Kawasaki FX1000 EFI

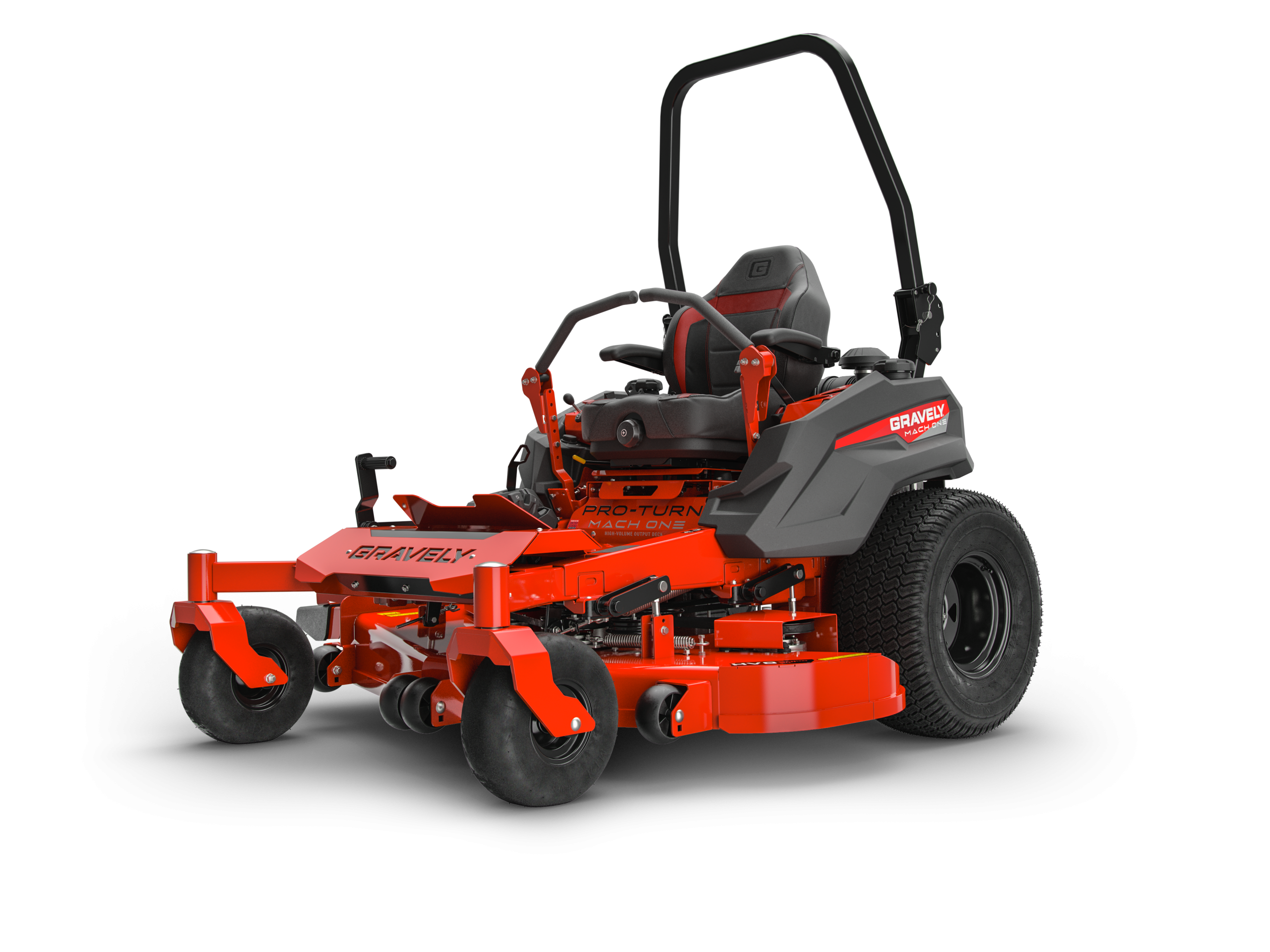

Gravely Pro-Turn® 560 Kawasaki FX921V & Kawasaki FX1000 EFI - Image 2

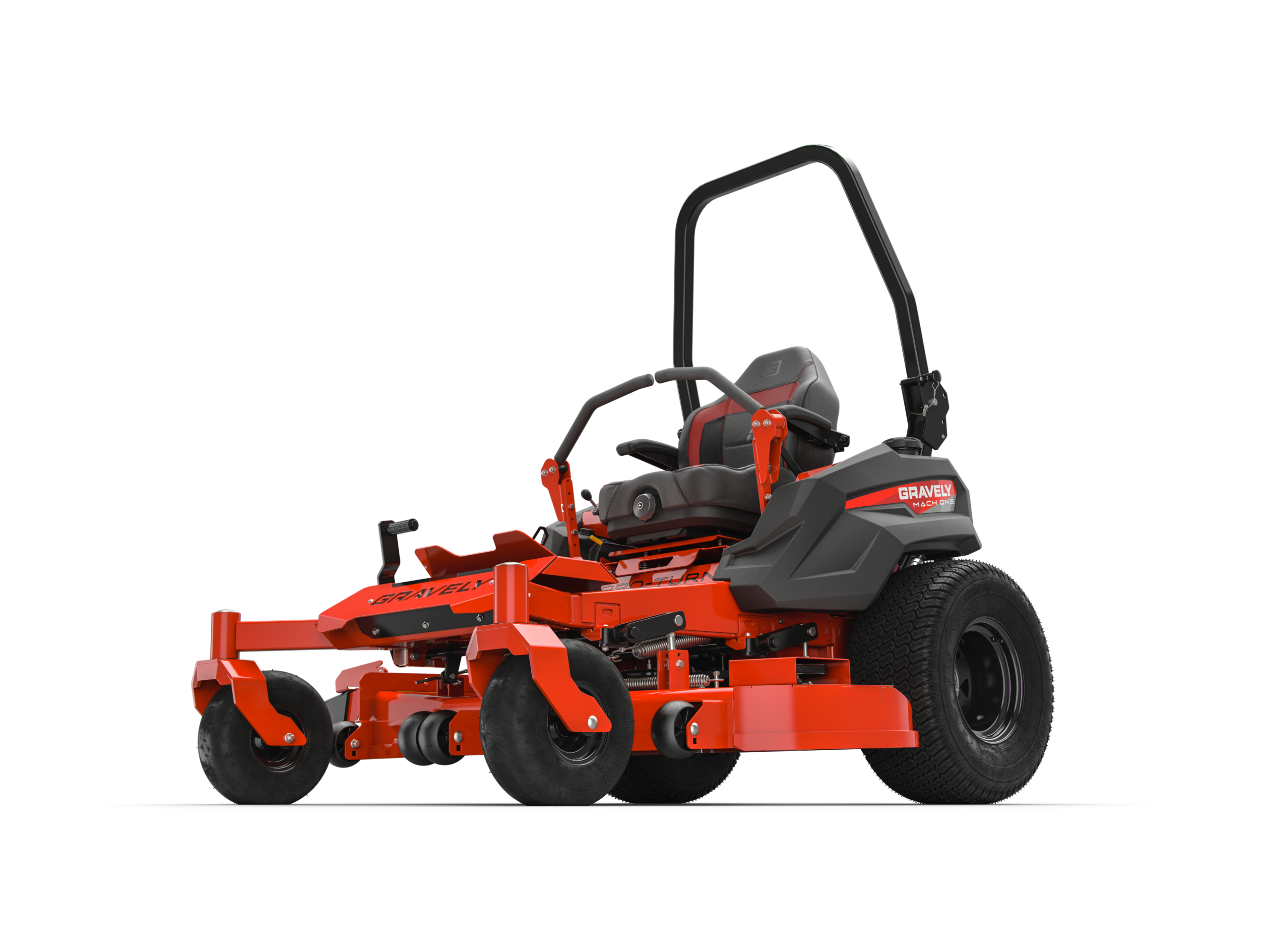

Gravely Pro-Turn® 560 Kawasaki FX921V & Kawasaki FX1000 EFI - Image 3

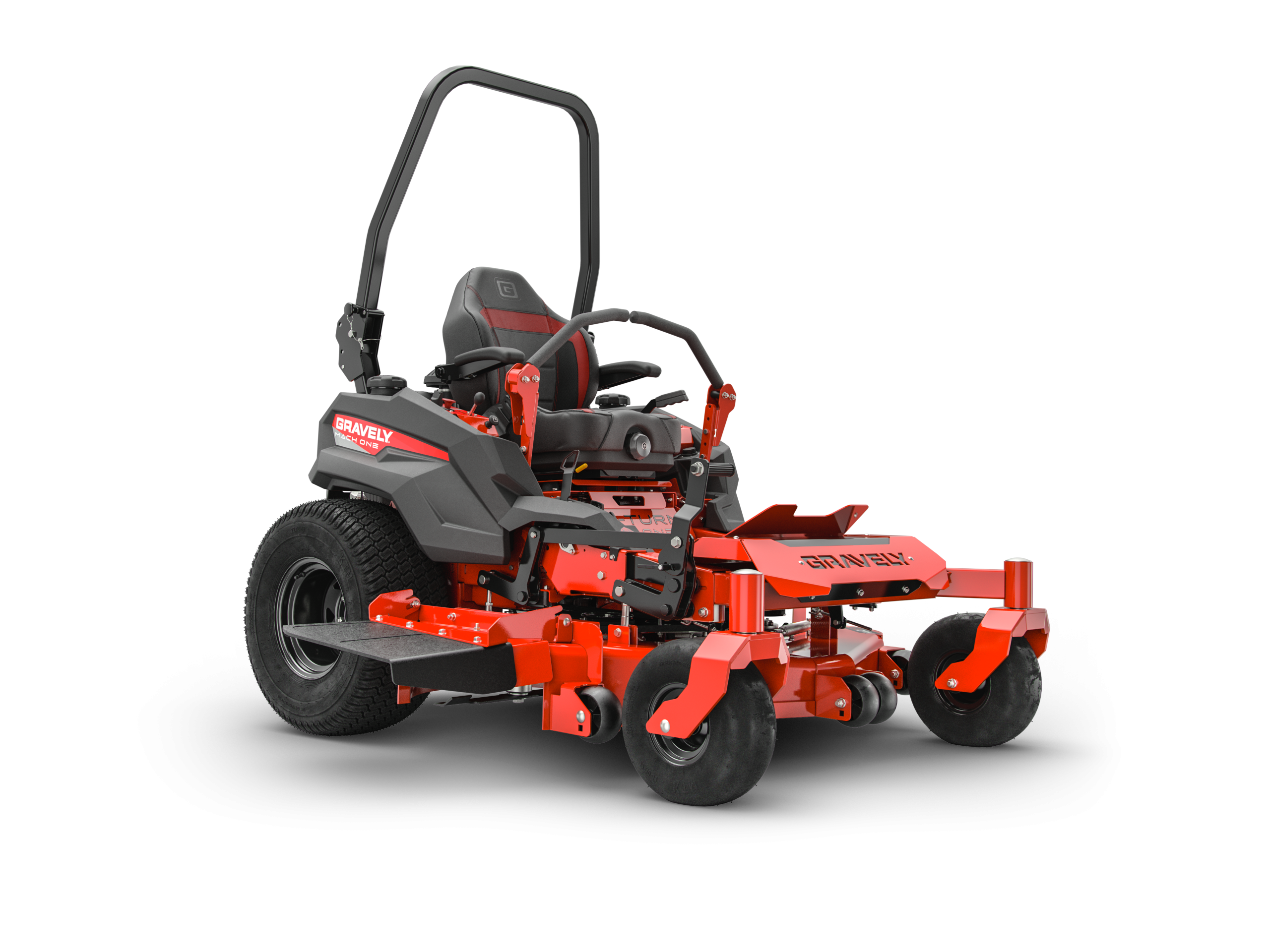

Gravely Pro-Turn® 560 Kawasaki FX921V & Kawasaki FX1000 EFI - Image 4

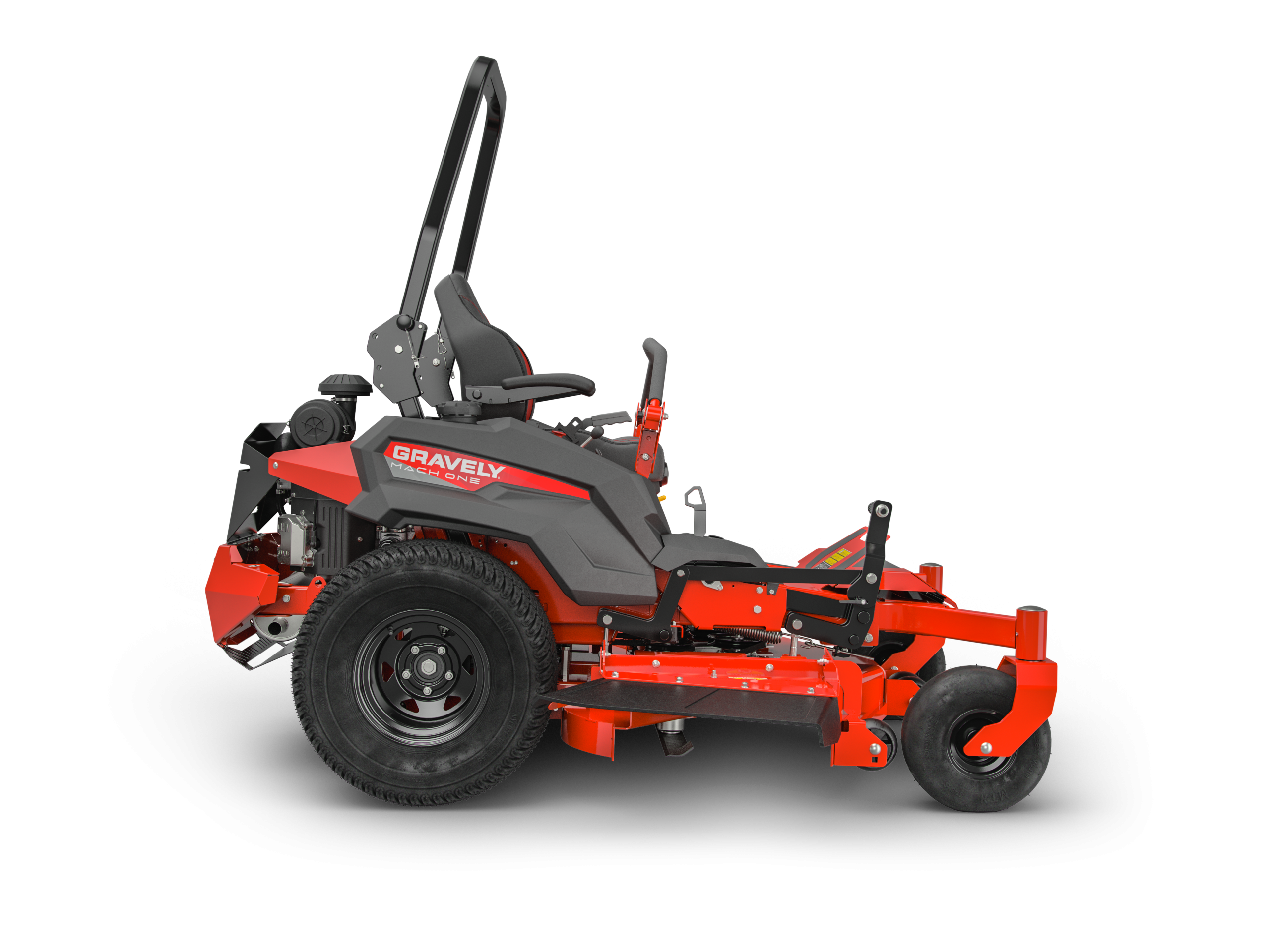

Gravely Pro-Turn® 560 Kawasaki FX921V & Kawasaki FX1000 EFI - Image 5

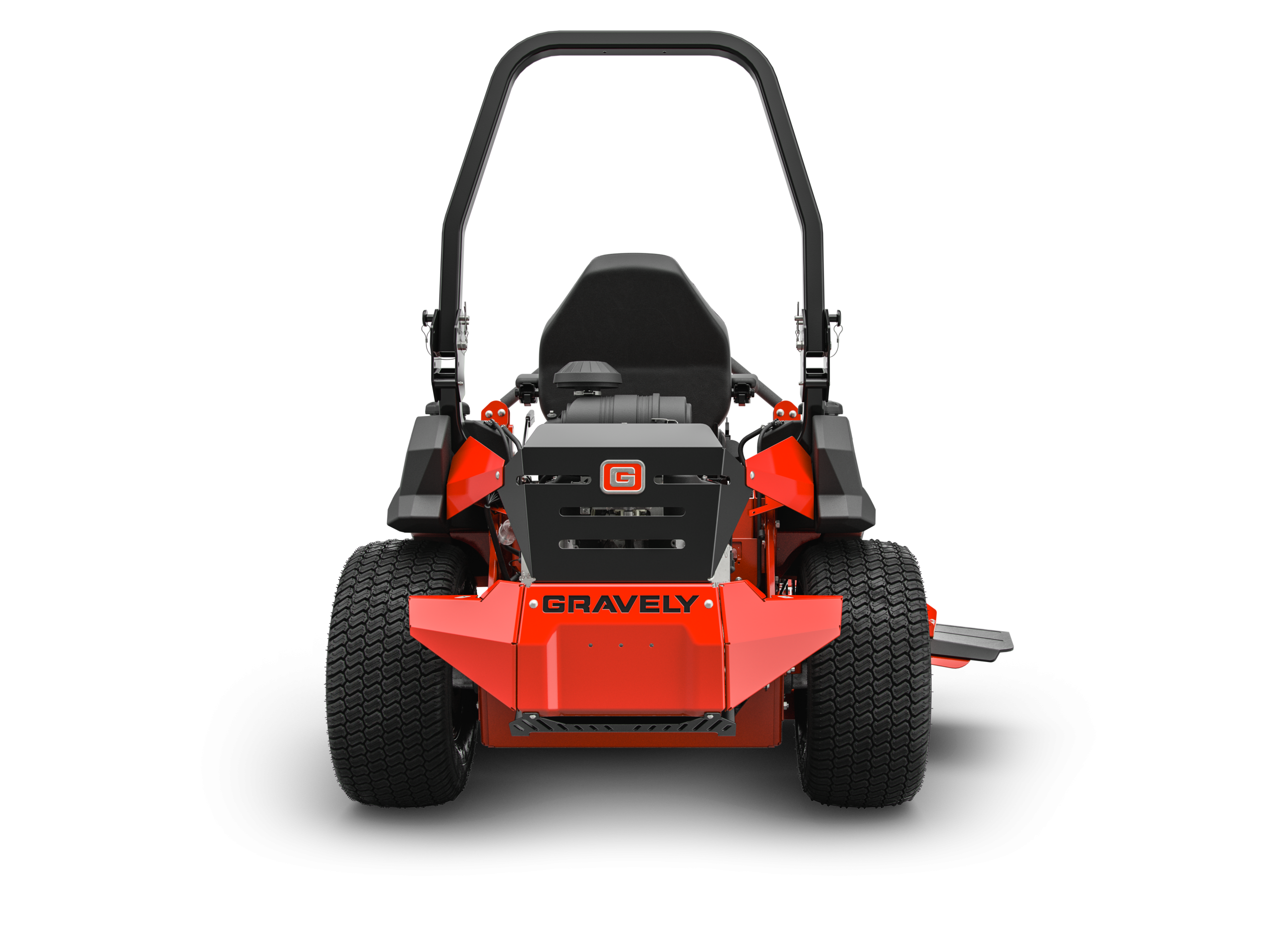

Gravely Pro-Turn® 560 Kawasaki FX921V & Kawasaki FX1000 EFI - Image 6

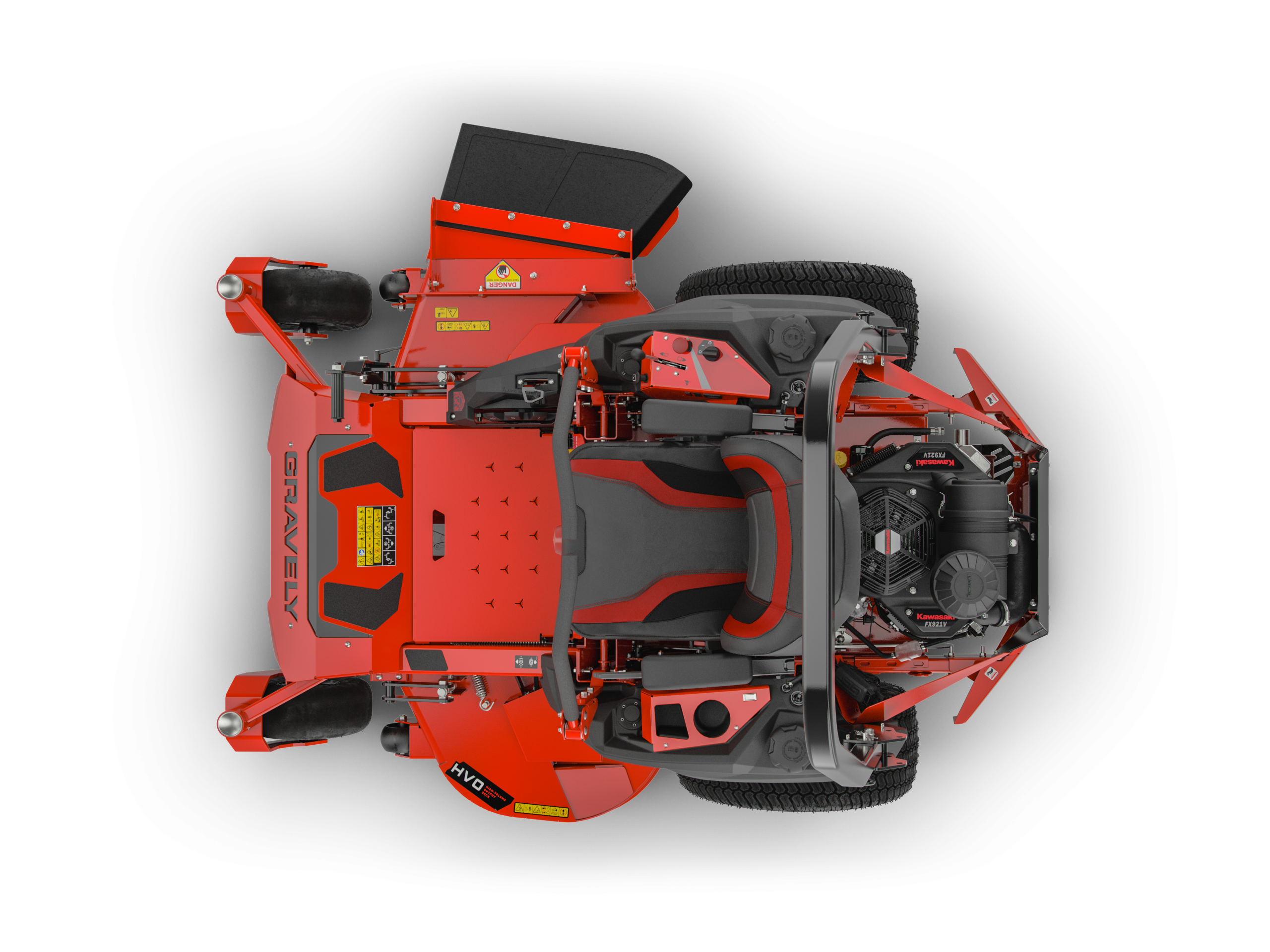

Gravely Pro-Turn® 560 Kawasaki FX921V & Kawasaki FX1000 EFI - Image 7

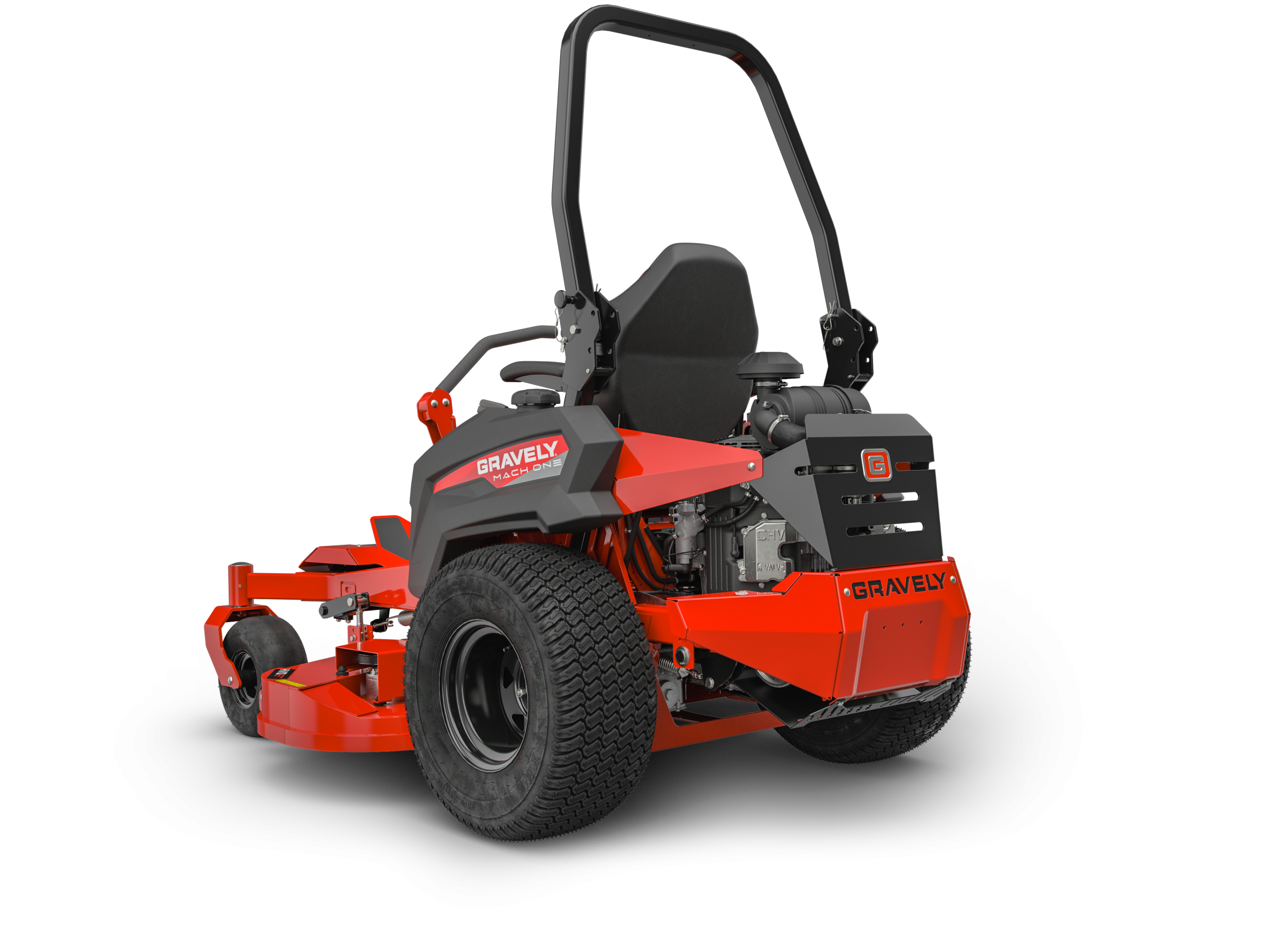

Gravely Pro-Turn® 560 Kawasaki FX921V & Kawasaki FX1000 EFI - Image 8
Gravely Pro-Turn® 560 Kawasaki FX921V & Kawasaki FX1000 EFI - Image 9
Gravely Pro-Turn® 560 Kawasaki FX921V & Kawasaki FX1000 EFI - Image 10

Gravely Pro-Turn® 560 Kawasaki FX921V & Kawasaki FX1000 EFI

Category Tags , ,
Call to Order
Order Now

Description

Description

Never Cut Expectations.

A TRUE COMMERCIAL-QUALITY MOWER BUILT FOR PROFESSIONALS.

This is the Pro-Turn® 560. A commercial-grade mower for professionals who want rugged durability without sacrificing features and performance. Better seating, better tires, better mowing deck, and a better transmission make the Pro-Turn 500 the better choice.

Key Features
  • X-Factor® II Deck: The 7-gauge, X-Factor® II Deck is fabricated from top to bottom, providing industrial-strength peace of mind that’s reinforced with an exclusive limited lifetime warranty.
  • Maintenance-Free Spindles: With forged aluminum housings for lasting durability.
  • Steel Chassis: A heavy-duty, 1.5-inch x 3-inch steel, singular tubular frame is fabricated with four engine frame isolation points to reduce cockpit vibration by 45% while lessening operator fatigue.

Specifications

Engine Kawasaki® FX1000 EFI Kawasaki® FX921V
Horsepower 38.5 31
Engine Displacement 61 in 61 in / 999 cc
Fuel System Gas
Fuel Capacity 13.4 gal / 50.7 ltr 12.5 gal / 47.3 ltr
Drive System Hydrostatic Hydrostatic
Transmission Type Hydrostatic
Brake Type Lever Activated Parking Lever Activated Parking
Driver Position Sit Sit
Ground Speed Forward 15 mph / 24.1 kph 15 mph / 24.1 kph
Ground Speed Reverse 6 mph / 9.7 kph 6 mph / 9.7 kph
Wheels Front 15.0 x 6.0 in – 6.0 in (38.1 x 15.2 cm – 38.1 cm) 15.0 x 6.0 in – 6.0 in (38.1 x 15.2 cm – 38.1 cm)
Wheels Rear 26.0 x 12.0 in – 12.0 in (66.0 x 30.5 cm – 30.5 cm) 26.0 x 12.0 in – 12.0 in (66.0 x 30.5 cm – 30.5 cm)
Front Wheel Track 42.3 in
Rear Wheel Track 55 in / 139.7 cm
Electric
Battery Capacity 300 CCA
Number of Batteries 0 1
Battery Voltage 12
Battery Type Lead Acid – Maintenance Free
Battery Size U1
Deck
Deck Size 60 in / 152.4 cm 60 in / 152.4 cm
Coverage Hour 9 acres / 3.6 hectares 9 acres / 3.6 hectares
Spindle Type Electric Mechanical
Deck Material 7 ga 7 ga
Deck Construction Fabricated X-Factor® 3 Fabricated X-Factor® 3
Discharge Configuration Side Side
Cutting Height Min 1 in / 2.5 cm 1 in / 2.5 cm
Cutting Height Max 5.5 in / 14 cm 5.5 in / 14 cm
Cutting Width 60 in / 152.4 cm 60 in / 152.4 cm
Dimensions
Weight (assembled) 1506 lb 1487 lb
Length 84 in / 213.4 cm 84 in / 213.4 cm
Width 60 in / 152.4 cm
Width (Chute Up) 63 in / 160 cm
Width (Chute Down) 75 in / 190.5 cm
