Jacobsen AR530

SKU 8181aaf7bb4f-1-1-1 Category Tags , ,

Description

Description

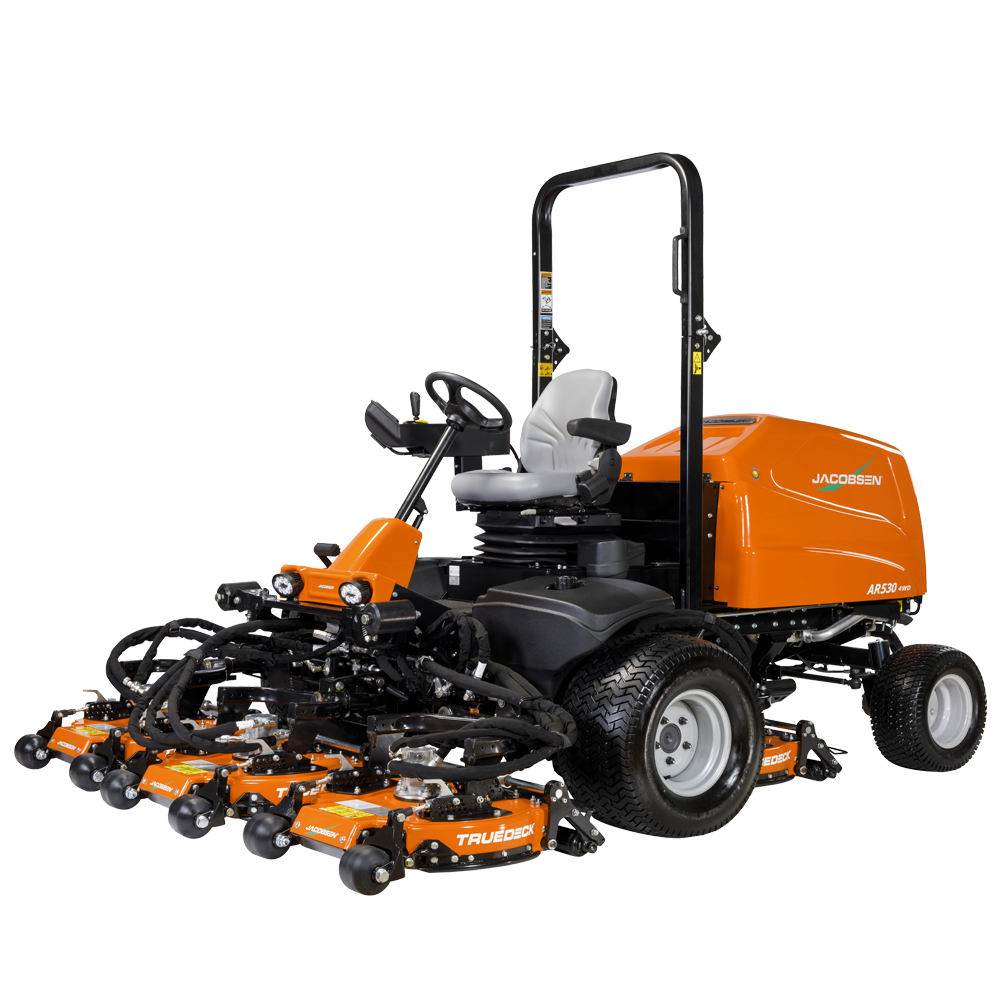

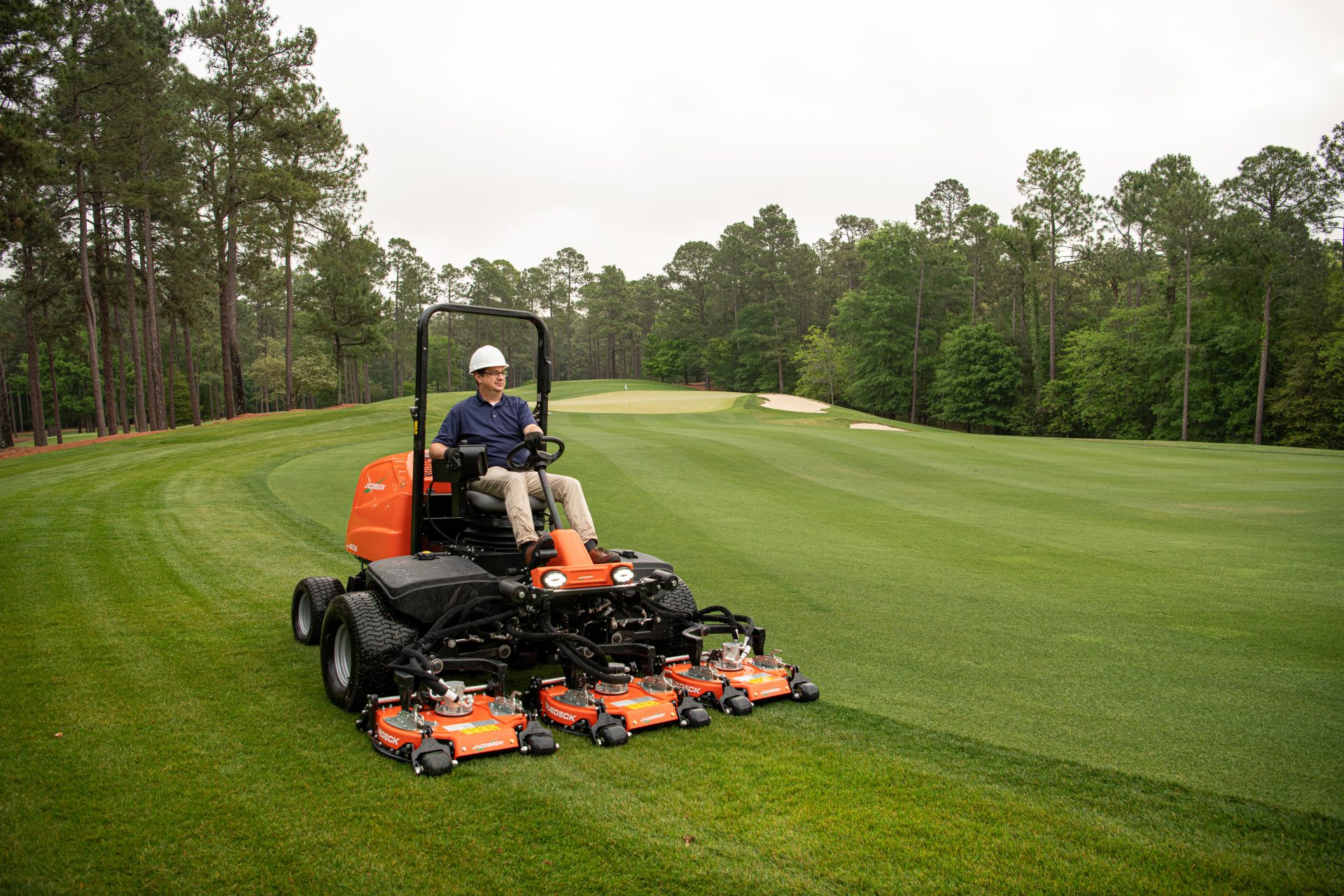

The AR530 contour rotary mower is built to give you the best. Designed with TRUEDECK™ heavy-duty contouring decks, with best in class clippings distribution and superior after-cut quality, it climbs hills and contours smoothly, eliminating the risk of scalping. The AR530 offers quick and easy deck adjustments and a trustworthy Kubota® engine you can rely on.

Features

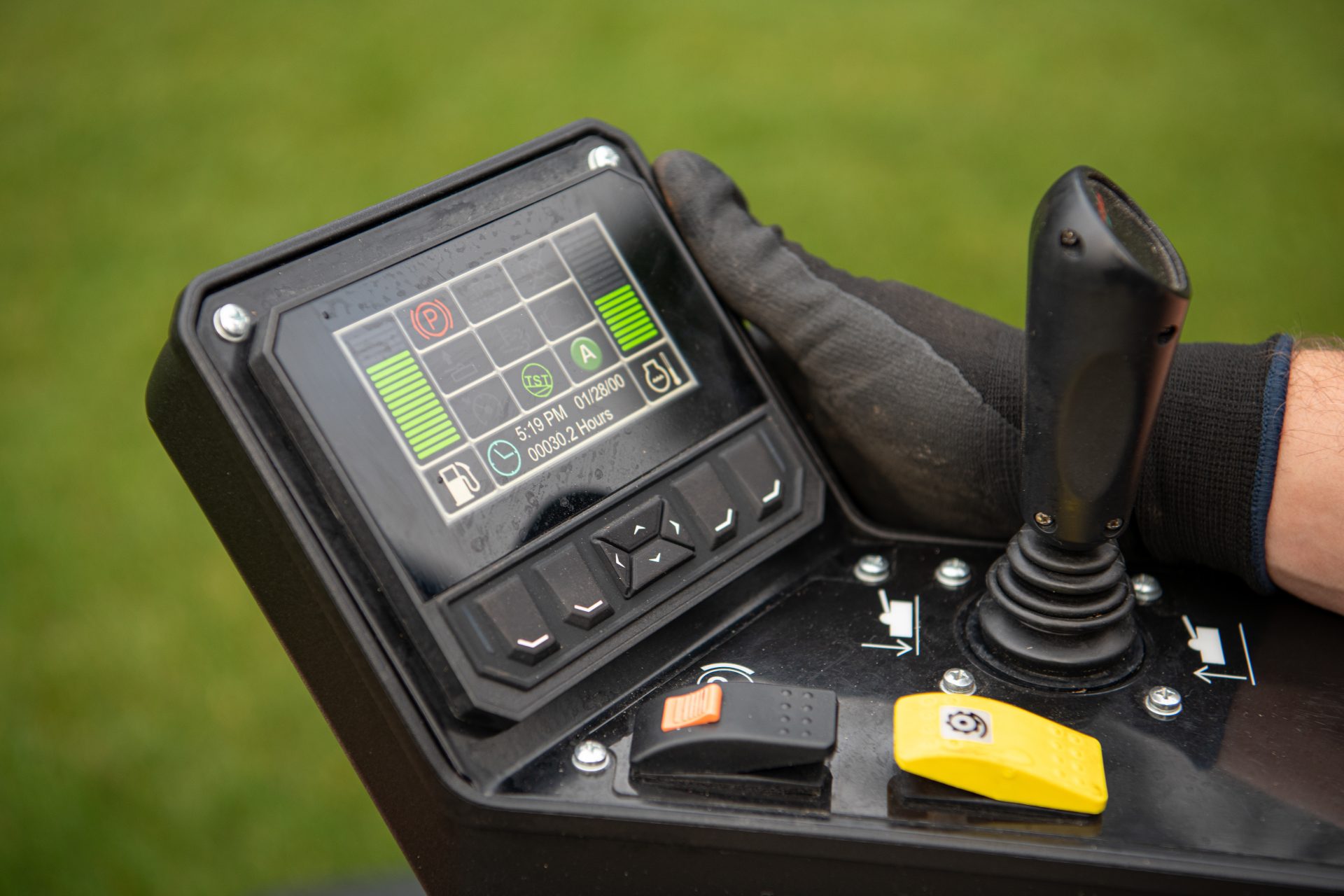

  • Full color LCD operator screen with machine diagnostics

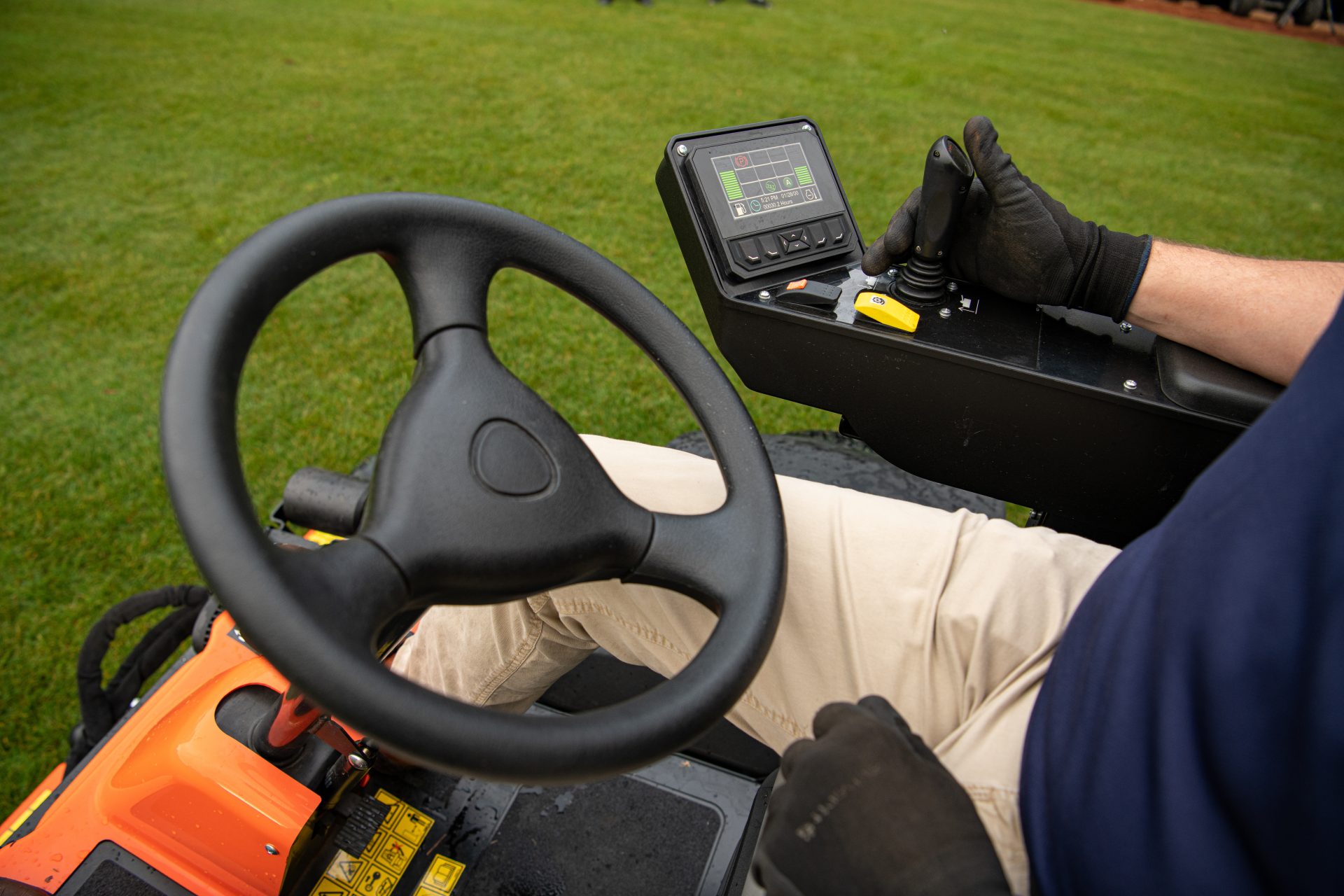

  • Improved operator environment; ease of access, optimized seating position, adjustable steering wheel
  • Maintenance-free, wet parking brakes
  • Decks specifically designed for cut performance and after-cut appearance
  • Jake’s best traction that meets your application
  • Hydraulic hood struts for worry free access and convenience
  • Vertical lift on outside decks for maneuverability
Power
  • 50.2 HP (37.4 kW) diesel Kubota® engine
Traction and Drive
  • SureTrac II™ AWD, a unique parallel hydrostatic system, servo-controlled variable displacement hydro; four high-torque wheel motors; 2WD transport and reverse

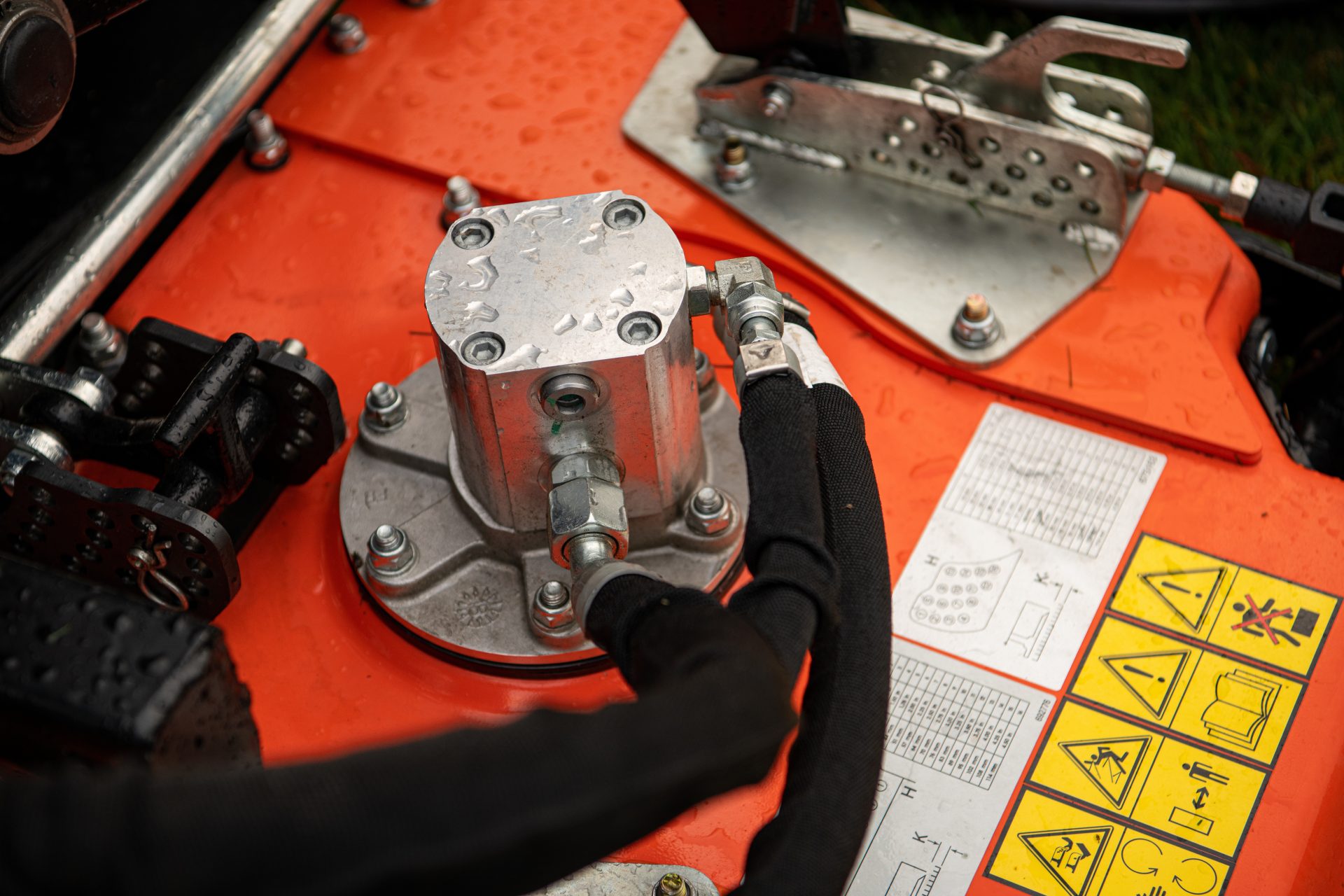

  • Deck Drive: Fixed displacement, self-lubricating with 1” (2.54cm) diameter shaft; double sealed bearings
  • Parking Brake: No-Maintenance, Integrated Wet Parking Brake

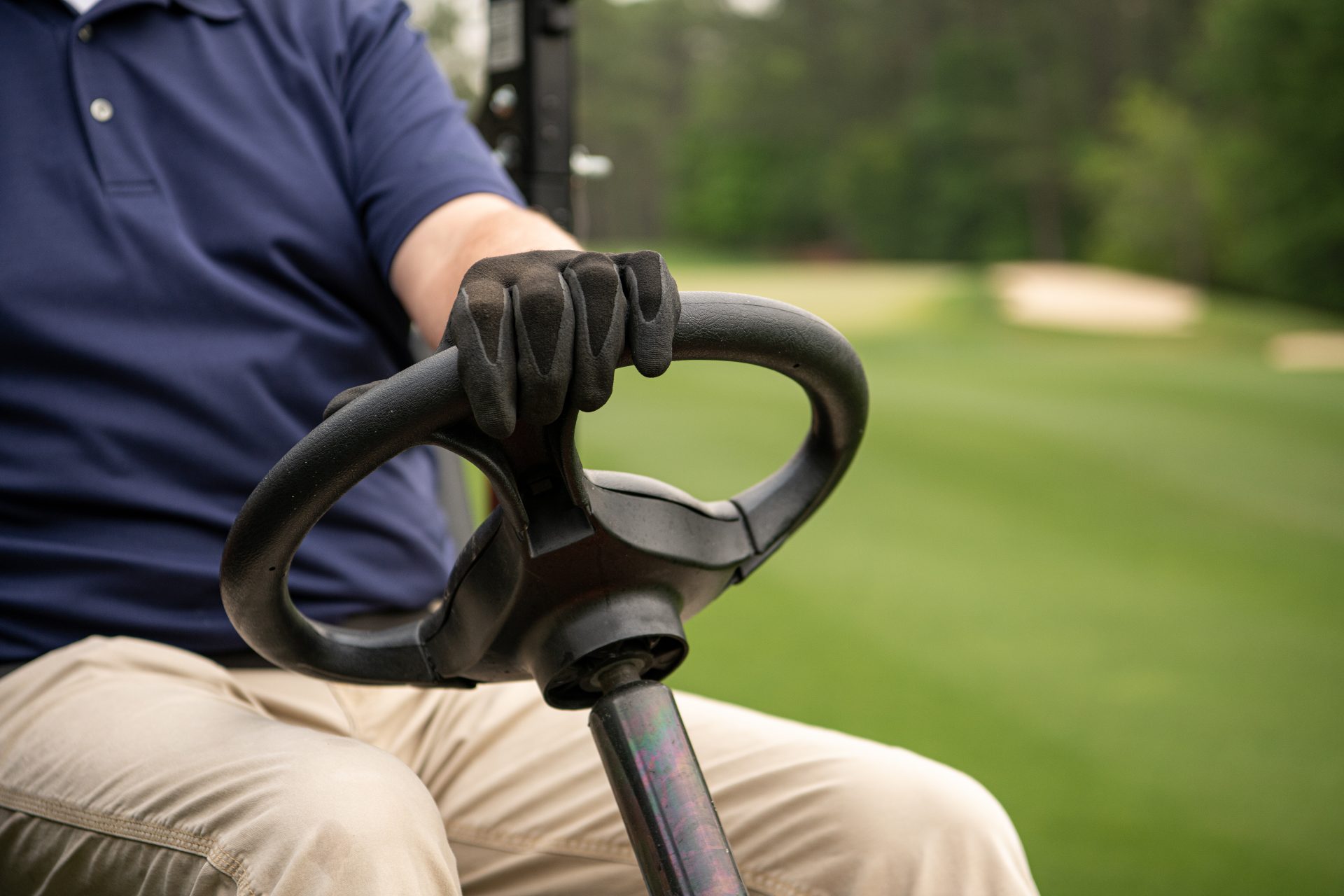

  • Steering: Rear wheel, hydrostatic power steering with tilt adjustable steering wheel
Decks and Cutting Units

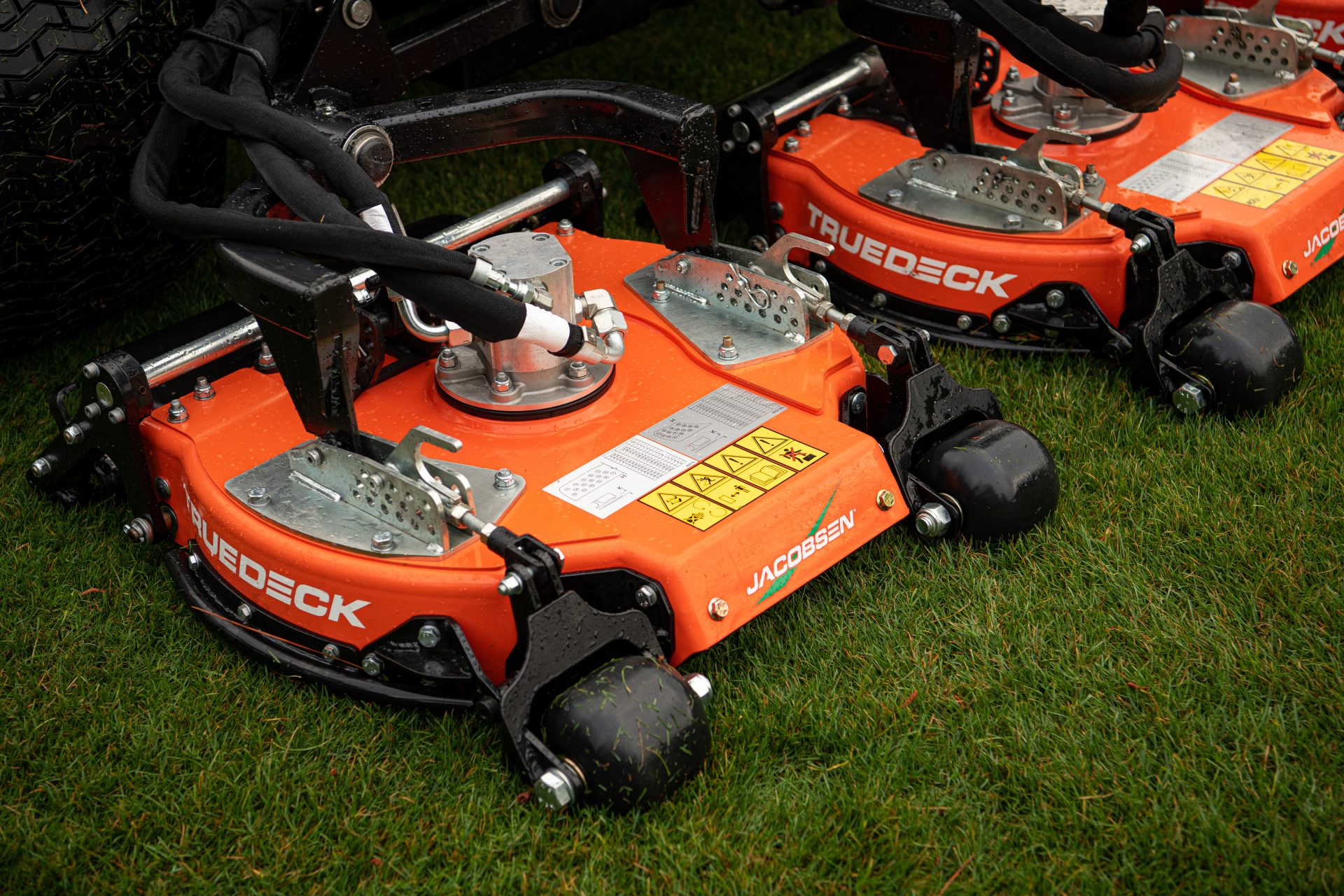

  • Number and Size: 5 x TRUEDECK™ 23” (58.4cm) rotary cutting units. Equipped for rear-discharge chute and smooth rear roller. Mulching baffle, non-striping rear roller and rear roller scrapers available
  • Blade Material: 5 x 22.4” (56.8cm) heat treated alloy combo blades
  • Overall Cutting Width: 90 in.
  • Height-of-Cut Range: 0.75 – 4.5 in.
  • Deck Construction: 10-gauge, heavy duty modular deck construction
Speed
  • Mowing: 7 mph
  • Reverse: 8.7 mph
Weight and Dimensions
  • Length: 137.5 in.
  • Height with ROPS: 91.6 in.
  • Transport Width: 88.6 in.
  • Working Width: 95.3 in.
  • Fuel Capacity: 17 gal.
  • Weight: Diesel: 3451lb. (1565kg) full fluids
