Smithco Sand Star I

SKU 24b579c2508a Category
Request a Quote
Quote by Phone
Request Brochure

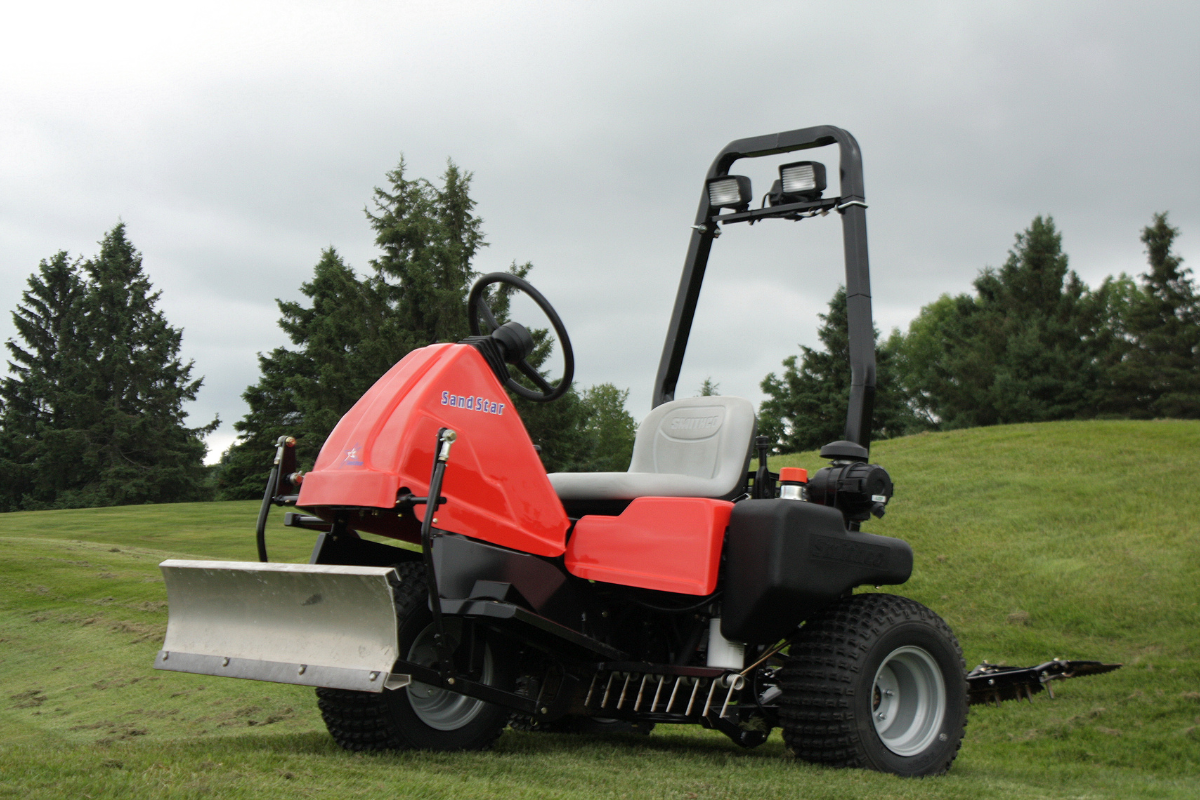

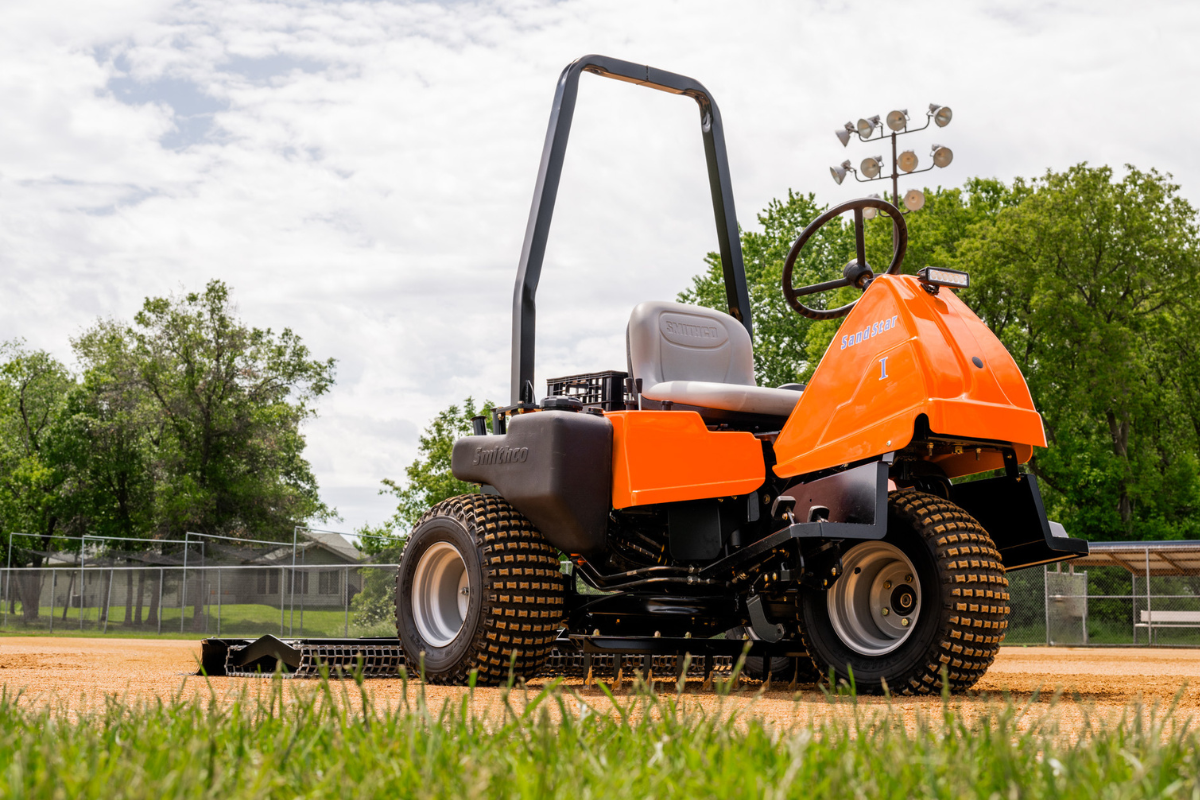

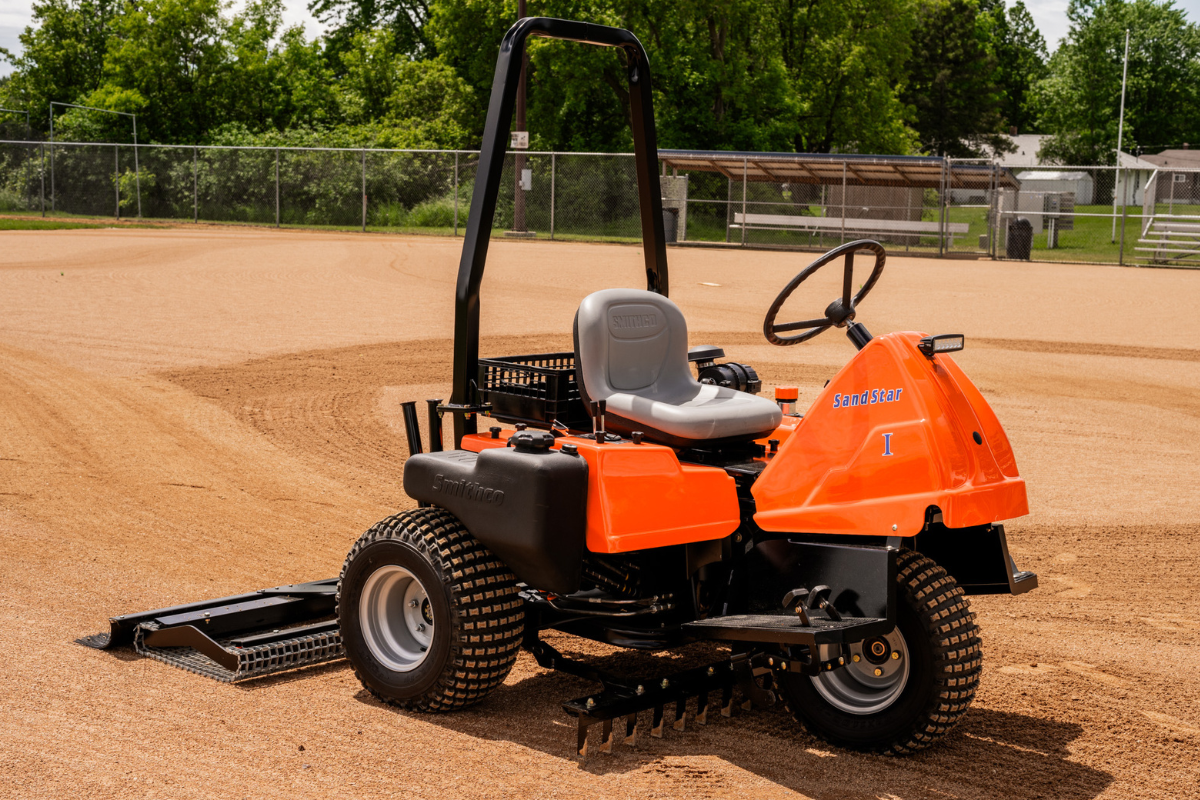

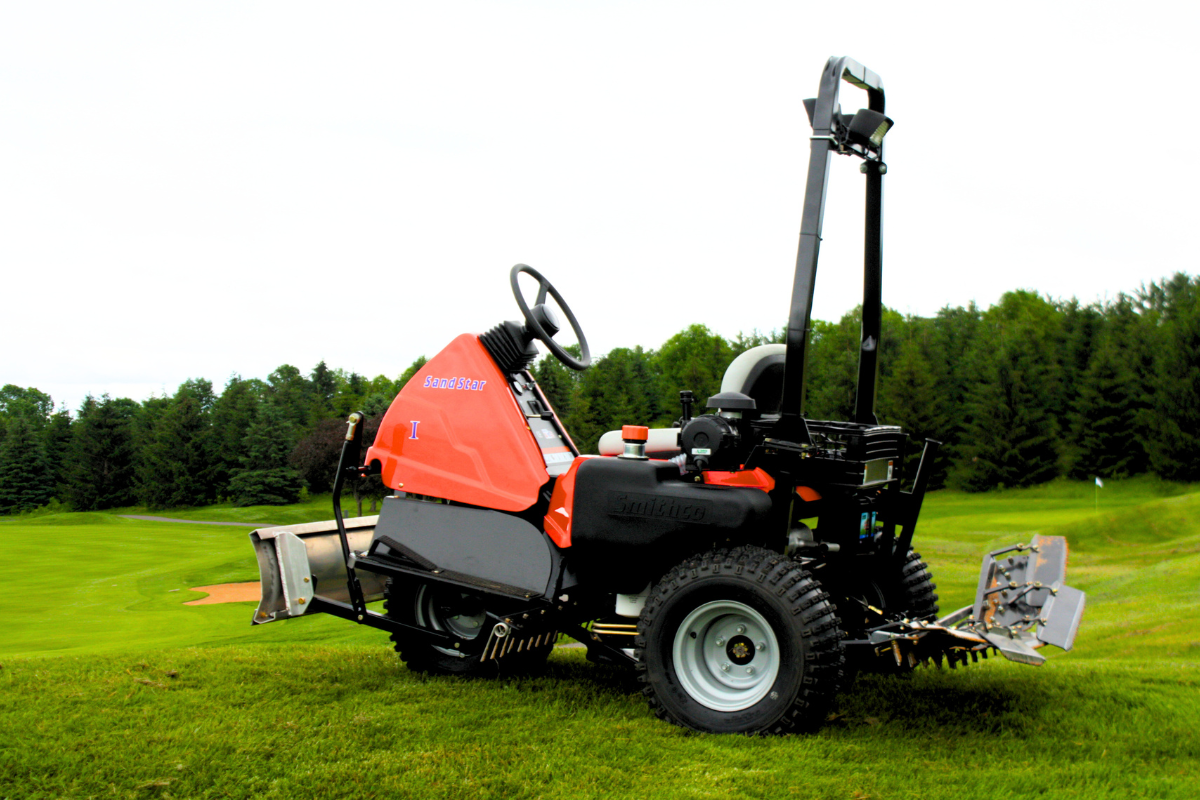

Sand Star I – 2-Wheel Drive, 16hp/12 kW OHV Vanguard gasoline engine

  • Speed – 0-12 mph (0-16 kph)
  • Tire & Wheels – Purchasers choice of (3) 22 x 11 – 10 knobbed sand tires, -or- (3) 23-10.50 x 12 turf tires
  • Engine – 16hp (12 kW) Vanguard V twin cylinder , air cooled, gasoline
  • Steering – Manual front wheel steering, 15â€� (38 cm) diameter automotive type steering wheel
  • Controls – Dual foot pedal for forward and reverse operation of traction drive system with “Pro-Pedalâ€� system connecting engine throttle to hydraulic demand (Engine speed increases as hydraulic system demand increases) Hydraulic engage/disengage levers
  • Weight – 875 lbs. (397 kg)
  • Drive – Direct multi v-belt drive (with manual clutch for easy cold weather starting) Hydrostatic variable displacement pump to two hydraulic drive motors on rear wheels (2WD)

Additional information
