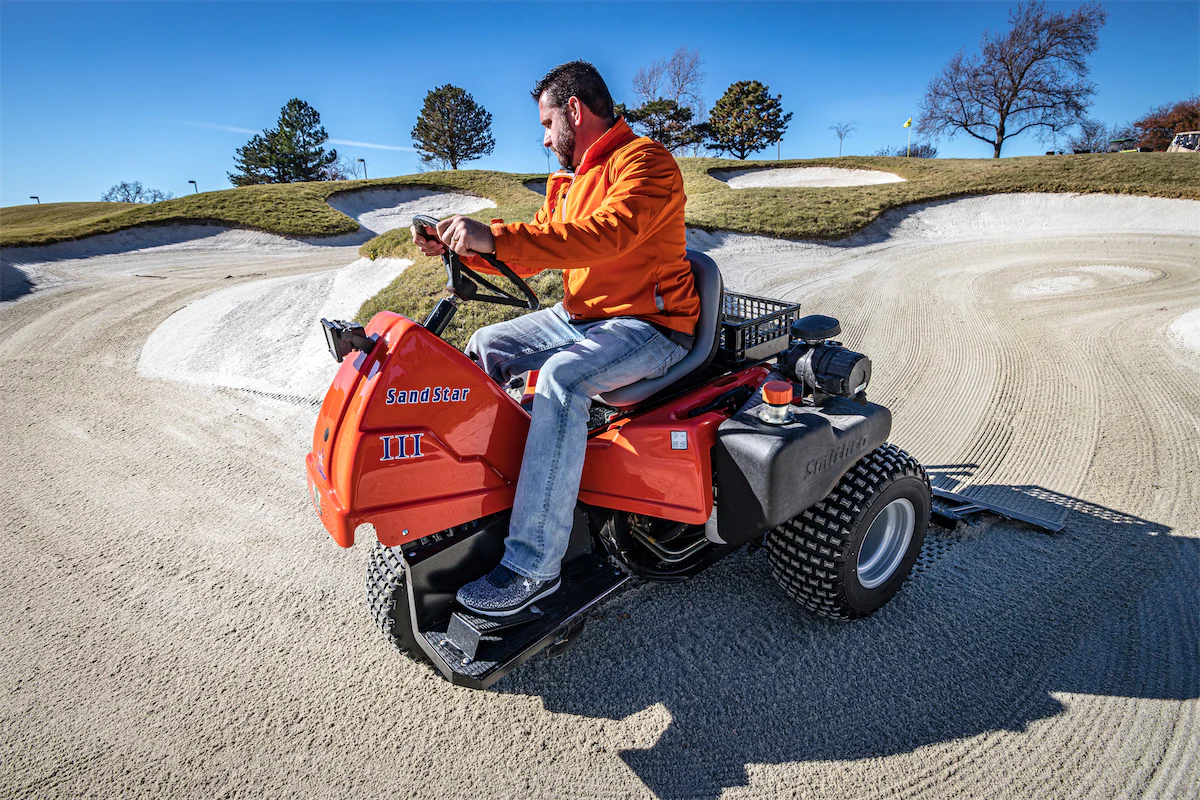

Smithco Sand Star III

SKU 7f0adeee692b Category
Request a Quote
Quote by Phone
Request Brochure



Sand Star III – 3 Wheel Drive Smithco 2WD-3WD Traction Assist, 2 wheel drive selector for traction & increased transport speed, Hydraulic Power Steering, 18hp/13 kW OHV Vanguard gasoline engine. INCLUDES 45-017 Remote Cyclo-Pac Air Cleaner & 45-018 & Hydraulic Center Implment lift/lower, Factory Installed

  • Speed – 0-12 mph (0-16 kph)
  • Tire & Wheels – Purchasers choice of (3) 22 x 11 – 10 knobbed sand tires, -or- (3) 23-10.50 x 12 turf tires
  • Steering – Hydraulic power steering, 15â€� (38 cm) diameter automotive type, adjustable tilt steering wheel.
  • Controls – Dual foot pedal for forward and reverse operation of traction drive system with “Pro-Pedalâ€� system connecting engine throttle to hydraulic demand (Engine speed increases as hydraulic system demand increases) Hydraulic engage/disengage levers
  • Weight – 915 lbs. (415kg)
  • Drive – Direct multi v-belt drive (with manual clutch for easy cold weather starting) two hydraulic drive motors on rear wheels and one hydraulic motor on front wheel (3WD). Parallel traction drive to all 3 wheels. Hydraulic oil system cooler with engine
  • Engine – 18hp (13.5 kW) Vanguard V twin cylinder , air cooled, gasoline
