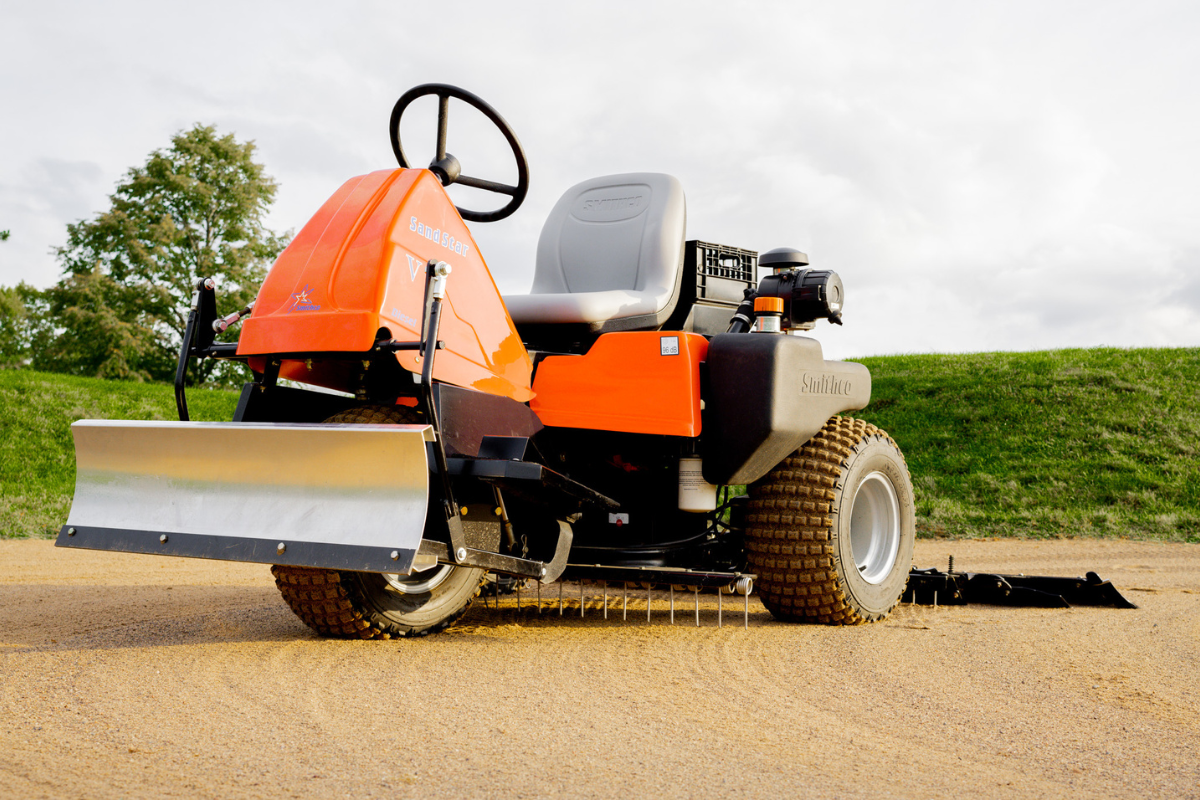

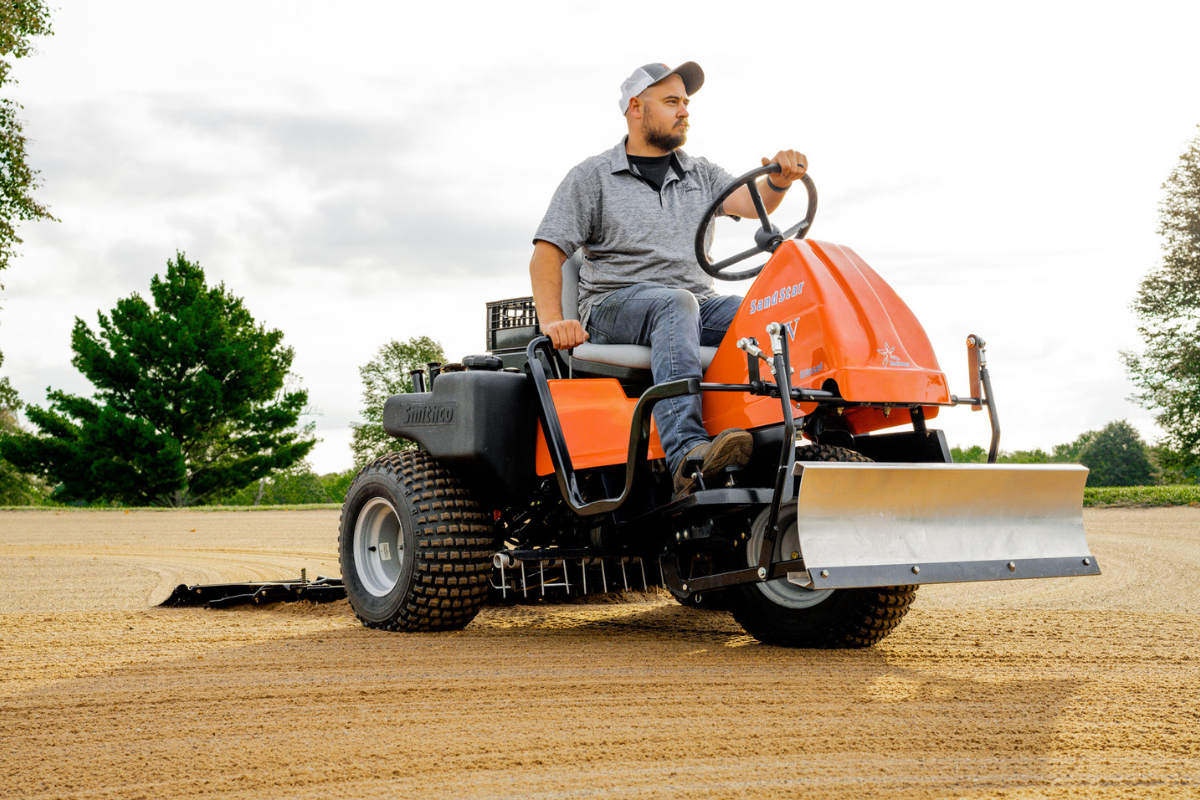

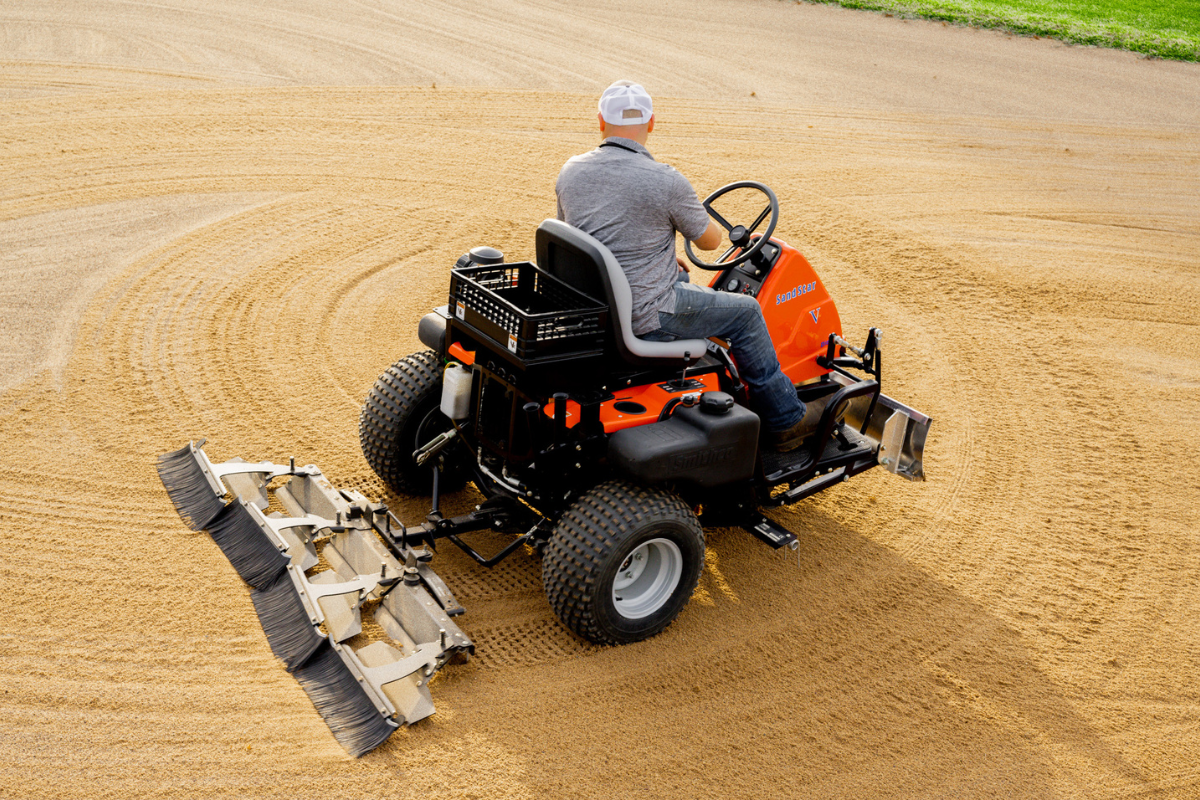

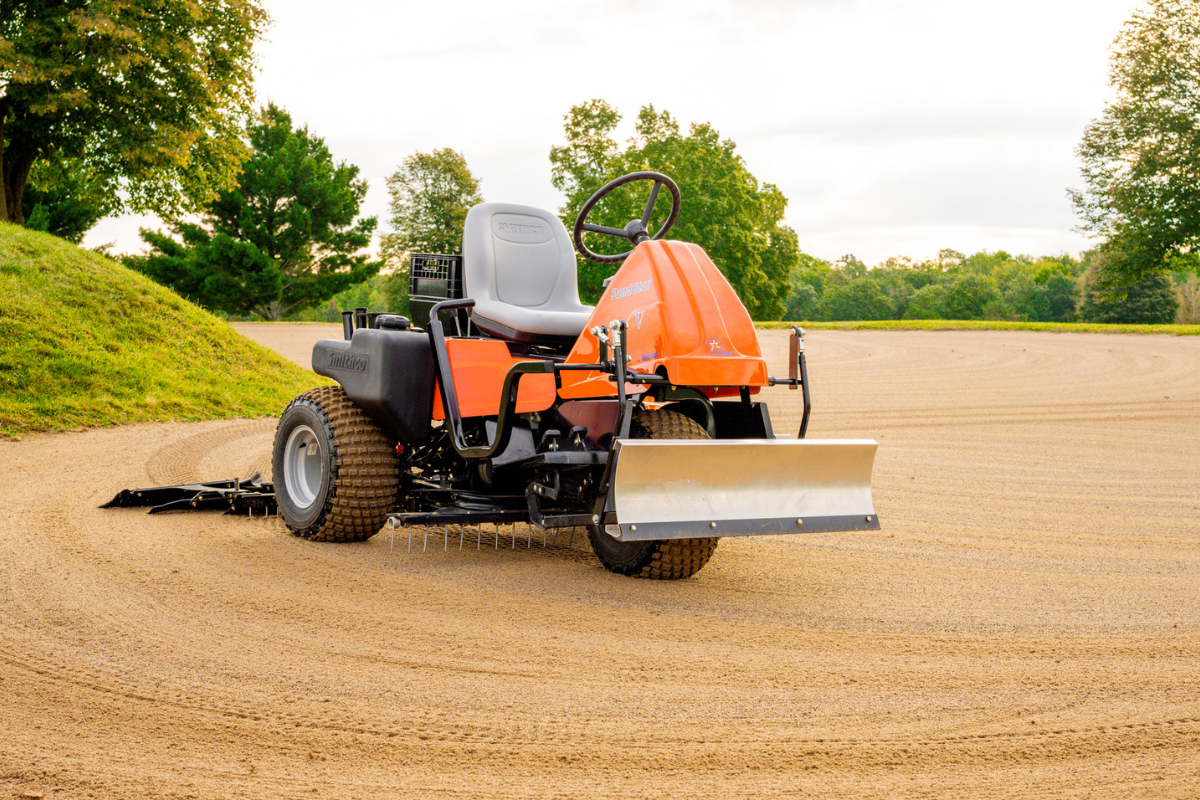

Smithco Sand Star V - Diesel

SKU 2a2044b1592b Category
Request a Quote
Quote by Phone
Request Brochure



Powerful and reliable liquid-cooled diesel engine outlasts conventional air-cooled gasoline engines and offers reduced maintenance costs.

  • Engine – 18.8HP (14 kW) Kubota model D722 three (3) cylinder, liquid cooled diesel engine Tier 4 Emissions Compliant. Full pressure lubrication with replaceable oil filter. Remote mounted cyclonic air intake filtration system.
  • Drive – Belt driven hydraulic pump driving two hydraulic motors on rear wheels and one hydraulic motor on front wheel. Parallel traction hydraulic drive system. Hydraulic oil system cooler with engine driven air flow.
  • Speed – Forward: 0-11 mph (0-18 kph) Reverse: 0-5 mph (0-8 kph)

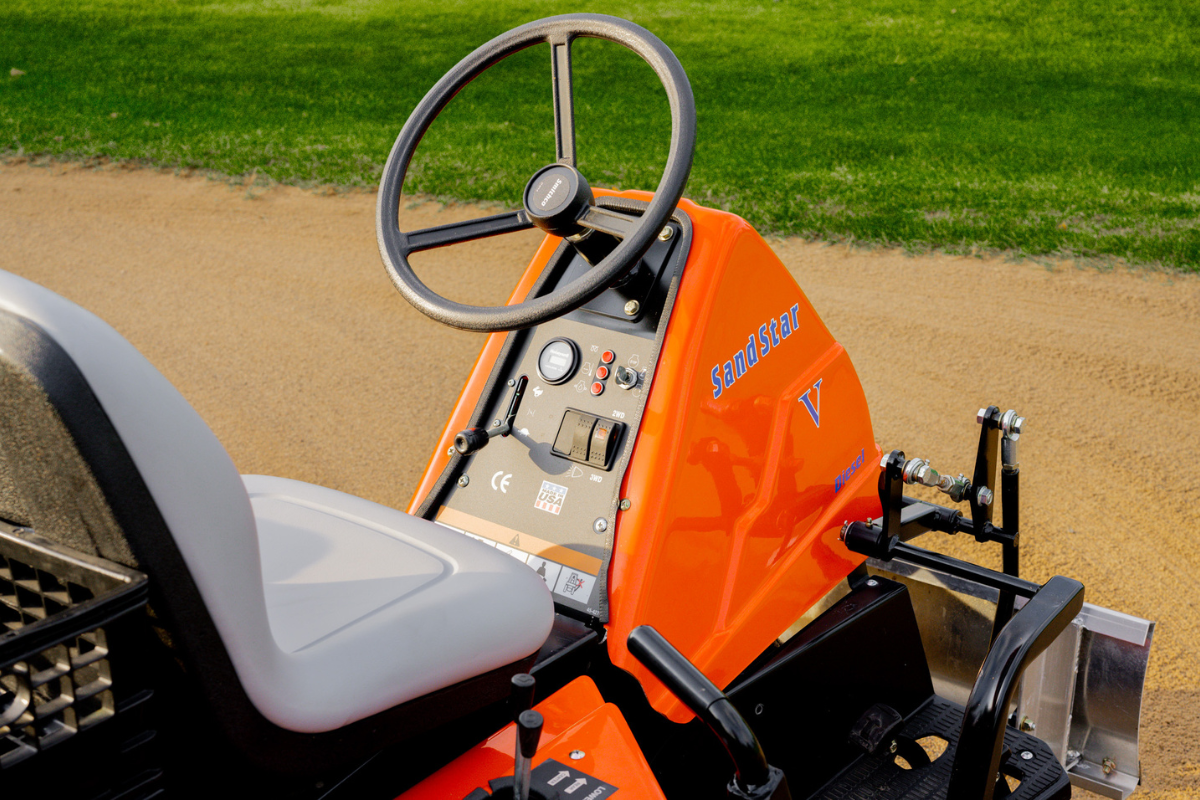

  • Steering – Hydraulic power steering, 15 in (38 cm) diameter automotive type steering wheel, adjustable tilt.
  • Weight – 1020 lbs(508 kg)
  • Tires & wheels – Purchasers choice of (3) 22 – 1100 x 10 knobbed sand tires, -or- (3) 23 -10.50 x 12 turf tires
