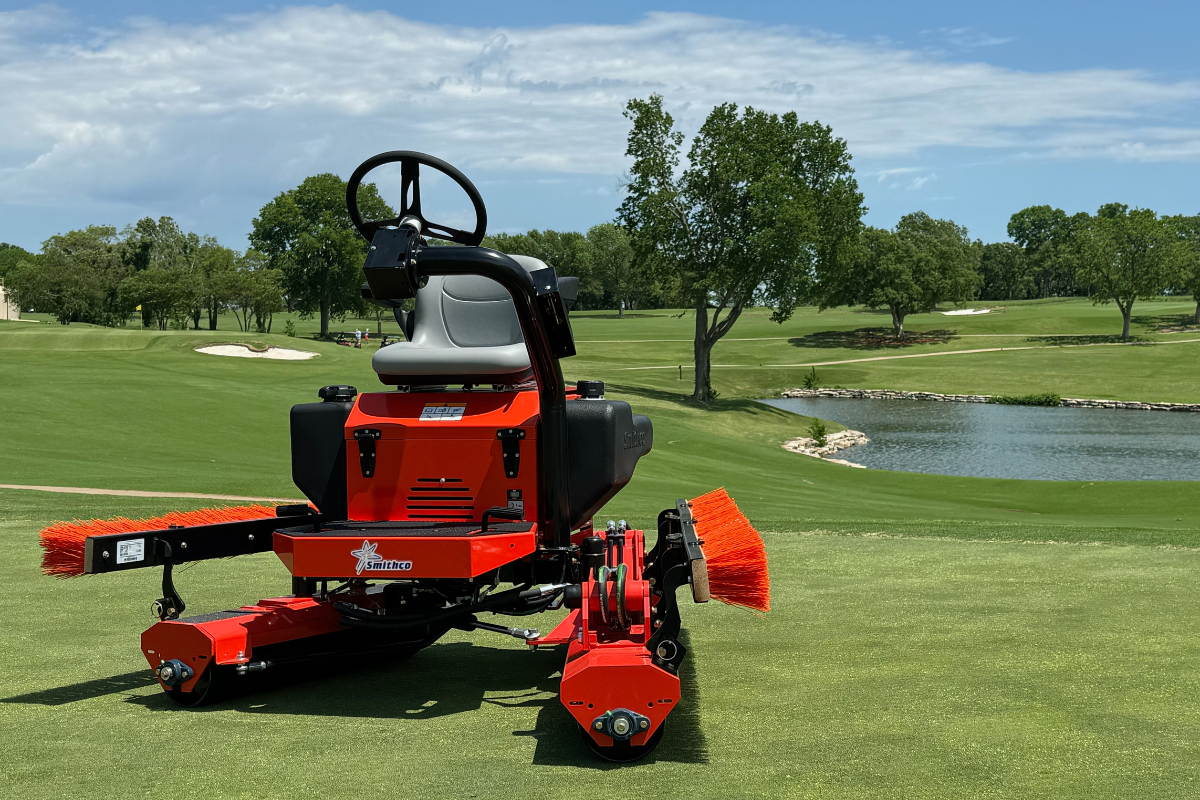

The Tournament Ultra 7090 Greensroller by Smithco is your trusty sidekick in maintaining pristine golf course greens. Its Briggs & Stratton 16 hp (11.9 kw) Vanguard V-twin gasoline engine provides robust performance, while the hydrostatic drive system and hydraulic power steering offer smooth operation and superior control. The three-section flexible roller frame ensures a uniformly smooth surface by adapting to the terrain’s contours. With a remarkable 36 inch (91.44 cm) rolling width, turf maintenance becomes efficient and time-saving. The high-capacity fuel tank promotes longer operation hours, making the Greensroller 7090 a symbol of power, efficiency, and precision.
Air Cleaner: Engine mounted
Battery: 12 v
Braking: Dynamic through hydrostatic drive system
Capacity: 2500 lbs
Configuration: A gasoline engine powered, hydraulic drive, riding golf course greensroller; Hydraulic dual roller drive system for superior traction and safety
Construction: Heavy gauge square steel tubing main frame, hydraulically formed, electrically welded
Controls: Keyed ignition switch, engine throttle, choke at the operator’s station; Dual drive pedals control left / right operation and rolling speed; Pedals connected to hydraulic pump via fully sealed push / pull cable system
Description: Low profile design with drop axle; Extra wide metal bed and tailgate fitted with rubber matting for traction and centering guide system for easy load/unload of the roller
Drawbar: Adjustable from 44-47 in
Drive System: Hydrostatic using a 1 in³ hydraulic pump driving three hydraulic motors direct coupled to each roller cylinder; Direct drive motors eliminate maintenance, hydraulic drive to all rollers provides superior traction in all turf and terrain conditions
Electrical System: 12 v, electric start to engine
Fuel Capacity: 5 gal gas tank
Ground Pressure: 3.86 psi
Height: 49 in
Ignition: Electronic
Length: 44 in
Liquid Capacity: 5 gal hydraulic oil tank
Lubrication: Full pressurized
Rated Horsepower: 16 hp
Rollers: Two oscillating 8 in diameter x 36 in length, seamless, drawn over mandrel steel tubes; Beveled on both ends with roller scrapers; Bolted hubs with bearings on each end of both rollers
Safety: Dual drive roller system for superior traction and safe operation in all turf and terrain conditions; Dynamic braking thru hydrostatic drive system
Seat: High back, one piece for operator comfort
Sound Level: 72 dba
Speed: 0-9 mph
Steering: 10:2 reduction; 16 in soft grip steering wheel with tilt; 10 in diameter turning radius; Hydraulic power steering
Tires: 18-9.5×8 pneumatic
Transport: 0-10 mph
Transport Trailer Length: 47 in (tailgate up, not including drawbar)
Transport Trailer Weight: 240 lbs
Transport Trailer Width: 56 in
Type: Briggs Vanguard gasoline engine
Warranty: Smithco two (2) year limited warranty Briggs & Stratton two (2) year engine manufacturer warranty
Weight: 845 lbs
Width: 49 in
