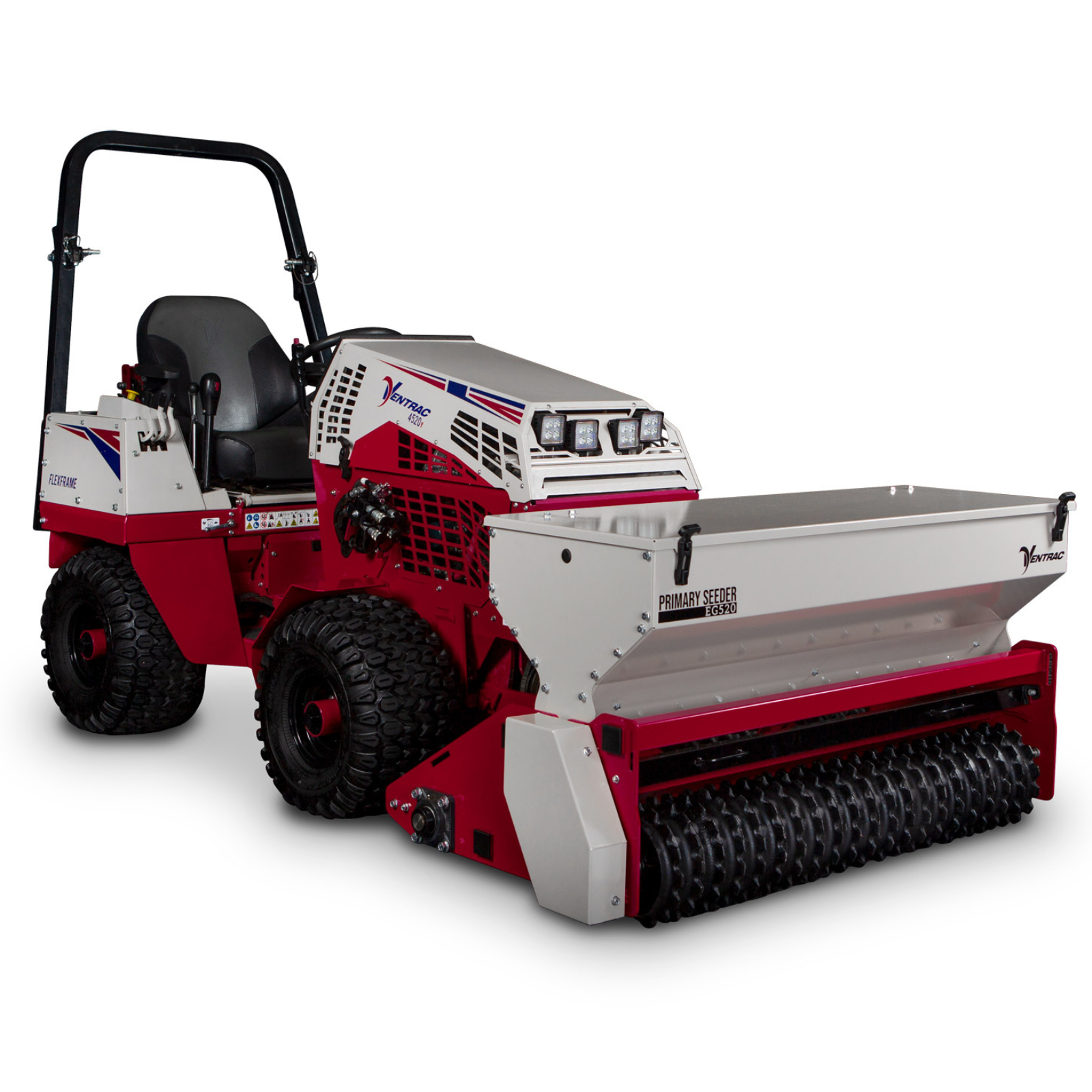

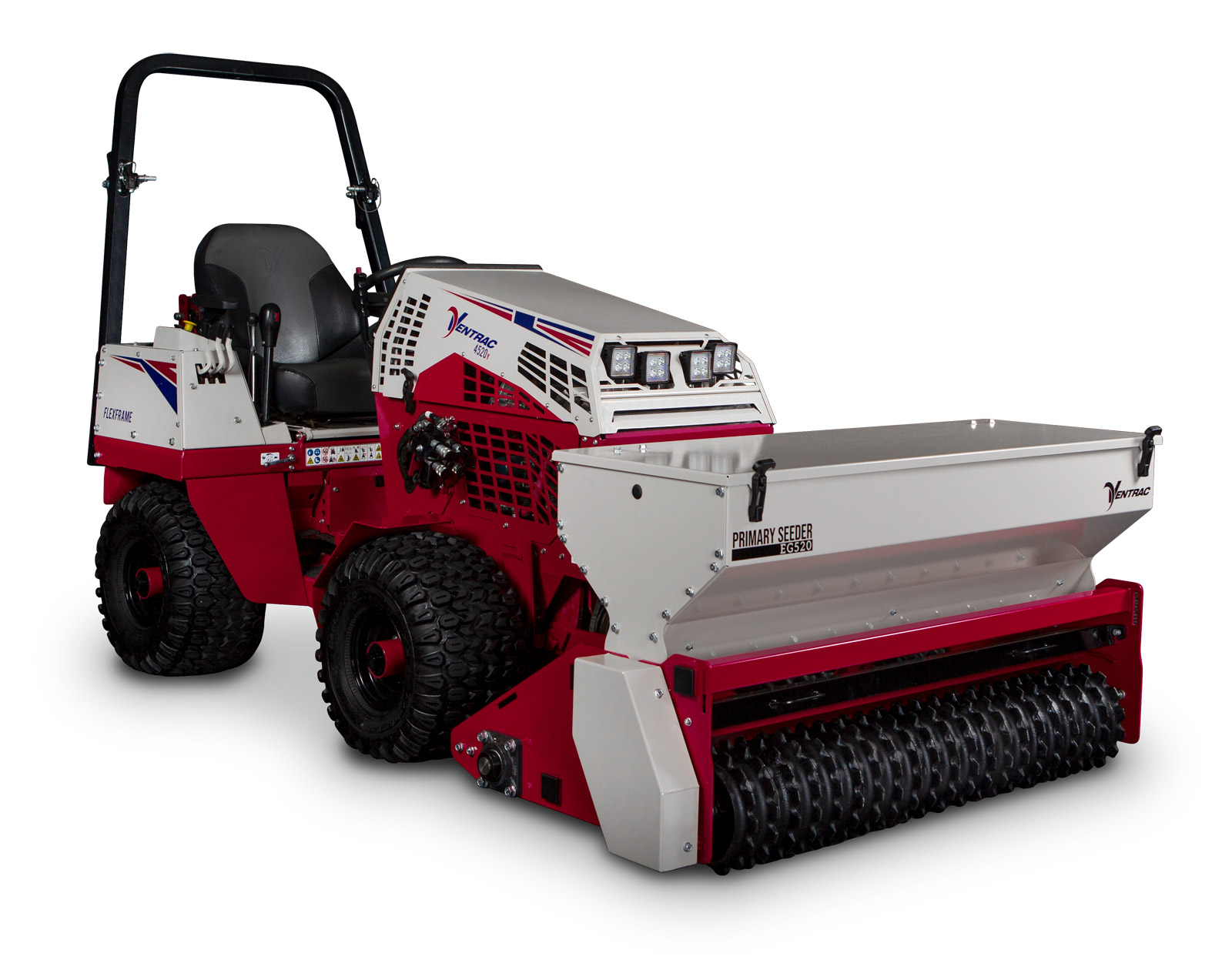

Ventrac EG520 Primary Seeder

Description

Description

The EG520 Primary Seeder plants grass seed directly into bare soil with a consistent and accurate drop rate for perfect seed placement. With precise application adjustment and a removable calibration tray, easy adjustment for different grass seed types is possible.

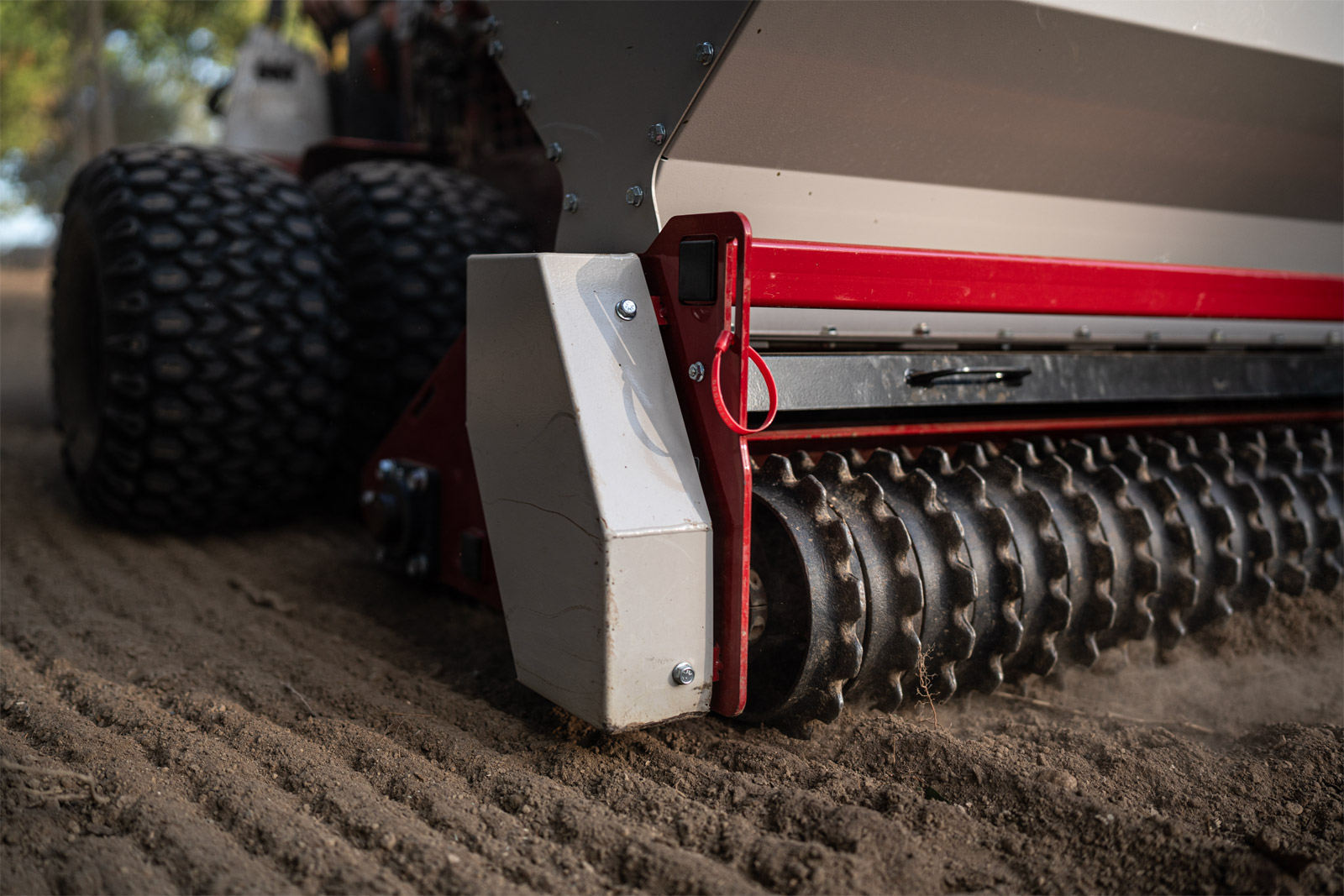

The Primary Seeder features five main components for improved direct-seeding capability. The Calibration Tray is a built-in tray that catches material during the calibration process. The Front Packer Roller crushes the material to provide a smooth surface for the seed to drop. The Rear Packer Roller is an offset roller that places a fine layer of dirt over the seed. The Seed Box has a five cubic feet capacity, allowing you to carry large amounts of seed for efficiency. And the Precision Seed Funnels meter an accurate flow of a variety of turf seeds. This ground-driven application is consistent at variable speeds, and the offset cultipacker discs are designed to create optimal seed-to-soil contact. And the five cubic feet of hopper capacity keeps you going the distance, experiencing the efficiency you’ve come to expect from Ventrac attachments.

Info
  • Sales Model: EG520
  • Full Description: EG, EG520 Seeder, Cultivator
  • Product Type: Attachment
Dimensions
  • Working Width: 52 in.
  • Length: 41 1/4 in.
  • Weight: 720 lbs.
  • Width: 57 3/4 in.
  • Height: 30 1/2 in.

General

  • Hopper Capacity: 5 ft3
  • Recommended Travel Speed: 3-5 mph
  • Recommended Operation Direction: Forward
  • Acceptable Seed Types: All typical grass seed types
  • Slope Rating: TBD
