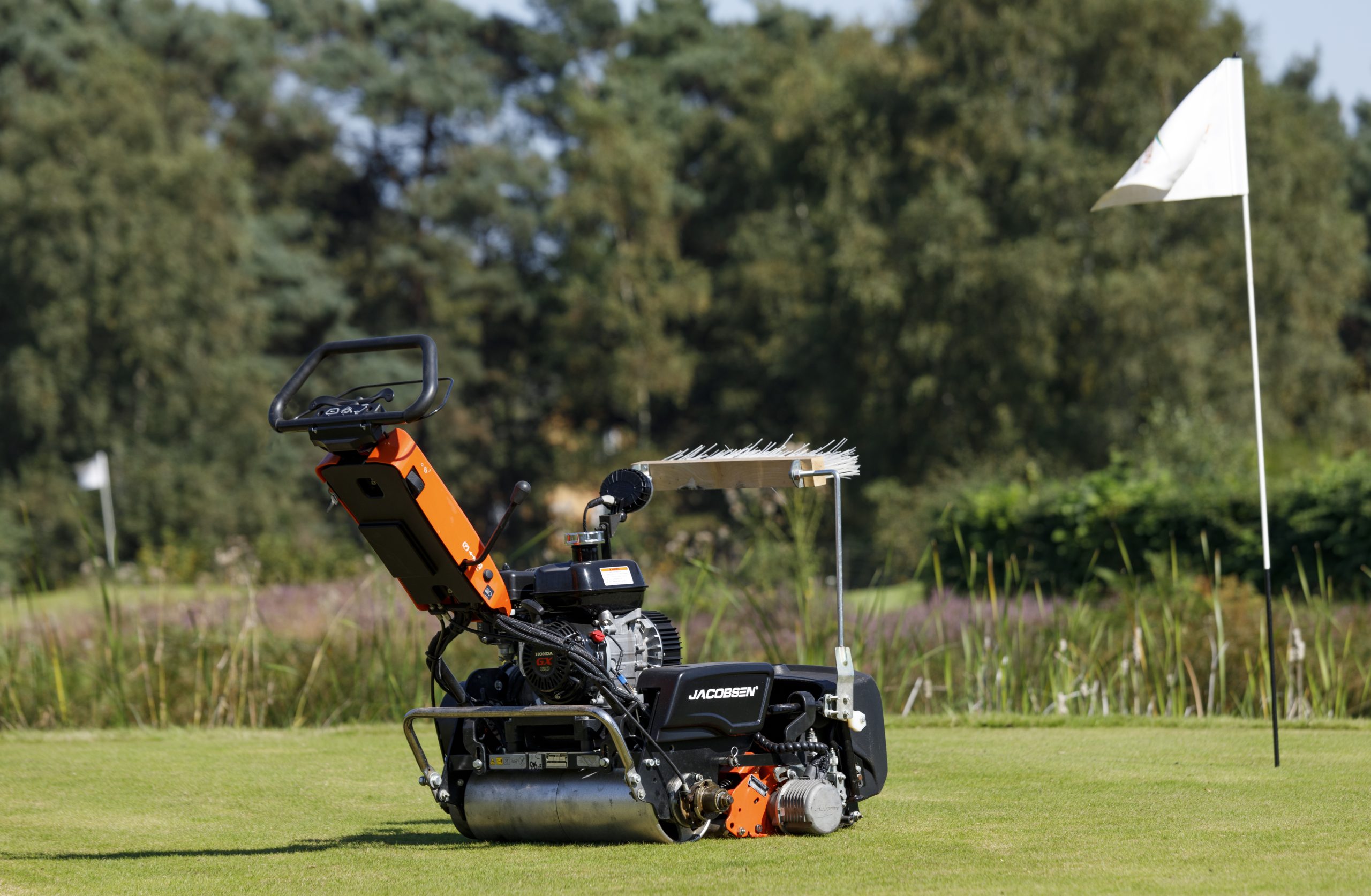

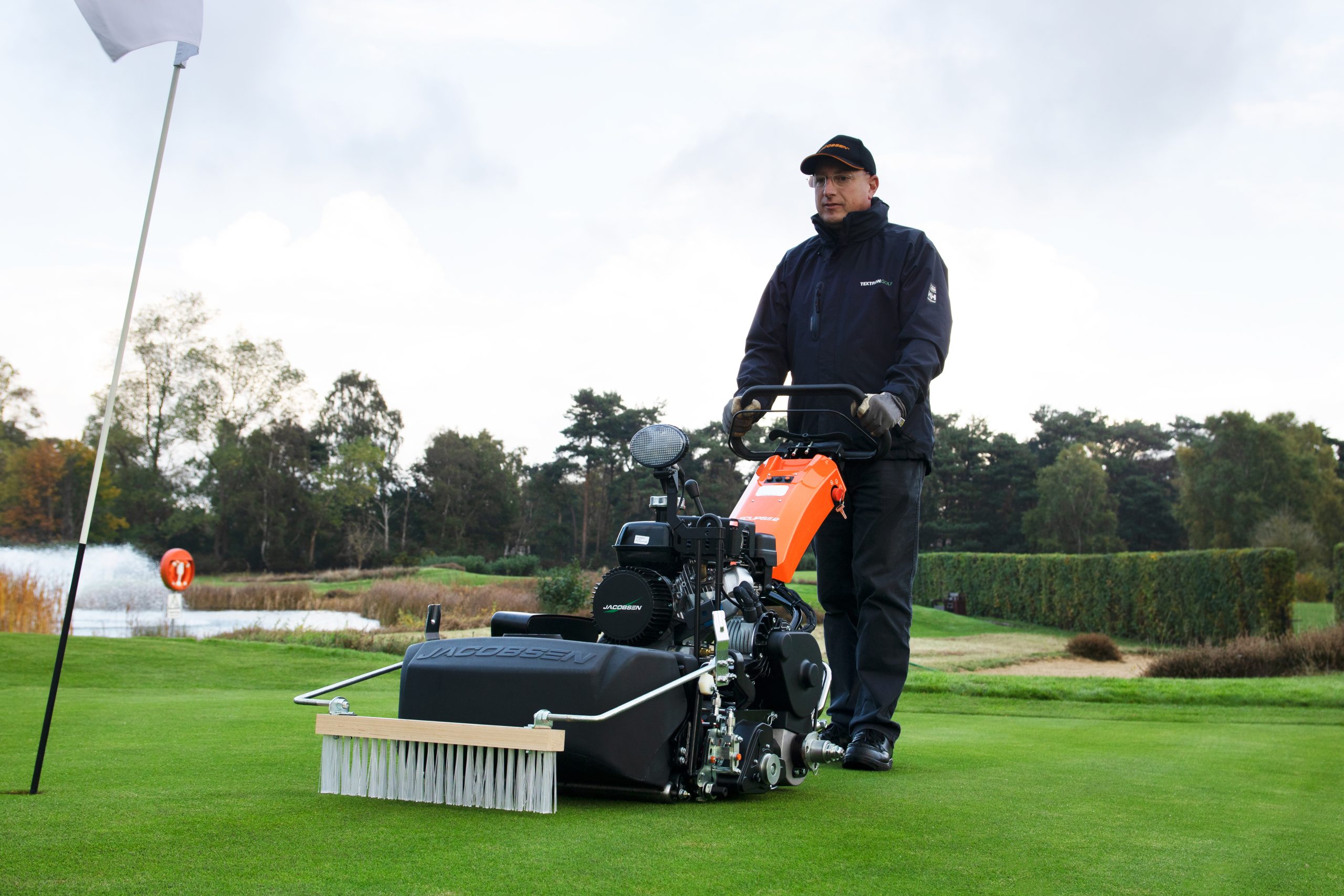

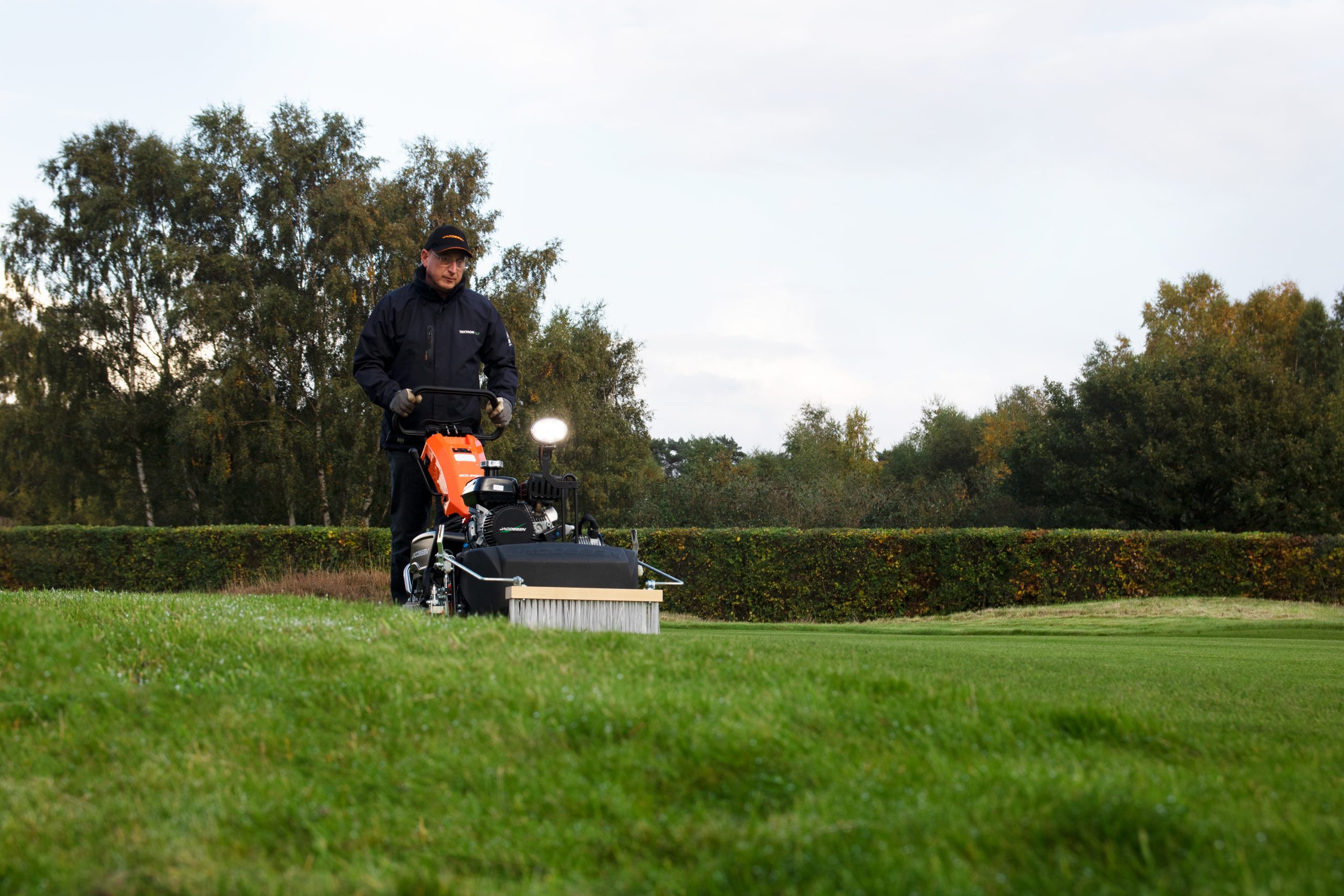

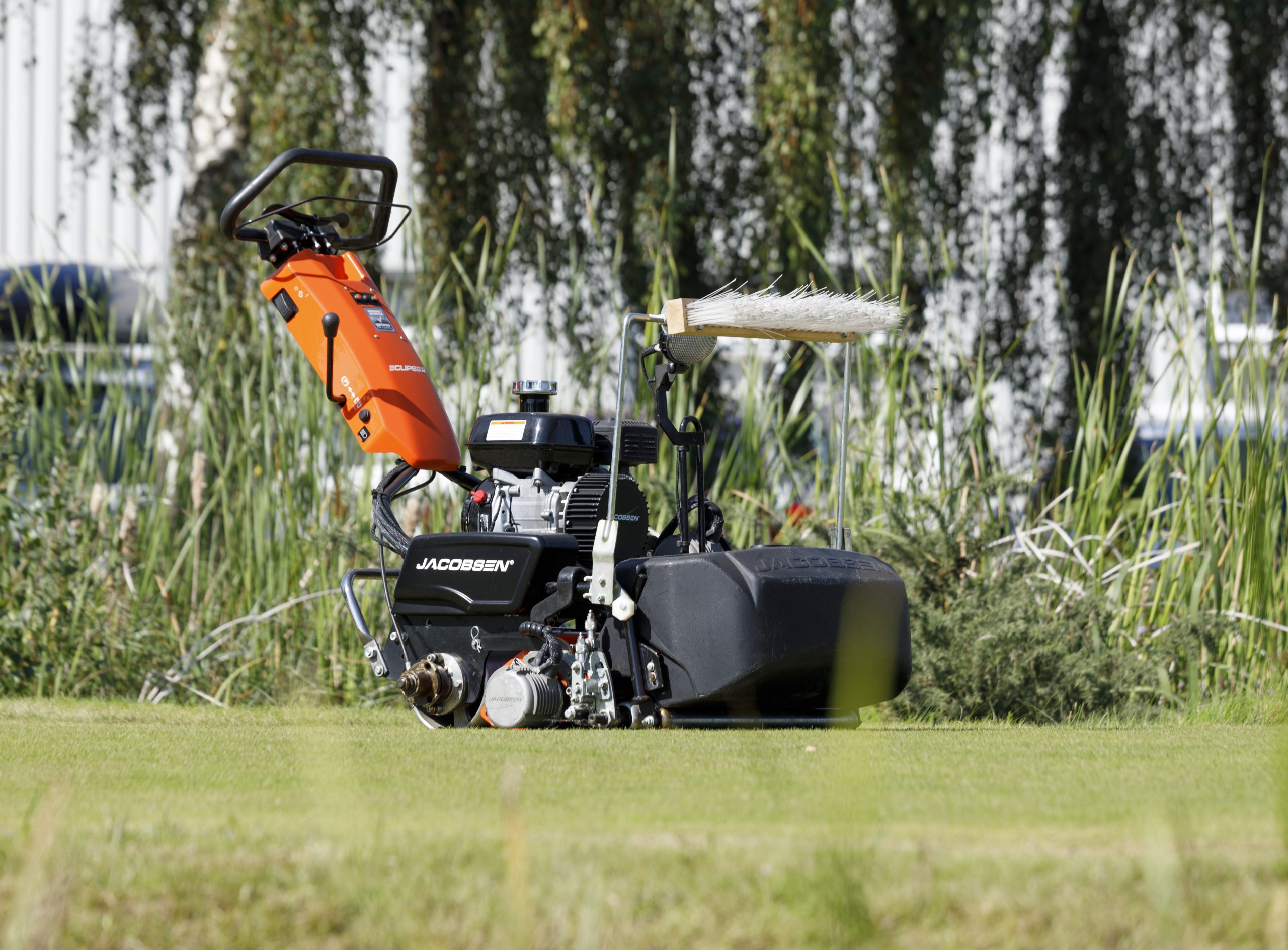

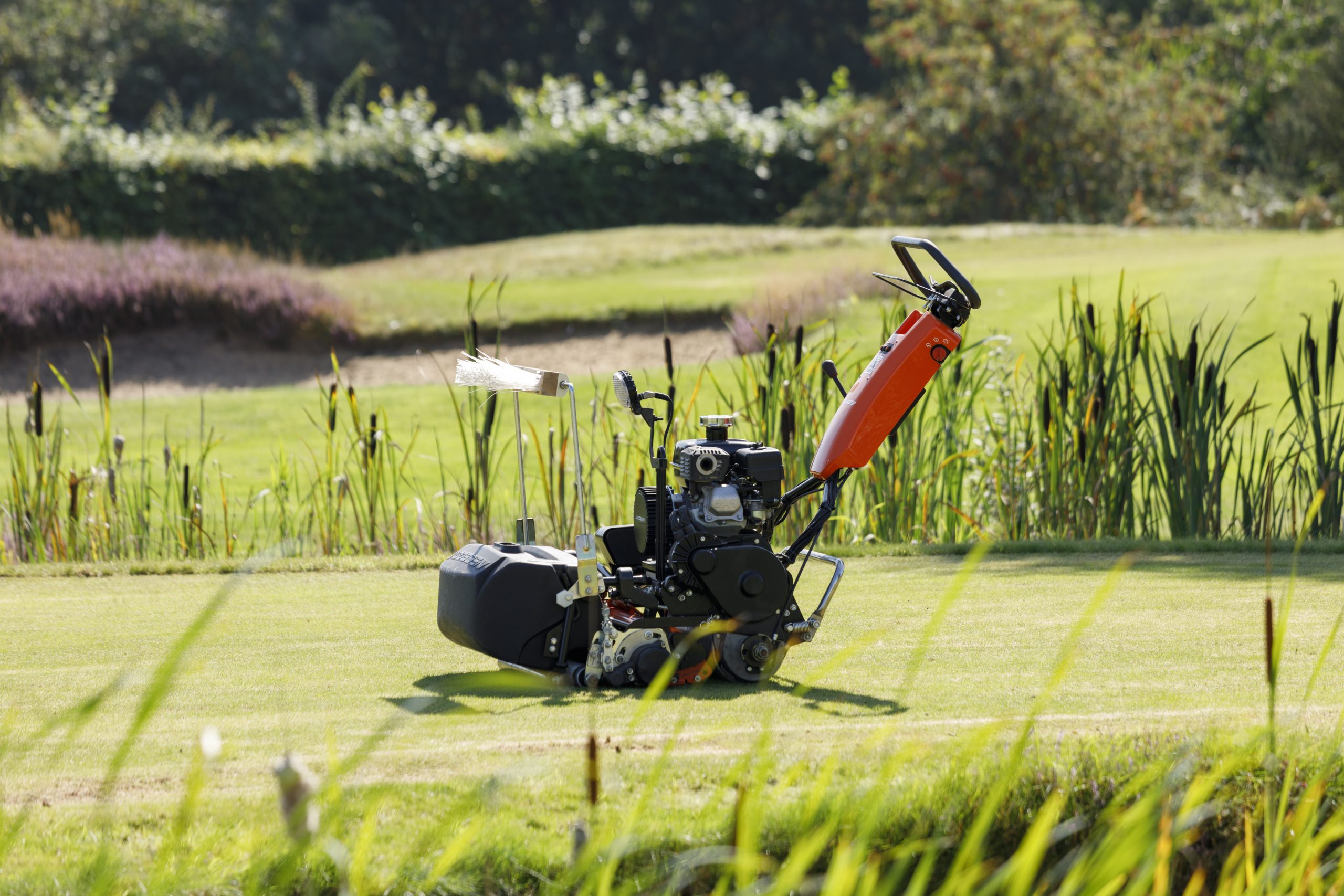

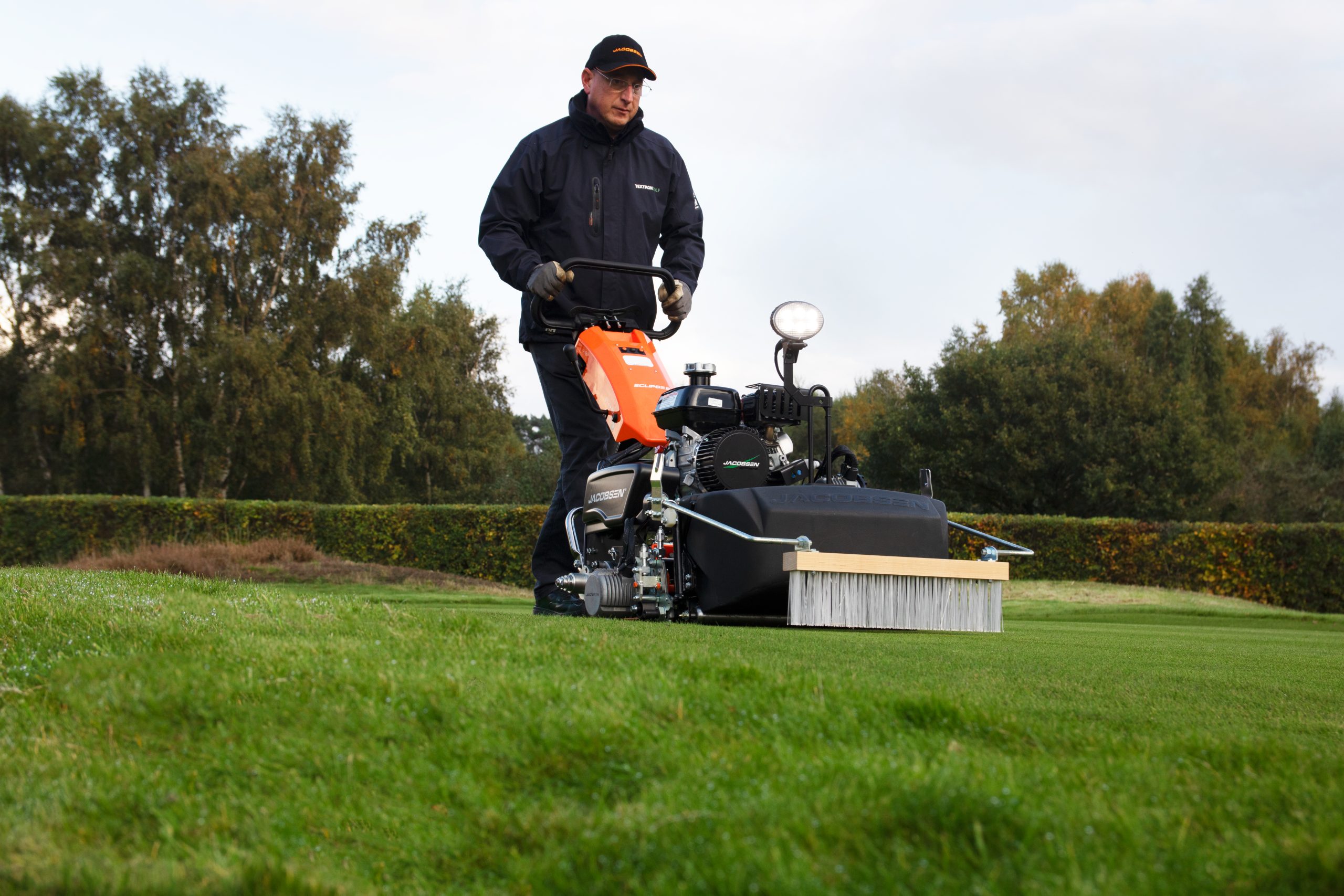

Jacobsen ECLIPSE2 Hybrid



Jacobsen’s NEW ECLIPSE2 offers best in class quality of cut, industry leading productivity and customized controls.

  • The patented true floating head and Classic XP™ reel combine to produce Jacobsen’s legendary quality of cut.
  • Delivers industry leading productivity with a maximum mow speed of up to 3.8 mph (6.12 km/h) while maintaining the tightest frequency of clip.

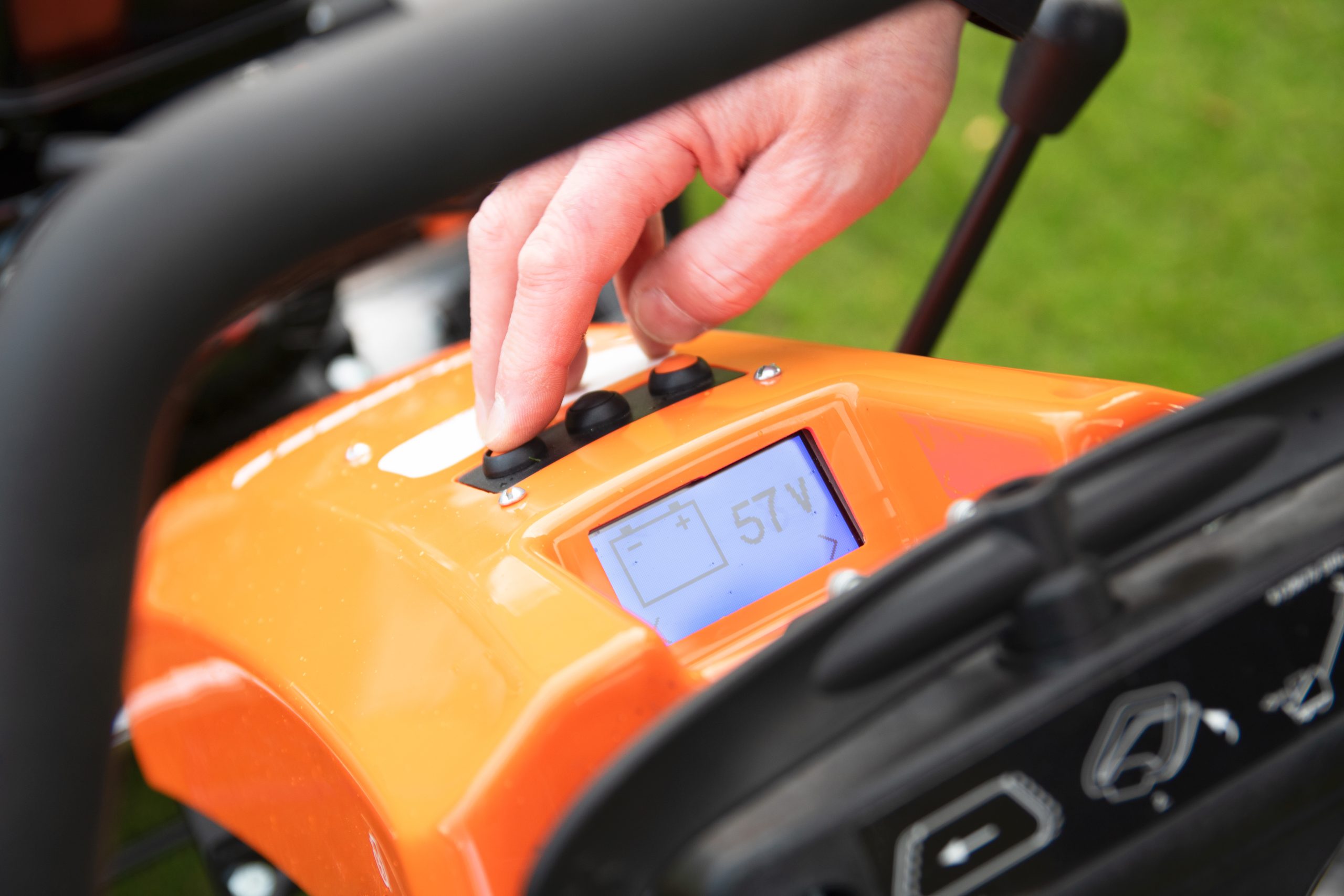

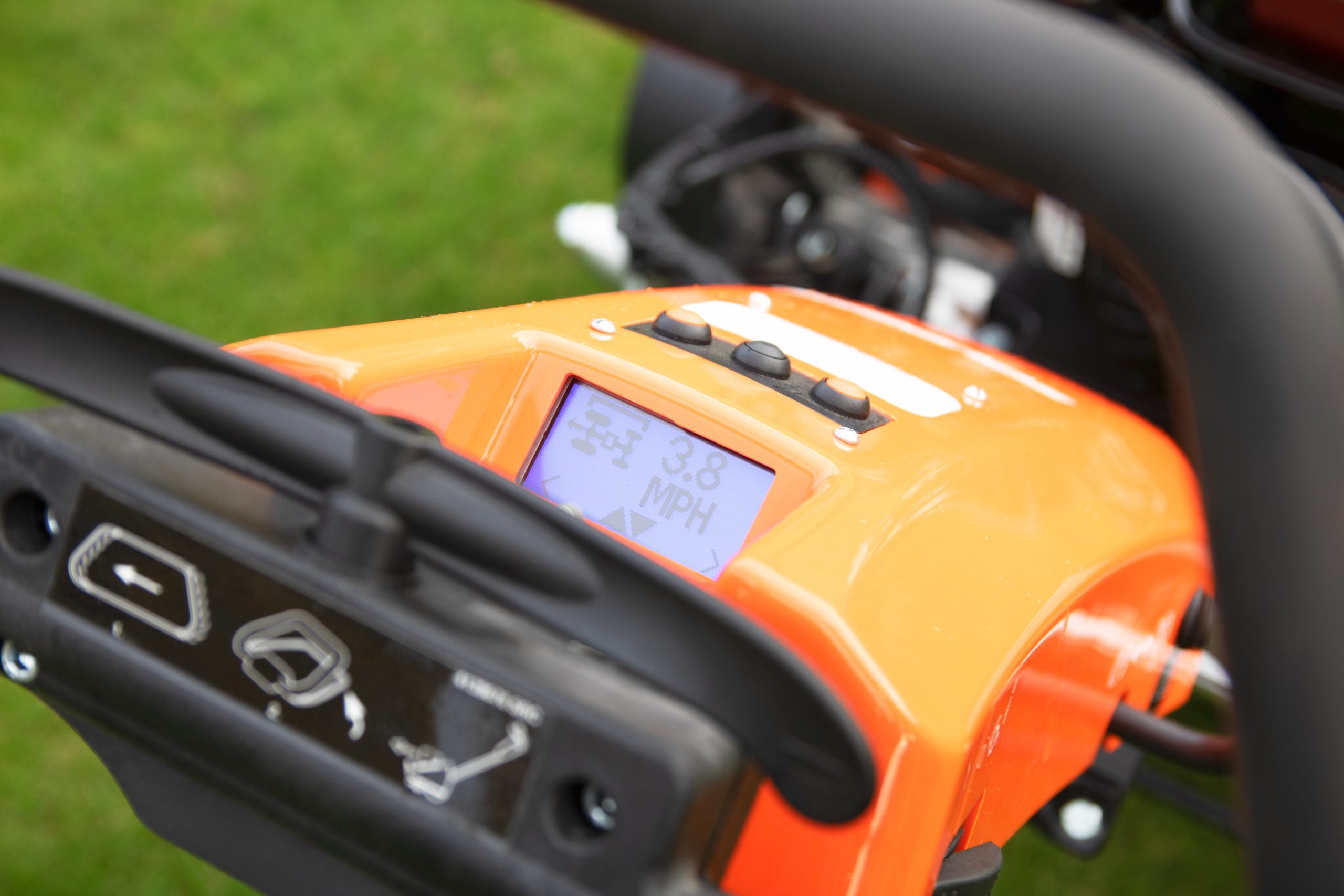

  • Password protected LCD menu allows you to set the frequency of clip, mow speed and other settings to customize mower to course conditions.

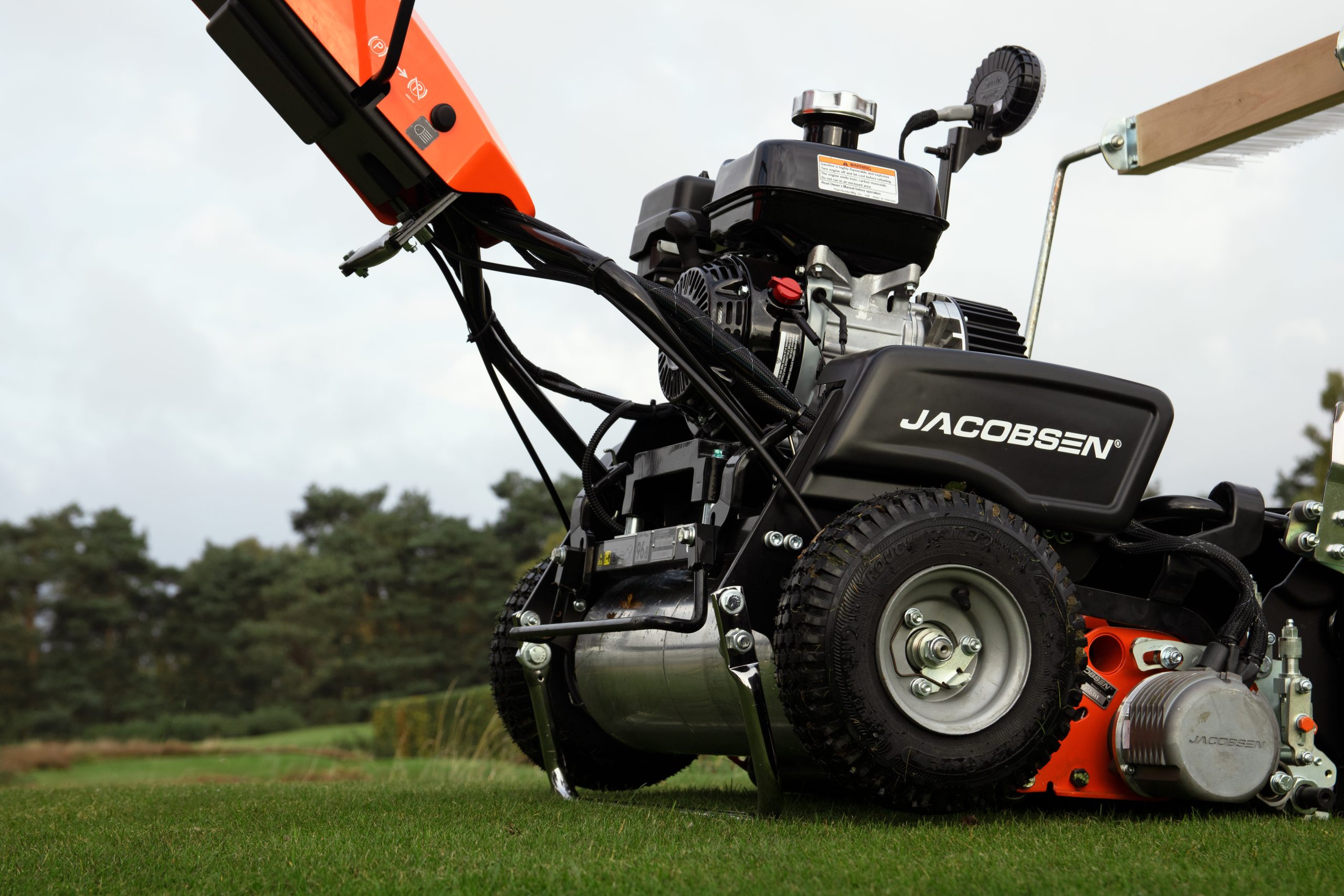

  • Engine: Honda® GX-120
  • Generator: 1.3 hp continuous; 48VDC brushless
  • Sound Power Level: 88 dBA
  • Fuel Capacity: .66 gal
Traction and Differential
  • Drive Motor: 1.3 hp continuous; brushless DC

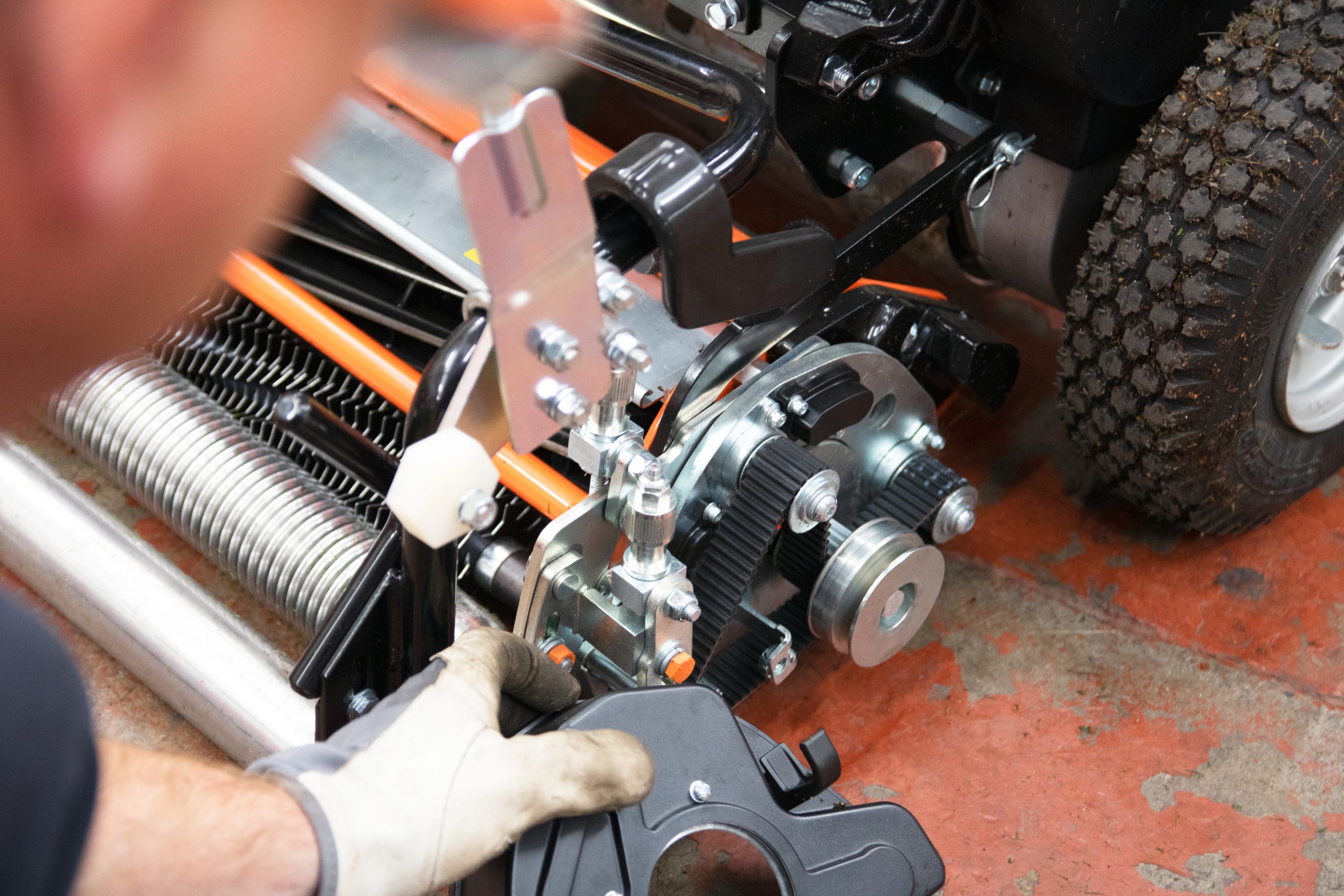

  • Traction Drive: Via synchronous belt

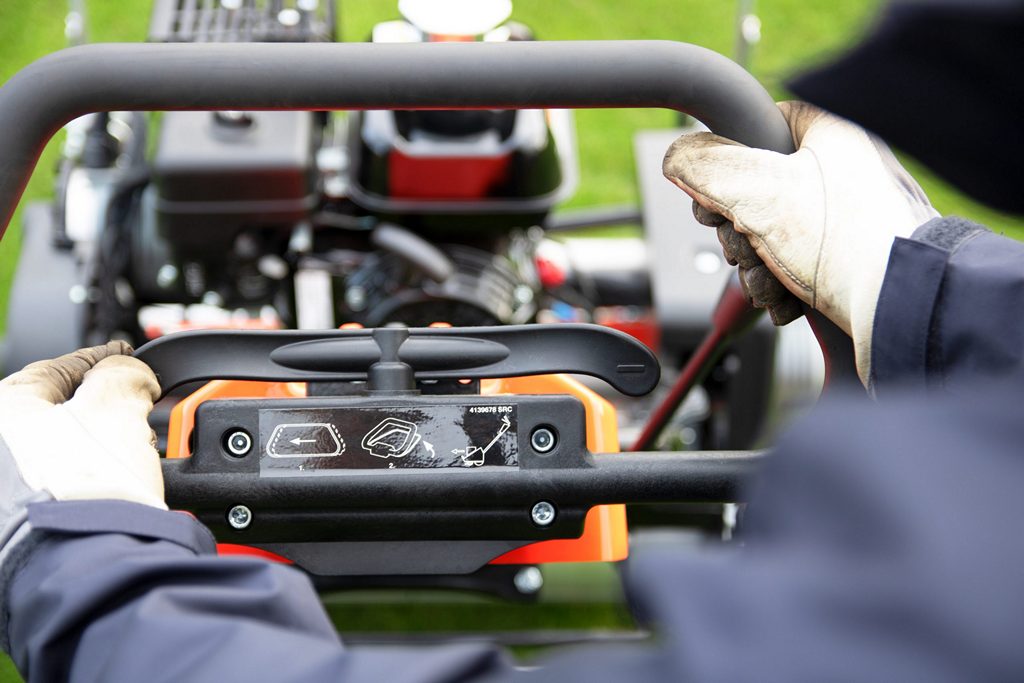

  • Operator Presence Control: InCommand™ standard
  • Differential: Full automotive type, housed in traction drum
  • Traction Drum: 7.75 in. diameter smooth machined aluminum
  • Brakes: Lever acutated hub brake with parking lock
  • Transport Wheels: Pneumatic 11 in. x 4 in.
  • Mowing Speed: Electronically controlled, 3.8 mph maximum
Reels and Blades
  • Reel Bearings: Spring-loaded, tapered roller
  • Reel Diameter: 5 in.
  • Number of Blades: 11 blades/15 blades
  • Blade Material: Hardened, high manganese carbon steel
  • Cutting Frequency: Variable (electronically programmable)
  • Reel Motor: 1.3 hp continuous; brushless DC
  • Reel Speed: Electronically controlled, 2200 RPM maximum
  • Height-of-Cut: .062-.438 in.
  • Bedknife Material: Hardened carbon steel
Weight and Dimensions
  • Width-of-Cut: 22 in.

Due to legislation requiring technical manuals to be printed in multiple languages, this product may not currently be available for purchase in all non-English speaking countries. Please contact your nearest distributor or Contact Us for full details.
