Jacobsen HR600

SKU 100dcabc4ddc Category Tags , ,

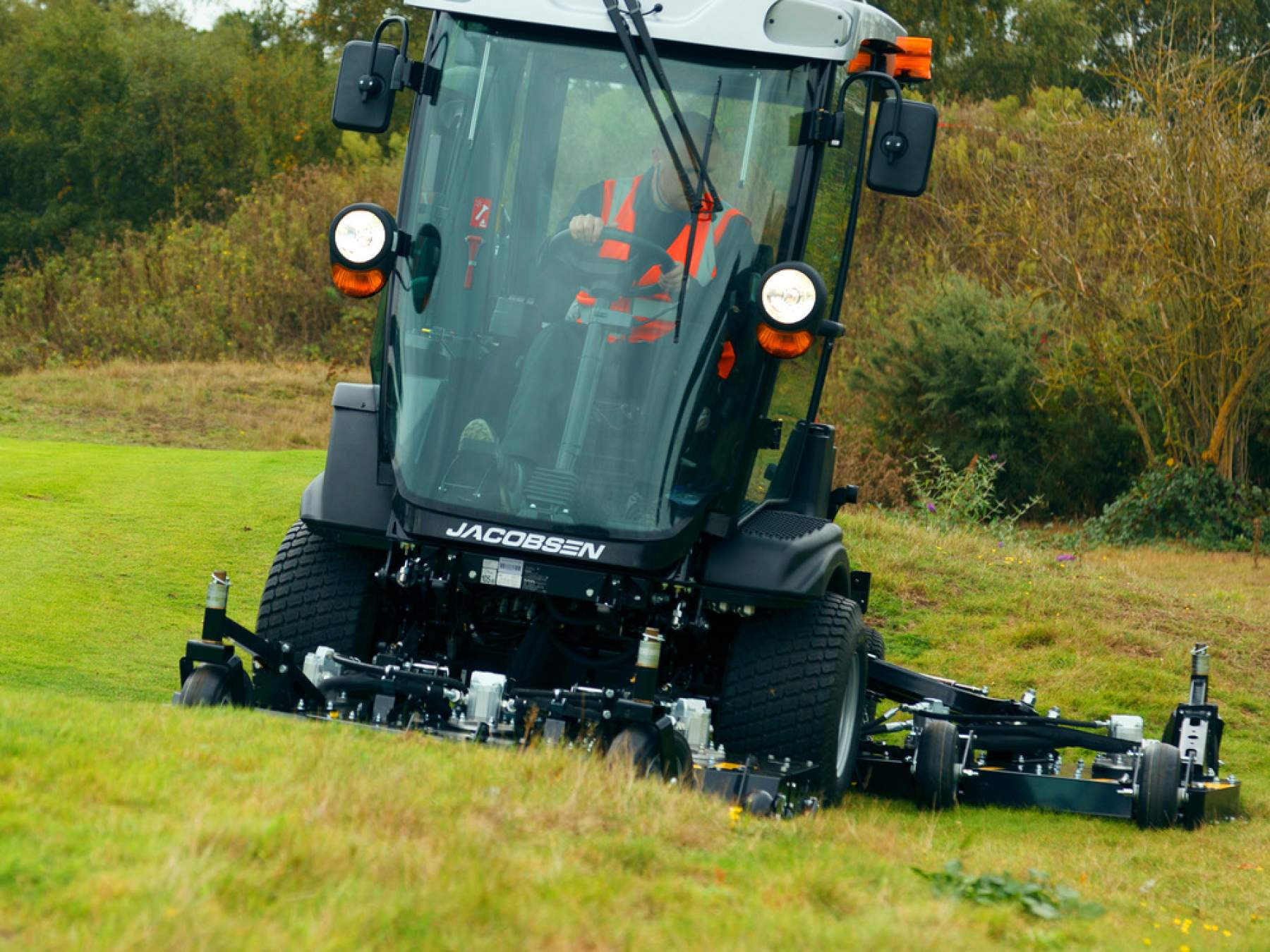

More Uptime. Less upkeep. The new HR600™ 11.4-foot width-of-cut wide area rotary mower is designed for simplified maintenance, operator comfort, and productivity to keep you mowing. Built with uptime-boosting features the HR600 can save you up to 50 hours of routine annual maintenance.

  • Individual hydraulic deck motors with self-lubricating integral bearings deliver reliable cutting power to each blade and require no tensioning or greasing maintenance of belts and pulleys
  • The rear axle with sealed bearings is maintenance free and wet brakes integrated into the front wheel motors require no adjustments or service of linkages or pads
  • The next generation InCommand™ console provides onboard diagnostics for quick and easy troubleshooting and maintenance reminders to aid in proper service
  • Proven and powerful 65.2 hp (48.6 kW) turbocharged Kubota® diesel delivers exceptional mowing power
  • The class leading 11.4-foot width-of-cut , right amount of power, and mow speeds up to 10 mph allow you to mow through up to 13.8 acres of grass per hour
  • The new AdaptiCut™ system automatically adjusts mow speed to ensure consistent cut performance through the thickest grass
  • New SureStrength™ decks made of high strength, high performance structural steel deliver greater durability in a lighter more sustainable design
  • Exclusive Tilt Sensor Technology™ (TST) helps ensure operator safety by automatically monitoring slope angles and alerting operators when nearing unsafe working conditions
  • Type: Kubota® V2403-CR-TE4 4-cyl, turbo diesel
  • Horsepower: 65.2HP (48.6 kW) @ 2700 rpm
  • Emission Level: EPA Tier 4 Final (EU Stage IIIB)
  • Cooling System: Side-by-side radiator/hydraulic oil cooler; pressurized; 8 qt (7.6L) capacity, 8.5 fins per inch
  • Fuel Capacity: 20.4 gal (77.1 L)
  • Electrical System: 12-volt, input/output controller. 60 amp alternator. Overload protection with automotive type fuses.
Speed (Maximum)
  • Mowing: 10 mph (16.4 km/h)
  • Transport: 15.5 mph (25 km/h)
  • Reverse: 4 mph (6.4 km/h)
Traction and Drive
  • Traction System: Hydrostatic closed loop parallel-cross-series SureTrac™ system; variable displacement piston pump; front high torque piston wheel motors; full time auto 4wd forward, on demand in reverse. Variable displacement, electronically controlled hydrostatic piston pump.
  • Deck Drive: Seven individual hydraulic motors with self lubricating integral bearings
  • Hydraulic Capacity: 13.3 gal (50.2 litre) capacity reservoir
  • Hydraulic System: O-ring face seal fittings, 10 micron remote charge filters, suction screen at tank, oil cooler side by side radiator, diagnostic test ports.
Tires, Brakes, and Steering
  • Front Tires: 26 x 12-12 tubeless 8 ply
  • Rear Tires: 20 x 10-8 tubeless 6 ply
  • Parking Brake: Automatic wet parking brakes integrated into wheel motors
  • Steering: Q-Amp® Variable rate, hydrostatic powered equal displacement cylinder to rear wheels
  • Service Brake: Dynamic through traction system
Decks and Cutting Units
  • Overall Cutting Width: 137 in. (3.5 m)
  • Number and Size: One 60 in. (1.52 m) front deck; Two 44 in. (1.12 m) wing decks
  • Deck Construction: 11 gauge (3 mm) Strenx high strength steel shell with 11 gauge (3 mm) bolt in baffle and stiffeners
  • Caster Wheels: Eight, 4 x 11 in. smooth tires with greasable tapered roller bearings
  • Deck Lift/Lower: Fingertip operated joysticks for individual deck lift/lower; cross cut position; front deck service position with lock pin. Electronic safety locks.
  • Weight Transfer: On demand electrically operated hydraulic weight transfer system
  • Height of Cut: 1.0 – 4.75 in. (25-121mm) in 0.25 in. (6.4 mm) increments
  • Cutting Capacity (No Overlaps or Stops): Max: 13.8 acres/hour at 10.0 mph (5.6 ha/hr at 16.0 km/h) Typical: 10.4 acres/hour at 7.5 mph (4.00 ha/hr at 12.0 km/h)
Weight and Dimensions
  • Weight (Standard Unit): 3873 lbs (1756 kg)
  • Weight (Cab Unit): 4442 lbs (2014 kg)
  • Length: 143 in. (3.62 m) front deck down
  • Height (Standard Unit): 83 in. (2.1 m) ROPs up 78 in. (2.0 m) ROPs down and decks up
  • Height (Cab Unit): 87 in. (2.2 m)
  • Transport Width: 65 in. (1.67 m) at 1 in. (25 mm) height of cut
