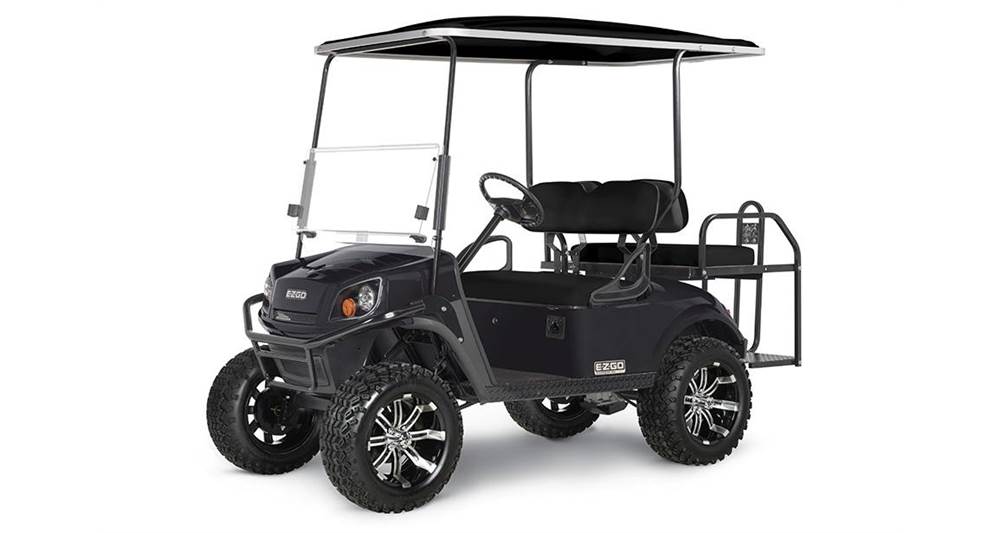

It’s time to explore the amazing world around you with the Express™S4 ELiTE™ lithium-powered electric golf cart. Powered by a proven, maintenance-free Samsung SDI lithium battery system and backed by an unprecedented 8-year warranty, this 4-passenger personal golf cart will propel your next adventure with a worry-free, energy efficient ride.
Key Features
- Zero maintenance lithium batteries
- Unbeatable energy efficiency
- Industry Leading 8-year battery warranty
- Proven performance of Samsung SDI lithium batteries
- Opportunity Charging
- 23-inch Desert Eagle Tires
- Convertible Rear Seat
- Optional Premium Seat
Body & Chassis
- Frame: E-shield™ Enhanced Coating
- Body & Finish: Injection Molded TPO
- Available Colors: Black, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Grey, Platinum, White
Dimensions
- Overall Length: 116 in. (295 cm)
- Overall Width: 48.5 in (123 cm)
- Overall Height: 52.5 in (133 cm) w/o roof; 82 in (208 cm) w/ roof
- Wheel Base: 65.5 in (166 cm)
- Wheel Track: 38.0 in (97 cm) Front / 38.5 in (98 cm) Rear
- Ground Clearance: 7 in (18 cm)
Power
- Power Source: 56 Volt AC
- Horsepower: 11.7 HP (8.7 kW) Peak
- Electrical System: 56 Volt
- Battery (Qty/Type): Two Lithium Ion 56 Volt
- Battery Charger: Light World Charger, ELiTE (3.3 vm [11 ft] Cord)
- Key or Pedal Start: Pedal
- Speed Controller: 235 Amp AC
- Drive Train: Motor Shaft Direct Drive
- Transaxle: Differential with Helical Gears
- Gear Selection: Dash Mount Forward-Neutral-Reverse
- Rear Axle Ratio: 17:1
Performance
- Seating Capacity: 4-Passenger
- Weight w/o Batteries: 932 lb (423 kg)
- Curb Weight: 996 lb (452 kg)
- Vehicle Load Capacity: 800 lb (360 kg)
- Outside Clearance Circle: 20.3 ft (7.1 m)
- Speed: 19.5 mph ± 0.5 mph (31.4 kph ± 0.8 kph)
Steering & Suspension
- Steering: Self-Compensating Rack and Pinion
- Suspension: Leaf Springs with Hydraulic Shock Absorbers
- Service Brake: Rear Wheel Mechanical Self-Adjusting Drum
- Parking Brake: Self-Compensating, Single Point Engagement
- Tires: Desert Eagle 23 x 10 – 14 on Alloy Wheel
