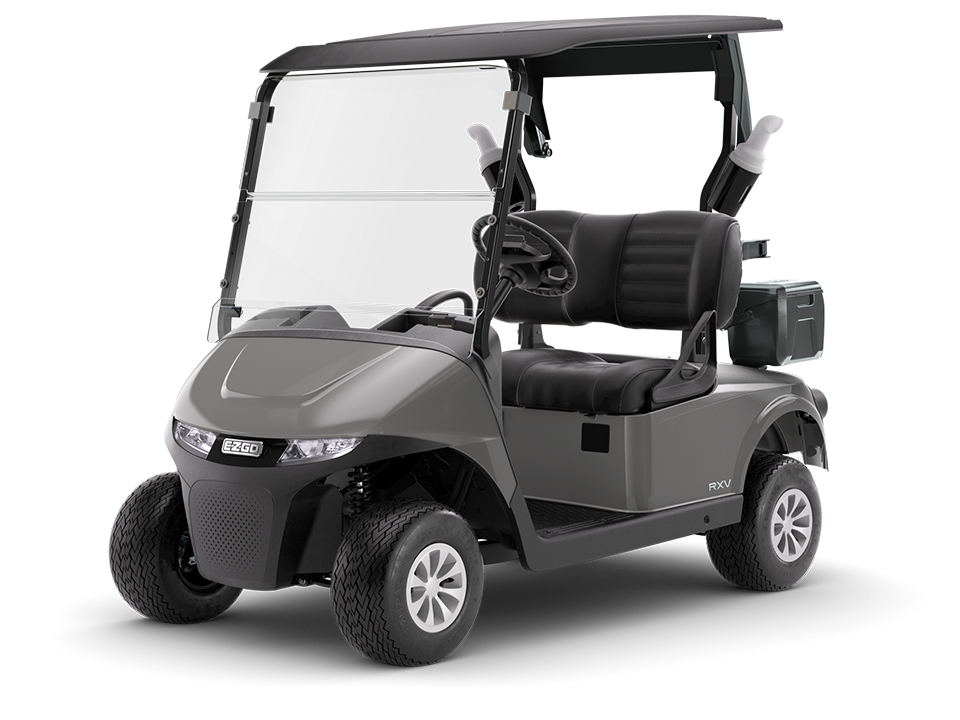

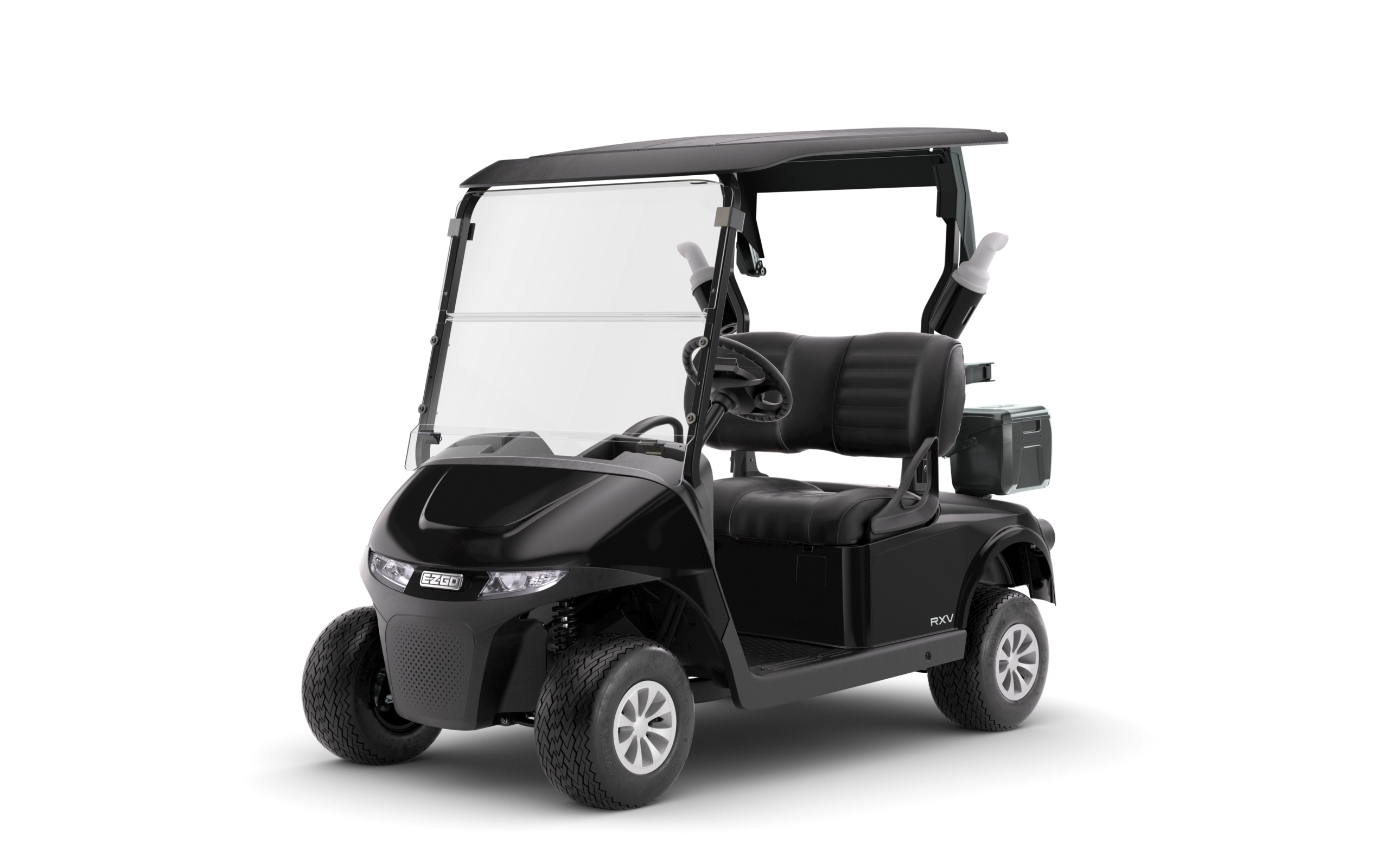

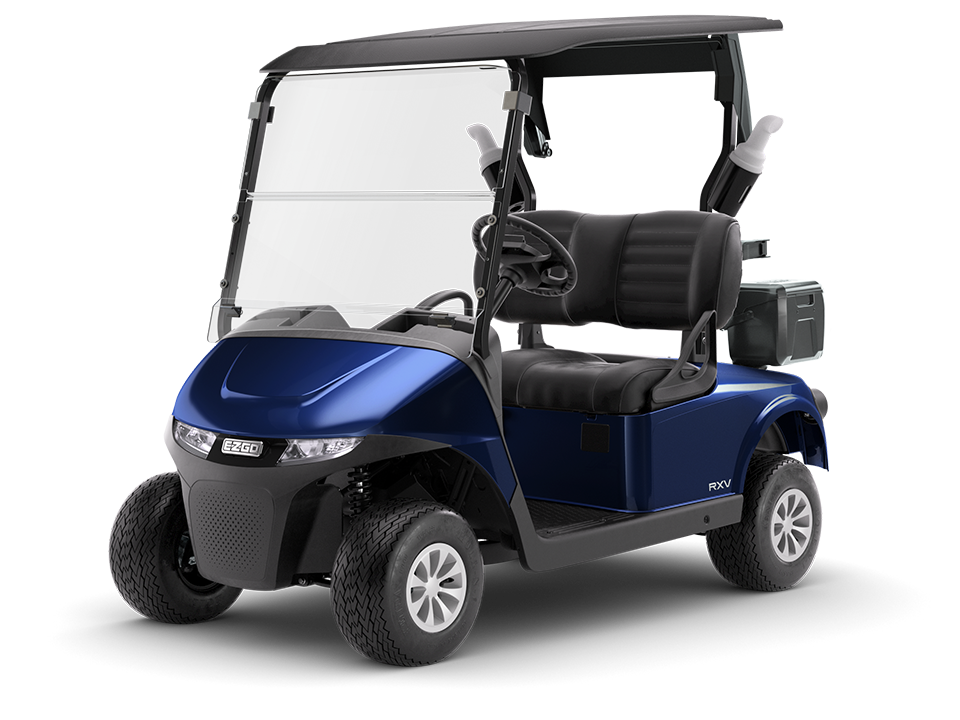

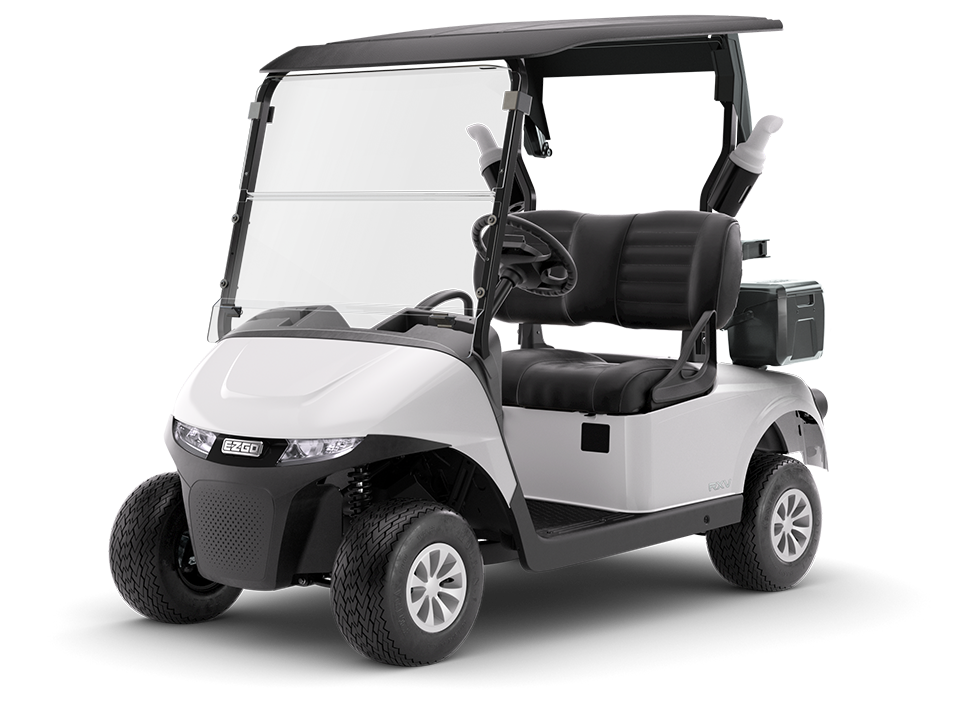

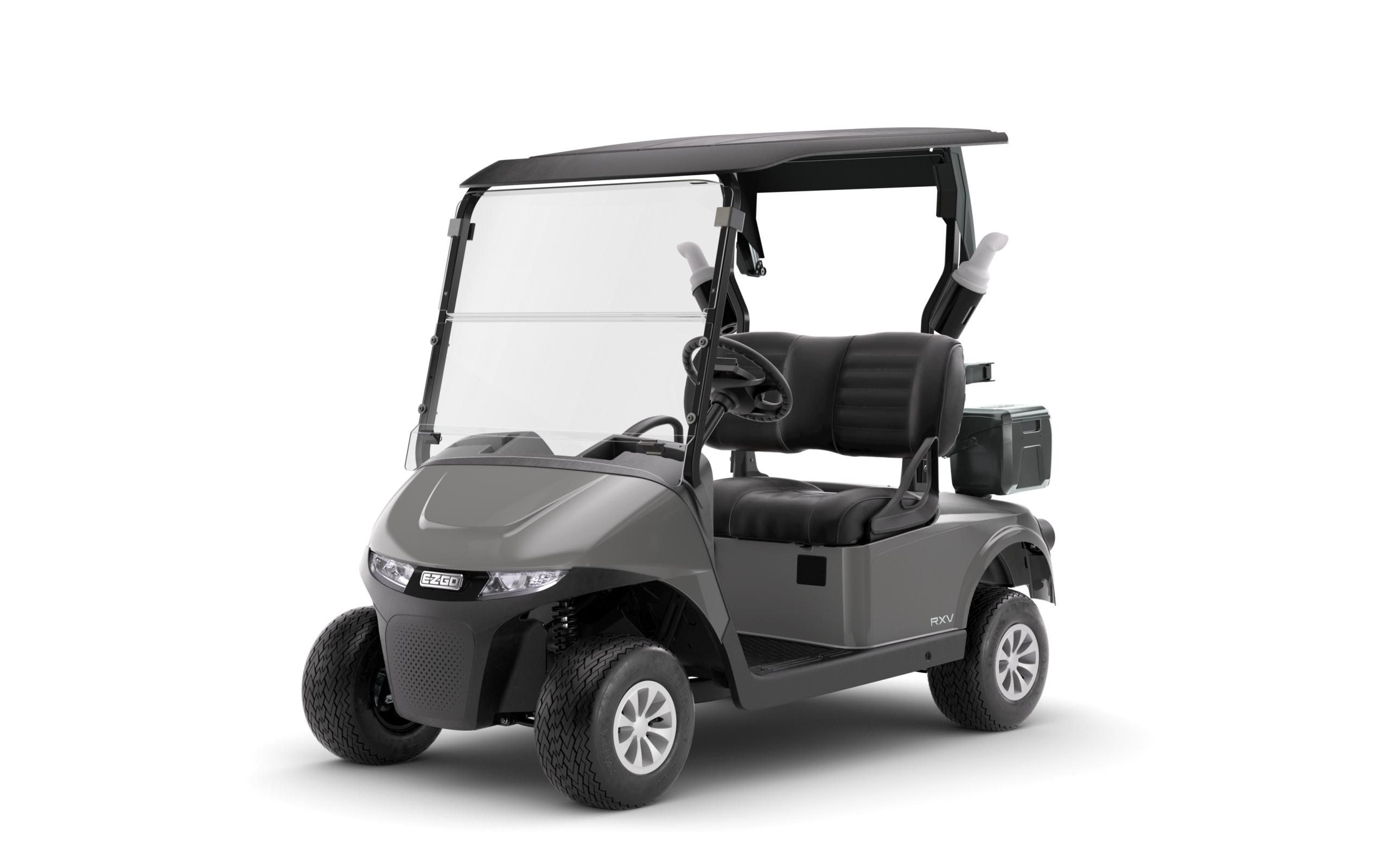

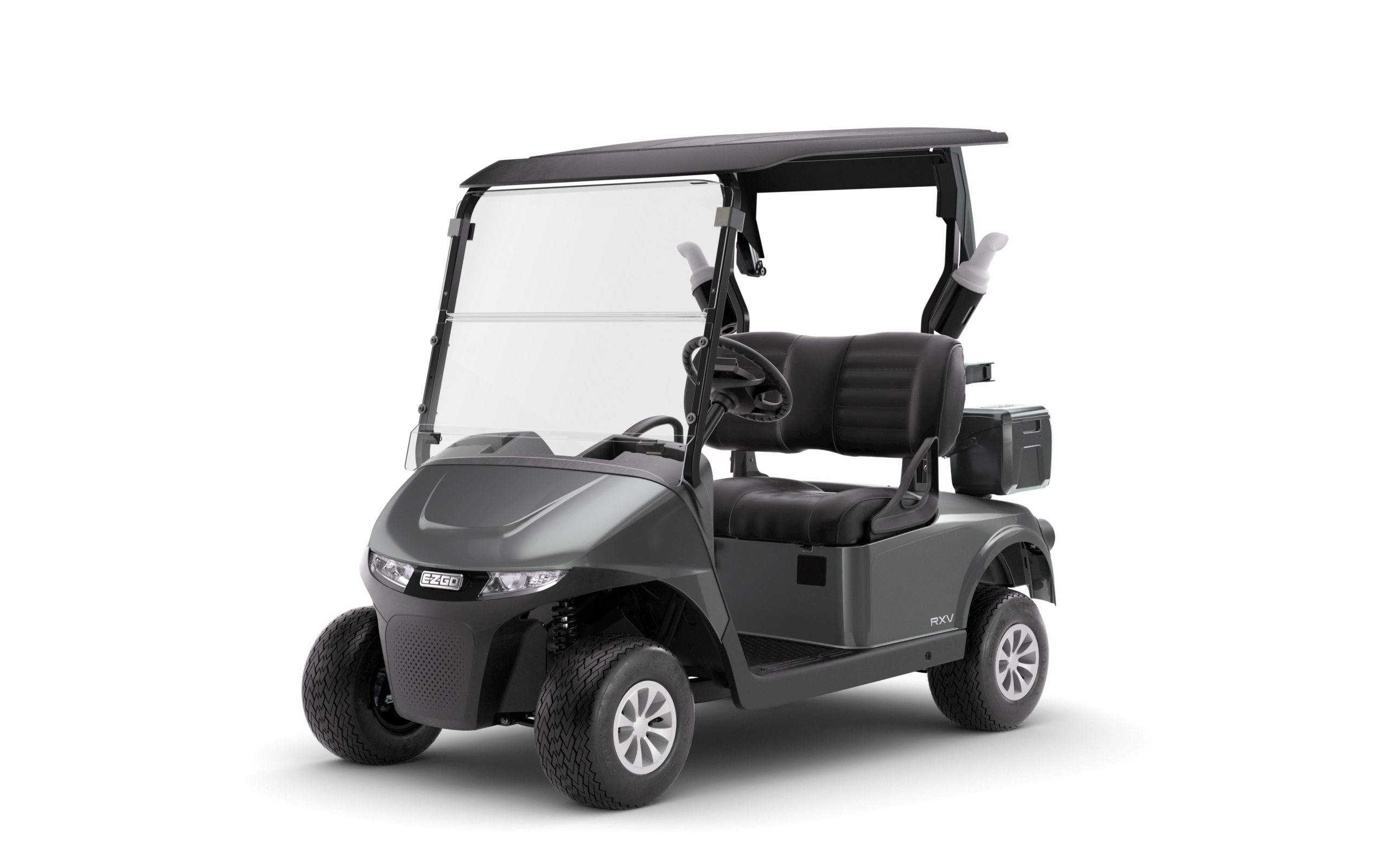

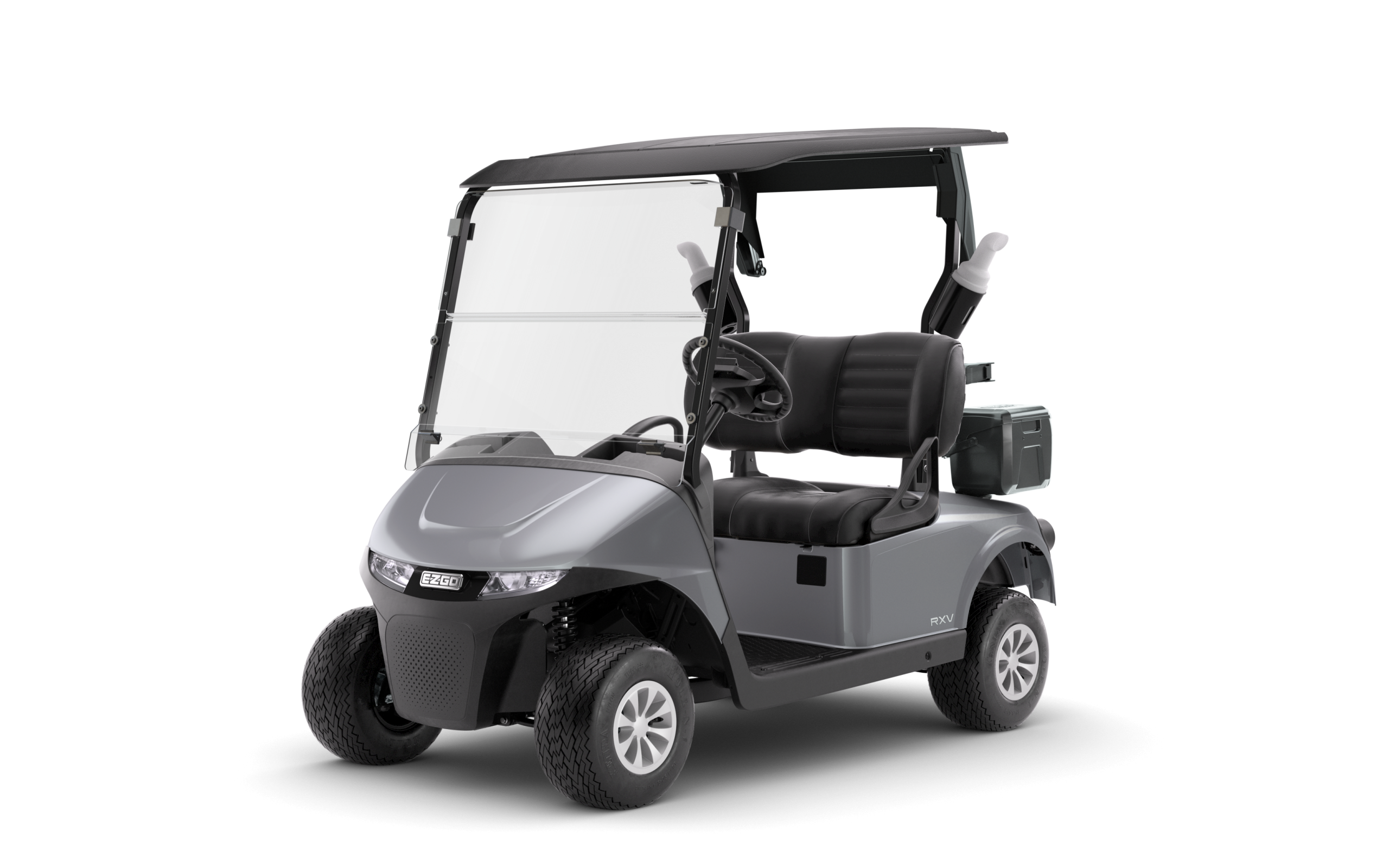

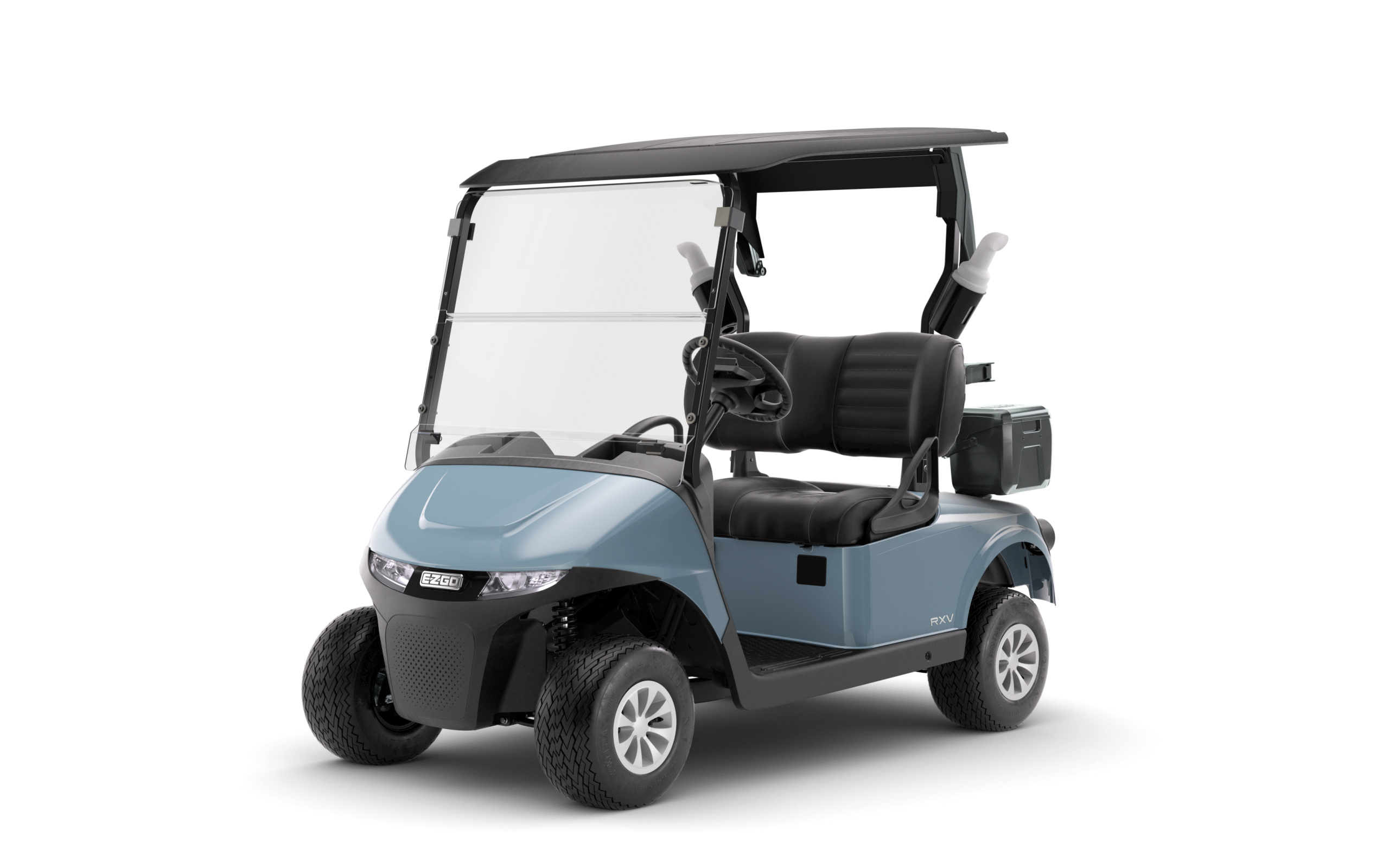

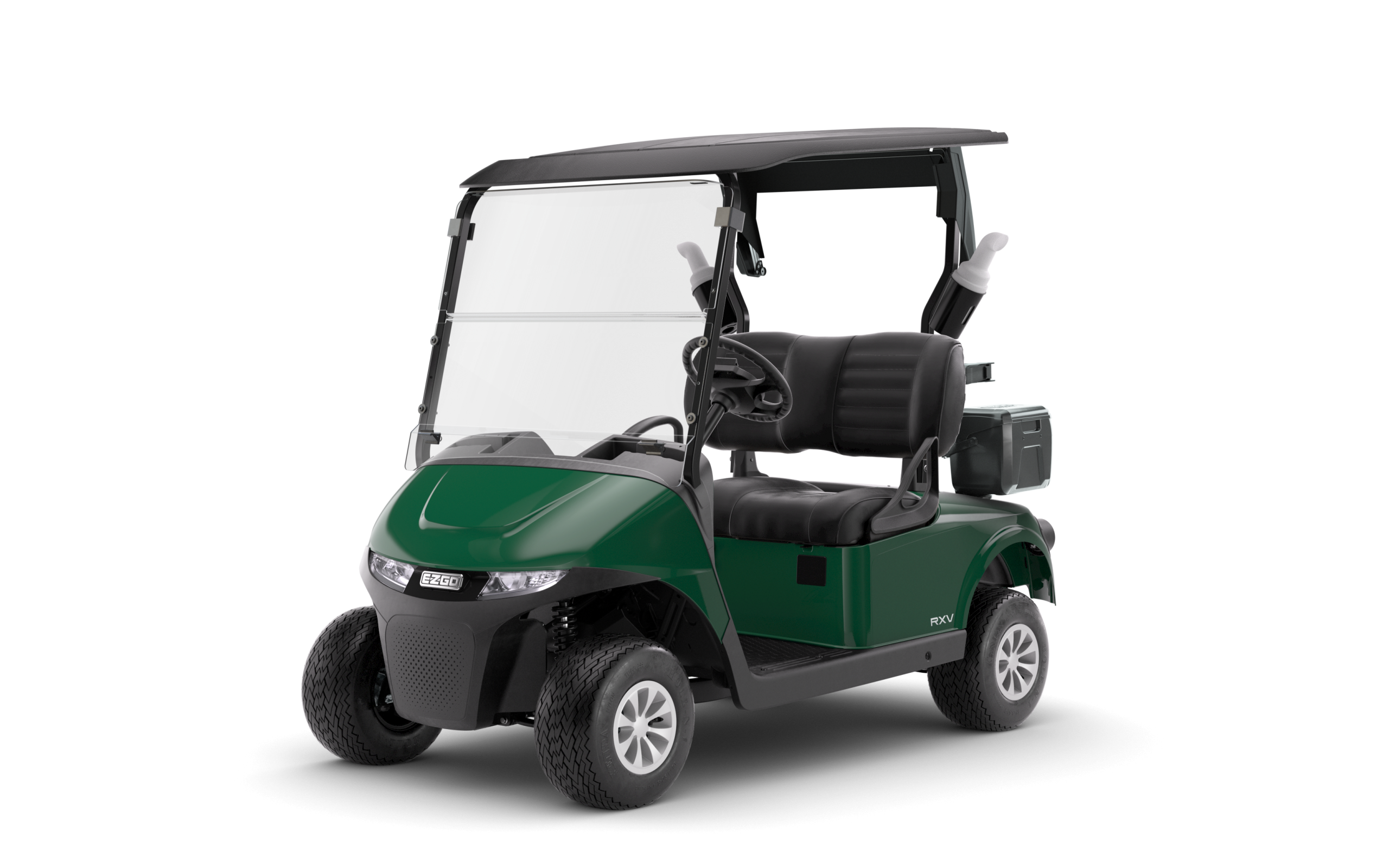

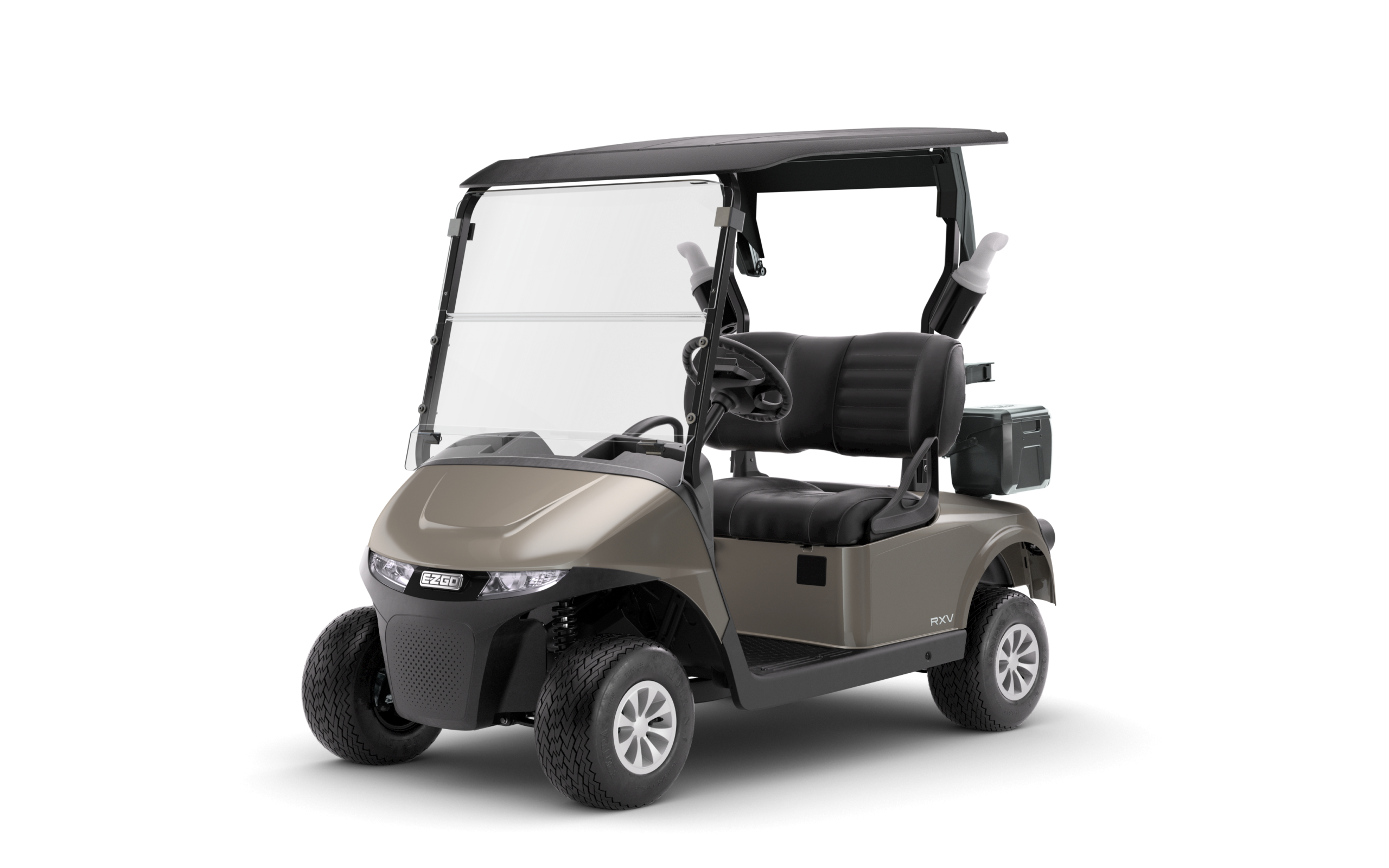

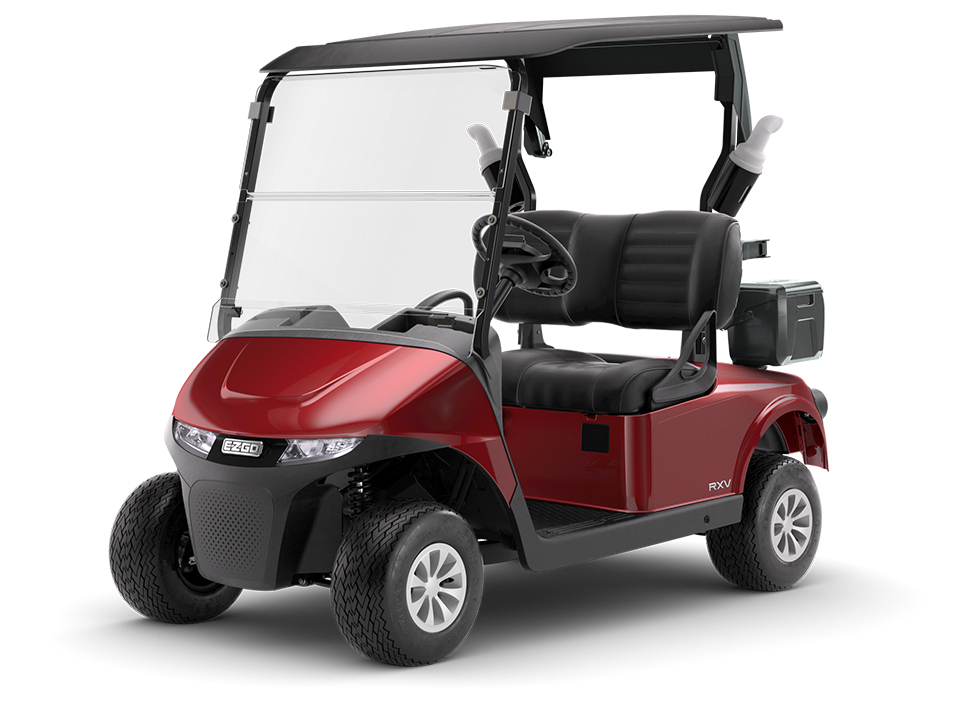

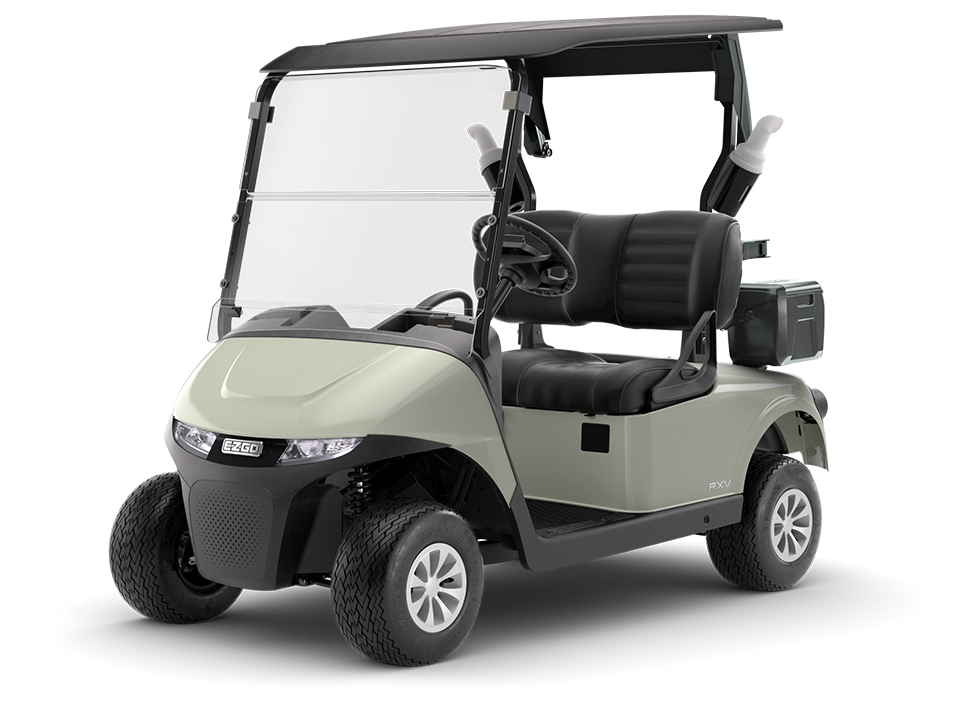

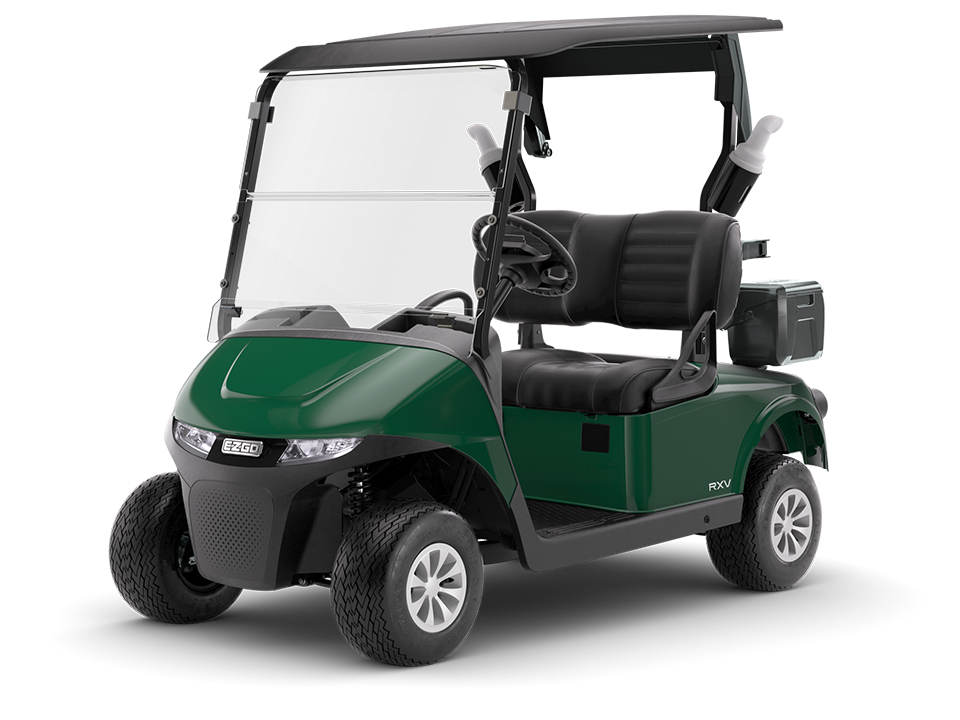

The Freedom® RXV® gives golfers exactly what they want – the freedom to focus on their game. Because at the heart of it, the Freedom RXV is a seamless experience, ensuring a smooth ride with unparalleled efficiency and premier performance, round after round. Add in enhanced LED headlights, choose between ELiTE® lithium or an EX1® gas engine model, and see why the Freedom RXV is always good to go.
OVERALL LENGTH 92.5 in (235 cm)
OVERALL WIDTH 45 in (114 cm)
OVERALL HEIGHT (W/O ROOF) 47.5 (121 cm)
OVERALL HEIGHT (W/ ROOF) 67 in (170 cm)
WHEEL BASE 65.7 (167 cm)
FRONT WHEEL TRACK 35.5 (90 cm)
REAR WHEEL TRACK 38 (97 cm)
GROUND CLEARANCE
@ DIFFERENTIAL 4 in (10 cm)
POWER SOURCE Single Cylinder OHC, 4 Cycle, 9.15 cu in (150 cc)
HORSEPOWER (KW) 11.5 hp (8.6 kW) J1995 Standard
ELECTRICAL SYSTEM Brushless DC Internal Starter Generator
BATTERIES (QTY/TYPE) One, 12 Volt Maintenance Free
KEY OR PEDAL START Pedal
DRIVETRAIN Continuously Variable Transmission (CVT)
TRANSAXLE Differential with Helical Gears
GEAR SELECTION Forward-Reverse
REAR AXLE RATIO 11.47:1 (Forward) 14.35:1 (Reverse)
SEATING CAPACITY 2 Passenger
DRY WEIGHT (W/ CANOPY) 710 lb (322 kg)
CURB WEIGHT (W/ CANOPY) 726 lb (329 kg)
VEHICLE LOAD CAPACITY 500 lb (227 kg) (2 Passenger) or 800 lb (360kg) (4 Passenger)
OUTSIDE CLEARANCE CIRCLE 19.0 ft (5.8 m)
SPEED (LEVEL GROUND) 19 mph ± 0.5 mph (31 kph ± 0.8 kph) (Freedom Model)
TOWING CAPACITY Three E-Z-GO Golf Cars with Approved Permanent Tow Bar
STEERING Double Ended Rack & Pinion
SUSPENSION Independent A-Arm Coil Over Shock (Front) –
Mono-Leaf Springs with Hydraulic Shocks (Rear)
SERVICE BRAKE Rear Wheel Mechanical Self-Adjusting Drum
PARKING BRAKE Self-Compensating, Single Point Engagement
TIRES 18 x 8.50-8 (4-ply rated)
FRAME Welded Steel with Powder-Coat Protection
BODY & FINISH Injection Molded TPO
AVAILABLE BODY COLORS Almond, Black, Bright White, Forest Green, Inferno Red, Ivory, Matte Green
Metallic Charcoal, Ocean Grey, Patriot Blue, Platinum, Slate
STANDARD SEAT COLORS Black, Grey, Stone Beige
PREMIUM SEAT COLORS Black, Mushroom, Grey, White (Custom Colors Available)
SIGNATURE SEAT Amarillo Brown, Tundra Grey (Cool Touch)
PINSTRIPE COLORS Silver, Black, Gold
