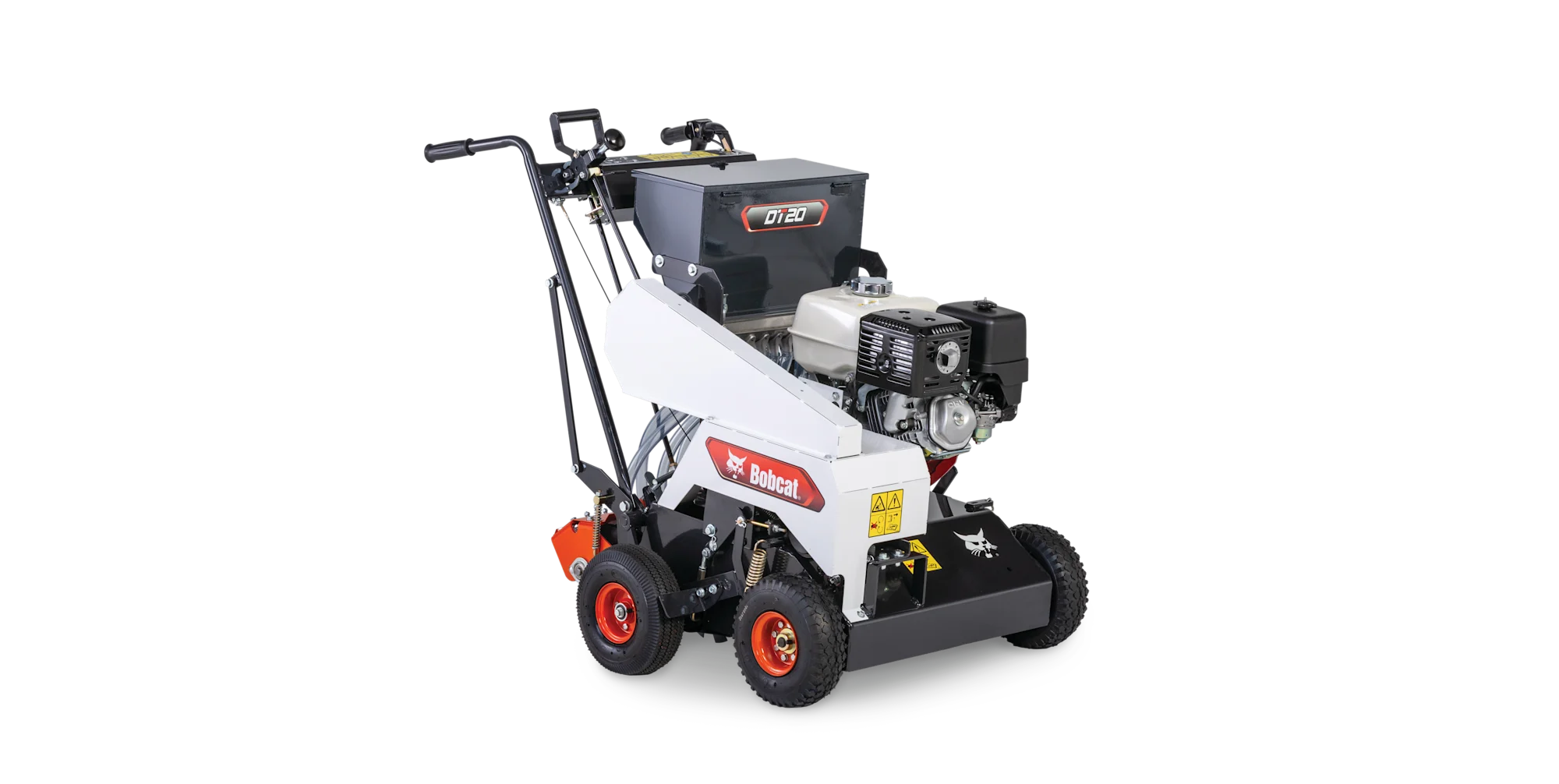

Bobcat DT20 Dethatcher & Overseeder

Description

Bobcat DT20 Dethatcher & Overseeder

Heavy-duty and built to perform, the Bobcat® DT20 places seeds directly into soil slits for fast germination and unmatched seed-to-soil contact, aeration, and overseeding.

• Overseeder with dethatching capabilities through a simplified transition process to exchange flail reels between the functionality.
• Cover 18,700 square feet per hour with a 19 in. working width
• Without any tools, easily change between five different reel types
• Self-propelled operation
• Overseed with confidence. Seed flow rate is easily controlled right from the operator’s station and stops automatically when the reel is raised.
• Adjust durable cutting blades down to a depth of .25 in. while seeding at variable rates for different grass varieties and applications.
• Experience maximum germination with curve-shaped discs that place seeds directly into soil slits for unmatched seed-to-soil contact.
• Finish jobs without feeling exhausted with self-propelled operation, delivering a consistent ground speed that makes for better results.
• Independent ground and reel drive options with a transport lever make it easy to move around the jobsite.
  Engine Model: Honda GX390
  Displacement: 23.7 cubic in


  Fuel Tank Capacity: 1.6 gal

  Horsepower: 11.7 hp

  Drive System: 4L-section V-belt to front wheels by gear box and sealed roller chain; triple 3V-section V-belts engine to reel

  Clutch: Spring loaded belt tightener

  Gearbox: 22:1 reduction

  Max Recorded Operating Speed: 2.4 mph
  Seeding System: Seed is dropped directly into soil slits via seed delivery tube and covered in soil by disc system
  Seed Hopper Capacity (Reel): 19 in


  Seed Hopper Capacity (Seeding): 40 lbs
  Included Blade Reel: Seeding Blade
  Max Reel Speed: 3200 rpm


  Max Seeding Blade Depth: 0.2 in

  Max Fixed Blade Depth: 0.2 in

  Fixed Blade Type: Hardened, high-carbon steel blades:1/32 in (1 mm) at 1/2 in (13 mm) spacing1/32 in (1 mm) at 1 in ( 25 mm) spacing1/16 in (2 mm) at 1 in (25 mm) spacing 1/16 in (2 mm) at 1 1/2 in (38 mm) spacing

  Seeding Blade Type: (10) 8 point, high carbon, heat treated blades, 2 in (51 mm) spacing

  Flail Blade Type: 1/8 in (3 mm) hardened, high-carbon steel blades at 1 in (25 mm) spacing

  Depth Adjustment: Microscrew adjustment; adjustable up to 1.25 in (32 mm) for blade wear



  Length: 50 in

  Width: 35.5 in

  Height: 44 in
  Frame: Welded 7-gauge steel
  Rear Tire(s): (2) 4.10/3.50 – 4 sawtooth-tread pneumatic
  Front Tire(s): (2) 4.10/3.50 – 4 turf-tread pneumatic drive wheels
