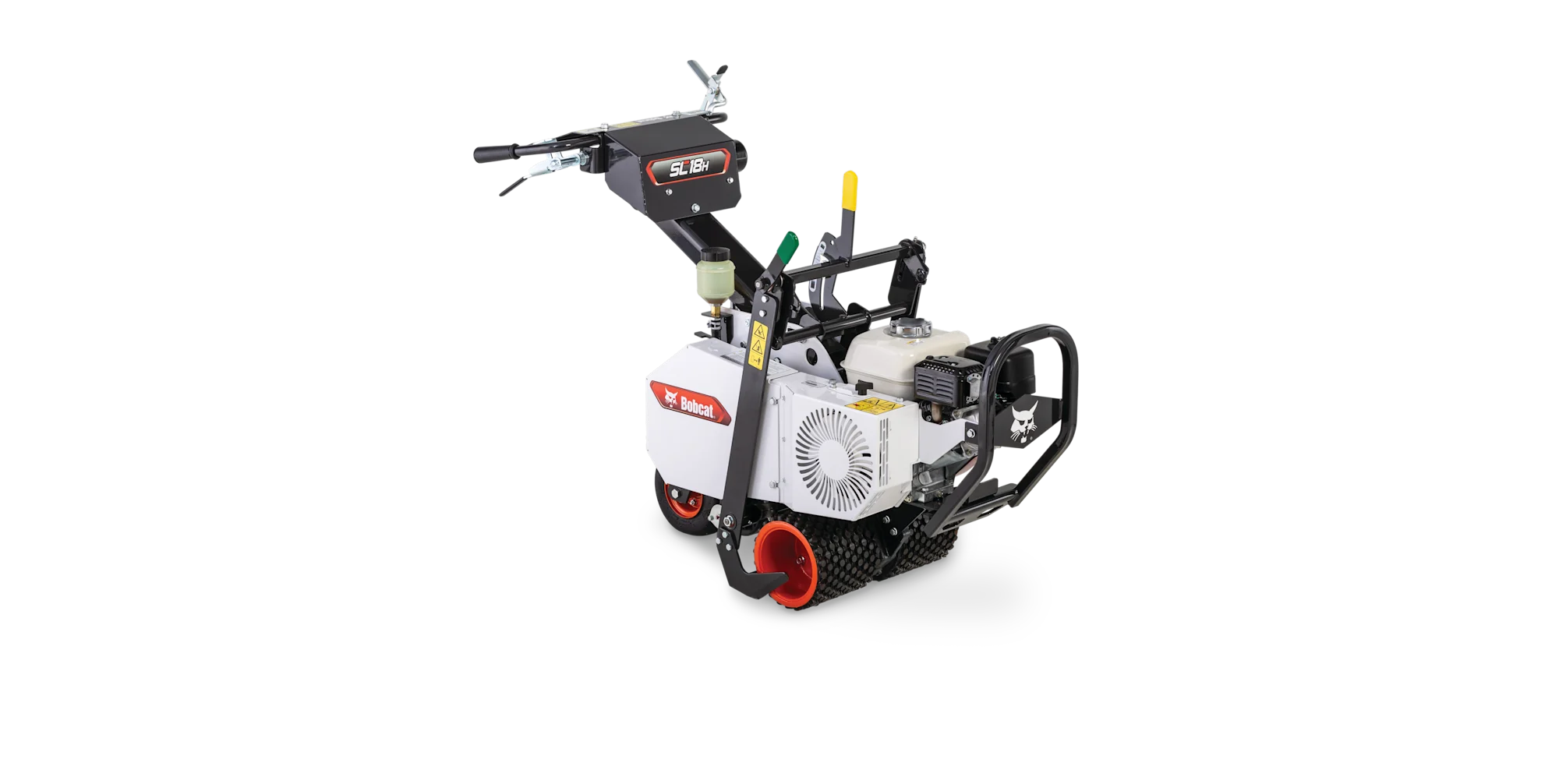

Bobcat SC18H Sod Cutter

Description

Bobcat SC18H Sod Cutter

Legendary performance meets new transmission technology for easier-to-control, smoother, and more stable sod cutting.

• Hydrostatic, variable-speed transmission
• Ultra-low vibration technology
• Easy steer technology
• User friendly operation
• Simple depth and blade-angle adjustment
  The Bobcat® SC18H sod cutter’s innovative, hydrostatic, variable-speed transmission lets you power through the cut while its heavy-duty, long-lasting, cast-iron gear case and hydraulic cooling system stand up to the toughest demands – season after season.
  • A user-friendly, color-coded interface makes it easy to adjust blade depth and angle for precise cutting – no matter the soil condition.
  • Unlock the pneumatic rear caster wheel to easily and tightly maneuver around landscaping, then lock it for unmatched precision on straightaways.
  • Featuring ultra-low vibration technology, the rubber isolation mount absorbs shock and machine vibration before they ever reach your hands, saving your arms from fatigue.
  Engine Model: Honda GX160
  ENGINE Displacement: E9.9 cubic in


  Fuel Capacity: 0.8 gal

  Horsepower: 4.8 hp
  Width: 25 in
  Transmission: Hydro-Gear #BDU-10S-127; 10cc pump
  Gearbox: 0.25″ thick cast iron housing

  Drive System: A-section belt from engine to hydrostat that transfers power through enclosed lubricated gearcase; Wheels: gears and chain reduction to drive wheels; Blade: gears to blade eccentric shaft

  Max Reverse Speed: 2 mph

  Max Forward Speed: 4 mph

  Hydraulic Oil Capacity: 2.1 qt

  Depth Adjustment: Locking lever releases to desired depth
  Max Cutting Depth: 2.5 in
  Max Blade Speed: 1225 opm
  Cutting Width: 18 in


  Blade Material: Heat-treated 10B38 boron steel

  Weight: 380 lbs

  Length: 52.5 in
  Width: 25 in
  Height: 35.5 in
  Front Tire(s): (2) 8 in vulcanized knob tread cast iron drive wheels
  Rear Tire(s): (1) 9 in x 3.5 in – 4 in caster wheel
