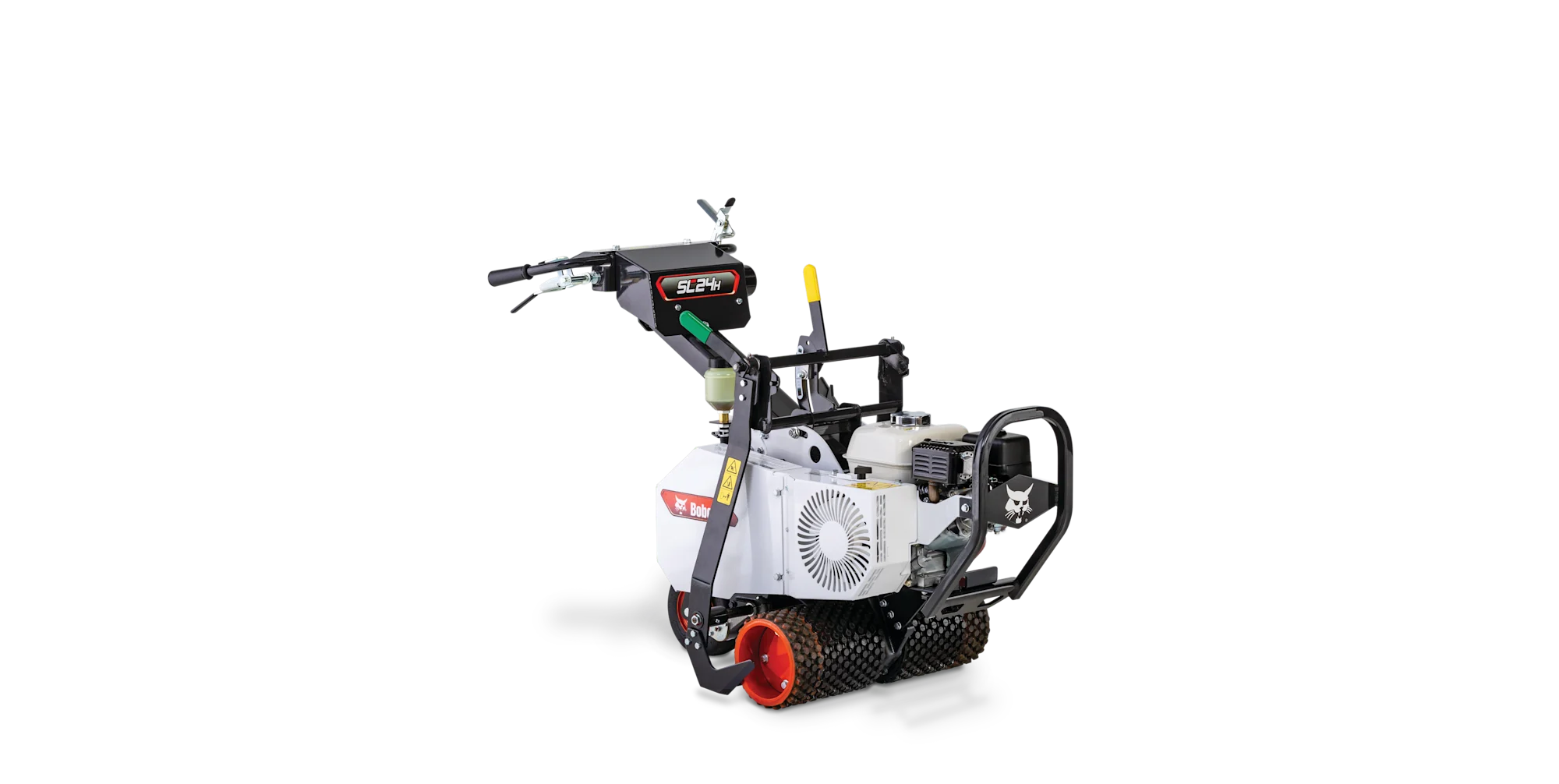

Bobcat SC24H Sod Cutter

Description

Bobcat SC24H Sod Cutter

Legendary performance meets new transmission technology for easier-to-control, smoother, and more stable sod cutting.

  • Hydrostatic, variable-speed transmission
  • Ultra-low vibration technology
  • EasySteer technology
  • User friendly operation
  • Simple depth and blade-angle adjustment
    The Bobcat® SC24H sod cutter’s innovative, hydrostatic, variable-speed transmission lets you power through the cut while its heavy-duty, long-lasting, cast-iron gear case and hydraulic cooling system stand up to the toughest demands – season after season.

    • A user-friendly, color-coded interface makes it easy to adjust blade depth and angle for precise cutting – no matter the soil condition.
    • Unlock the pneumatic rear caster wheel to easily and tightly maneuver around landscaping, then lock it for unmatched precision on straightaways.
    • Featuring ultra-low vibration technology, the rubber isolation mount absorbs shock and machine vibration before they ever reach your hands, saving your arms from fatigue.
      Engine Model: Honda GX160
      Engine Displacement: 9.9 m³
      Horsepower: 4.8 hp
      Fuel Capacity: 0.82 gal
      Weight: 398 lb
      Length: 52.5 in
      Width: 25 in
      Height: 35.5 in
      Front Tire(s): (2) 8 in vulcanized knob tread cast iron drive wheels
      Rear Tire(s): (1) 9 in x 3.5 in – 4 in caster wheel
      Blade Material: Heat-treated 10B38 boron steel
      Cutting Width: 24 in
      Max Cutting Depth: 2.5 in
      Max Blade Speed: 1,225 rpm
      Depth Adjustment: Locking lever releases to desired depth

      Drive System: A-section belt from engine to hydrostat that transfers power through enclosed lubricated gearcase; Wheels: gears and chain reduction to drive wheels; Blade: gears to blade eccentric shaft

      Transmission: Hydro-Gear #BDU-10S-127; 10cc pump
      Gearbox: 0.25″ thick cast iron housing
      Hydraulic Oil Capacity: 2.1 qt
      Max Forward Speed: 4 mph
      Max Reverse Speed: 2 mph
