E-Z-GO Express 4 EFI Gas

Description

E-Z-GO Express 4 EFI Gas

Part luxury cruiser. Part getaway cart. The E-Z-GO® Express 4 is built to take you everywhere you never knew you could go in a golf car. Enjoy stylish features such as modern LED headlights, lifted and standard ride height options, and premium packages with sleek tire and wheel combinations. Choose between our efficient 13.5-HP closed-loop EFI gas powertrain or the maintenance-free ELiTE™ lithium battery pack. Each turn of the ignition is the start of a great time in the Express 4.

                                                                              Standard                                                    Lifted
OVERALL LENGTH                                          116.5 in (296 cm)                                        115.6 in (293 cm)
OVERALL WIDTH                                             48.75 in (124 cm)                                        48.5 in (123 cm)
OVERALL HEIGHT (W/O ROOF)                   49.13 in (125 cm) (Top of Steering Wheel) 52.5 in (133 cm) (Top of Steering Wheel)
OVERALL HEIGHT (W/ ROOF)                      72.13 in (183 cm)                                        83.0 in (210 cm)
WHEEL BASE                                                     64.13 in (163 cm)                                        65.5 in (166 cm)
FRONT WHEEL TRACK                                   35.25 in (89.5 cm)                                       38.5 in (98 cm)
REAR WHEEL TRACK                                      39 in (99 cm)                                              38.5 in (98 cm)
GROUND CLEARANCE @ DIFFERENTIAL 5.13 in (13 cm)                                           6 in (15 cm)

POWER SOURCE 4-Cycle 24.5 in³ (401 cc)
VALVE TRAIN Single Cylinder OHV
MOTOR TYPE N/A
FUEL SYSTEM Closed-loop electronic fuel injection
HORSEPOWER (KW) 13.5 hp (10.1 kW) Exceeds SAE J1940 Standard
ELECTRICAL SYSTEM Starter / Generator. Solid State Regulator
BATTERIES (QTY/TYPE) 12-Volt Maintenance-Free (525 CCA, 85 minute reserve)
KEY OR PEDAL START Pedal Start
AIR CLEANER Replaceable Dry Cartridge
LUBRICATION Pressurized Oil System
OIL FILTER Spin-On
COOLING SYSTEM Air Cooled
FUEL CAPACITY 5.96 Gallon (22.6 L)
DRIVETRAIN Automatic, Continuously Variable Transmission (CVT)
TRANSAXLE Differential with Helical Gears (Gas Only)
GEAR SELECTION Dash Mounted Forward-Neutral-Reverse
REAR AXLE RATIO 11.47:1 (Forward) 14.35:1 (Reverse)

SEATING CAPACITY 4-Passenger
DRY WEIGHT 935 lb (424 kg) (Without Battery – Standard) 1061 lb (481 kg) (Without Battery – Lifted)
CURB WEIGHT 975 lb (442 kg – Standard) 1101 lb (499 kg – Lifted)
VEHICLE LOAD CAPACITY 800 lb (360 kg)
OUTSIDE CLEARANCE CIRCLE 22 ft (6.7 m)
SPEED (LEVEL GROUND) Up to 19 mph ± 0.5 mph (Up to 30.6 kph ± 0.8 kph)

STEERING Self-Compensating Rack and Pinion
SUSPENSION Leaf Springs with Hydraulic Shock Absorbers
SERVICE BRAKE Rear Wheel Mechanical Self-Adjusting Drum
PARKING BRAKE Automatic Electro-Magnetic (ELiTE Only) Self-Compensating, Single Point Engagement (Gas Only)

TIRES

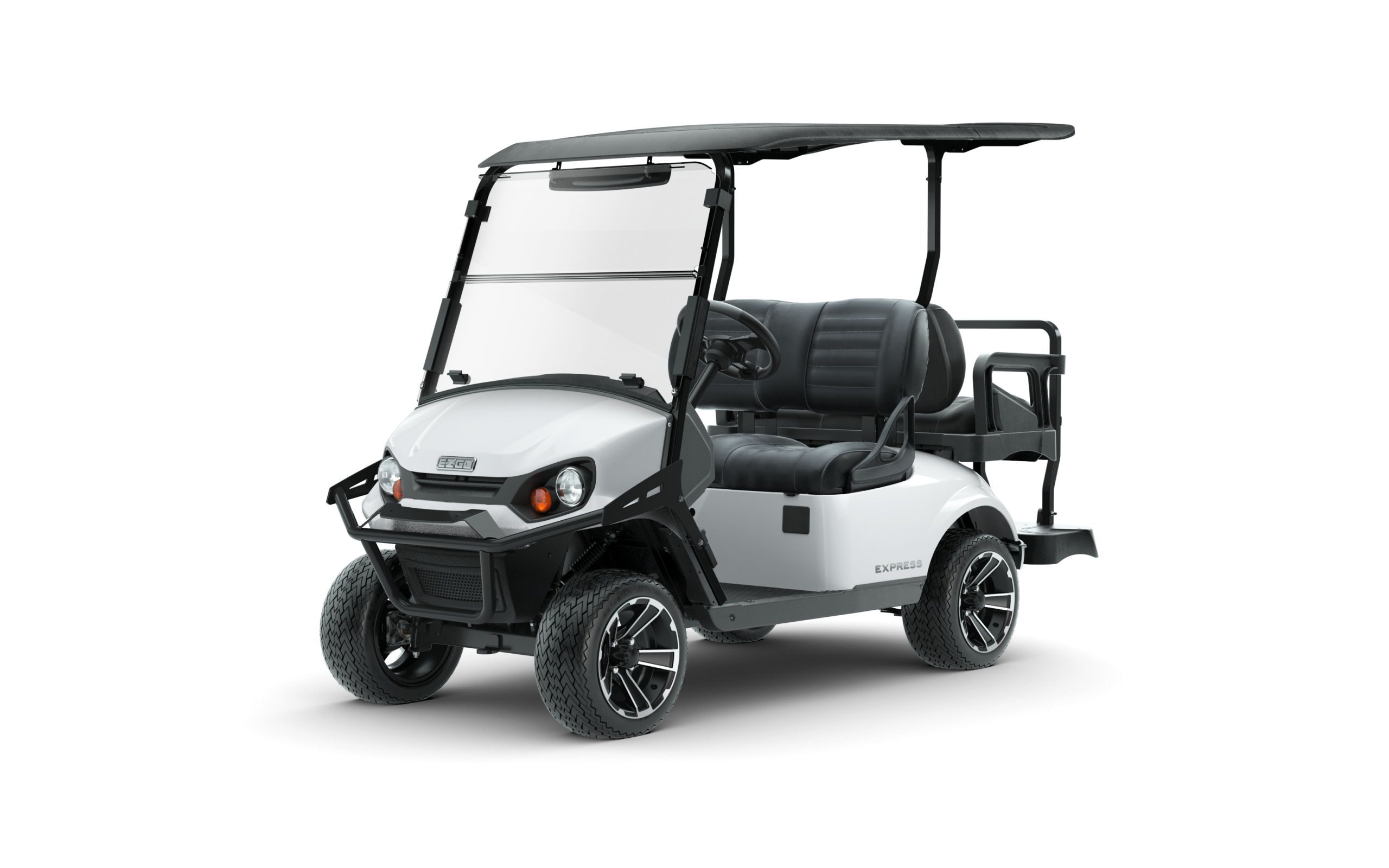

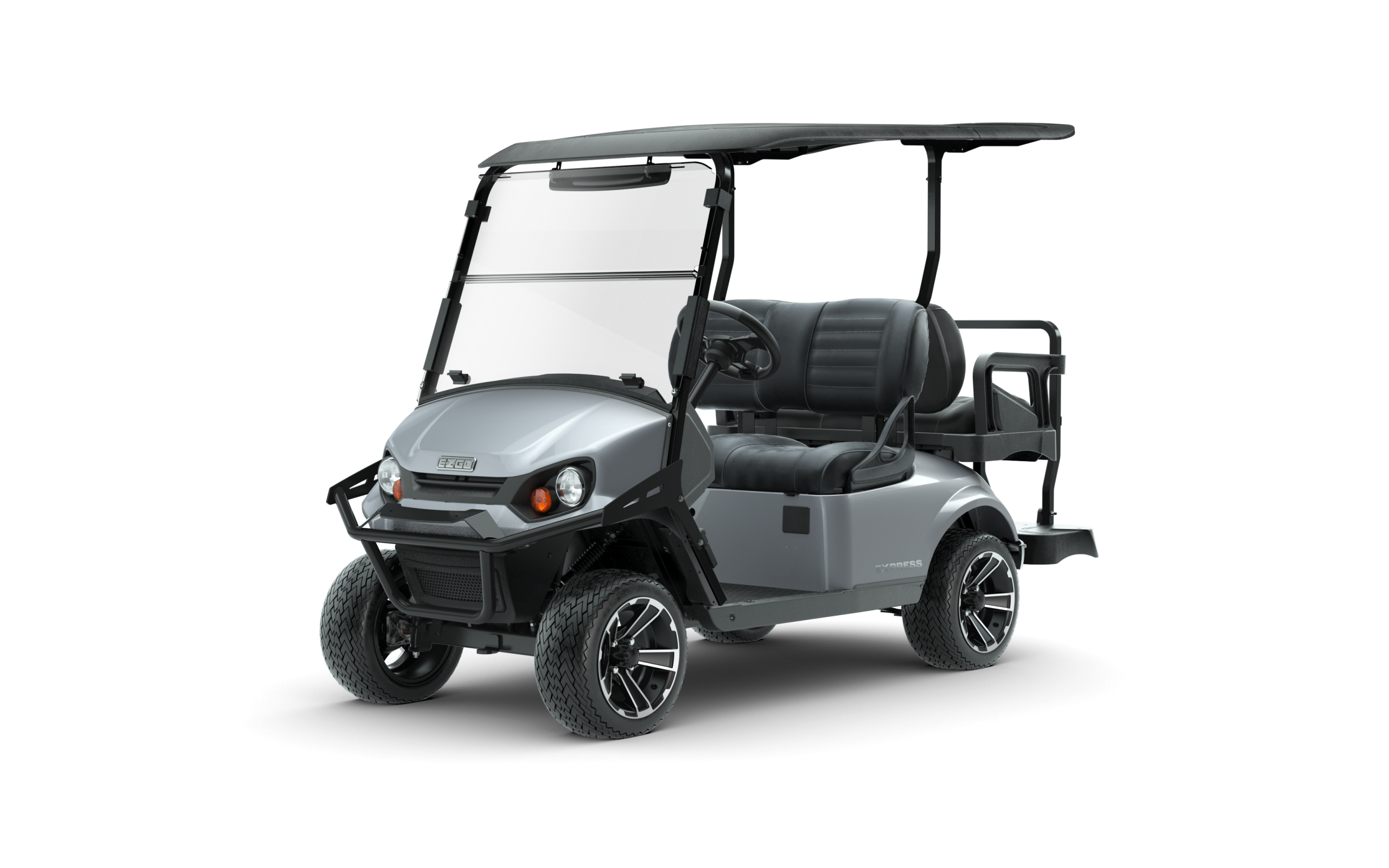

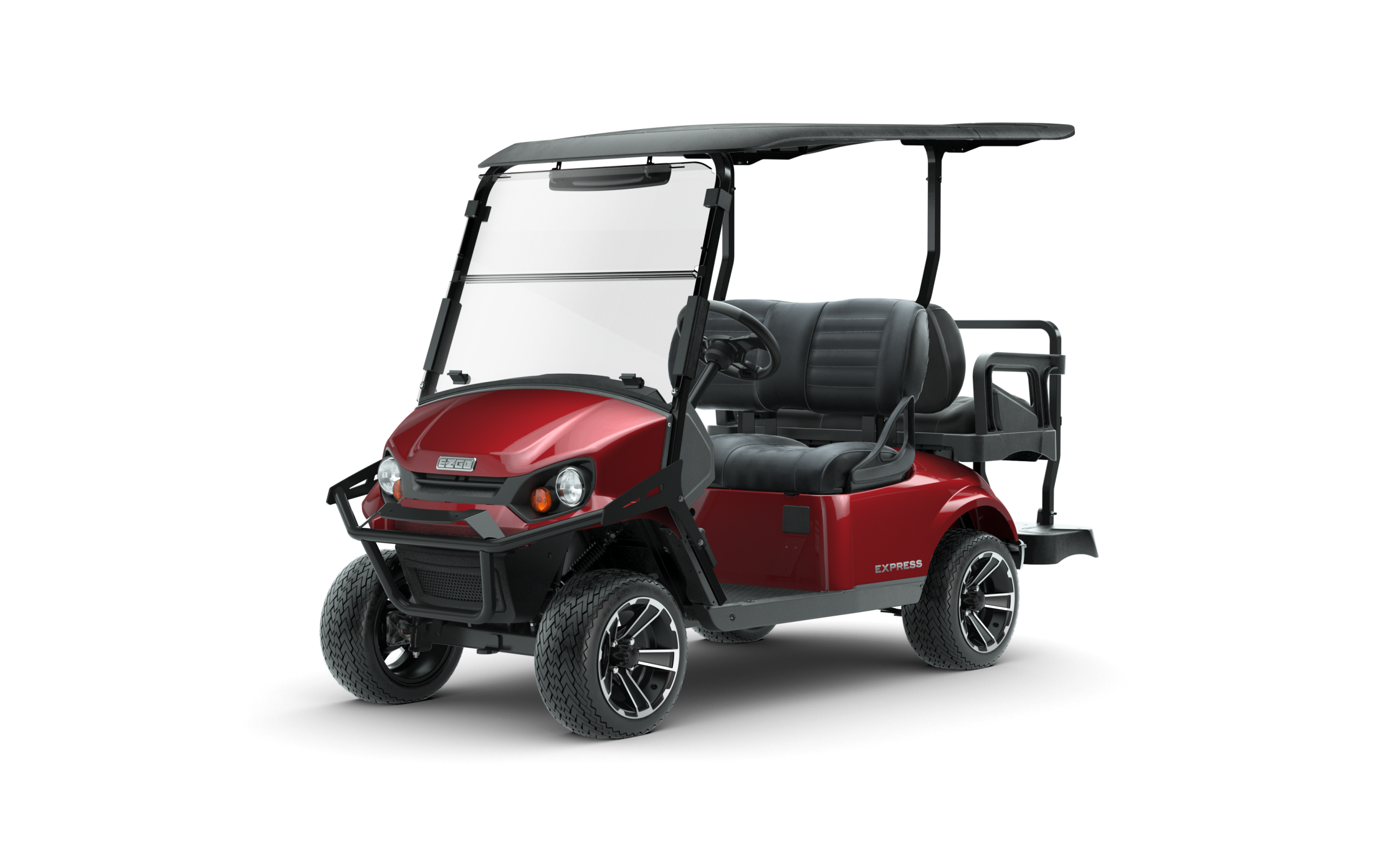

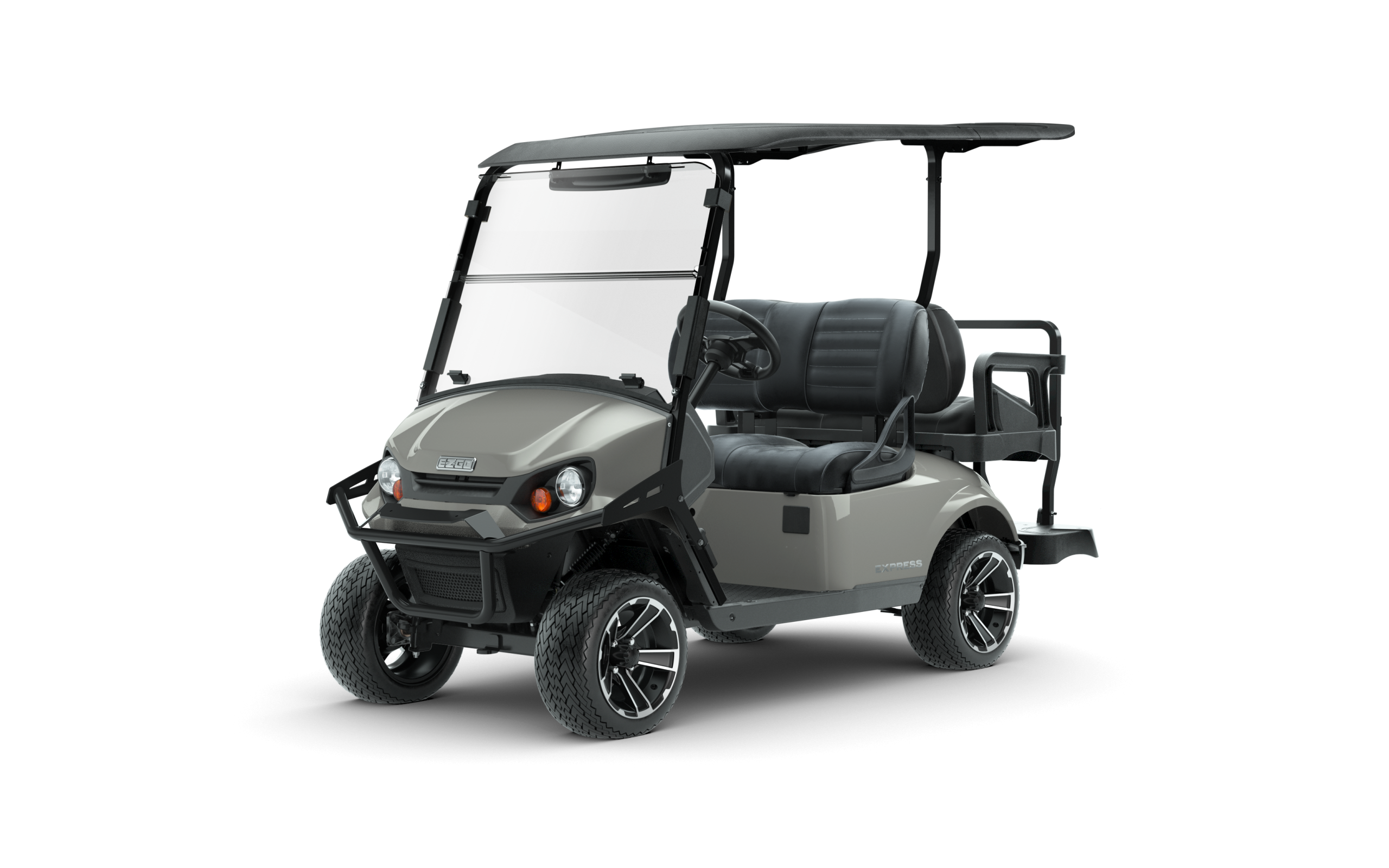

Standard: Hole-N-One Tire on Rogue 12” Alloy Wheel (Connect Package),

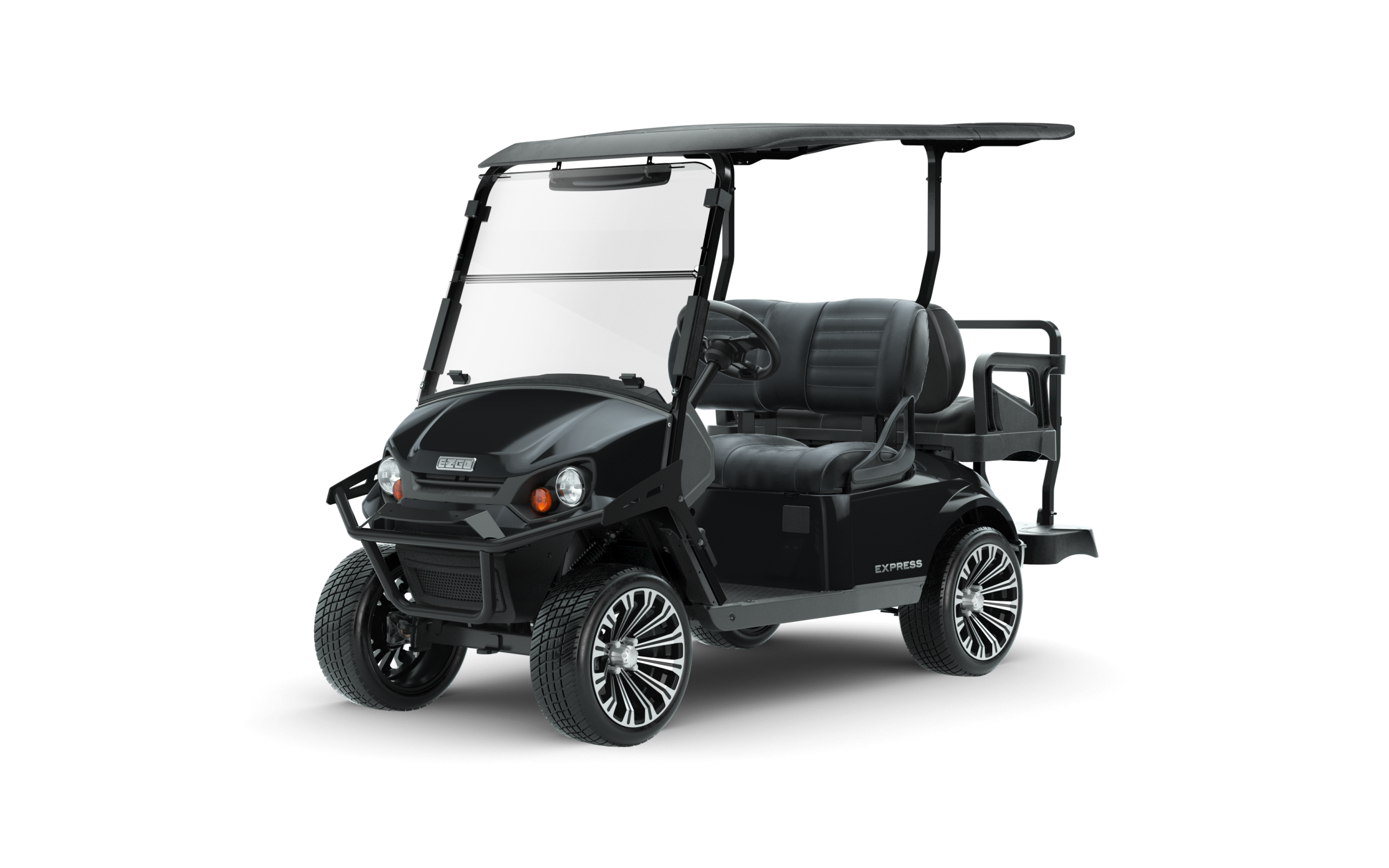

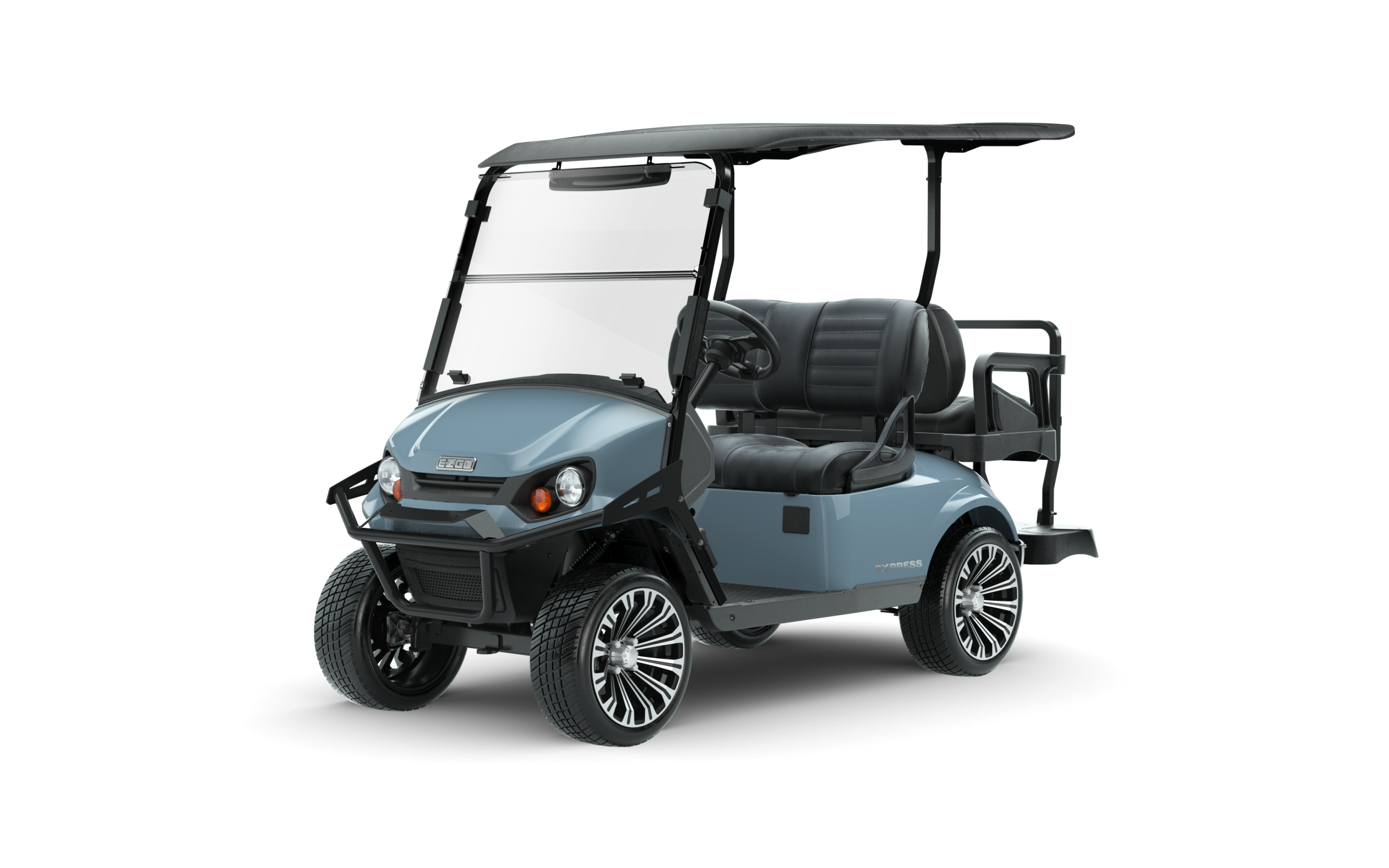

Paramount SBR Tire on 14” FTV Alloy Wheel (Cruiser Package)

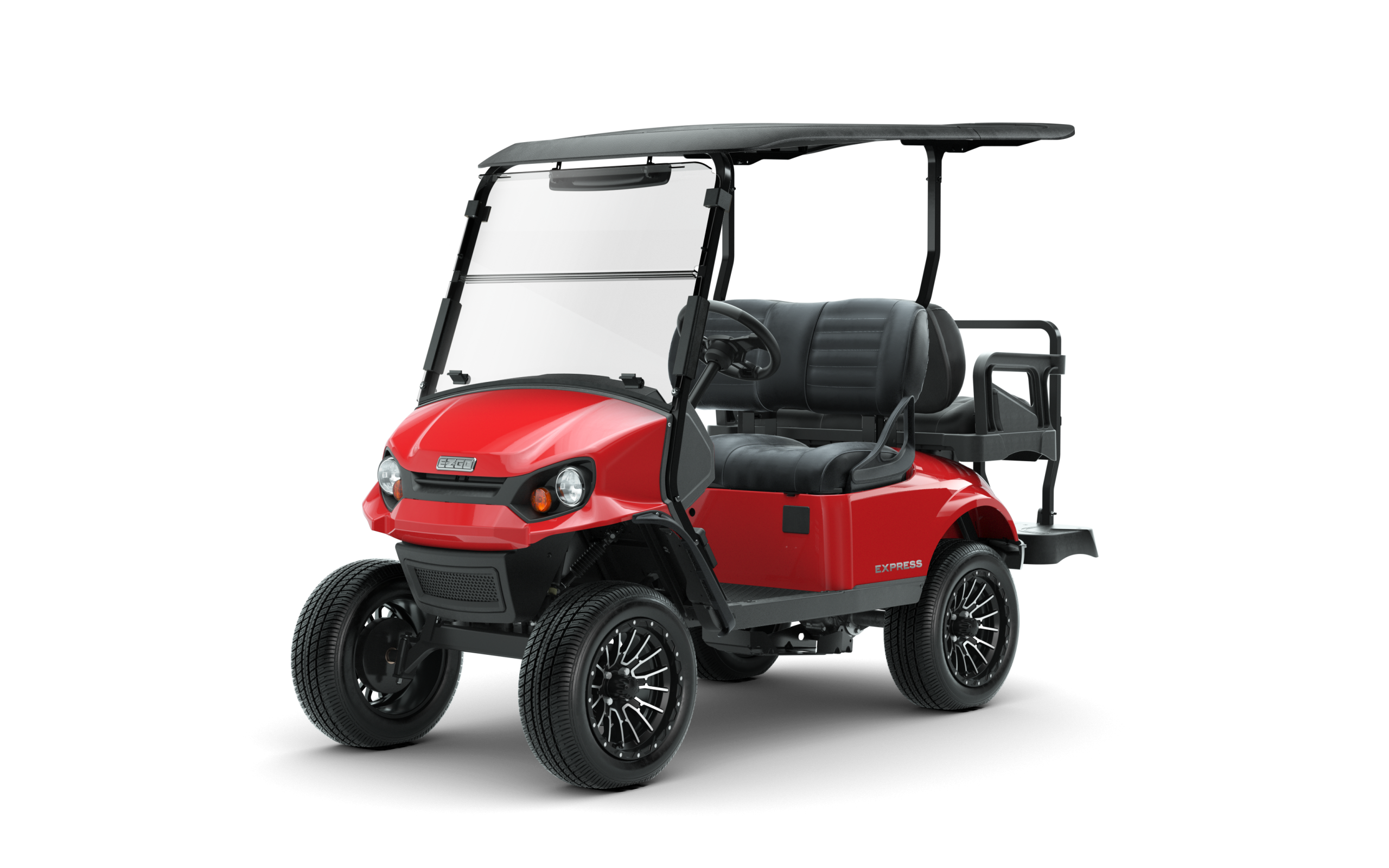

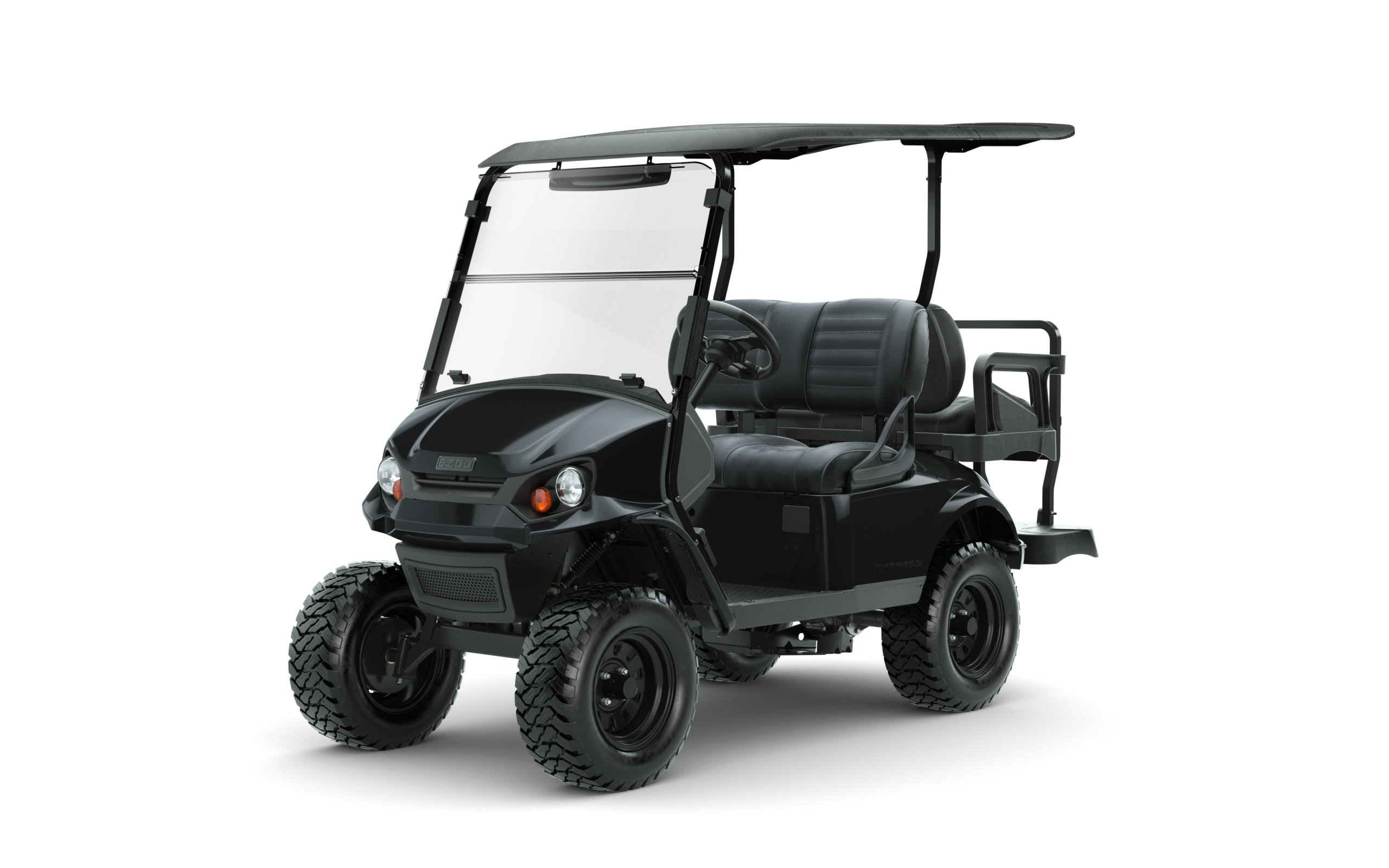

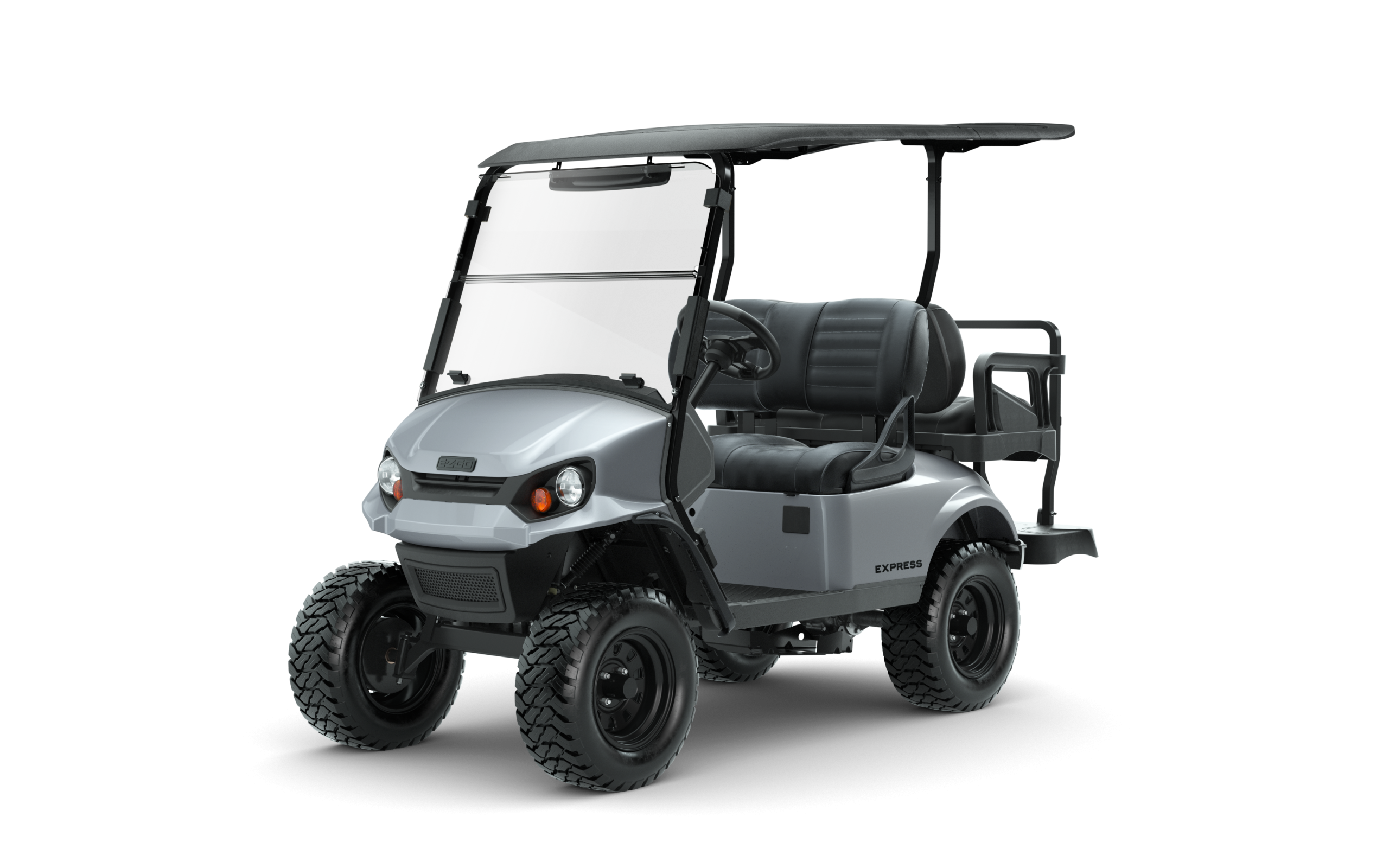

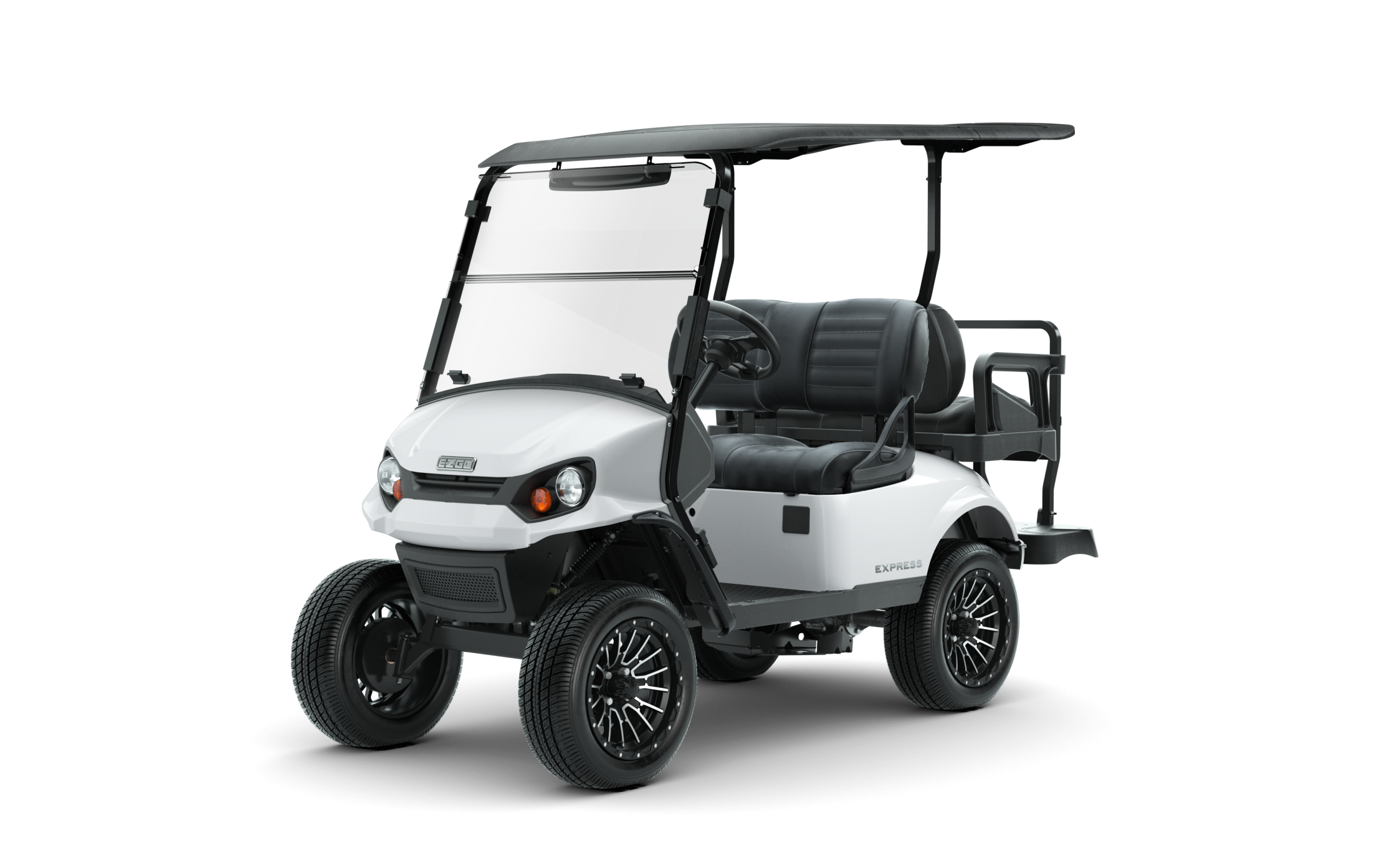

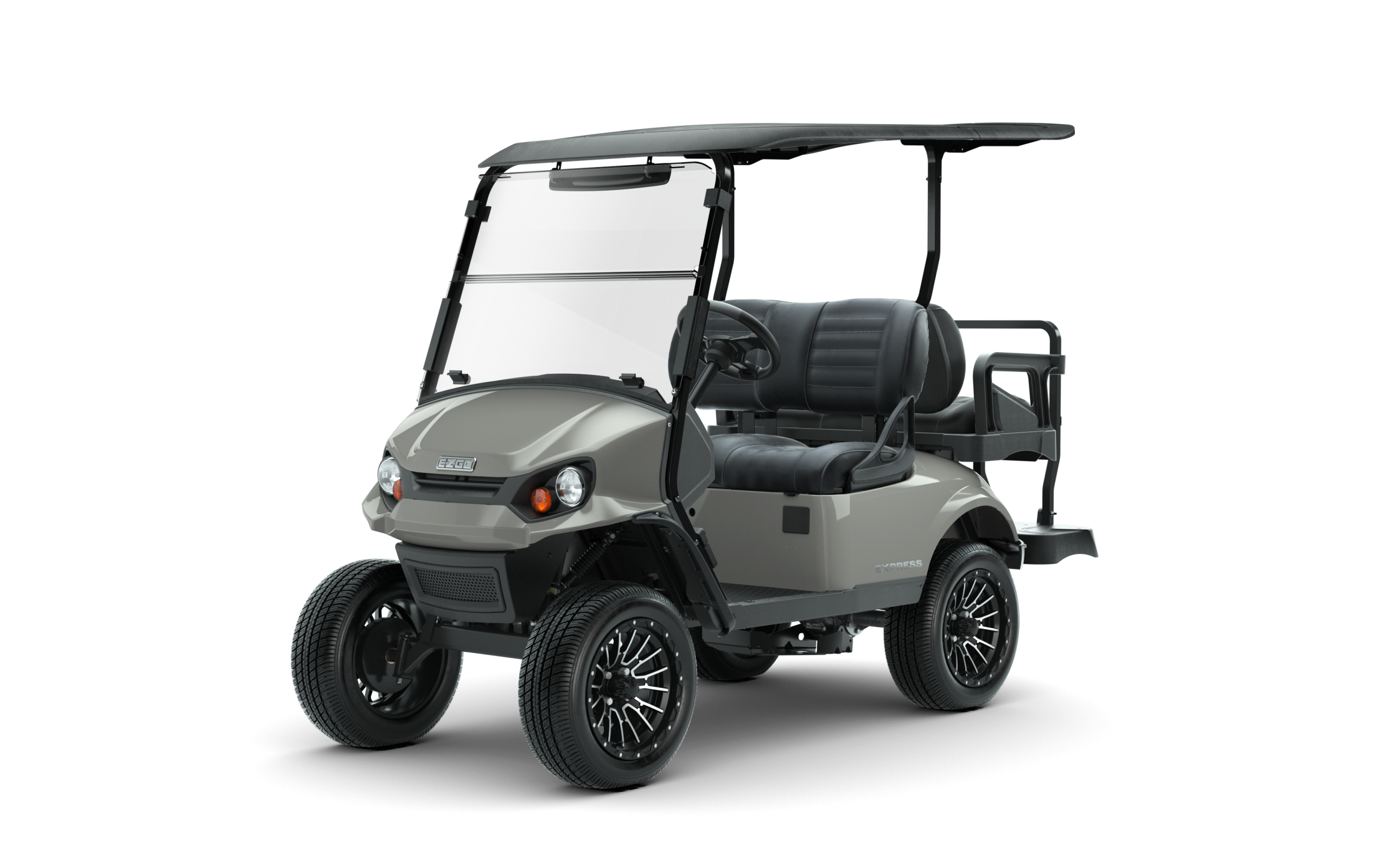

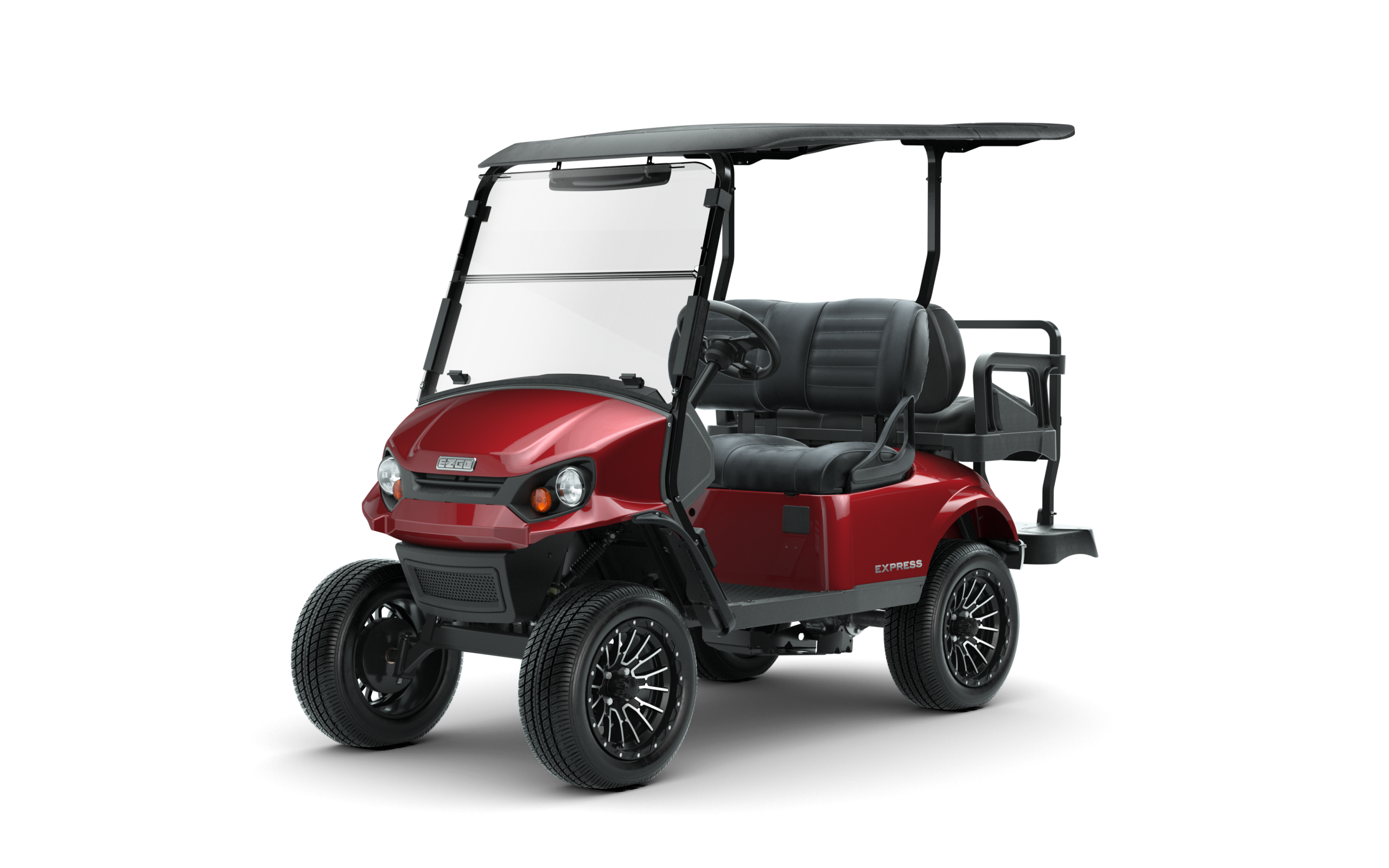

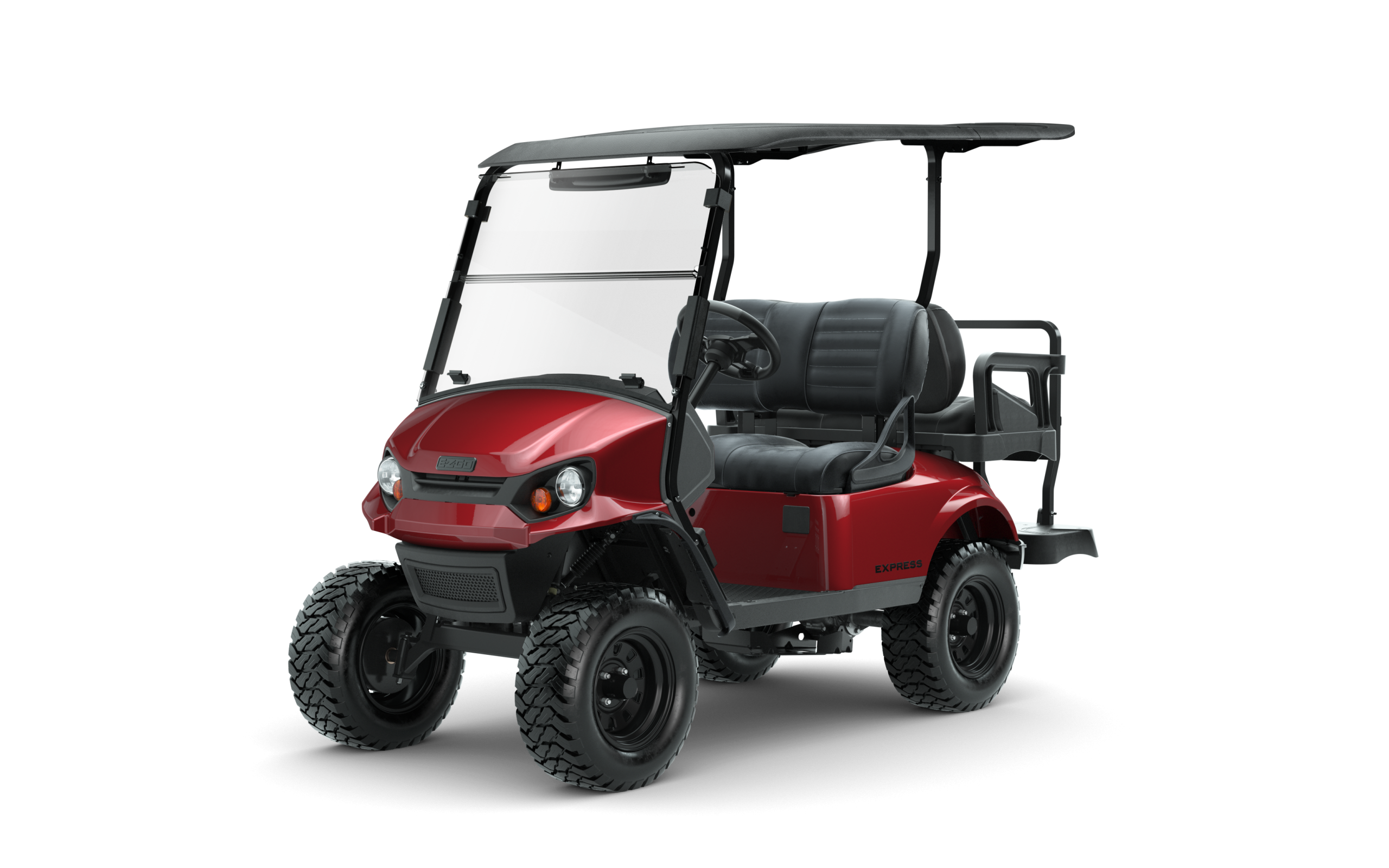

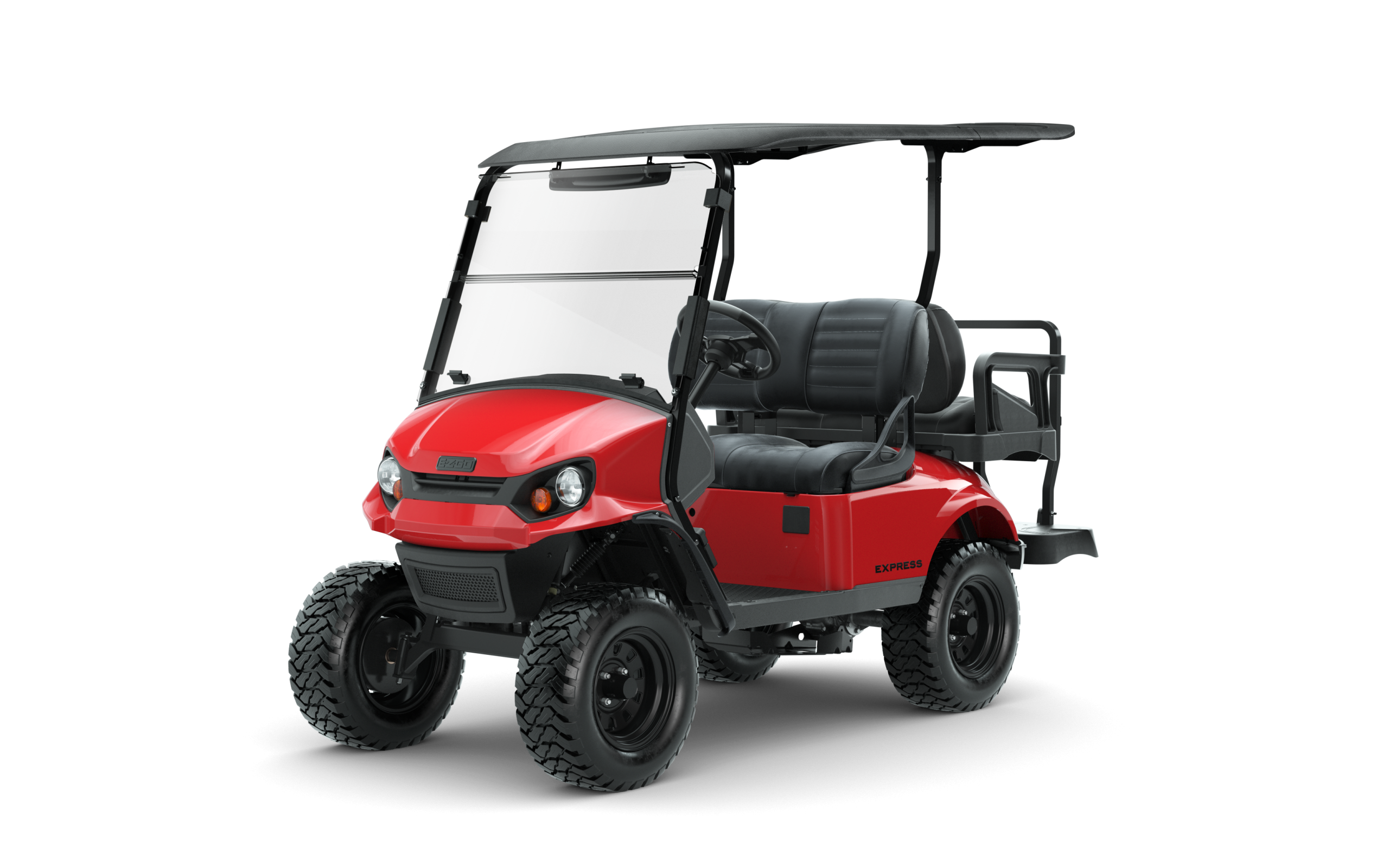

Lifted: Paramount M/T Tire on 14” Black Steel Wheel (Adventure Package), Kruizer SBR Tire on 14” SPDR Alloy

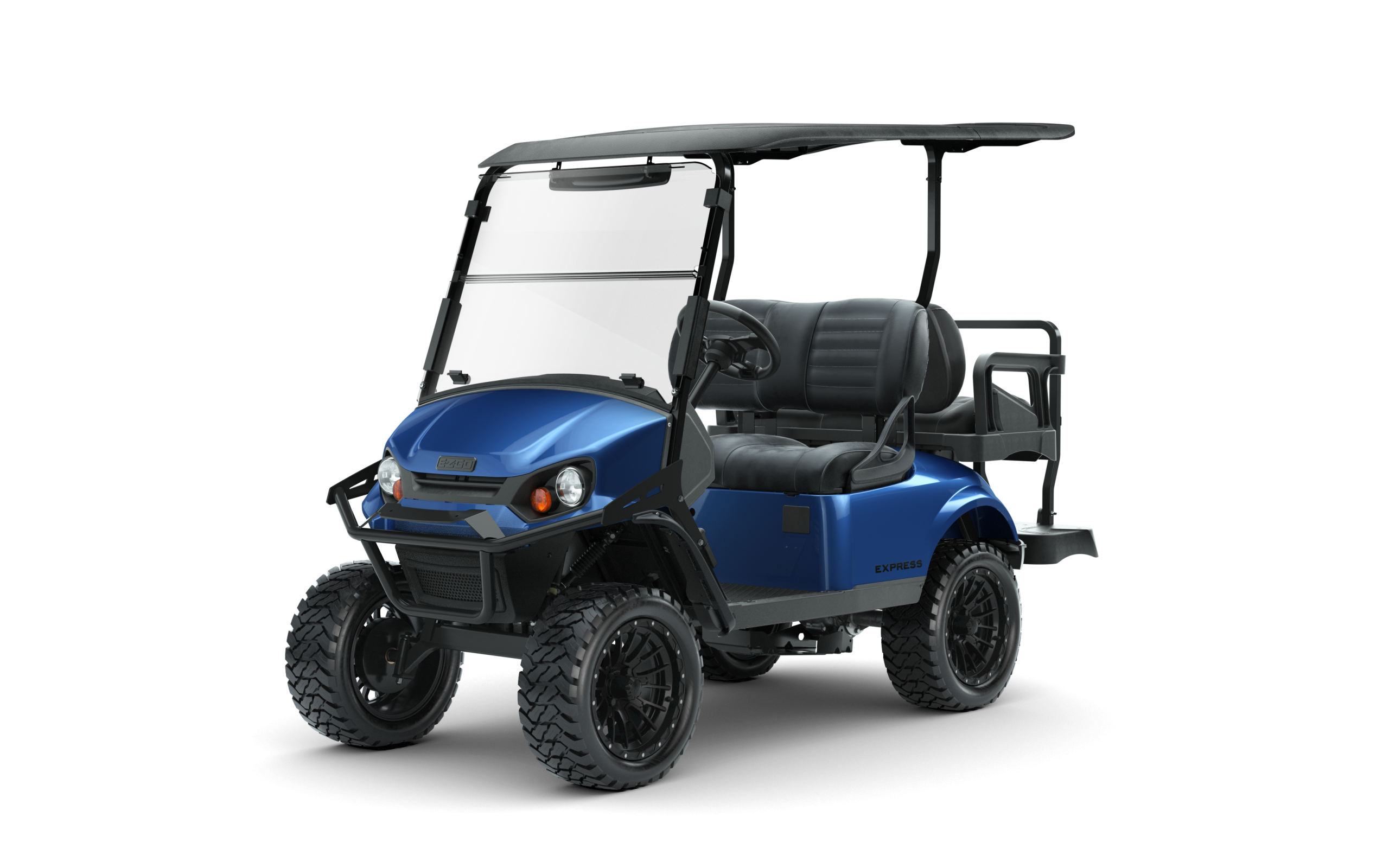

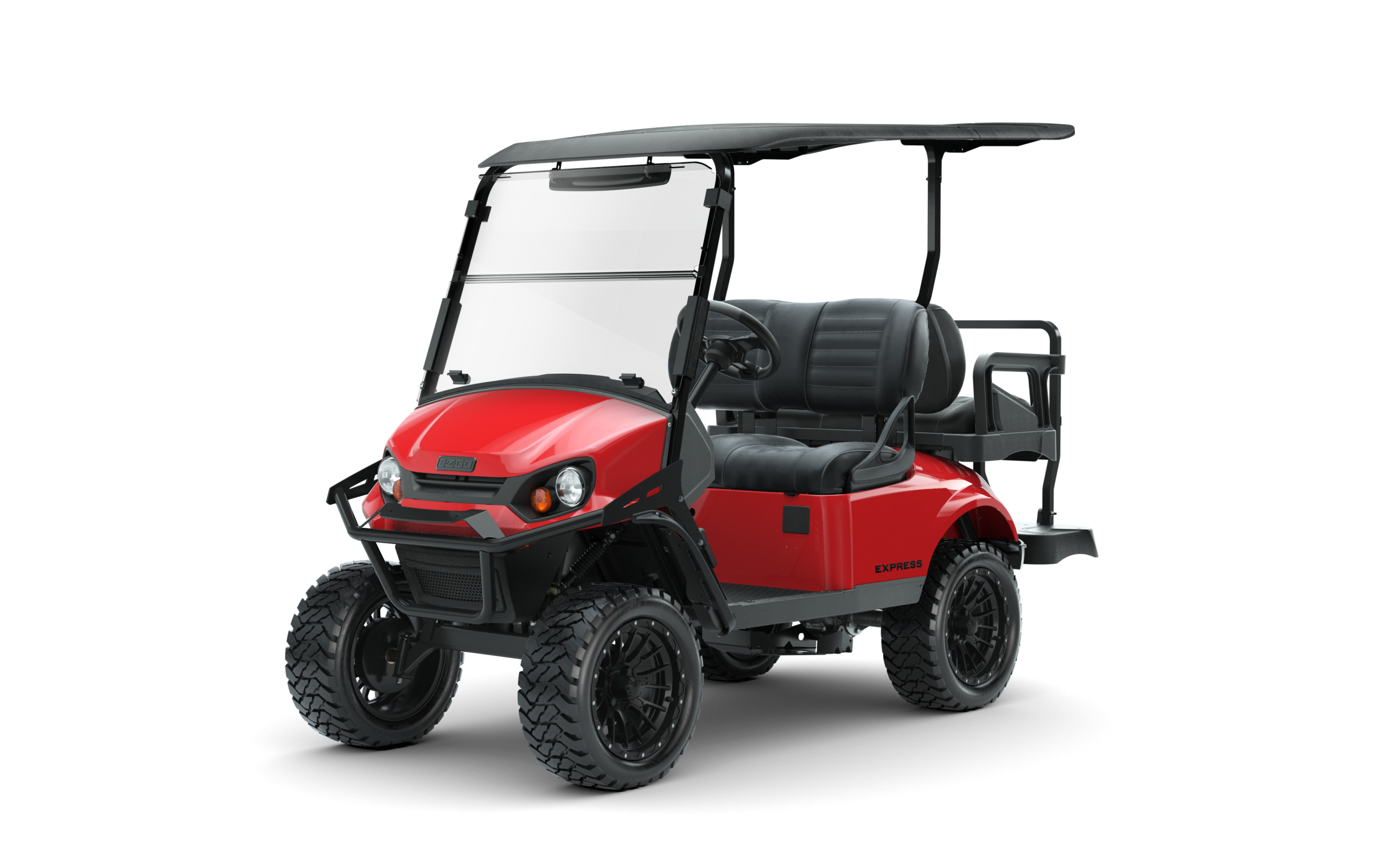

Wheel (Commuter Package), Paramount M/T Tire on 14” Black SPDR Alloy Wheel (Explorer Package)

FRAME Welded Steel with E-Coat & DuraShieldTM Powder Coat
BODY & FINISH Injection Molded TPO
AVAILABLE BODY COLORS Black, Bright White, Electric Blue, Flame Red, Inferno Red, Metallic Charcoal, Ocean Grey, Platinum, Slate
AVAILABLE SEAT COLORS Black, Grey on Black, White on Beige, Limited Edition Briar Brown Stitched
AVAILABLE PREMIUM SEAT COLORS Black, Grey, Mushroom
AVAILABLE SIGNATURE SEAT COLORS Amarillo Brown, Tundra Gray
