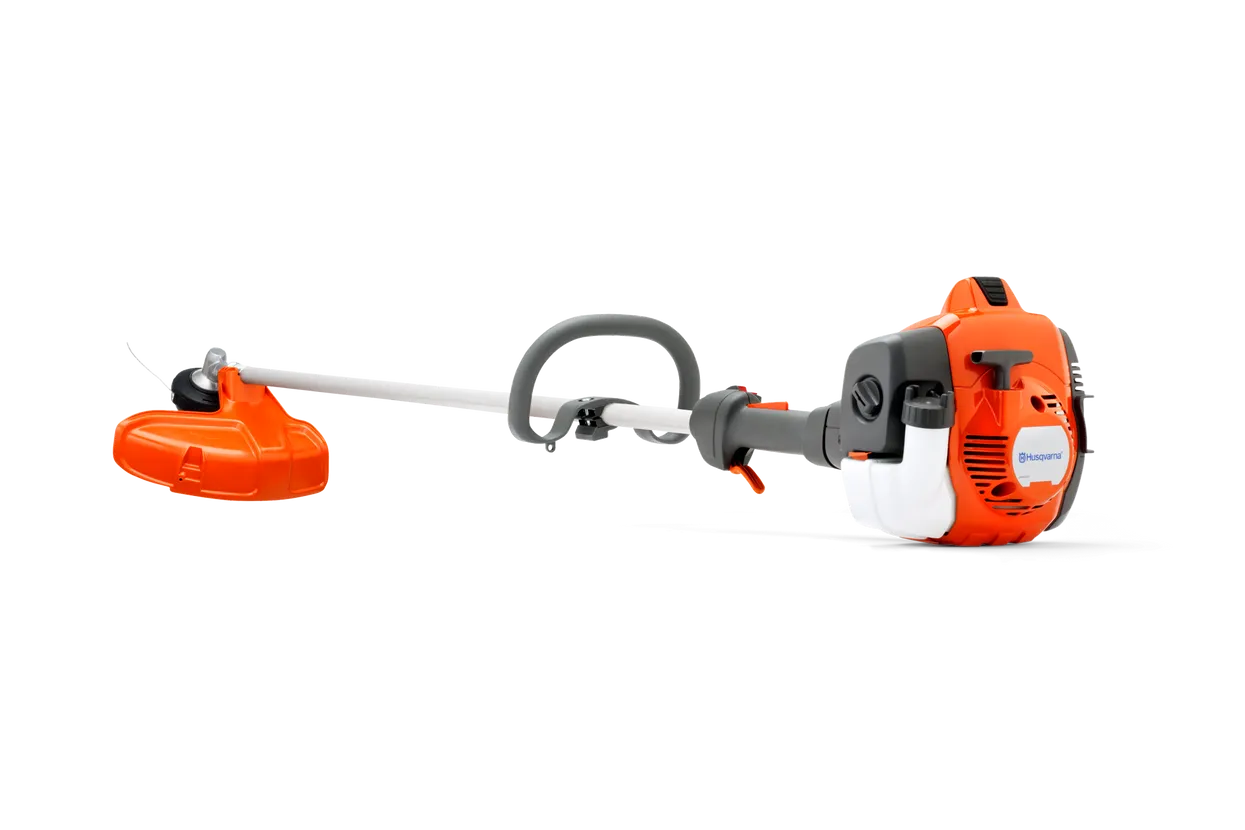

522L
The great value, high-performance Husqvarna 522L trimmer is a practical, affordable option for professionals. Reliable and easy to start, operate and maintain thanks to its user-centric design and intuitive controls, including auto-return stop switch, Smart Start® and easy choke/purge access. The solid drive shaft, tool-less access to the air filter and T35 Tap-n-Go trimmer head make it a sensible, durable choice for light trimming.
Capacity – 522L TRIMMER US/CAN,AU/NZ
SKU: 967 34 36‑01
Cutting width: 18.1 in
Dimensions Weight (excl. cutting equipment): 9.26 lbs
Product size length: 70.08 in
Tube diameter: 0.945 in
Product size height: 8.9 in
Product size width: 9.49 in
Tube length: 58.386 in
Engine
Output shaft power1: 1.01 hp
Cylinder displacement: 22.5 cm³
Maximum rpm output shaft: 6,164 rpm
Fuel tank volume: 16.91 fl oz
Fuel tank volume: 0.5 l
Clutch engagement speed (±120): 4,000 rpm
Fuel consumption: 450 g/kWh
Idling speed: 3,000 rpm
Maximum power speed: 8,500 rpm
Spark Plug: NGK BPMR8Y
Torque, max.: 1 Nm
Torque, max. at rpm: 6,000 rpm
Equipment
Gear ratio: 1.46
Drive gear angle: 60 °
Harness: Not included
Saw blade: Not included
Trimmer head: T35 M10
Grass blade: Not included
Sound and noise
Sound power level, guaranteed (LWA): 110 dB(A)
Sound pressure level at operators ear: 98 dB(A)
Vibration
Equivalent vibration level (ahv, eq) left handle: 5.4 m/s²
Equivalent vibration level (ahv, eq) right handle: 4 m/s²
Lubricant
Lubricant type (Engine): Husqvarna 2 stroke or equiv. at 50:1
