Description

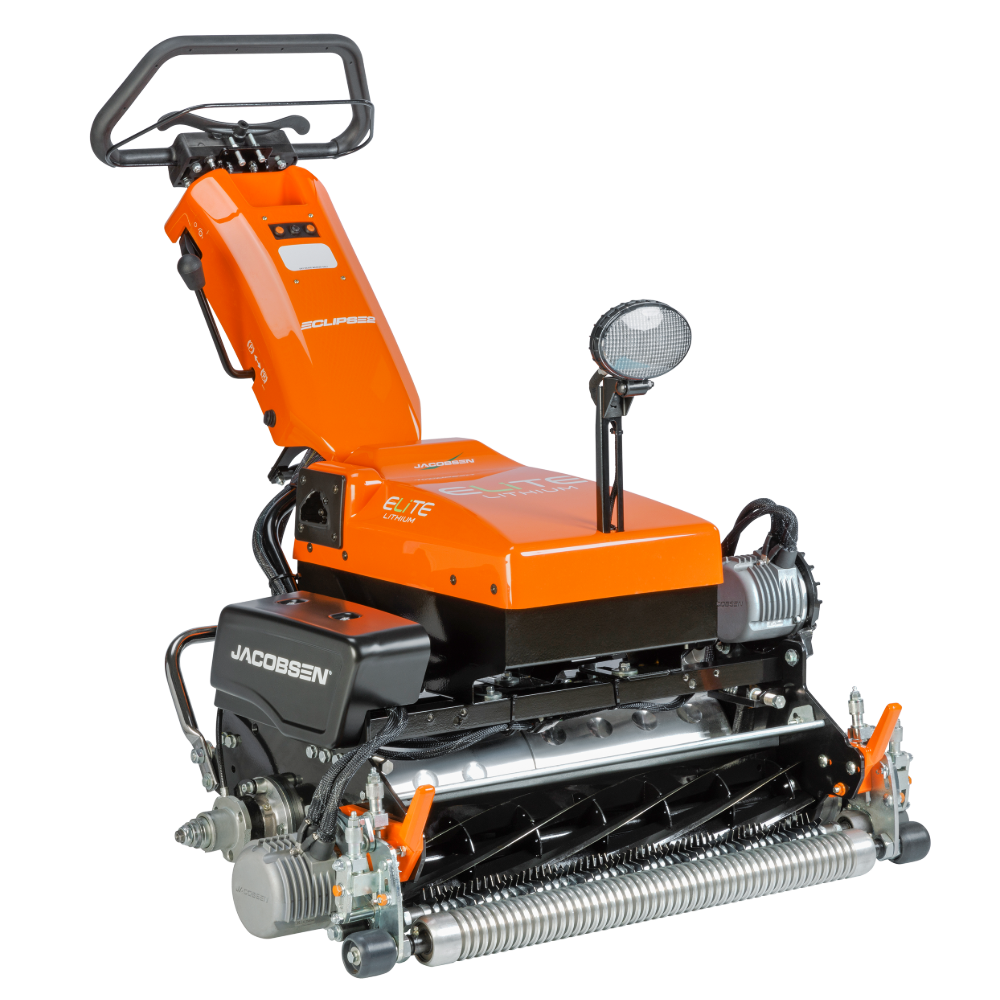

The all-new Eclipse® 2 ELiTE® Walking Mower is where cutting-edge technology meets precision cutting. With a programmable frequency of clip and a whisper-quiet ELiTE lithium powertrain, this mower provides everything you need—say goodbye to noise and harmful fluids, and hello to pristine greens. Get seamless operation and superior results and experience the Jacobsen difference.
| Mower Cutting Width |
18″, 22″ or 26″ (45.7 cm, 55.9 cm or 66 cm) |
| Mower Height of Cut |
0.062″ – 0.438″ (1.57 mm – 11.33 mm) |
| Blades per Reel |
7, 11 or 15 |
| Mower Engine |
Samsung 50AH Lithium Battery |
| Fuel/Battery Capacity |
50AH |
| Power |
N/A |
| Sound Level |
N/A |
| Mower Warranty |
N/A |
| Blade Material |
Hardened, high manganese carbon steel |
| Reel Speed |
Electronically controlled, 2200 RPM maximum |
| Frequency of Clip |
Programmable electronically controlled Frequency of Clip based on actual machine speed |
| Mower Drive System |
Samsung SDI Lithium Battery |
| Traction Drive |
7.75″ (19.68 cm) diameter machine smoothed aluminum drum driven via a brushless DC motor and synchronous belt |
| Operator Presence Control |
Standard InCommandâ„¢ operator controls (Traction and Reel) with integrated Operator Presence Control |
| Differential |
Full automotive type, housed in traction drum |
| Traction Drum |
7.75″ (19.68 cm) diameter smooth machined aluminum |
| Brakes |
Lever actuated hub brake with parking lock |
| Transport Wheels |
N/A |
| Mowing Speed |
Electronically controlled and programable 0 – 3.8 mph (6.12 kph) max |
| Weight |
18″: 213 lbs. (97 kg), 22″: 229 lbs. (104 kg), 18″ floating head: 248 lbs. (113 kg), 22″ floating head: 252 lbs. (114 kg) (all weights are with Catcher, grooved steel roller and Kickstand) |
