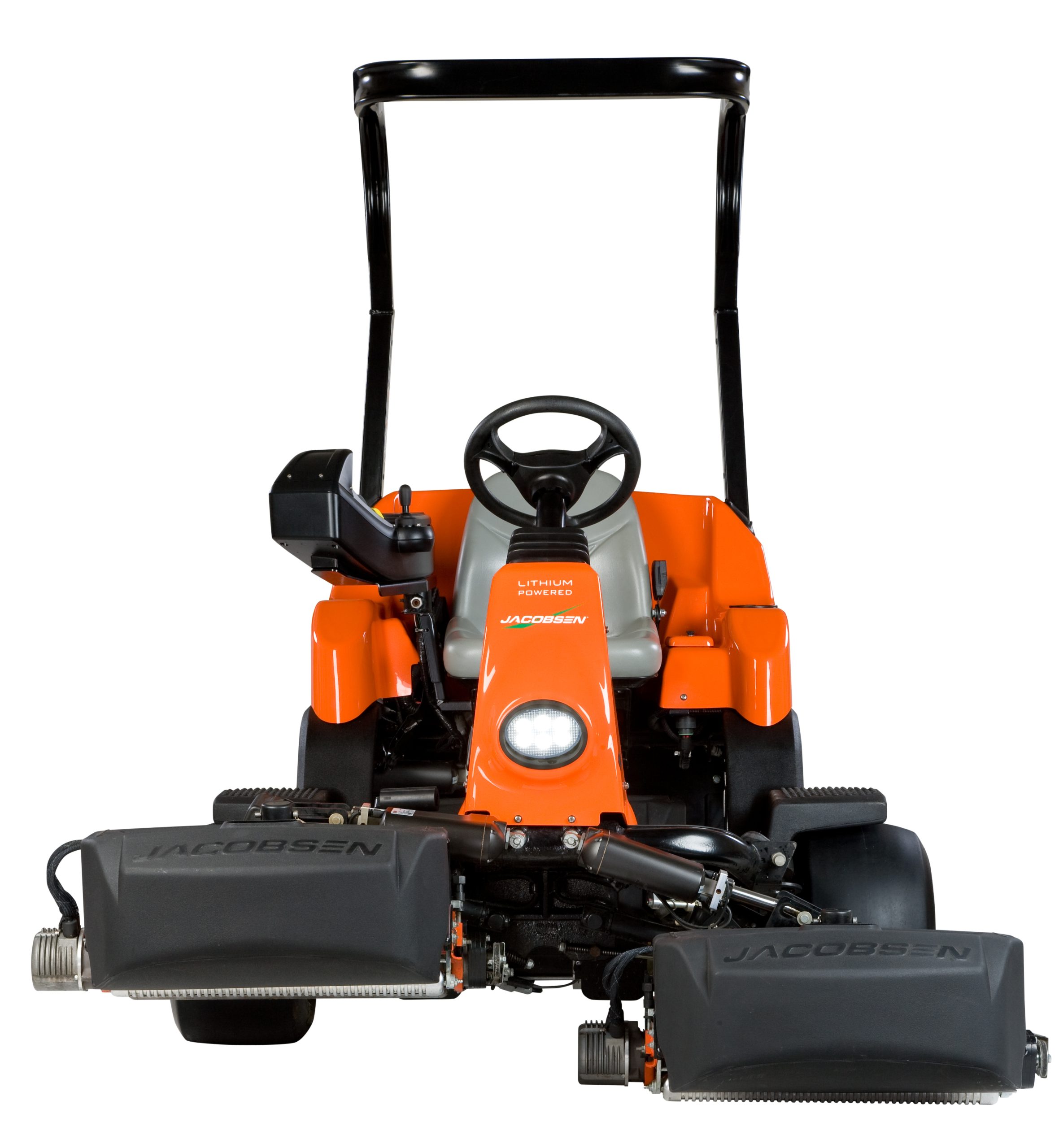

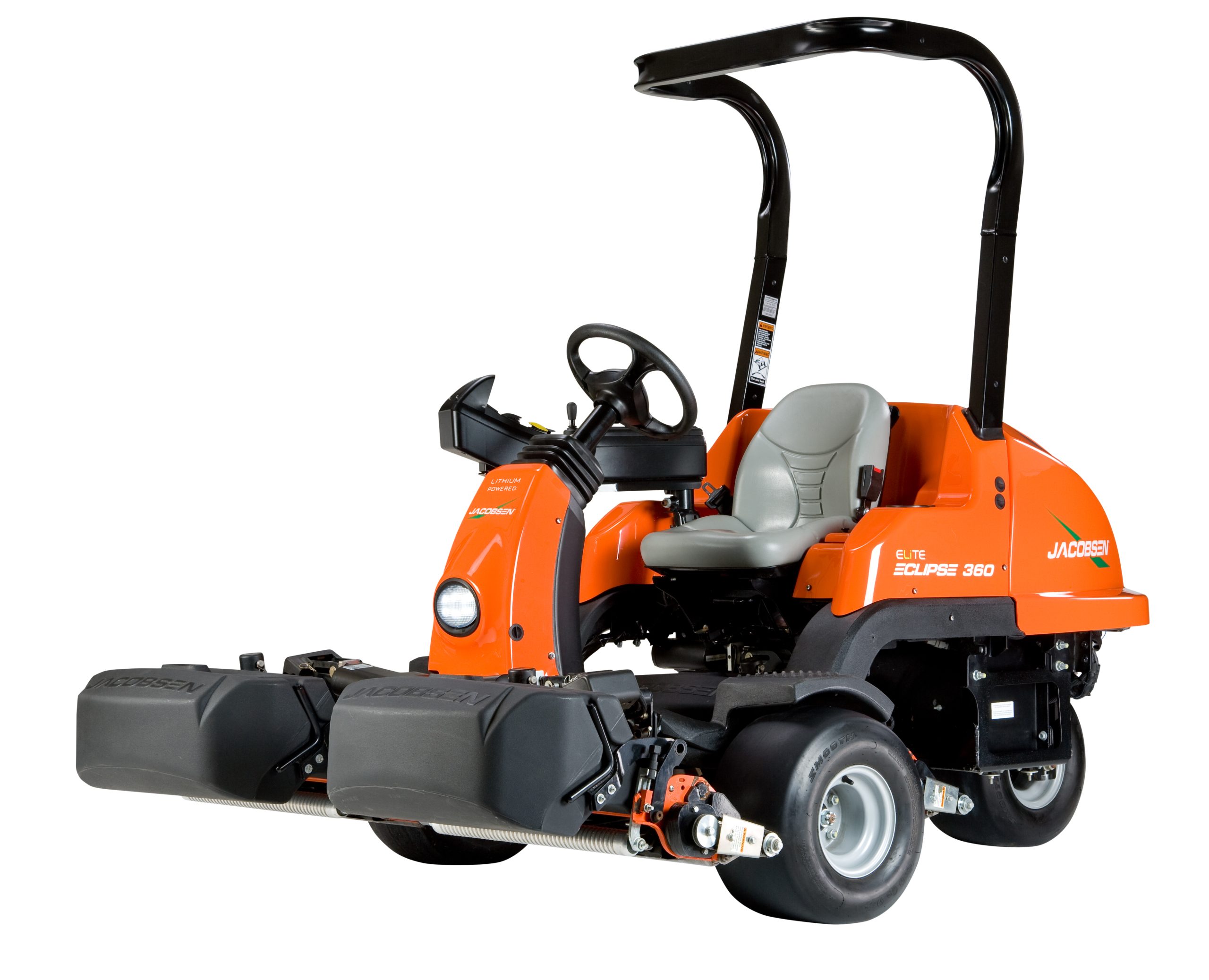

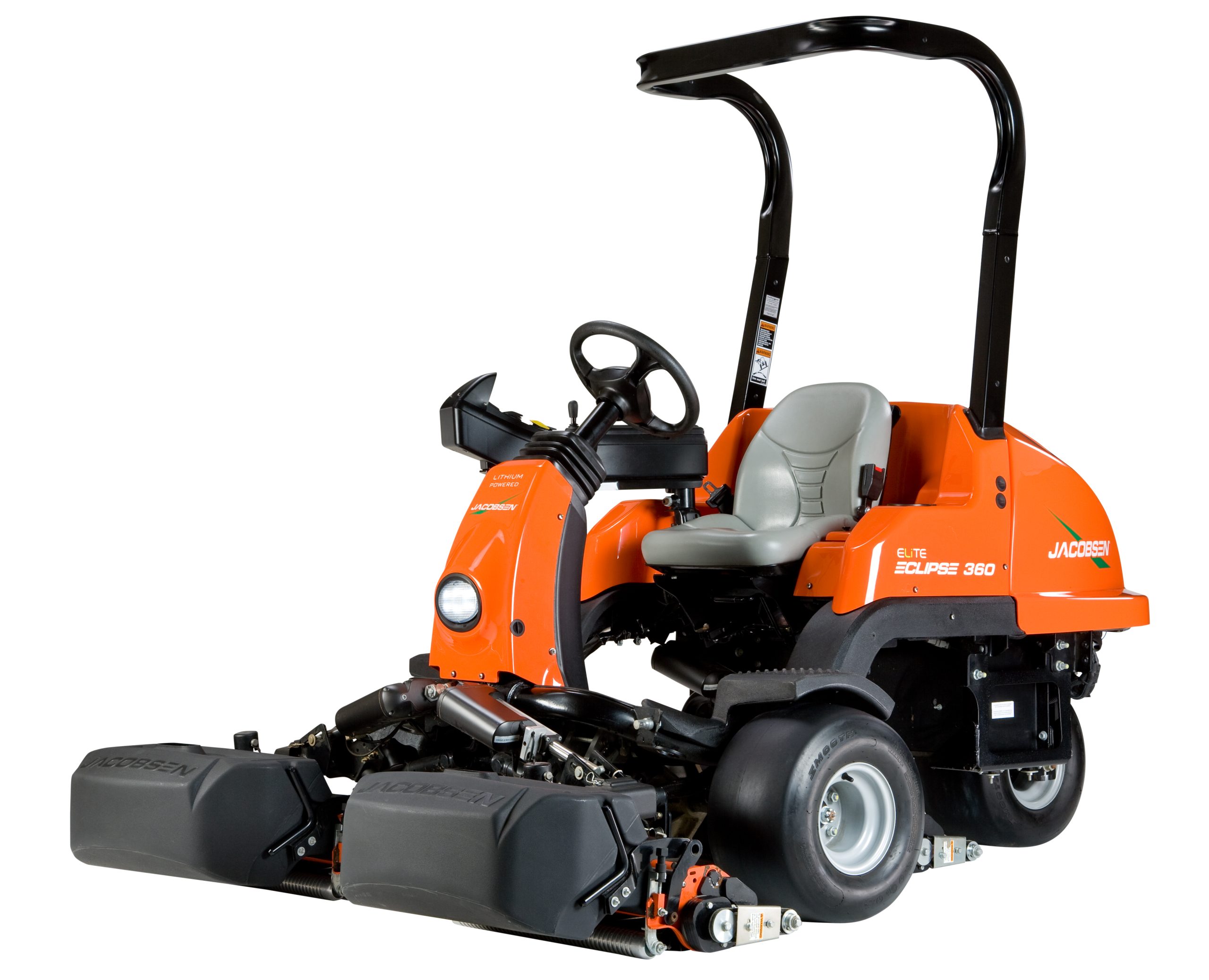

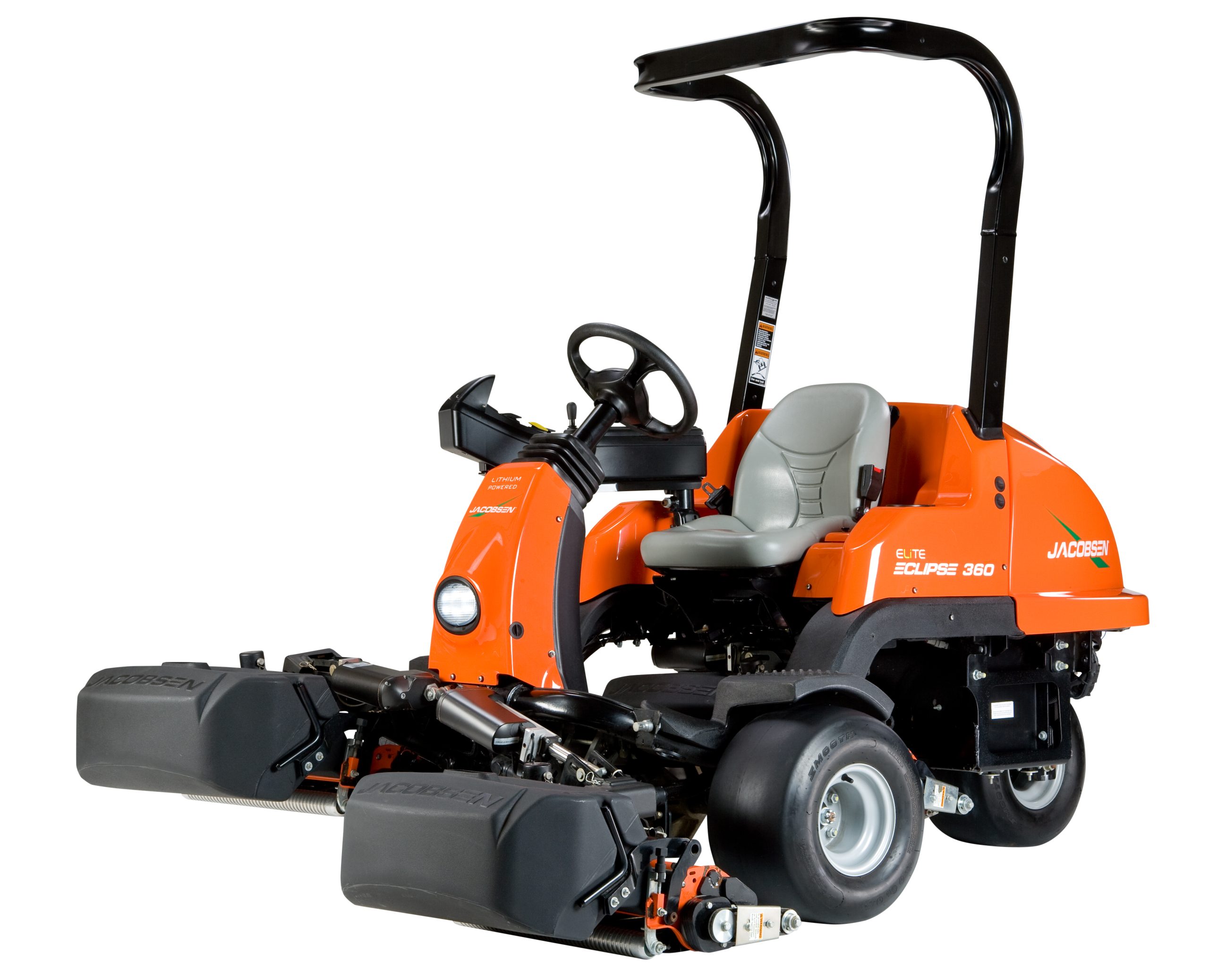

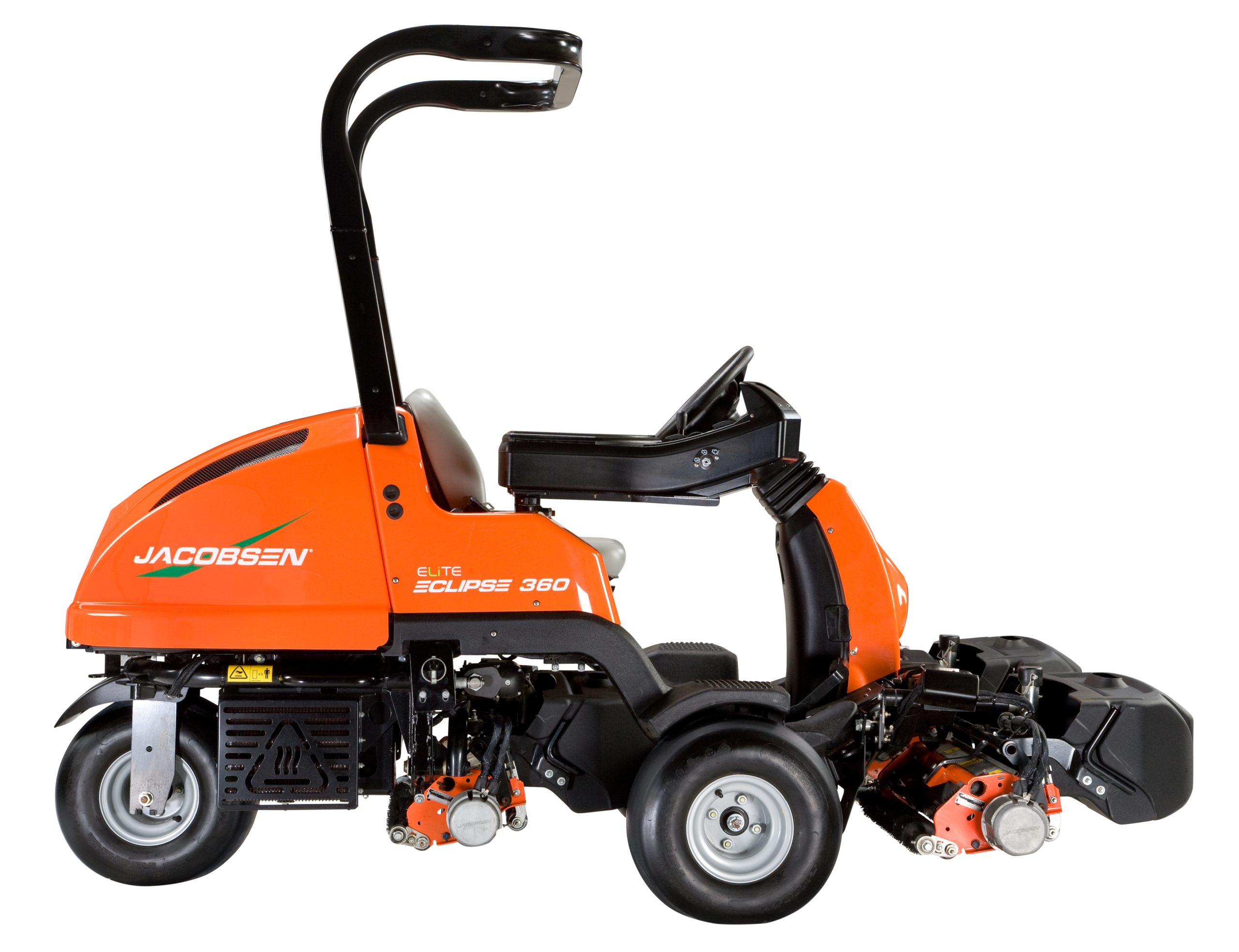

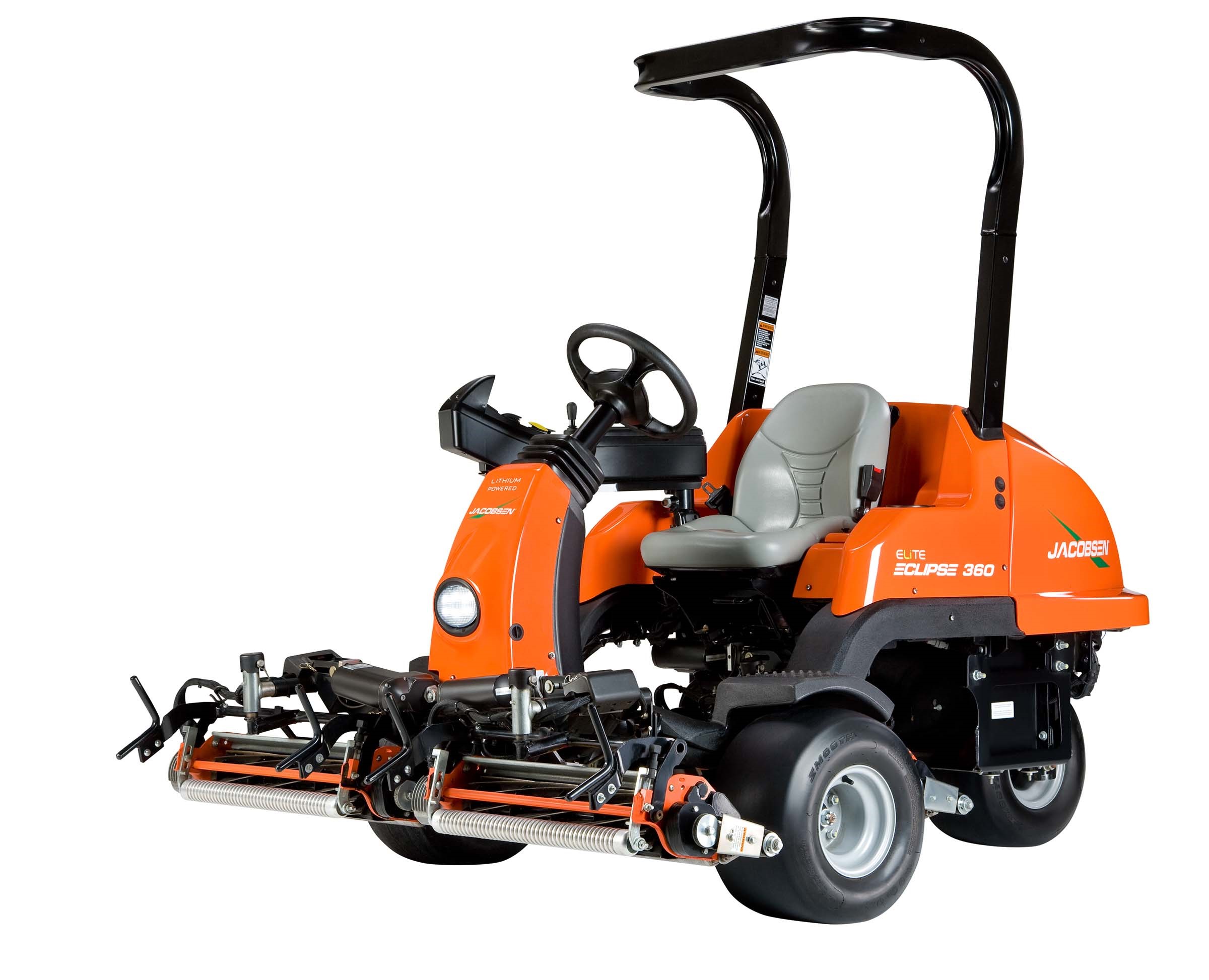

Jacobsen ECLIPSE® 360 ELiTE Greens Mower

Description

The Eclipse® 360 ELiTE Fully Electric Riding Greens Mower cuts more than grass. Fuel cost, noise and maintenance downtime are all reduced by a mower with advanced precision technology, that gives you Jake’s trusted signature cut. The latest ELiTE Lithium-Ion battery and a hydraulic-free design makes the Eclipse 360 electric reel mower the greenest, quietest and highest quality Jake cut available for your golf course or fine sports turf.

Features

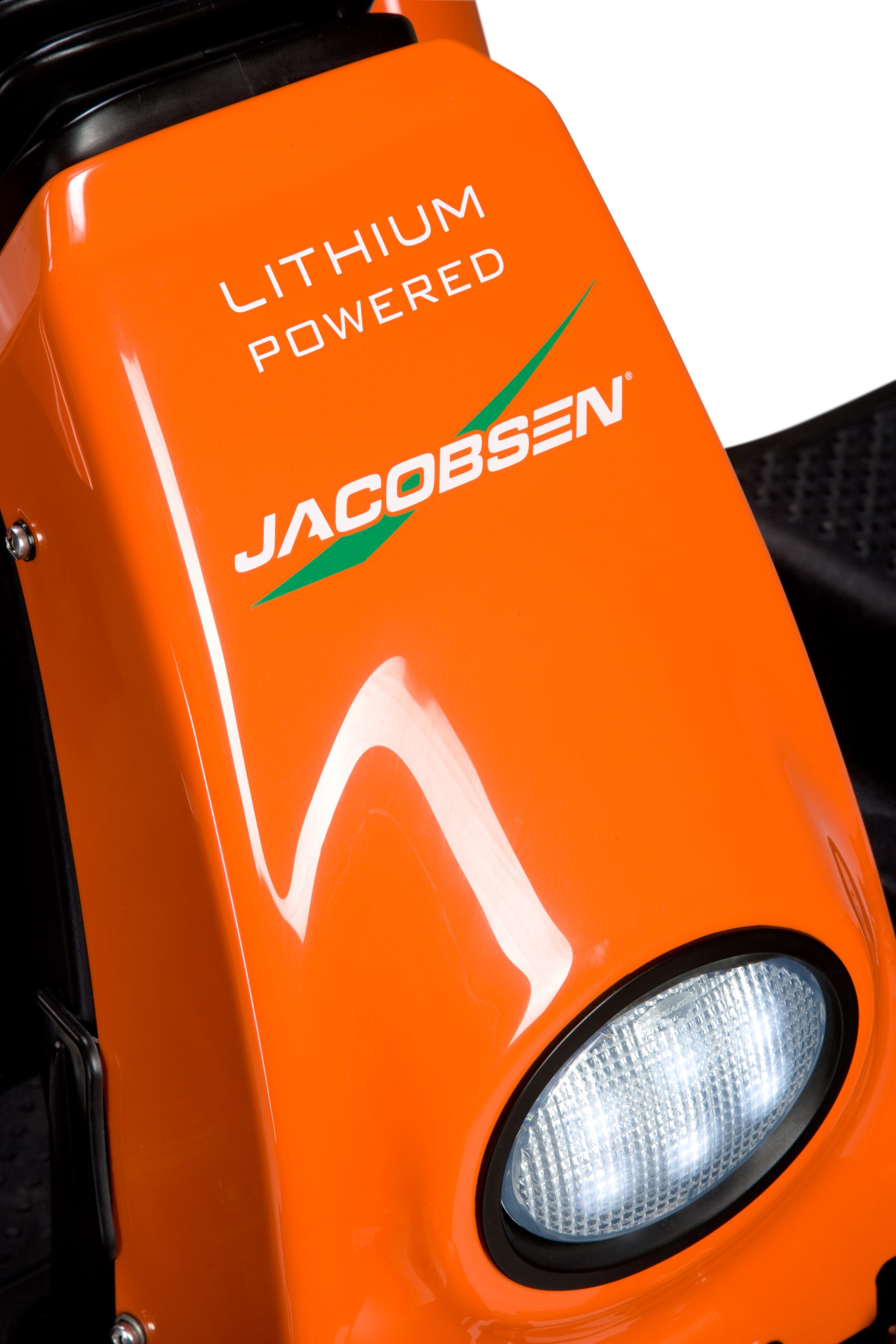

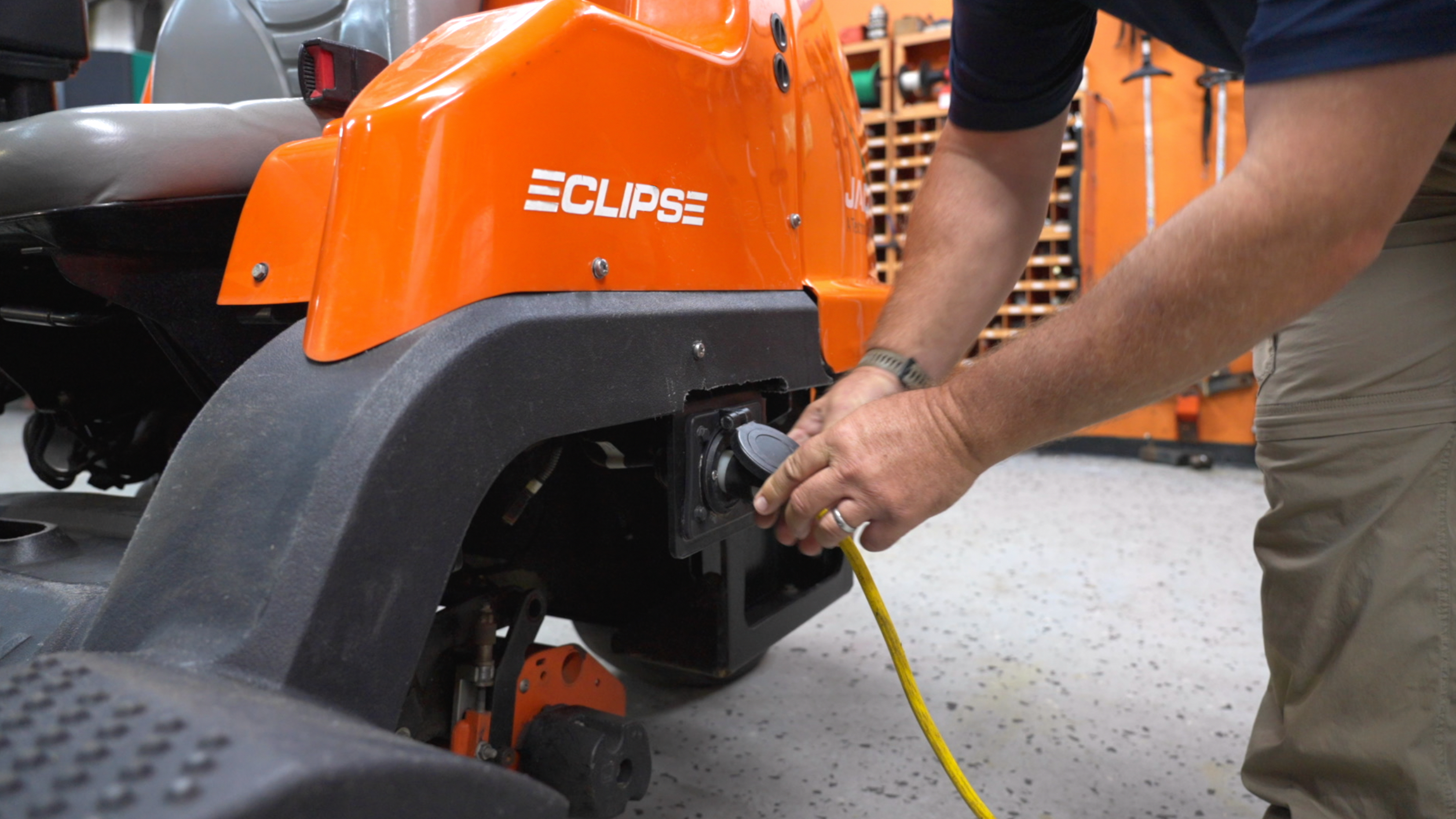

ELiTE lithium battery & on-board high frequency 18 amp, 48V DC output, 85 – 265V AC 45 – 65 Hz input
Electronic steering system eliminates hydraulics and cables.

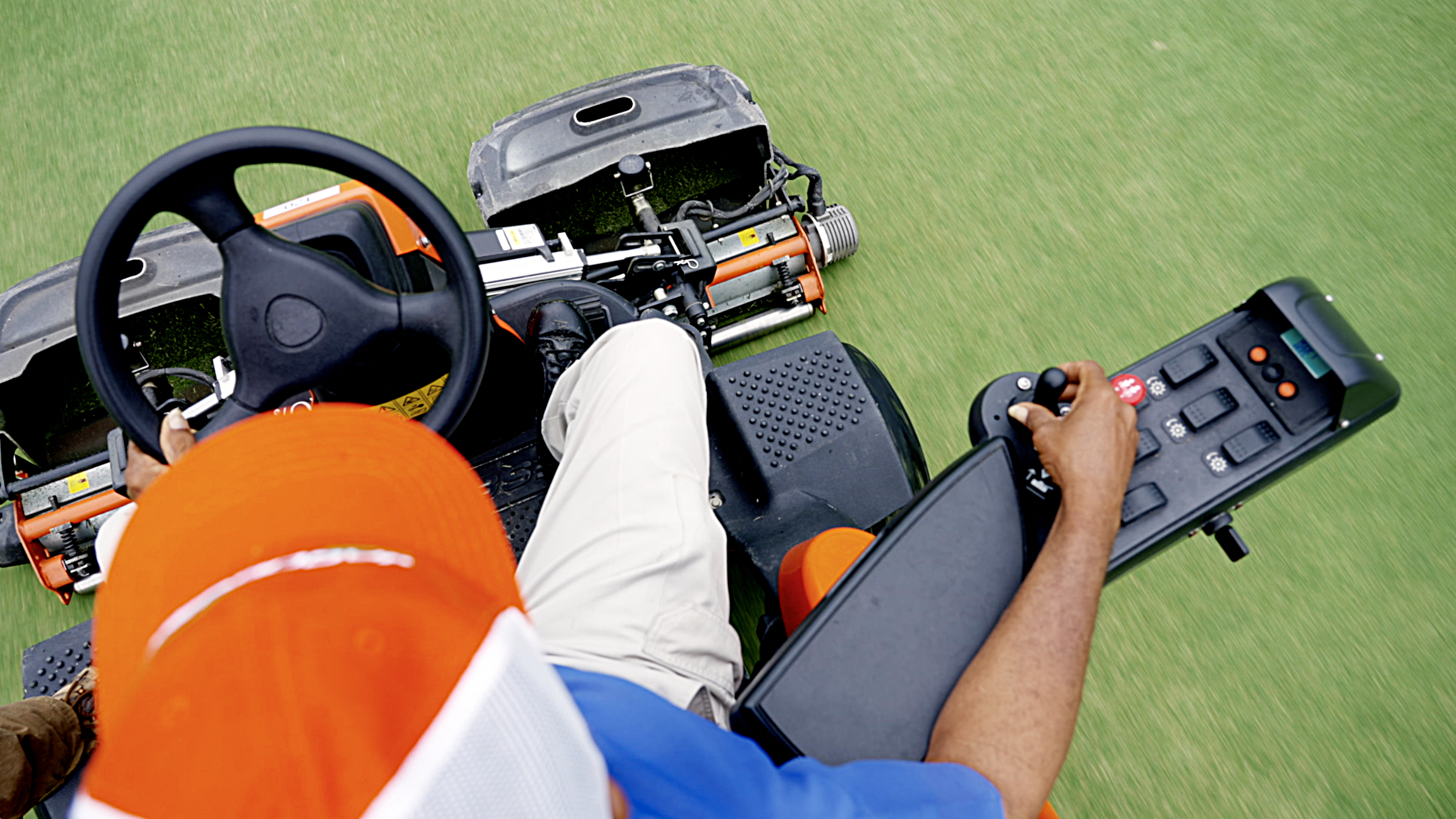

InCommand™ operator interface with on-board diagnostics, machine setup, and backlap
Regenerative braking with automatic parking brake with hill hold.
Unique independent cutting unit lift and lower system with easy access swing-out center unit.
Optional 2 or 3 wheel drive.
New cutting unit lift features a low wearing brushless DC linear actuator motor.

Power

ELiTE lithium battery & on-board high frequency 18 amp, 48V DC output, 85 – 265V AC 45 – 65 Hz input

Traction and Drive

Traction Drive: Front / 2WD – AC; 4.4 hp (3.3 kW) continuous / Rear / 3WD – PM; 3.2 hp (2.4 kW)
Reel Drive: One brushless DC motor per reel; 1.3 hp continuous

Tires, Brakes, and Steering

Tires: 18 x 10.5 x 8 4-ply
Parking Brake: Automatic electro-magnetic multi-plate
Steering: Variable ratio drive-by-wire steering with feedback control

Reels and Blades

Number and Size: Three 22 in. reels; 5 in. diameter
Number of Blades: 7, 9, 11
Cutting Frequency: 0.036 – 0.25 in. with 15 blade reel; Electronically adjustable
Overall Cutting Width: 62 in.
Height-of-Cut Range (Depending on turf condition, reel wear and bedknife installed): 0.062 – 0.438 in.
Backlapping: Standard on-board backlapping

Speed

Mowing: 0 – 5.0 mph; Electronically adjustable max speed
Transport: 0 – 9.0 mph; Electronically adjustable max speed
Reverse: 0 – 4.0 mph

Weight and Dimensions

Length with catchers on: 101 in.
Height with OPS: 79.3 in.
Overall Width: 67.7 in. with reels
Turning Circle: Inside: 20.25 in.; Outside: 144.25 in.
Approximate run time: 250 Ah lithium pack, 12.2 kW/hrs.
Weight: 1,598lb (725kg) with groomers, rear roller brushes, grass boxes and 15 blade reels,
charger and aluminum front roller brushes.

Additional information

Availability	Brochure
Manufacturer	Jacobsen
Model	Eclipse 360 Elite
Fuel Type	Electric
