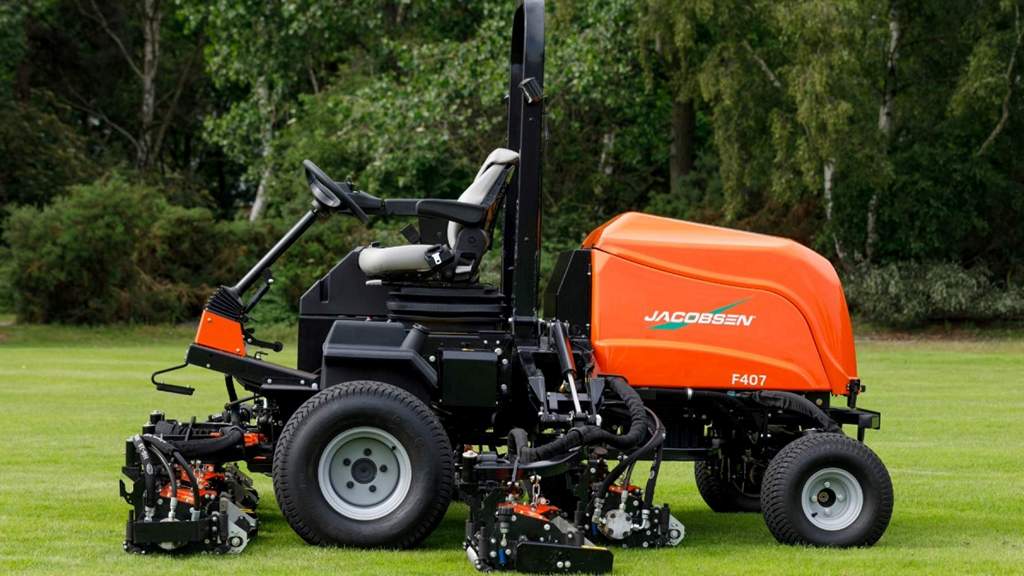

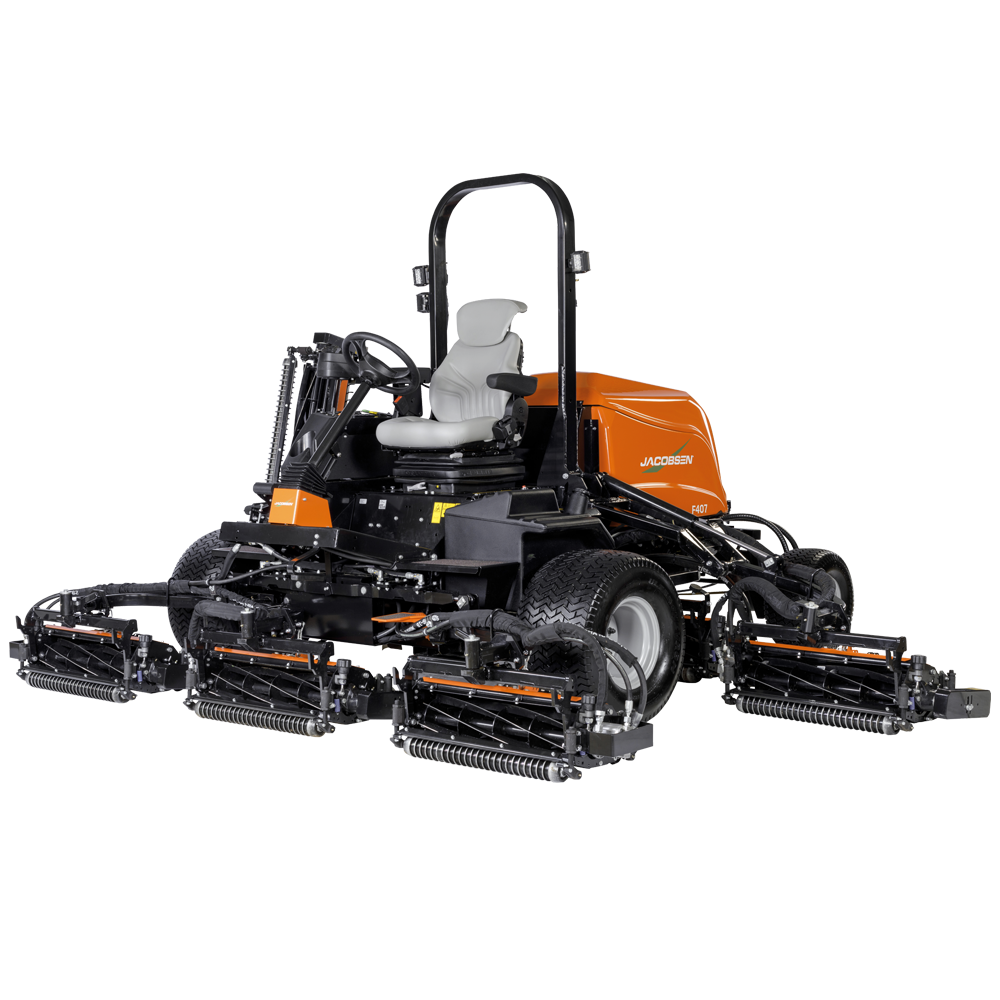

Jacobsen F407

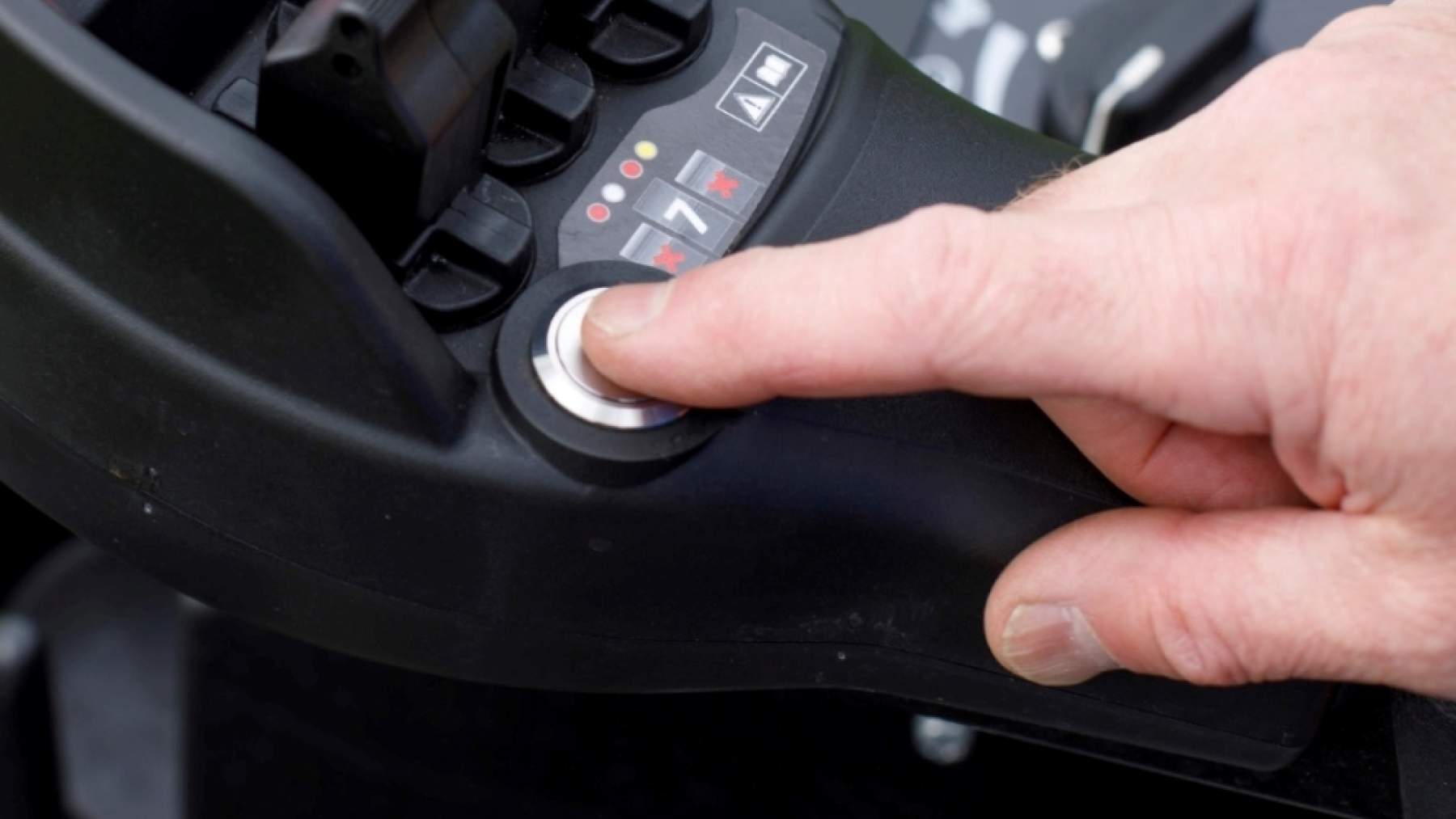

The powerful F407 was designed for high productivity and a high-quality finish. It comes complete with a 4-meter wide cutting width and seven 26” (66cm) front and rear clipping discharge units. An improved radiator pack and hood is optimized for increased airflow and the arm-rest mounted joystick control makes for simple and safe operation of all cutting unit lift and lower functions.

CUTTING UNITS 26” (66.5cm) reels, 6.5” (16.5cm) diameter floating head cutting
unit with front and rear clipping discharge
BLADE NUMBER AND SIZE 7 or 11 blade cutting units, 46/72 cuts per meter at 7.5mph (12km/h)
ROLLERS Front and rear height adjustable rollers. Front: Full width 3” (75mm) diameter grooved roller. Rear: Full width 3” (75mm) diameter plain roller
HEIGHT OF CUT ADJUSTMENT Self locking notched hand micro adjusters. Each notch giving 0.0015” (0.04 mm) of adjustment
CUTTING UNIT LIFT Wing units can be raised individually for transport or 5 unit operation

TRACTION DRIVE SureTrac™ parallel-cross-series traction system with variable displacement
hydrostatic drive; four high-torque wheel motors, 4WD in reverse.
CUTTING UNIT DRIVE Fixed displacement hydraulic motors directly coupled to cutting unit
HYDRAULIC SYSTEM 8.31 gal (37.8L) capacity; Grade of oil to A.P.I.
Classification CE/SF grades SAE 10W-30
SERVICE BRAKES Hydrostatic braking
PARKING BRAKES Fail-safe electro-hydraulic wet brakes
STEERING Hydrostatic power steering with adjustable tilt steering wheel
MOWING SPEED Selectable up to 7.5mph (12km/h)
TRANSPORT SPEED Selectable up to 8.7mph (14km/h)
REVERSE SPEED Selectable up to 4mph (6.4km/h)

WEIGHT (excluding fuel) 4149lbs (1882kg)
WEIGHT TRANSFER Variable weight transfer
LENGTH 116” (2.95m)
OVERALL HEIGHT (ROPS up) 84.6” (2.15m)
WHEELBASE 87.7” (2.05 m)
TRANSPORT WIDTH 129.5” (3.29m)
WORKING WIDTH 169.7” (4.31m)

MOWER WARRANTY 2 Years
