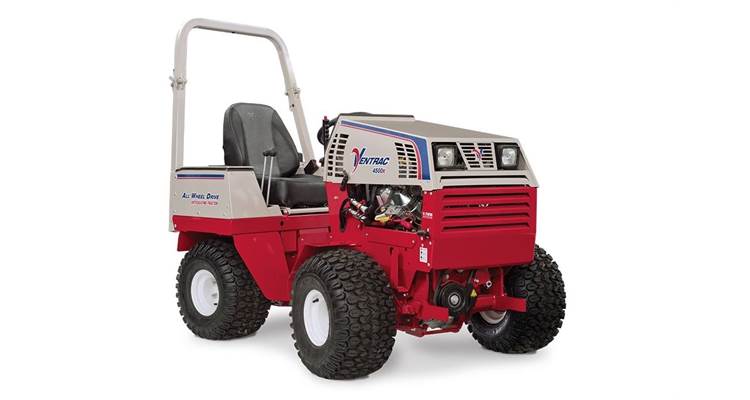

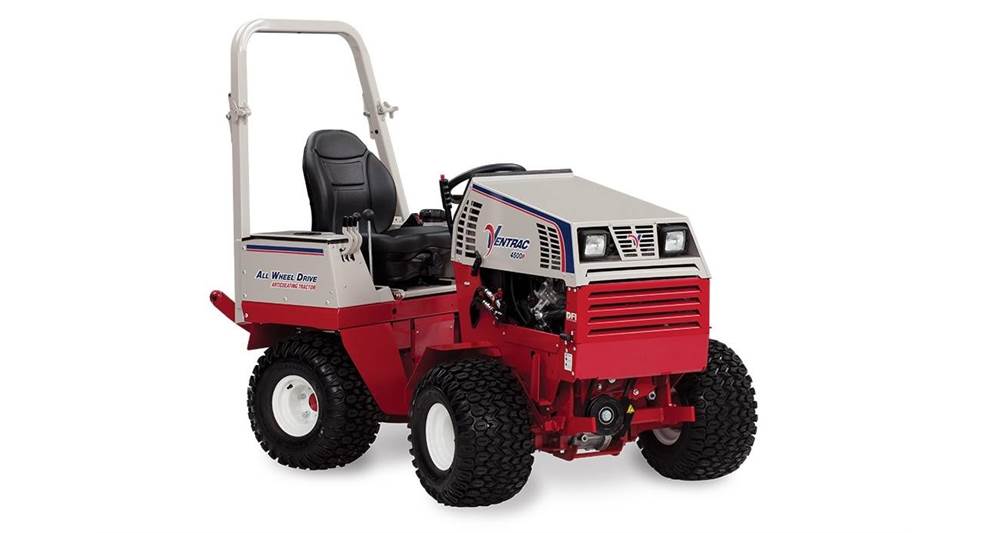

Ventrac 4500P



The Ventrac 4500P Digital Fuel Injection model was built with you in mind. From the advanced electrical system, redesigned frame, more safety and comfort features; the 4500P offers the reliable performance, astounding versatility and comfortable handling you have come to expect.

The 4500P comes equipped with the Kawasaki FD851D engine, offering multi-port digital fuel injection (DFI) for increased fuel economy as well as choke-free operation.

Like all Ventrac tractors, the 4500P utilizes All Wheel Drive traction to tackle tough terrain and power steering on the Ventrac FlexFrame to maintain a light footprint and impressive agility.

Choose from over 30 professional grade Ventrac Mount attachments to transform your Ventrac into a productivity powerhouse. This incredibly rugged and dependable machine is a wise business investment for golf courses, schools and universities, parks, street maintenance departments, commercial mowing services, contractors, wineries, farms, property owner associations, estate homes and anyone needing ONE machine to do it all.

Why DFI?
  • Fuel savings through digital fuel injection system up to 25%
  • Easier starting
  • Rated for 30 degrees continuous operation
  • Not affected by altitude
Standard Features of the Ventrac 4500P include:
  • Enclosed Muffler
  • Enhanced Weight Transfer System
  • Pre-Wired Plug and Play Wire Harness
  • Fold-Down ROPS- standard
  • Premium Comfort Seat- standard
  • Advanced Electronic Instrument Panel
  • 6 Function Warning Gauge and Alarm
  • Conveniently Located PTO Belt Tensioner
  • Onboard Diagnostic System
  • Thermostat Controlled Oil Cooler
  • Sealed Electrical System
  • Battery Disconnect Switch
  • Automotive Style Parking Brake
  • Universal PTO Switch
  • Enhanced SDLA Operator Controls
Optional Features
  • Optional Digital Slope Gauge integrated into dash
  • Optional Horn
  • 3 Tire Options -Standard All Terrain Tires, or optional Turf and Bar Tires
  • Over 10 Accessory Options including a 3-Point Hitch Accessory and 3-N-1 Adapter for towing and rear attachments
  • Sales Model: 4500P
  • Full Description: KN, 4500P Kawasaki FD851D
  • Product Type: Tractor
  • Engine Manufacturer: Kawasaki
  • Model #: FD851D DFI
  • Horsepower: 31 hp
  • Peak Torque: 47.1 ft-lbf
  • Engine Disp.: 824 cc
  • Num. of Cylinders: 2
  • Cooling: Liquid
  • Fuel Capacity: 6 gal.
  • Fuel Type: Gas
Drive System
  • Drive: AWD All Wheel Drive
  • Travel Speed – Low Range: 5 mph, 4 mph reverse
  • Travel Speed – High Range: 10 mph, 8 mph reverse
  • Overall Length: 81-1/2 in. standard hitch, ROPS up
  • Height (ROPS up): 68 in.
  • Overall Width: 48-1/2 in.
  • Height (ROPS down): 54 in.
  • Weight: 1575 lb.
  • Weight with 3Pt hitch: 1670 lb.
  • Wheelbase: 45 in.
  • All Terrain: Standard – 22×12-8
  • Turf: Standard – 22×11-10
  • Bar: Standard – 21×11-8
  • Turning Radius: 39 in.
  • Ground Clearance: 5 in.
  • Oscillation amount (@wheel): 7-1/2 in.
Accessory Options
  • 70.4100-99: KN, OPT. 3 POINT HITCH FACTORY
  • 70.4154-99: KIT, SUSPENSION SEAT 4500
  • 53.0101-99: WHEEL, ASM 21X11X8 BAR-FACTORY
  • 53.0137-99: WHEEL, ASM 22X11X10 TURF FACTRY
